NETGEAR AXM764 10GBASE-LR Lite SFP+ Transceiver – 1310 nm Single-Mode LC, up to 2 km, for NETGEAR Switches
Brand:
NetGear
NETGEAR AXM764 10GBASE-LR Lite SFP+ Transceiver – 1310 nm Single-Mode LC, up to 2 km, for NETGEAR Switches
€523.36 inc. VAT
AXM764-10000S
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
NETGEAR AXM764 – 10GBASE-LR Lite SFP+ Transceiver for 2 km Single-Mode Links
10G LR Lite1310 nm · SMFUp to 2 kmDuplex LC

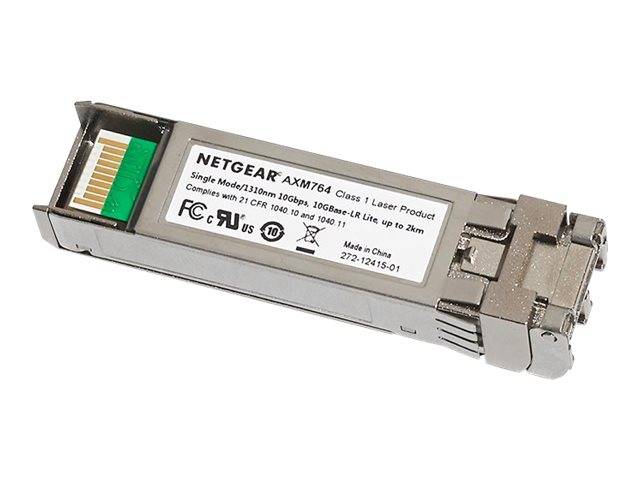

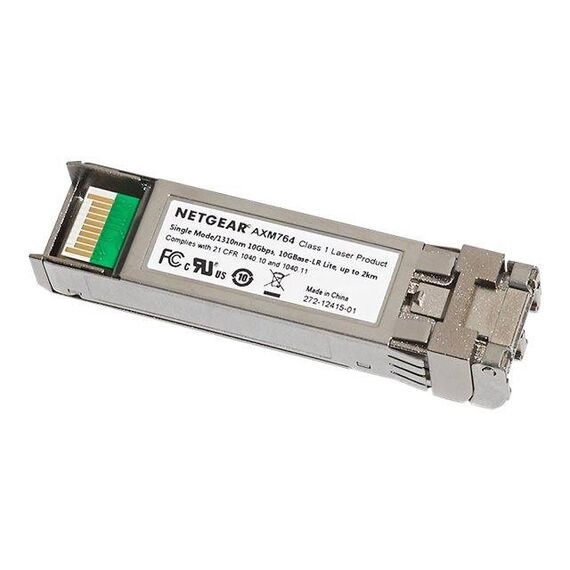

The NETGEAR AXM764 (AXM764-10000S) is a 10 Gigabit SFP+ transceiver for single-mode fibre links of up to 2 km, using NETGEAR's LR Lite optics at 1310 nm with a duplex LC connector. It is meant for campus and building-to-building 10G links on NETGEAR managed switches where multimode is too short but the full 10 km of standard 10GBASE-LR is not needed.
NETGEAR notes that LR Lite is not an IEEE standard in its own right; the AXM764 is designed to interoperate with NETGEAR's own 10GBASE-LR module (AXM762) on links up to 2 km. Power draw is a modest 1.1 W and the module is hot-swappable.
Before you order: Maximum reach is 2 km. For longer single-mode runs, use the AXM762 10GBASE-LR (10 km). NETGEAR lists the AXM764 for the SFP+ ports of M5300, M6100, M7100 and M7300 series switches and select Smart and Plus switches — check that your model is on NETGEAR's list.
What's in the Box
- 1 × NETGEAR AXM764 10G LR Lite SFP+ transceiver (AXM764-10000S)
- Dust plug on the optical port
- No fibre patch cords included
What It Means in Practice
- 10G link up to 2 km over 9/125 µm single-mode fibre between buildings or floors.
- Interoperates with the NETGEAR AXM762 (10GBASE-LR) on the far end within 2 km.
- Hot-swappable; 1.1 W maximum power.
- Single-mode LC/UPC patch cords required (not included).
What Will Not Work
- Will not reach beyond 2 km — use the AXM762 for up to 10 km.
- Will not work over multimode fibre — use the AXM761 SR module for multimode.
- Not a 1G optic — will not link to 1000BASE-LX modules.
- Not guaranteed in non-NETGEAR switches; NETGEAR lists only its own switch families.
Key Features
2 km single-mode
10G over 9/125 µm SMF at 1310 nm.
Works with AXM762
Interoperates with NETGEAR 10GBASE-LR within 2 km.
Low power
1.1 W maximum.
Hot-swappable
RoHS, Class 1 laser, FCC Class A.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
LR Lite saves money over full LR when your single-mode runs are under 2 km — typical on a campus. If there is any chance of a longer route later, the AXM762 (10 km) is the safer buy. Pair it with NETGEAR managed switches that have SFP+ uplinks.
✓ Buy it if you need a 10G single-mode link up to 2 km between NETGEAR switches listed by NETGEAR for this optic.
✕ Skip it if the run is over 2 km (AXM762) or the fibre is multimode (AXM761).
→ Also consider NETGEAR AXM762 10GBASE-LR 10 km and AXM761 10GBASE-SR multimode.
Send us your NETGEAR switch model and the fibre length and we will confirm the right optic before you order.
Features - NetGear - AXM764-10000S
More Details
Product Code
0713948
EAN Code
0606449108767
Manufacturer
NetGear
