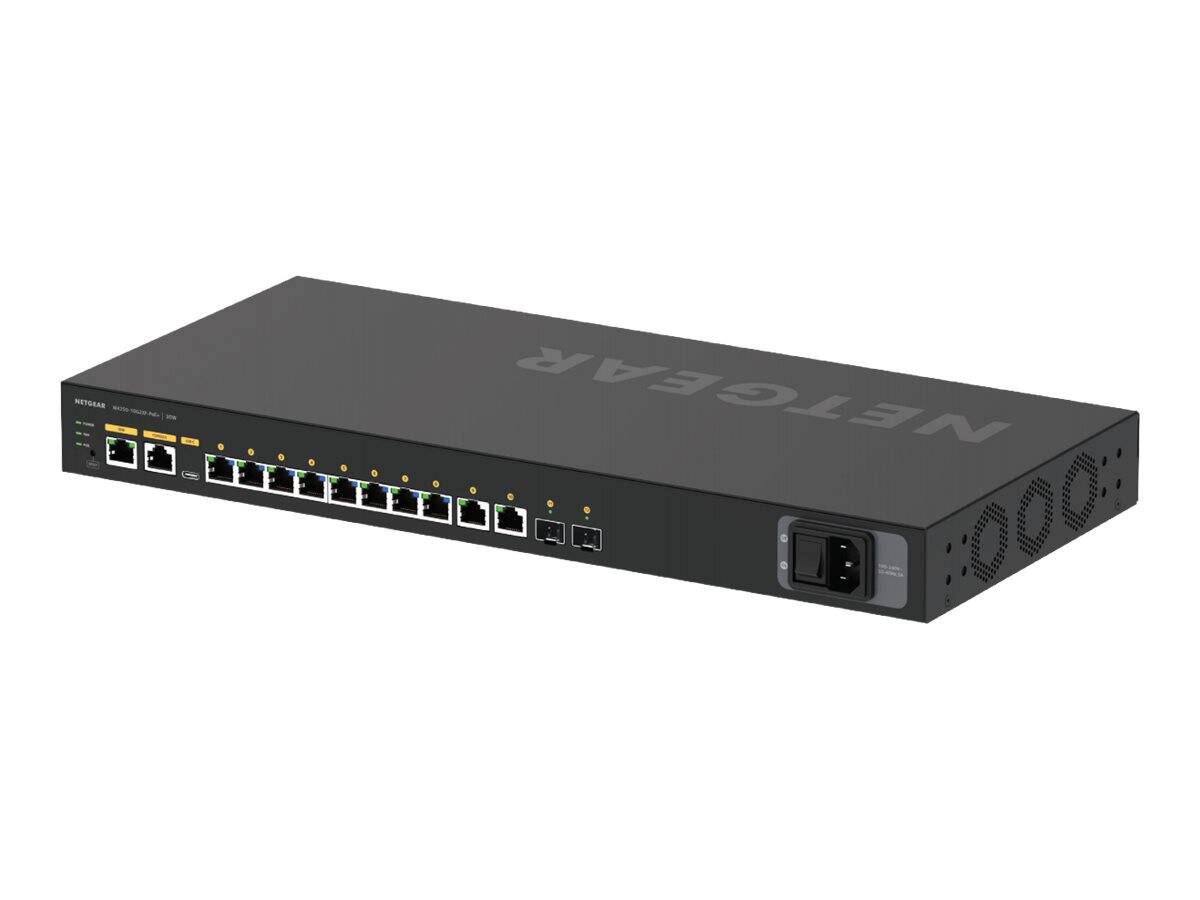

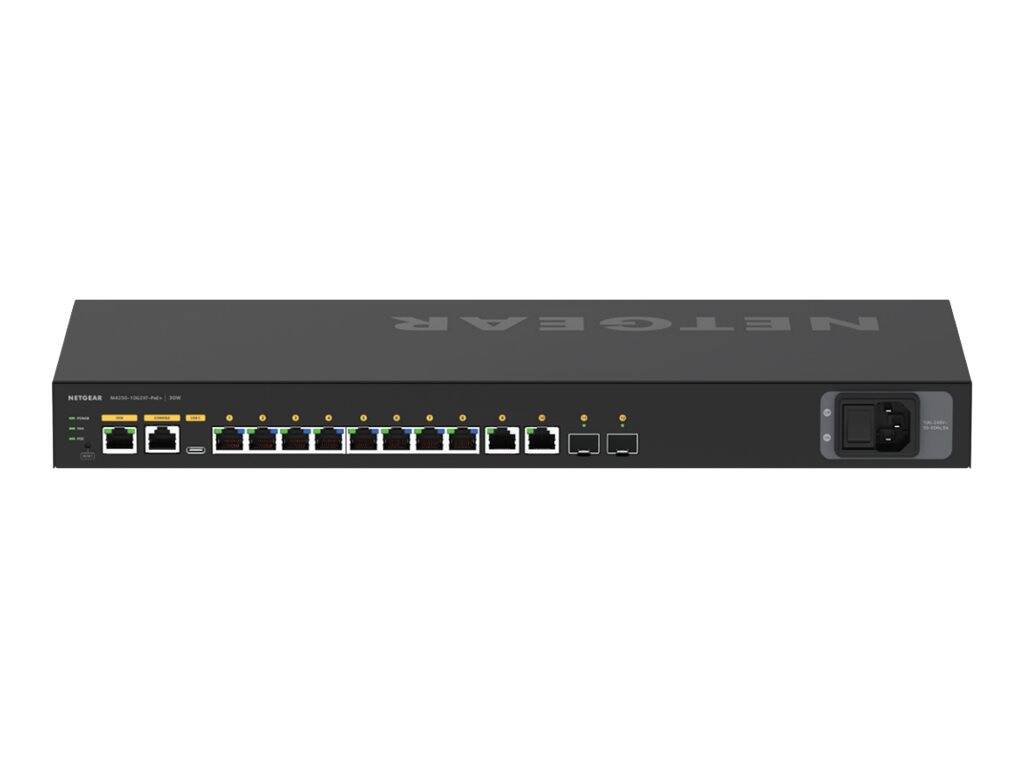

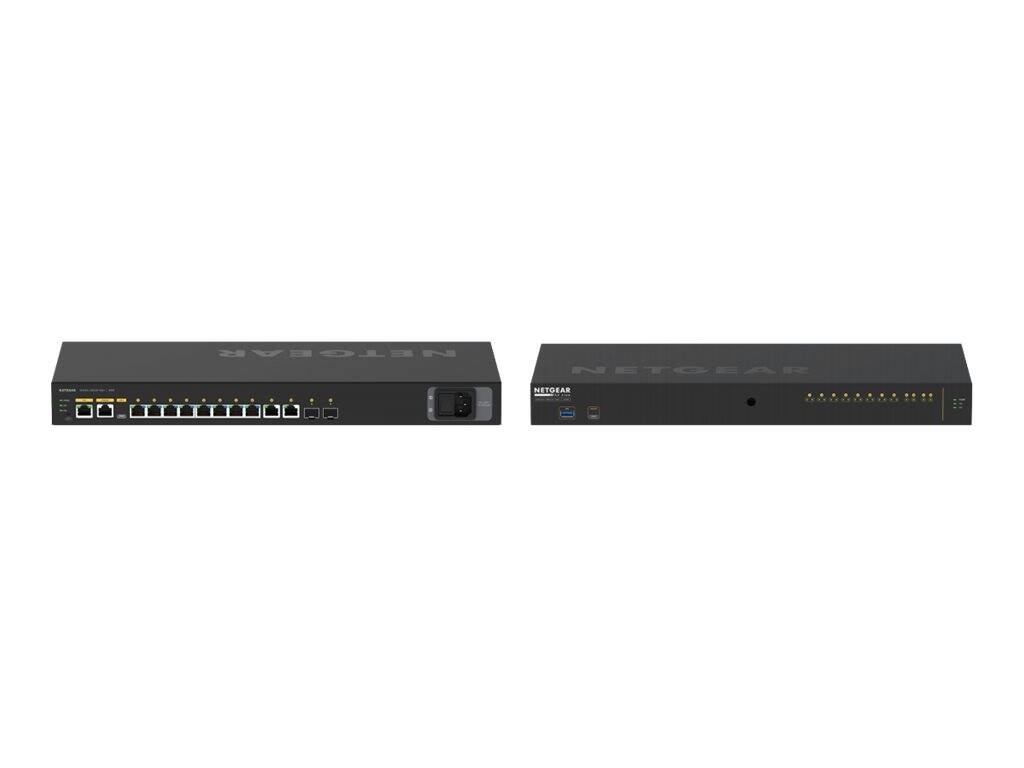

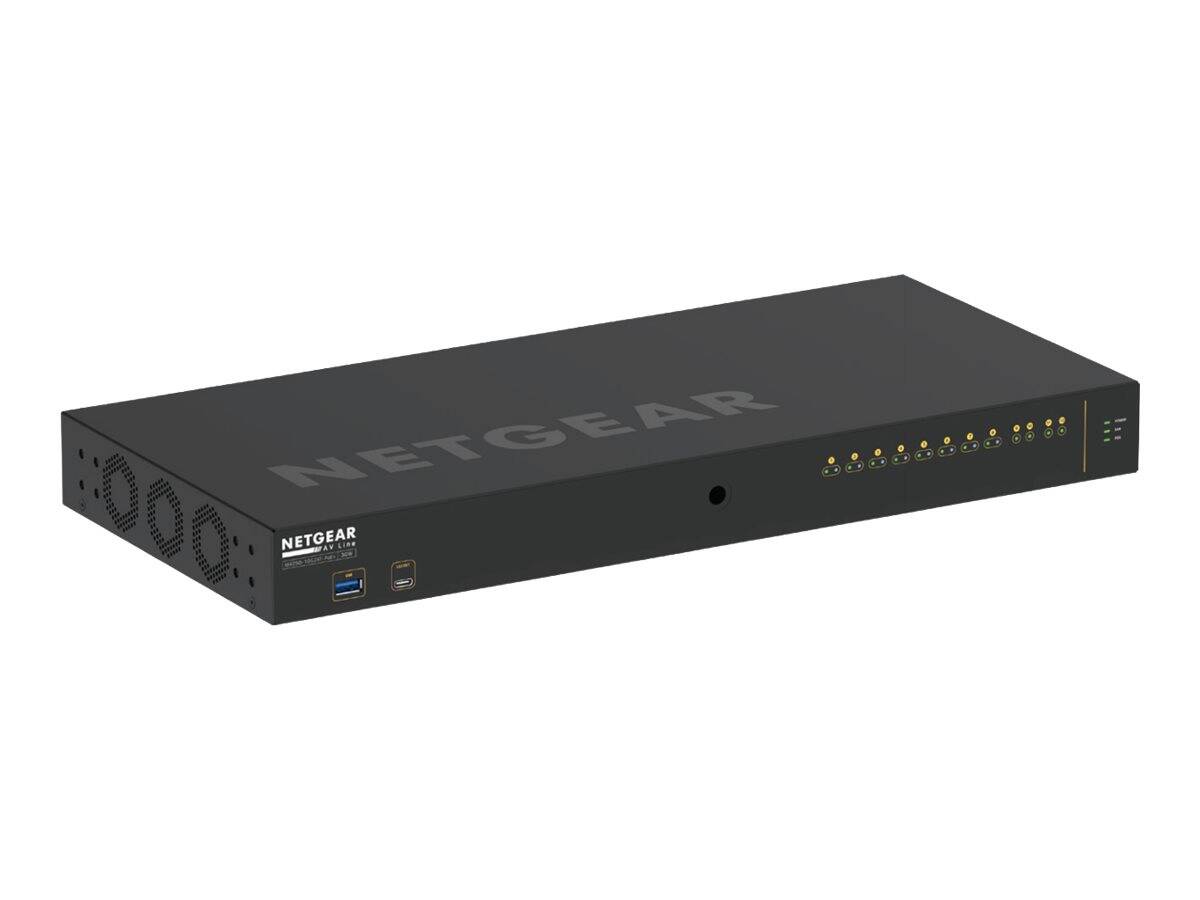

NETGEAR AV Line M4250-10G2XF-PoE+ - Switch - L3 - Managed - 10 x 10/100/1000 (8 PoE+) + 2 x 10 Gigabit SFP+ - side to side airflow - rack-mountable - PoE+ (240 W) | GSM4212PX-100EUS
Please sign in so that we can notify you about a reply
Special Fetures
- Dedicated AV web-based GUI interface for more specific AV installations
- Color-based AV profiles can be applied to the different ports
- Dante, Q-SYS, AES67 and AVB audio profiles
- NVX, SVSI, Q-SYS, NDI and Dante video profiles
- Audio / video / control mixed profiles
- Automatic switch interconnect with NETGEAR IGMP Plus
- Common Layer 2 and Layer 3 switching engine
- Built-in IT web GUI, console, Telnet and SSH
- 8-port 10 / 100 / 1000 Base-T (RJ-45) PoE+ with 240 W PoE budget
- 2-port 10 / 100 / 1000 Base-T (RJ-45)
- 2-port 1000 / 10 GBase-X (SFP+)
- 60 Gbps non-blocking fabric across 12 ports
- Out-of-band 1G Ethernet management port
- USB-C and RJ-45 RS232 console ports and USB-A storage port
- Rack-mounting standard brackets
Product Specification
| Device Type | Switch - 12 ports - L3 - Managed |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 10 x 10/100/1000 (8 PoE+) + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Switching capacity: 60 Gbps ¦ Firewall throughput (64-byte packet size): 44.64 Mpps ¦ Latency (1 Gbps): < 2.14 µs ¦ Latency (10 Gbps): < 0.84 µs |
| Capacity | VLANs supported: 4093 ¦ ARP entries: 4000 ¦ Multicast entries (IPv4): 512 ¦ Multicast entries (IPv6): 128 ¦ Jumbo frame size: up to 12000 ¦ IGMP multicast groups: 2000 ¦ MSTP instances: 16 ¦ PVST instances: 32 |
| MAC Address Table Size | 16K entries |
| Routing Protocol | RIP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, MLDv2 |
| Remote Management Protocol | RMON 1, RMON 2, SNMP, RMON 9, Telnet, HTTPS, SSH, CLI, TACACS+, RADIUS |
| Encryption Algorithm | SSL 3.0, TLS 1.2 |
| Features | VLAN support, DoS attack prevention, sFlow, Spanning Tree Protocol (STP) support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), 16MB packet buffer, IP source guard, Bridge protocol data unit (BPDU), GARP Multicast Registration Protocol (GMRP), Spanning-tree Root Guard (STRG), policy based routing, Authentication, Authorization and Accounting (AAA), LLDP-MED, Private VLAN, Protocol Independent Multicast (PIM), Rapid Reconfiguration of Spanning Tree (RSTP), Link Aggregation Group (LAG) |
| Compliant Standards | IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qat, IEEE 802.1Qav |
| Processor | X ARM A9: 1.25 GHz |
| RAM | 2 GB |
| Flash Memory | 256 MB |
| Expansion / Connectivity | |
| Interfaces | 10 x 10/100/1000 Base-T RJ-45 8 ports (PoE+) ¦ 2 x 10GBase-X SFP+ ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x console RJ-45 ¦ 1 x USB Type A ¦ 1 x console (USB) Type C |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Voltage Required | AC 110 V |
| Power Consumption Operational | 25 Watt |
| Power Consumption Stand by | 12.96 Watt |
| Miscellaneous | |
| Included Accessories | Mounting brackets, foot pad set, 2 x SFP slot caps |
| Cables Included | Console cable ¦ USB-C to USB-A cable |
| Rack Mounting Kit | Included |
| Compliant Standards | CCC, EN 61000-3-3:2013, EN 55024:2010, YD/T993-1998, IEC60950/EN60950, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, GB 4943.1-2011, EN 55032:2012+AC:2013 Class A, CNS 14336-1, IEEE 1588, ICES-003:2016 issue 6 Class A, CISPR 32:2012, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, AN/NZS 60950.1:2015, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, GB/T9254-2008 Class A, ANSI C63.4:2014 |
| Localisation | Europe |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 20 cm |
| Height | 4.32 cm |
| Weight | 2.9 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 95% (non-condensing) |
Features - NetGear - GSM4212PX-100EUS
More Details
Product Code
0714772
EAN Code
0606449149586
Manufacturer
NetGear
