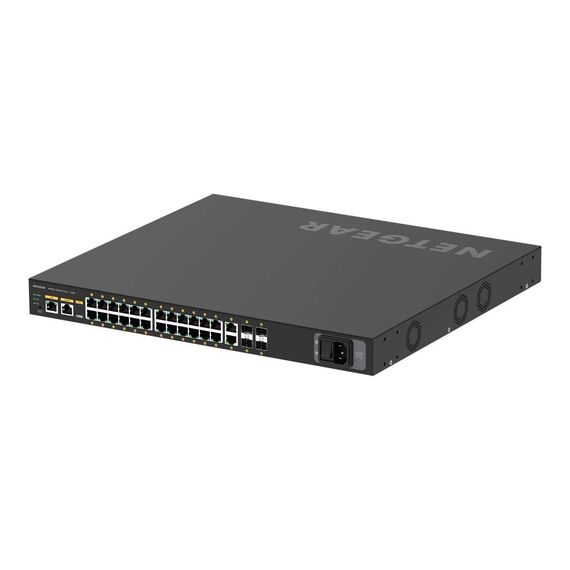

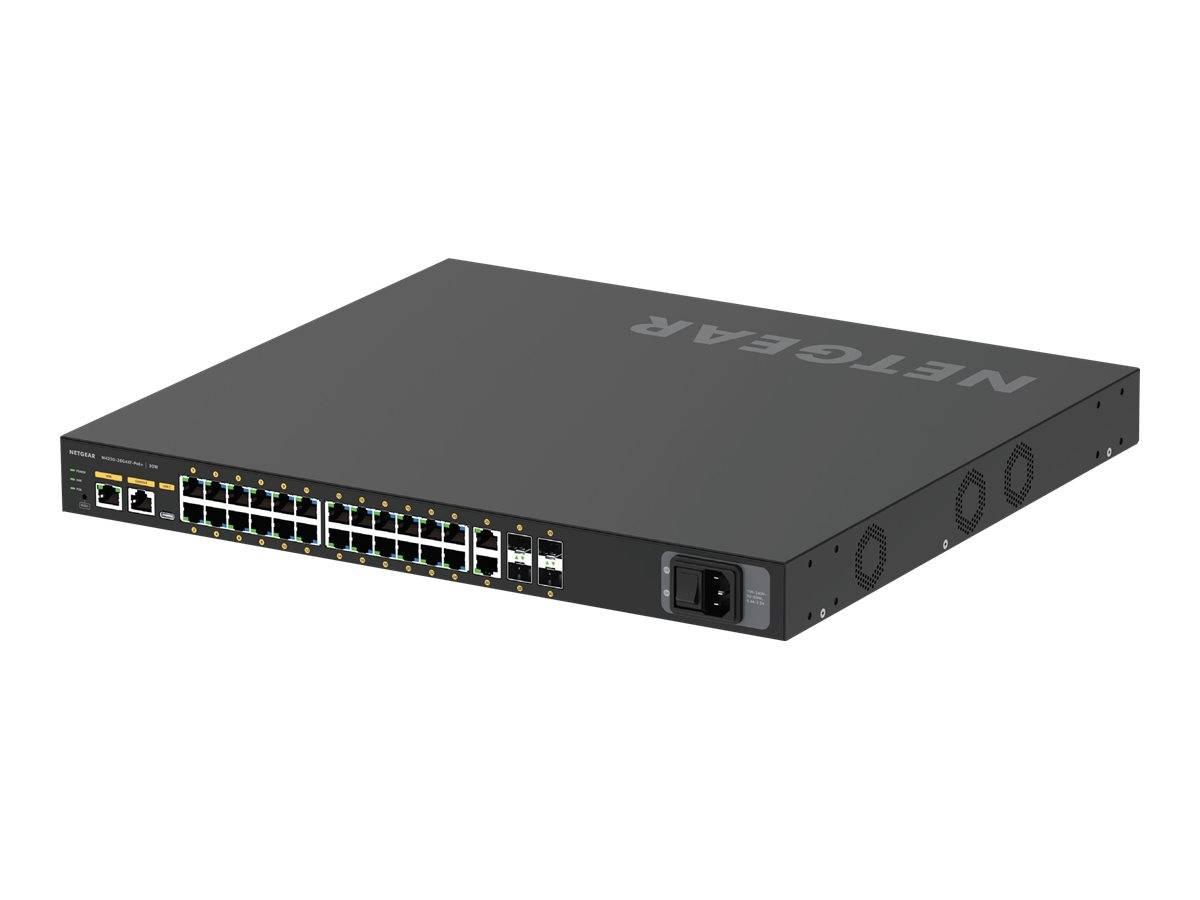

NETGEAR AV Line M4250-26G4XF-PoE+ / Switch / L3 / Managed / 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ / side to side airflow / rack-mountable / PoE+ (480 W) | GSM4230PX-100EUS
NETGEAR AV Line M4250-26G4XF-PoE+ / Switch / L3 / Managed / 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ / side to side airflow / rack-mountable / PoE+ (480 W) | GSM4230PX-100EUS
€2864.96 inc. VAT
GSM4230PX-100EUS
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Uplink options include 1G for audio installations or standalone video installations as well as 10G uplinks for larger scale video deployments
- Designed for a clean integration with traditional, rack-mounted, AV equipment
- The M4250 switches come with a sleek, black display panel with status in front and all cabling plus additional status in the back
- Reversed mounting is possible when ports are desired on the front of the rack
- A second pair of rackmount ears allows the switches to be mounted recessed by 2-inches to allow for the cabling
- Software-controlled fan adjustments enable the fans to be turned off when ambient temperature and PoE loads are appropriate for a totally fanless operation
- Threaded holes on the bottom (4xM5 for 50x100mm VESA) and in front (1xM10 for clamps) allow for universal mounting options outside the rack as well
Product Specification
| Device Type | Switch - 24 ports - L3 - Managed |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 480 W |
| Performance | Switching capacity: 132 Gbps ¦ Firewall throughput (64-byte packet size): 98.21 Mpps ¦ 1 Gbps fibre latency (64-byte packets): 1.13 µs ¦ 1 Gbps fibre latency (512-byte packets): 1.123 µs ¦ 1 Gbps fibre latency (1024-byte packets): 1.119 µs ¦ 1 Gbps fibre latency (1518-byte packets): 1.120 µs ¦ 1 Gbps copper latency (512-byte packets): 2.28 µs ¦ 1 Gbps copper latency (1024-byte packets): 2.282 µs ¦ 1 Gbps copper latency (1518-byte packets): 2.27 µs ¦ 1 Gbps copper latency (64-byte packets): 2.288 µs ¦ 10 Gbps fibre latency (64-byte packets): 0.834 µs ¦ 10 Gbps fibre latency (512-byte packets): 0.818 µs ¦ 10 Gbps fibre latency (1024-byte packets): 0.817 µs ¦ 10 Gbps fibre latency (1518-byte packets): 0.816 µs |
| Capacity | ARP entries: 4000 ¦ NDP entries: 4000 ¦ Packet buffer size: 16 MB ¦ VLANs supported: 4093 ¦ IGMP multicast groups: 4000 ¦ QoS hardware queues: 8 ¦ IPv4 routes (static): 64 ¦ IPv6 routes (static): 64 ¦ RIP application route scaling (IPv4): 32 ¦ IPv4 groups (Multicast): 512 ¦ IPv6 groups (Multicast): 128 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12KB |
| Routing Protocol | RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, PIM-SMv6, PIM-DMv6, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, SFTP, ICMP, DHCP, TACACS+, RADIUS |
| Encryption Algorithm | AES, TLS 1.0, SSL 3.0, TLS 1.2 |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Flow control, auto-sensing per device, BOOTP support, IGMP snooping, port mirroring, DiffServ support, store and forward, MAC address filtering, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, SNTP support, Weighted Random Early Detection (WRED), sFlow, DHCP snooping, Quality of Service (QoS), DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), LACP support, LLDP support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Multicast VLAN Registration (MVR), dual firmware images, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Strict Priority (SP), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), IGMP proxy, 802.1x authentication, Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, cable test, MLD proxy, IP source guard, GARP Multicast Registration Protocol (GMRP), Source-Specific Multicast (SSM), DNS client, Voice VLAN, LLDP-MED, RA guard, STP BPDU Guard, STP loop guard, Denial of Service (DoS) protection, Protocol Independent Multicast (PIM), Audio Video Bridging (AVB), MAC Access Bypass (MAB), Link Aggregation Group (LAG), multiple tag protocol identifiers (TPID), IPTV support, Management Access Control and Administration List (MACAL), Industry Standard Discovery Protocol (ISDP), Rapid PVST+ (RPVST+), Multiple Registration Protocol (MRP), STP BPDU Filtering, STP BPDU Flooding, MGMD Snooping, Any Source Multicast (ASM) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Processor | X ARM: 1.8 GHz |
| RAM | 2 GB |
| Flash Memory | 256 MB |
| Status Indicators | Port status, power, fan, PoE max |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 2 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1000Base-X/10GBase-X SFP+ ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x management (RS-232) RJ-45 ¦ 1 x USB-C ¦ 1 x USB Type A |
| Power | Power |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Power Consumption Operational | 614 Watt |
| Power Consumption Stand by | 33.9 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rubber feet, rubber caps |
| Cables Included | 1 x console cable ¦ 1 x USB-C to USB-A cable |
| Rack Mounting Kit | Included |
| MTBF | 509,057 hours |
| Compliant Standards | cUL, EN 60950, UL 1950, CB, CCC, EN 60950-1, GB 4943, RCM, EN 61000-3-3:2013, EN 55024:2010, EN 61000-3-2:2014, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 55032:2012+AC:2013 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, IEC 950, AS/NZS 60950-1:2015, ICES-003:2016 issue 6 Class A, CISPR 32:2012, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011+A2:2013, ANSI C63.4:2014 |
| Localisation | Europe |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 40 cm |
| Height | 4.32 cm |
| Weight | 5.453 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime ¦ Limited warranty - technical support - 90 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 95% (non-condensing) |
Features - NetGear - GSM4230PX-100EUS
General
24-Port
More Details
Product Code
CA81333
EAN Code
0606449151619
Manufacturer
NetGear
