NETGEAR AV Line M4250-40G8XF-PoE+ GSM4248PX-100EUS - 48-Port Managed L3 Switch

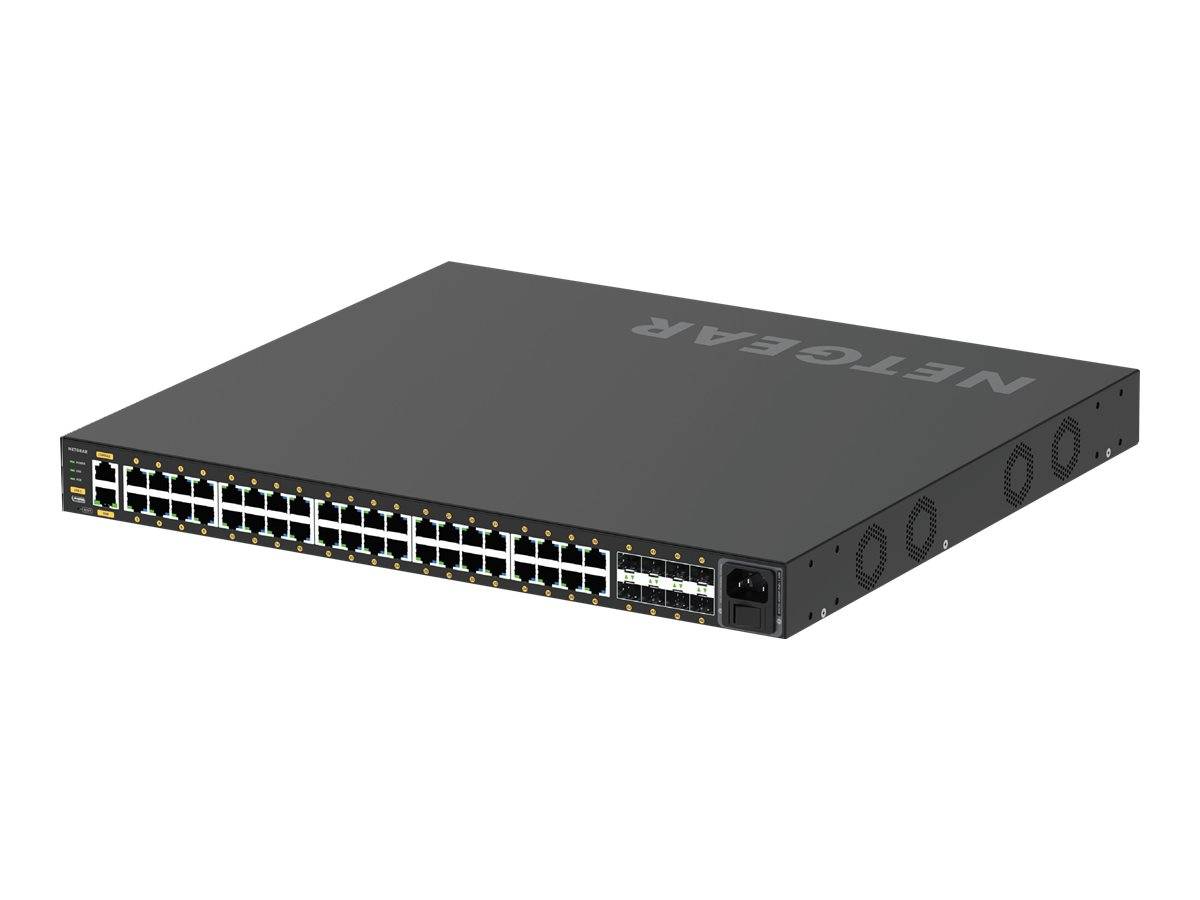

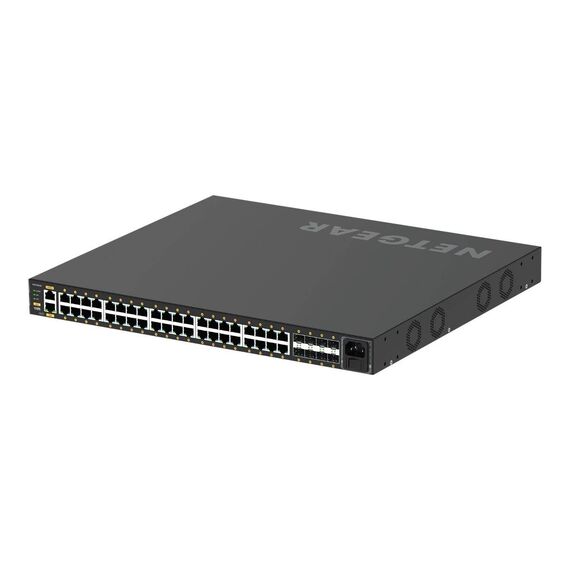

The NETGEAR AV Line M4250-40G8XF-PoE+ is a managed L3 Gigabit Ethernet switch for rack-mounted AV and network deployments. It combines 40 PoE+ RJ-45 ports, 8 SFP+ uplinks, a 1U rack-mountable enclosure and an internal power supply, with AV-focused features and front-panel status indication.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Switch - 40 ports - L3 - Managed |
| Switch Type | Managed |
| Switch Layer | L2/L3/L4 |
| Ports | 40 x 10/100/1000 (PoE+) + 8 x 1 Gigabit / 10 Gigabit SFP+ |
| Basic Switching RJ-45 Ethernet Ports | 48 |
| Basic Switching RJ-45 Ethernet Ports Type | Gigabit Ethernet (10/100/1000) |
| SFP+ Module Slots | 8 |
| Power over Ethernet | Yes |
| PoE+ Ports | 40 |
| PoE Budget | 960 W |
| Switching Capacity | 240 Gbit/s |
| Processor | X ARM: 1.8 GHz |
| RAM | 2 GB |
| Flash Memory | 256 MB |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12KB |
| Capacity | ARP entries: 4000 | NDP entries: 4000 | Packet buffer size: 32 MB | VLANs supported: 4093 | IGMP multicast groups: 4000 | QoS hardware queues: 8 | IPv4 routes (static): 64 | IPv6 routes (static): 64 | RIP application route scaling (IPv4): 32 | IPv4 groups (Multicast): 512 | IPv6 groups (Multicast): 128 |
| Routing Protocol | RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, PIM-SMv6, PIM-DMv6, MSTP, RSTP, STP |
| Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, SFTP, ICMP, DHCP, TACACS+, RADIUS |
| Security | AES | TLS 1.0 | SSL 3.0 | TLS 1.2 |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Flow control, auto-sensing per device, BOOTP support, IGMP snooping, port mirroring, DiffServ support, store and forward, MAC address filtering, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, SNTP support, WRED, sFlow, DHCP snooping, QoS, DHCP server, MLD snooping, DAI, STP Root Guard, UDLD, LACP support, LLDP support, DHCP relay, Port Security, RSPAN, Energy Efficient Ethernet, MVR, dual firmware images, MVRP, NDP, CoS, SP, GARP, GVRP, IGMP proxy, 802.1x authentication, PTP, DSCP support, cable test, MLD proxy, IP source guard, GMRP, SSM, DNS client, Voice VLAN, LLDP-MED, RA guard, STP BPDU Guard, STP loop guard, DoS protection, PIM, AVB, MAB, LAG, TPID, IPTV support, MACAL, ISDP, RPVST+, MRP, STP BPDU Filtering, STP BPDU Flooding, MGMD Snooping, ASM |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Status Indicators | Port status, power, fan, PoE max |
| Interfaces | 40 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W | 8 x 1000Base-X/10GBase-X SFP+ | 1 x management (Gigabit LAN) RJ-45 | 1 x management (RS-232) RJ-45 | 1 x USB-C | 1 x USB Type A | 40 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 8 x 1000Base-X/10GBase-X SFP+ ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x management (RS-232) RJ-45 ¦ 1 x USB-C ¦ 1 x USB Type A |
| Power | Internal power supply |
| Power Consumption Operational | 1197 Watt |
| Power Consumption Stand by | 74.5 Watt |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Rack Mounting Kit | Included |
| Included Accessories | Rubber feet, rubber caps |
| Cables Included | 1 x console cable | 1 x USB-C to USB-A cable |
| Width | 440 mm |
| Depth | 43.2 mm |
| Height | 400 mm |
| Weight | 6.31 kg |
| Localisation | Europe |
| Service & Support | Limited warranty - lifetime | Limited warranty - technical support - 90 days |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 95% (non-condensing) |
| Manufacturer ID | GSM4248PX-100EUS |
| EAN/UPC | 0606449151732 |
| Package Contents | Rubber feet, rubber caps |
| SKU / EAN | GSM4248PX-100EUS | 0606449151732 |
SINGULAR RECOMMENDS
For who
For AV integrators and network installers who need a managed PoE+ switch with 40 copper ports, SFP+ uplinks and rack-friendly AV positioning.
Real reason to buy it
A strong fit for rack-mounted AV setups: 40 PoE+ ports, 8 SFP+ uplinks, 960W PoE budget and NETGEAR AV Line design details.
Know before
This is a managed L3/L2/L4 switch with a 1U rack-mountable, side-to-side airflow enclosure. It includes an internal power supply, rack kit and cable accessories, and the warranty includes lifetime coverage with 90 days of technical support.
