NETGEAR Smart MS510TXUP - Switch - L3 Lite - smart - 4 x 100/1000/2.5G (PoE++) + 4 x 100/1000/2.5/5/10G (PoE++) + 2 x 10 Gigabit SFP+ (uplink) - desktop, rack-mountable - PoE++ (295 W) | MS510TXUP-100EUS

NETGEAR Smart MS510TXUP - Switch - L3 Lite - s | MS510TXUP-100EUS

Description
Features
Reviews

Special Fetures

Connect and power your WAX610 with MS510TXUP
Manage all devices from a single dashboard with NETGEAR Insight Powerful Connectivity and Security
Advanced VLAN support for better network segmentation
L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
Advanced per port PoE controls for remote power management of PoE powered devices including operation scheduling
Advanced QoS (Quality of Service) for traffic prioritization including portbased, 802.1p and L2/L3/L4 DSCPbased
Auto "denial-of-service" (DoS) prevention
IGMP Snooping and Querier for multicast optimization
Egress Rate limiting and priority queuing for better bandwidth allocation
Port mirroring for network monitoring
Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
IPv6 management: IPv6 QoS, IPv6 ACL, IPv6 Multicast, and static and dynamic IPv6 address assignment
Cable test to troubleshoot connection issues
Easy-to-use Web browser-based management GUI available in English, German and Japanese
SNMP v1, v2c, v3 and RMON remote monitoring

Product Specification

Device Type	Switch - 8 ports - L3 Lite - smart
Enclosure Type	Desktop, rack-mountable
Ports	4 x 100/1000/2.5G (PoE++) + 4 x 100/1000/2.5/5/10G (PoE++) + 2 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)	PoE++
PoE Budget	295 W
Performance	Fabric throughput: 140 Gbps ¦ Forwarding rate (64-byte packets): 14.8 Mpps ¦ 2.5 Gbps copper latency (64-byte packets): 5.903 µs ¦ 2.5 Gbps copper latency (1518-byte packets): 6.040 µs ¦ 2.5 Gbps copper latency (9216-byte packets): 6.079 µs ¦ 10 Gbps copper latency (64-byte packets): 2.420 µs ¦ 10 Gbps copper latency (1518-byte packets): 2.501 µs ¦ 10 Gbps copper latency (9216-byte packets): 2.499 µs ¦ 10 Gbps fibre latency (64-byte packets): 1.257 µs ¦ 10 Gbps fibre latency (1518-byte packets): 1.337 µs ¦ 10 Gbps fibre latency (9216-byte packets): 1.348 µs
Capacity	Packet buffer size: 2 MB ¦ ACL entries (ingress): 100 ¦ VLANs supported: 256 ¦ IGMP groups: 256 ¦ Priority queues: 8 ¦ DHCP snooping entries: 256
MAC Address Table Size	32000 entries
Jumbo Frame Support	10KB
Routing Protocol	IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, IPv6, RSTP, TACACS+, RADIUS
Encryption Algorithm	TLS 1.2
Authentication Method	RADIUS, TACACS+, Extensible Authentication Protocol (EAP)
Features	Flow control, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Access Control List (ACL) support, LLDP support, Link Aggregation Control Protocol (LACP), DHCP client, Dynamic VLAN Support (GVRP), dual firmware images, loop prevention, Strict Priority (SP), 802.1x authentication, cloud managed, VoIP support, DiffServ Code Point (DSCP) support, 3 fans, cable test, Bridge protocol data unit (BPDU), IGMP querier, DNS client, Voice VLAN, LLDP-MED, Guest VLAN, User Datagram Protocol (UDP), protected ports, Zero-touch provisioning (ZTP), Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), loopback detection, egress rate limiting, block unknown multicast, Advanced QoS, Unknown Storm Control, Extensible Authentication Protocol over LAN (EAPOL)
Compliant Standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az, UPnP
Processor	: 1 GHz
RAM	256 MB
Flash Memory	64 MB

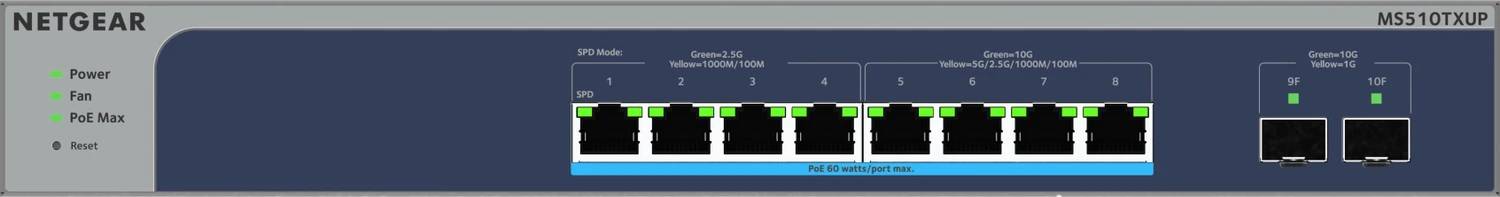

Status Indicators	Power, fan, link/activity/speed, PoE max
Expansion / Connectivity
Interfaces	4 x 100/1000/2.5G RJ-45 PoE++ - 60 W ¦ 4 x 100/1000/2.5G/5G/10G RJ-45 PoE++ - 60 W ¦ 2 x 10GBase-X SFP+ uplink
Power
Power Device	Internal power supply
Installed Qty	1
Power Consumption Operational	380 Watt
Miscellaneous
Included Accessories	Rubber feet
Rack Mounting Kit	Included
MTBF	848,553 hours
Localisation	Europe
Dimensions & Weight
Width	33 cm
Depth	20.6 cm
Height	4.3 cm
Weight	2.51 kg
Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	50 °C
Humidity Range Operating	90% (non-condensing)
Min Storage Temperature	-20 °C
Max Storage Temperature	70 °C
Humidity Range Storage	95% (non-condensing)
