NETGEAR ProSafe AXM761 / SFP+ transceiver module / 10 GigE / 10GBase-SR / up to 300 m / for NETGEAR M4300-28G-PoE+ | AXM761-10000S
Description

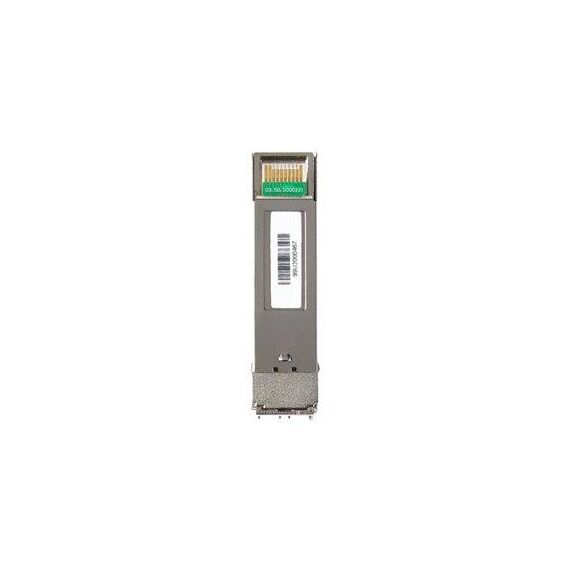

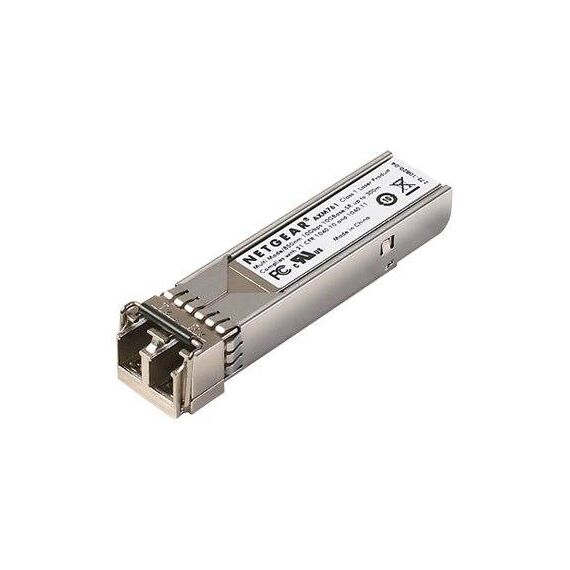

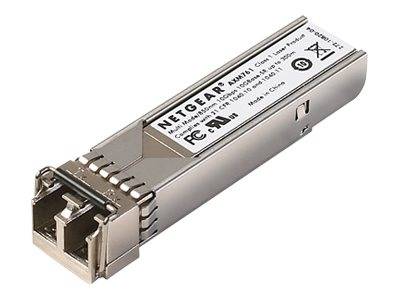

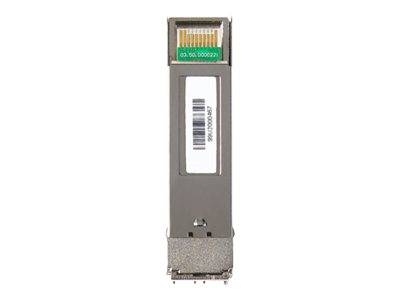

This GBIC is built to insert into any one of the two built-in 10 GE SFP+ interfaces of GSM7328Sv2 and GSM7352Sv2, and into the 10 GE SFP+ interface of AX743 adapter module for GSM73xxS/GSM73xxSv2. Once inserted (hot-swappable), the AXM761 10GBASE-SR SFP+ (LC connector) drives 10 Gigabit Ethernet up to 300m distances with 50/125µm OM3 multimode fiber cables, or up to 33 m distances with 62.5/125µm OM1 multimode fiber cables.
Product Specification
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-SR |
| Data Link Protocol | 10 GigE |
| Max Transfer Distance | 300 m |
| Interfaces | 1 x Ethernet 10GBase-SR |
| Compatible Slots | 1 x SFP+ |
| Designed For | NETGEAR M4300-28G-PoE+ |
Features - NetGear - AXM761-10000S
More Details
Product Code
0712138
EAN Code
0606449064131
Manufacturer
NetGear
