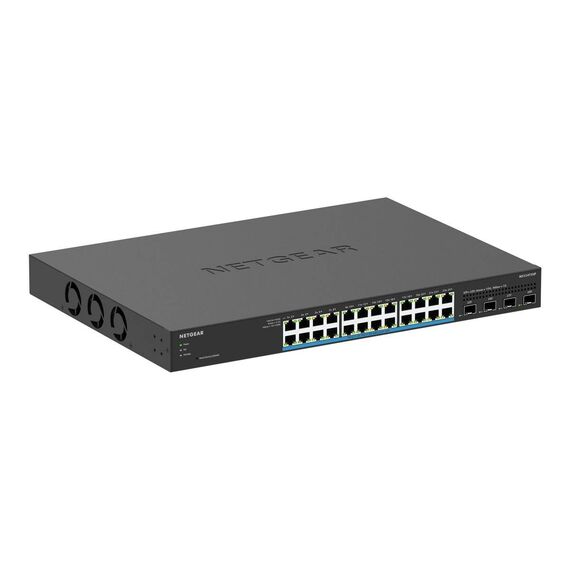

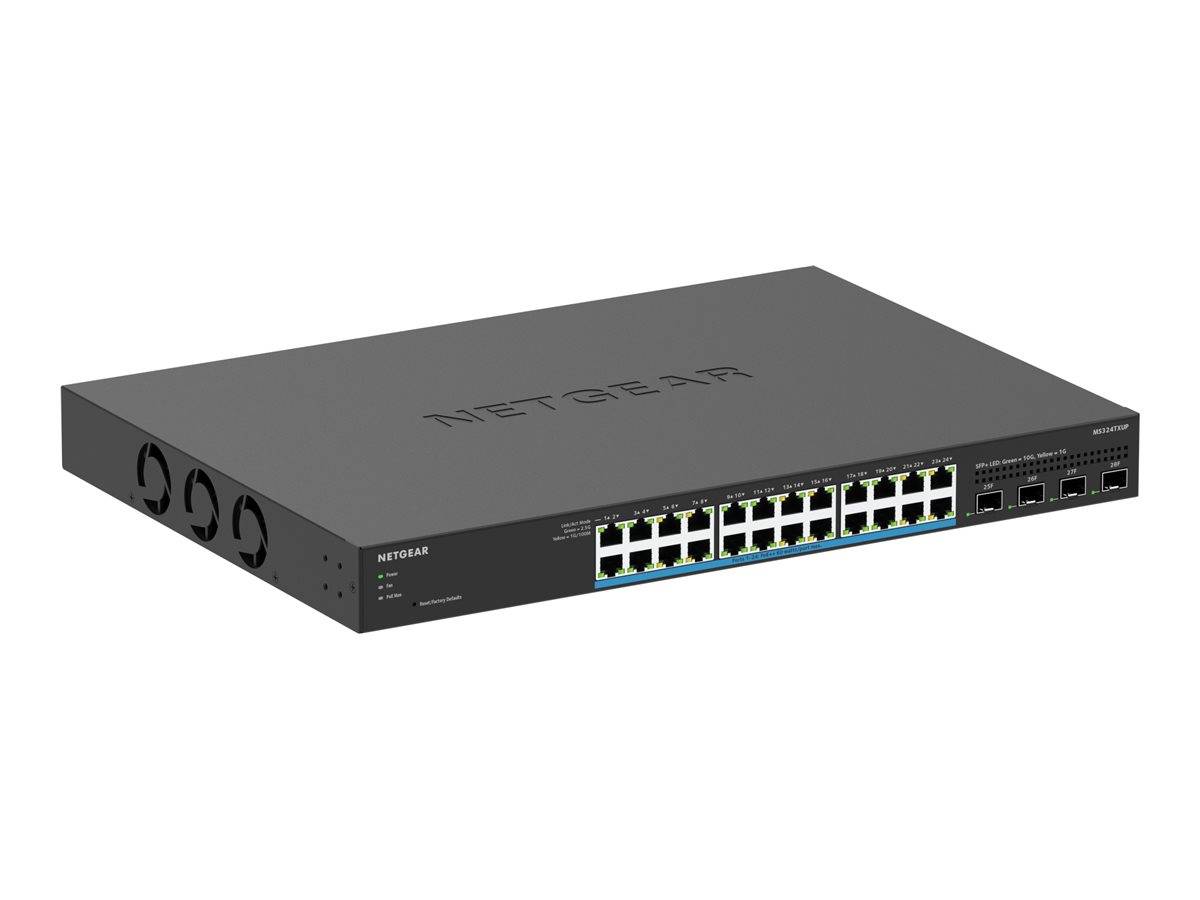

NETGEAR Smart MS324TXUP / Switch / 2+/L3 Lite / smart / 24 x 100/1000/2.5G (PoE++) + 4 x 10 Gigabit SFP+ (uplink) / desktop, rack-mountable / PoE++ (720 W) | MS324TXUP-100EUS
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 24 ports - 2+/L3 Lite - smart |
| Enclosure Type | Desktop, rack-mountable |
| Ports | 24 x 100/1000/2.5G (PoE++) + 4 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 720 W |
| Performance | Fabric throughput: 200 Gbps ¦ 1 Gbps copper latency (64-byte packets): 5.32 µs ¦ 2.5 Gbps copper latency (64-byte packets): 8.03 µs ¦ 2.5 Gbps copper latency (1518-byte packets): 8.19 µs ¦ 2.5 Gbps copper latency (9216-byte packets): 8.22 µs ¦ 10 Gbps fibre latency (64-byte packets): 1.14 µs ¦ 10 Gbps fibre latency (1518-byte packets): 1.228 µs ¦ 10 Gbps fibre latency (9216-byte packets): 1.236 µs ¦ 1 Gbps copper latency (1518-byte packets): 5.67 µs ¦ 1 Gbps copper latency (9216-byte packets): 5.67 µs ¦ Forwarding rate (64-byte packets): 148.8 Mpps |
| Capacity | ARP table (IPv4): 512 ¦ Packet buffer size: 2 MB ¦ VLANs supported: 256 ¦ ACL entries (ingress): 100 ¦ IGMP groups: 512 ¦ Priority queues: 8 ¦ DHCP snooping entries: 256 ¦ Multicast groups: 512 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32 ¦ VLAN routing interfaces: 15 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, IPv4, IPv6, TACACS+, RADIUS, Syslog |
| Encryption Algorithm | TLS 1.2 |
| Authentication Method | RADIUS, TACACS+, Extensible Authentication Protocol (EAP) |
| Features | IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, firmware upgradable, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), DHCP relay, Link Aggregation Control Protocol (LACP), DHCP client, Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), dual firmware images, Strict Priority Queuing (SPQ), loop prevention, Class of Service (CoS), Generic Attribute Registration Protocol (GARP), 802.1x authentication, cloud managed, Type of Service (ToS), VoIP support, 3 fans, Protocol-based VLANs support, cable test, ICMP Router Discovery Protocol (IRDP), Link Aggregation, IGMP querier, DNS client, Voice VLAN, Private VLAN, Guest VLAN, protected ports, Zero-touch provisioning (ZTP), Energy-Efficient Ethernet (EEE), Radius Centralized Password Management, PoE timer, Weighted Round Robin (WRR), MAC based VLAN, Auto VoIP, MAC lockdown, VLAN Tagging, port-based QoS, DSCP based QoS, PoE scheduling, uninterrupted PoE, auto voice VLAN, loop detection, Media Endpoint Discovery (LLDP-MED), auto video VLAN, dual core CPU, static route, PoE self-healing, advanced per-port PoE scheduling/timers, auto camera VLAN, auto Wi-Fi VLAN, DHCP IPv6 server, DHCP IPv6 relay |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3bt |
| Processor | : 1 GHz |
| RAM | 1 GB |
| Flash Memory | 64 MB |
| Status Indicators | Power, fan, link/activity/speed, PoE max |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 24 x 100/1000/2.5G RJ-45 PoE++ - 60 W ¦ 4 x 10GBase-X SFP+ |
| Power | Power |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rubber feet, power cable (EU) |
| Rack Mounting Kit | Included |
| MTBF | 1,017,939 hours |
| Localisation | Europe |
| Software / System Requirements | Software / System Requirements |
| Software Included | NETGEAR Insight (1 year subscription) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 31 cm |
| Height | 4.32 cm |
| Weight | 4.435 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - replacement - 5 years - response time: next business day |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 0 - 95% RH (non-condensing) |
Features - NetGear - MS324TXUP-100EUS
General
24-Port
More Details
Product Code
CI57741
EAN Code
0606449165265
Manufacturer
NetGear
