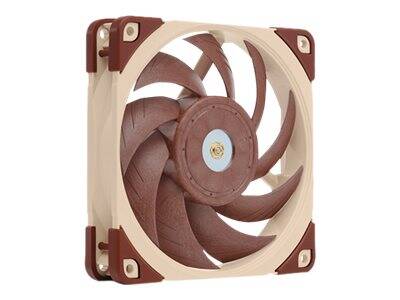

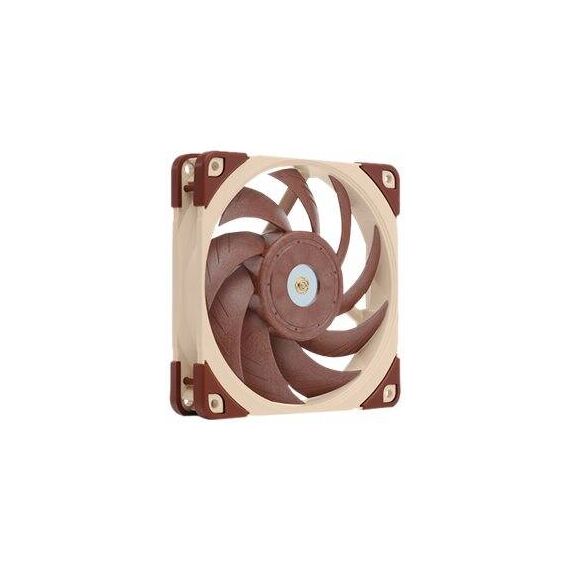

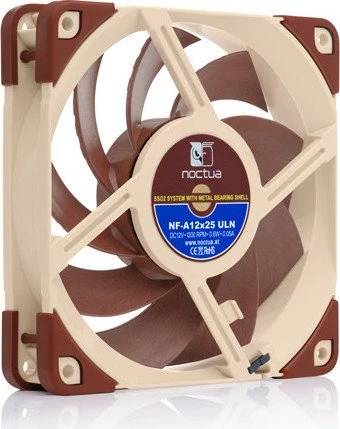

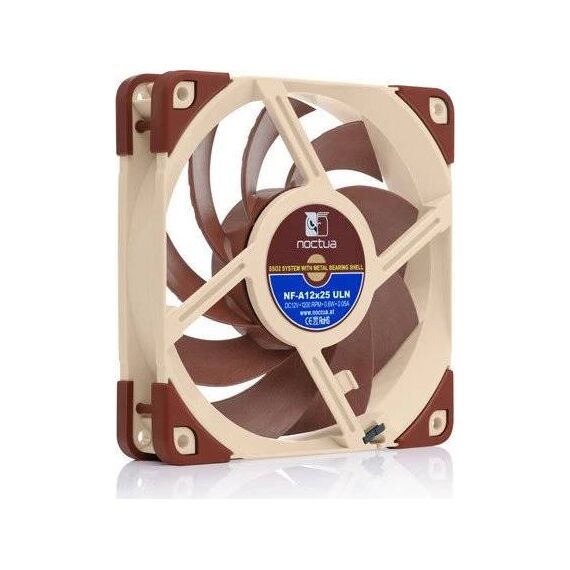

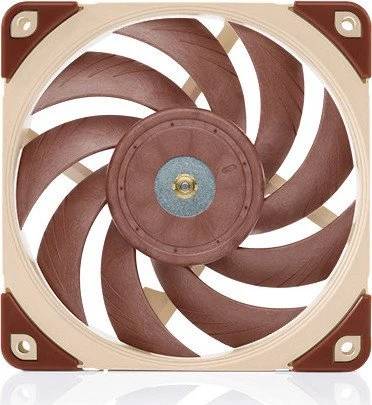

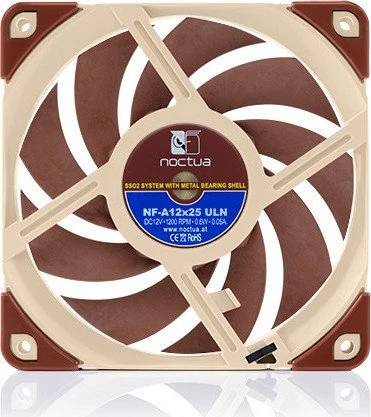

Noctua NF-A12x25 ULN - Case fan - 120 mm | NF-A12X25 ULN

Product Features

• Next-generation performance
  Noctua's 120mm fans such as the NF-F12 and NF-S12A are renowned as being among the best on the market and have received more than 400 awards and recommendations from the international press. With its further improved efficiency and novel, state-of-the-art engineering, the NF-A12x25 represents another step up in performance and manufacturing.
• Highly optimized P/Q curve for all applications
  The NF-A12x25's sophisticated aerodynamic design allows for a pressure to airflow (P/Q) curve that is extremely strong in the critical mid-section. This means that the NF-A12x25 is a true jack-of-all-trades with excellent performance in both static pressure demanding and airflow demanding applications.
• Excellent on-application acoustics
  While many fans produce unpleasant, high-pitched noises when installed in typical applications such as on heatsinks or radiators, the NF-A12x25 has been carefully fine-tuned for optimal on-application acoustics. It produces a smooth, pleasant frequency profile and surprisingly low sound pressure levels (SPL) when working against back pressure.
• Flow Acceleration Channels
  The NF-A12x25 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
• Ultra-tight tip clearance
  The NF-A12x25 has a record tight tip clearance (distance between the blade tips and the inside of the frame) of only 0.5mm. This highly ambitious design sets a new benchmark for 120mm fans and helps the NF-A12x25 to work more efficiently against back pressure, such as on heatsinks or radiators, by reducing leak flows through the gap between impeller and frame.
• Metal-reinforced motor hub
  The centerpiece of the NF-A12x25's motor hub is made entirely from steel and the axle mount is reinforced with an additional brass structure. In combination, both measures ensure ultimate precision and increased stability in the critical hub area.
• Sterrox liquid-crystal polymer compound
  The NF-A12x25's impeller is made from Noctua's novel Sterrox liquid-crystal polymer (LCP) compound that features extreme tensile strength, an exceptionally low thermal expansion coefficient and damping characteristics that are ideal for reducing resonance and vibration phenomena in advanced fan-blade designs.
• AAO frame
  Noctua's AAO (Advanced Acoustic Optimization) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
• Stepped Inlet Design
  Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
• Inner Surface Microstructures
  With the tips of the fan blades plowing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
• Integrated anti-vibration pads
  Integrated anti-vibration pads made from extra-soft silicone minimize the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.

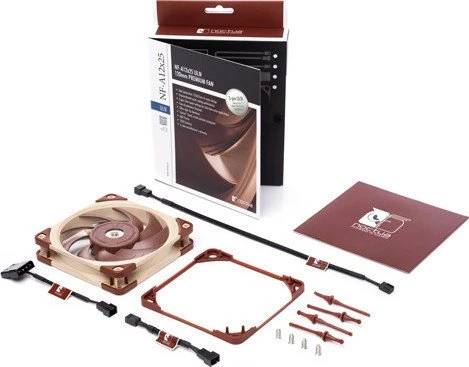

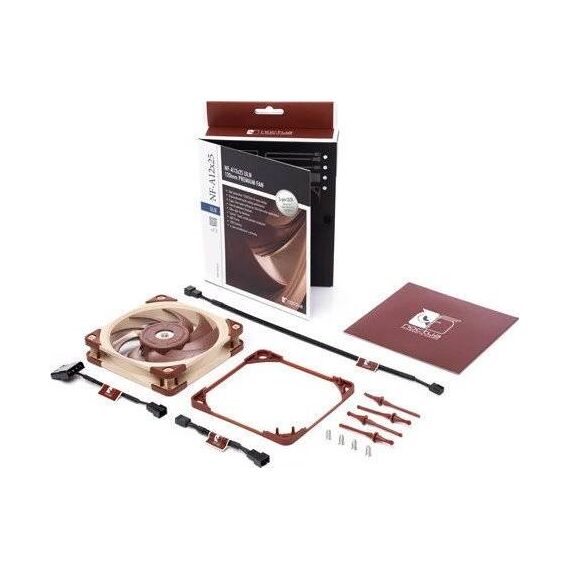

• Anti-vibration gasket for watercooling radiators
  The NF-A12x25 includes a silicone gasket that can be used when installing the fan on watercooling radiators or other applications that benefit from a tighter seal with the fan. The gasket helps to damp minute vibrations and to reduce air loss between the fan and the radiator for optimal cooling performance.
• SSO2 bearing
  The NF-A12x25 features the further optimized second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilization, precision and durability.
• Metal bearing shell
  In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-A12x25 sports a CNC milled bearing shell made entirely from brass.
• 2 speed settings for maximum quietness
  Providing 1200 and 900 rpm speed settings via the supplied adapter, the ULN (Ultra-Low-Noise) version is tailor made for serious silent enthusiasts who demand super-slow running speeds and utmost quietness of operation.
• Smooth Commutation Drive 2
  The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the fan remarkably quiet even at very close distances.

Special Fetures

• Next-generation performance
• Highly optimized P/Q curve for all applications
• Excellent on-application acoustics
• Flow Acceleration Channels
• Ultra-tight tip clearance
• Metal-reinforced motor hub
• Sterrox liquid-crystal polymer compound
• AAO frame
• Stepped Inlet Design
• Inner Surface Microstructures
• Integrated anti-vibration pads
• Anti-vibration gasket for watercooling radiators
• SSO2 bearing
• Metal bearing shell
• 2 speed settings for maximum quietness
• Smooth Commutation Drive 2

Product Specification
