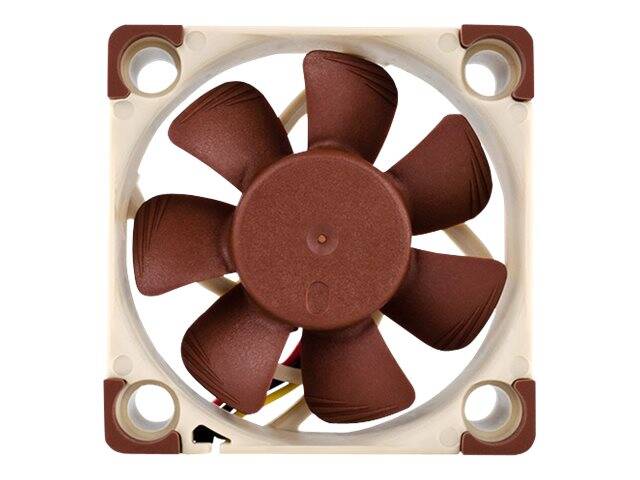

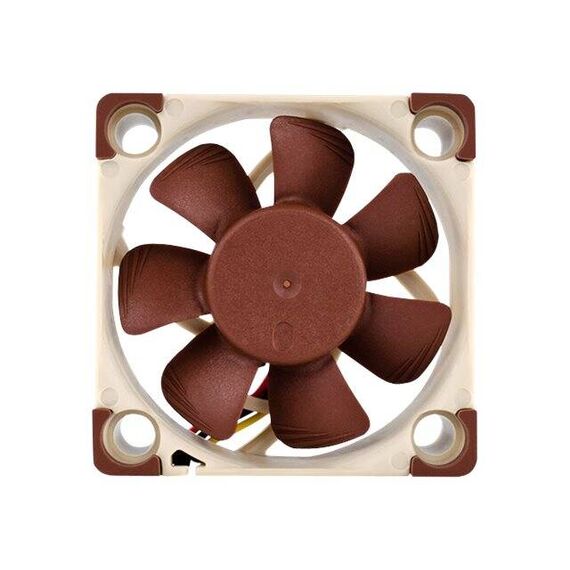

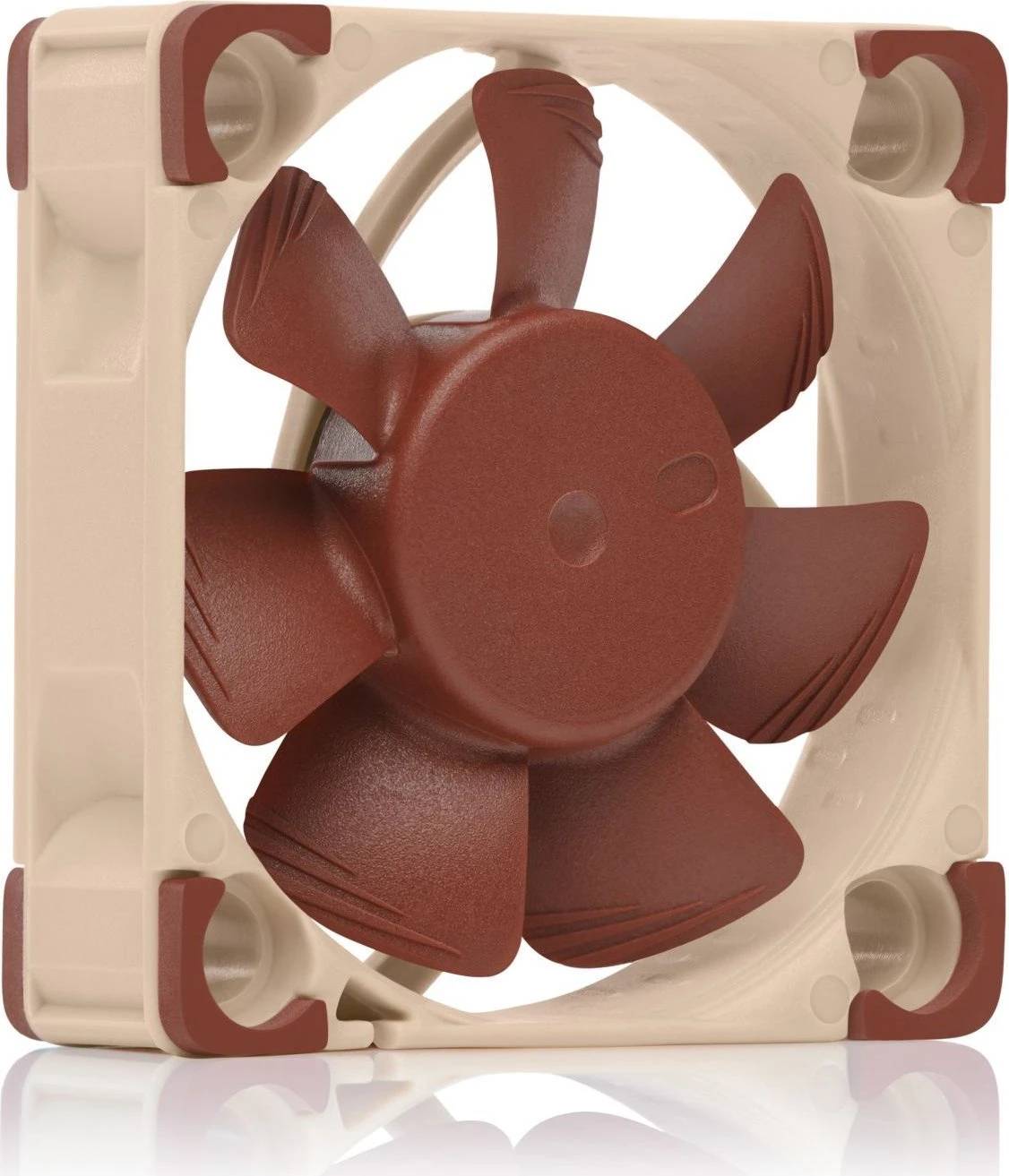

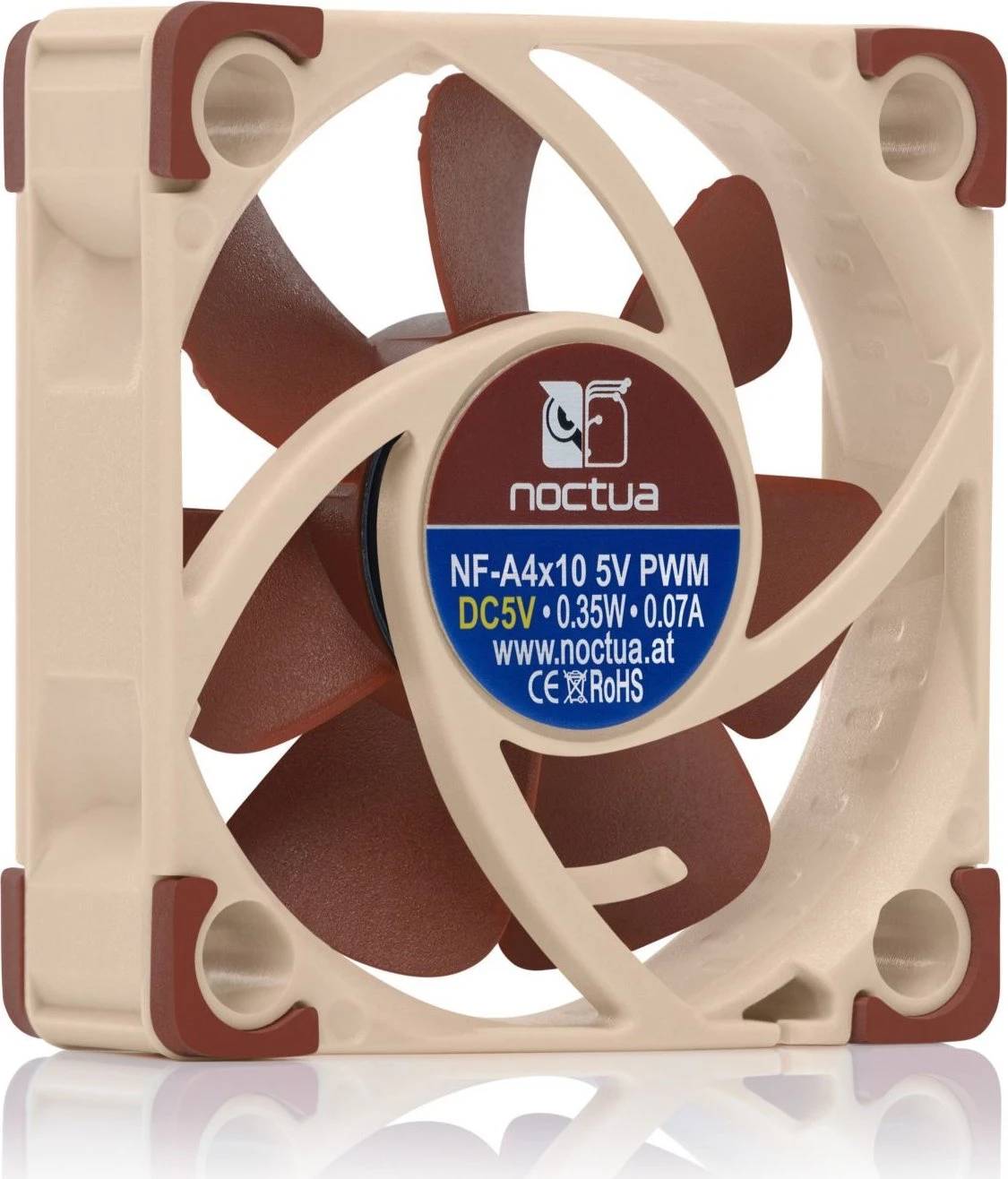

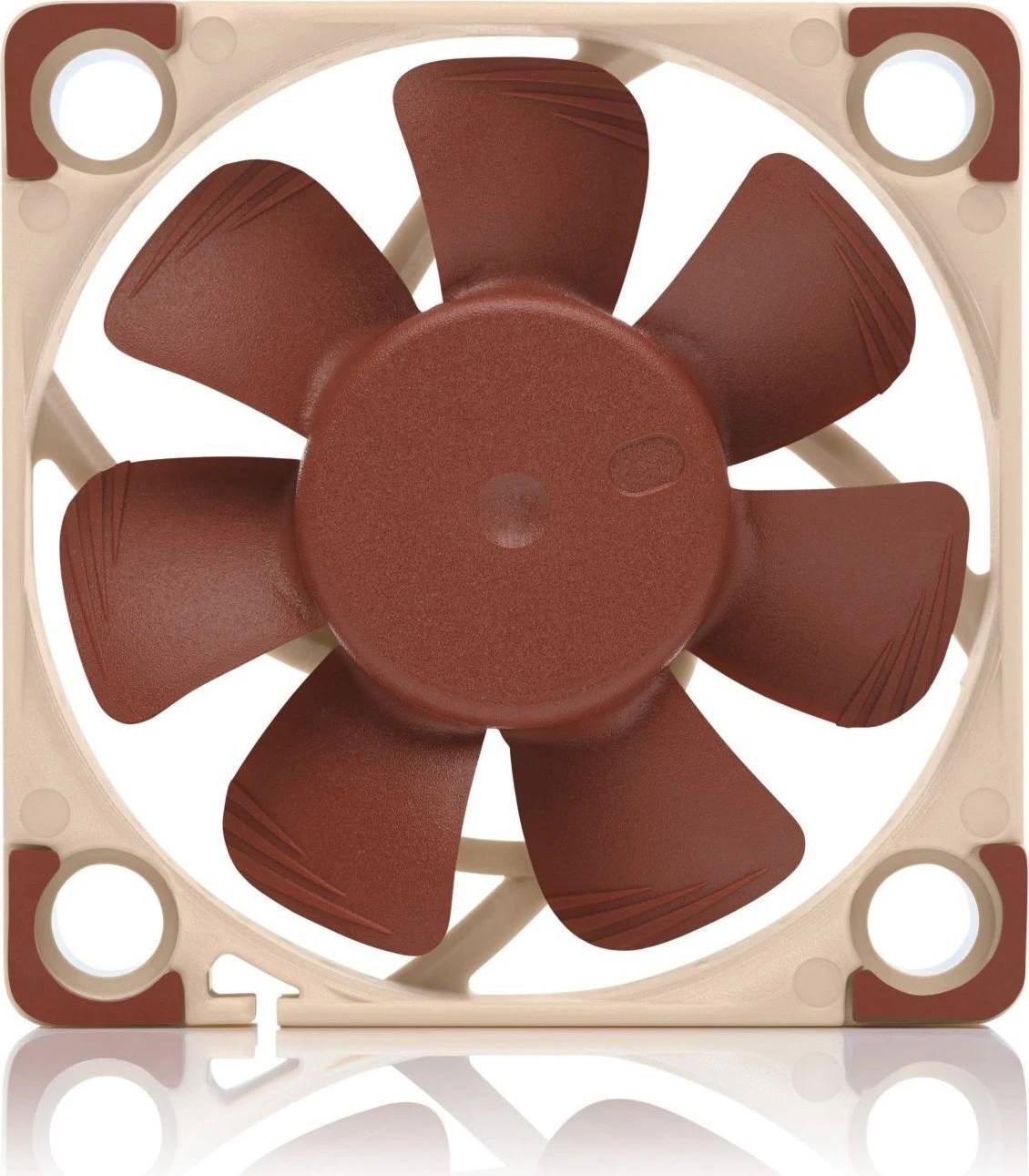

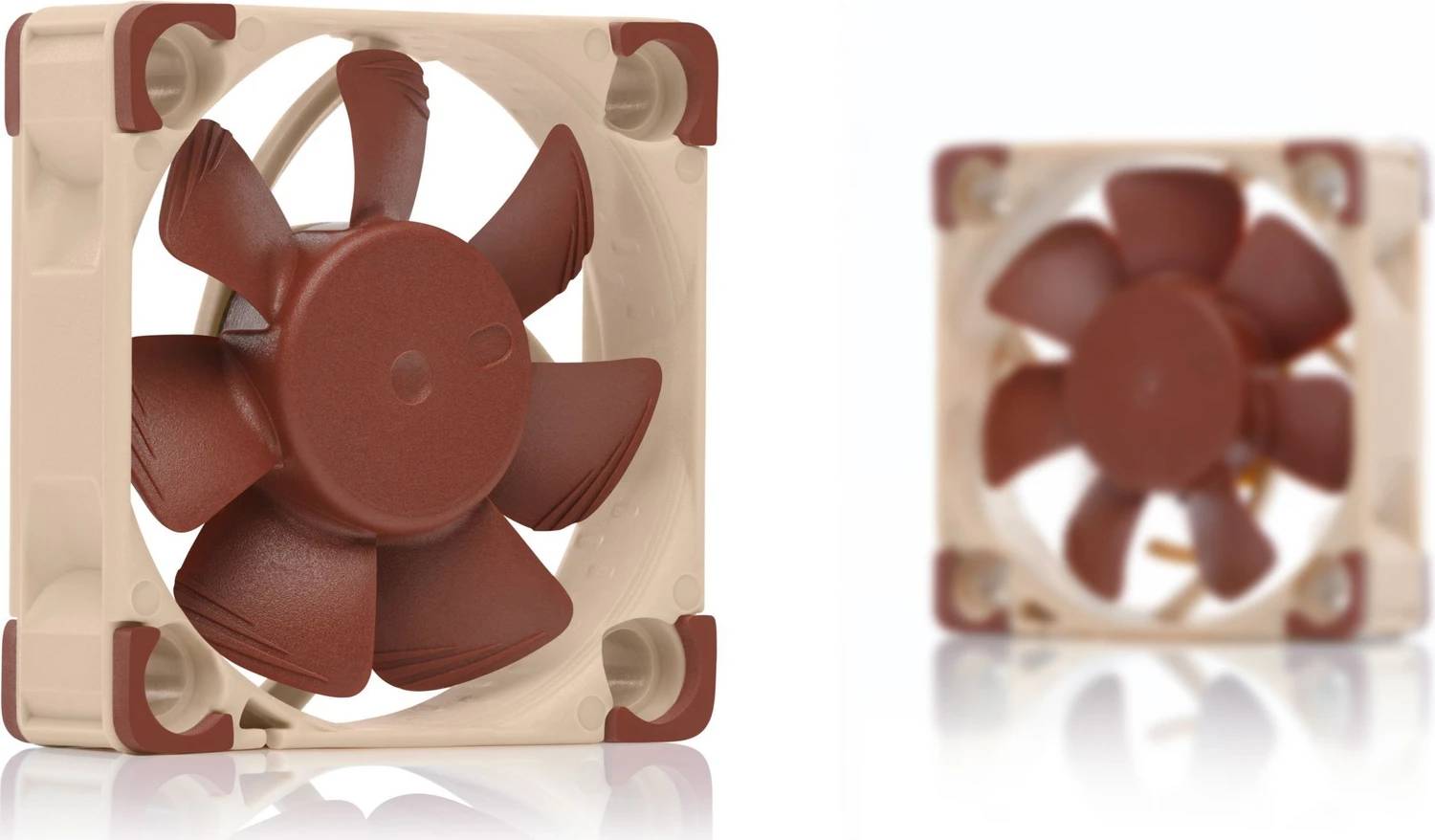

Noctua NF-A4X10 5V - Case fan - 40 mm | NF-A4X10 5V

Product Features

• 5 Volt Version
  Many devices such as network or storage solutions use 5 volt 40mm fans. With the same operating voltage and the included OmniJoin adaptor set that makes it compatible with proprietary fan headers, the NF-A4x10 5V is ideal for replacing noisy or broken 5V 40mm fans.
• Flow Acceleration Channels
  The NF-A4x10 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
• AAO Frame
  Noctua's AAO (Advanced Acoustic Optimization) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
• Stepped Inlet Design
  Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments.
• Inner Surface Microstructures
  With the tips of the fan blades plowing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
• Smooth Commutation Drive 2
  Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-A4x10 5V remarkably quiet even at very close distance.
• OmniJoin Adaptor Set
  Many devices featuring 40mm fans use proprietary fan headers, so the NF-A4x10 5V comes with Noctua's OmniJoin Adaptor Set. Just cut the original fan's cable, fix it to the adaptor using the supplied 3M Scotchlok connectors and you can plug the NF-A4x10 5V to proprietary fan headers!
• 3 to 2-pin Adaptor and Polarity Protection
  The NF-A4x10 5V comes with an adaptor from 3-pin Molex to the 2-pin connectors used on many graphics cards or network and storage devices. An integrated diode provides polarity protection on 2-pin connections.
• Extensive cabling options
  The fan's short 20cm primary cable minimizes cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.
• SSO2 Bearing
  The NF-A4x10 5V features the further optimized second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilization, precision and durability.

Special Fetures

• 5 Volt Version
• Flow Acceleration Channels
• AAO Frame
• Stepped Inlet Design
• Inner Surface Microstructures
• Smooth Commutation Drive 2
• OmniJoin Adaptor Set
• 3 to 2-pin Adaptor and Polarity Protection
• Extensive cabling options
• SSO2 Bearing

Product Specification
