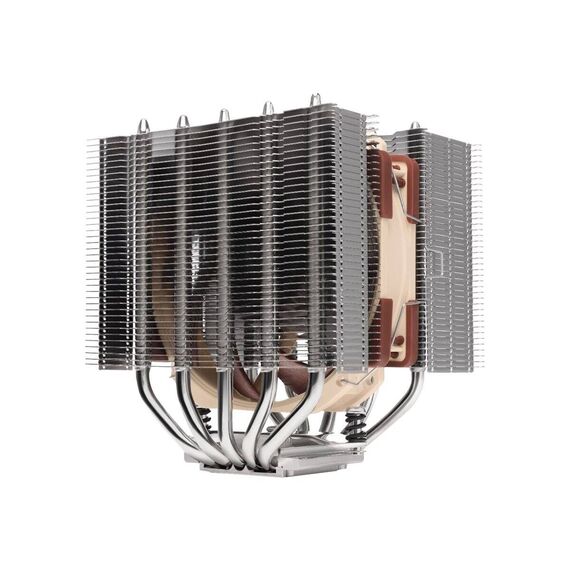

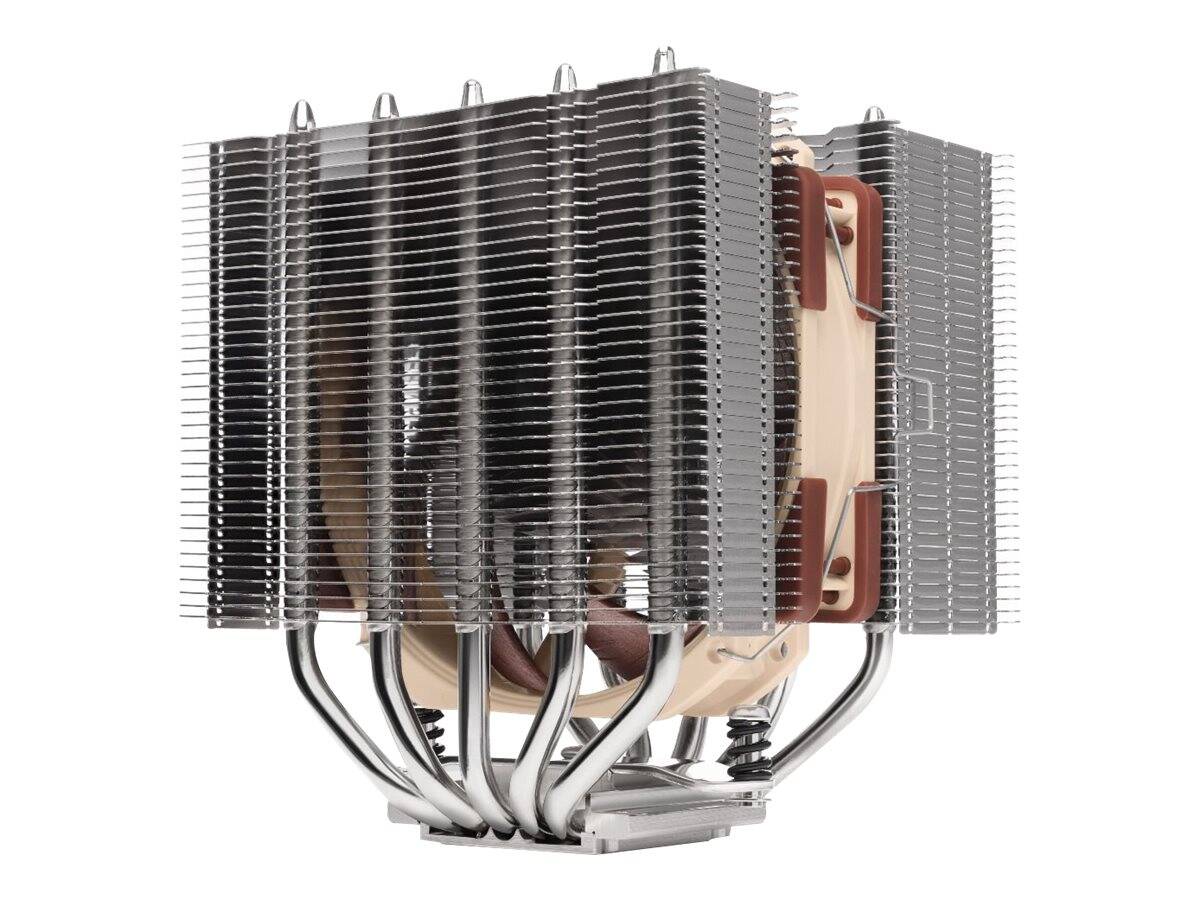

Noctua NH-D12L - Processor cooler - (for: LGA1156, LGA1155, LGA2011, LGA1150, LGA1151, LGA2011-3 (Square ILM), AM4, LGA2066, LGA1200, LGA2011-0, LGA1700, AM5) - copper base and heatpipes with aluminium cooling fins - 120 mm | NH-D12L
Noctua NH-D12L - Processor cooler - (for: LGA1156, LGA1155, LGA2011, LGA1150, LGA1151, LGA2011-3 (Square ILM), AM4, LGA2066, LGA1200, LGA2011-0, LGA1700, AM5) - copper base and heatpipes with aluminium cooling fins - 120 mm | NH-D12L
€146.55 inc. VAT
NH-D12L
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- 145 mm height for broader case compatibility
While Noctua's regular 120 mm CPU coolers stand 158 mm tall, the NH-D12L measures only 145 mm. This allows it to fit not only a wide range of 4U rackmount server cases and many tower-style enclosures that are not wide enough for 158 mm units, but also some larger Small Form Factor (SFF) and Mini-ITX chassis. - More performance at lower height
Despite its reduced height, the NH-D12L easily outperforms 92 mm coolers. It can even surpass renowned 120 mm units such as the NH-U12S and often comes close to Noctua's award-winning 120 mm flagship model NH-U12A.
Special Fetures
- 145 mm height for broader case compatibility
- More performance at lower height
Product Specification
| Product Type | Processor cooler |
| Package Content | Low-Noise Adaptor (L.N.A.), SecuFirm2 Mounting Kit, fan clips for second fan, NT-H1 high-grade thermal compound, Noctua metal case-badge, NF-A12x25r PWM premium fan |
| Width | 12.5 cm |
| Depth | 11.3 cm |
| Height | 14.5 cm |
| Weight | 890 g |
| Shipping Dimensions (WxDxH) / Weight | 18.4 cm x 17.7 cm x 23.6 cm / 1.698 kg |
| Heatsink & Fan | |
| Compatible With | LGA1156 Socket, LGA1155 Socket, LGA2011 Socket, LGA1150 Socket, LGA1151 Socket, LGA2011-3 (Square ILM) Socket, Socket AM4, LGA2066 Socket, LGA1200 Socket, LGA2011-0 Socket, LGA1700 Socket, Socket AM5 |
| Heatsink Material | Copper base and heatpipes with aluminium cooling fins |
| Heatsink Dimensions | 145 mm x 125 mm x 113 mm |
| Fan Diameter | 120 mm |
| Fan Height | 25 mm |
| Fan Bearing | SSO2 bearing |
| Rotation Speed | 450-2000 rpm |
| Air Flow | 49.7-60.1 cfm |
| Air Pressure | 1.65-2.34 mm |
| Noise Level | 18.8 - 22.6 dBA |
| Noise & Performance Details | 22.6 dBA / 60.1 cfm at 2000 rpm ¦ 18.8 dBA / 49.7 cfm at 1700 rpm |
| Power Connector | 4-pin fan connector |
| Rated Voltage | 12 V |
| Power Consumption | 1.68 W |
| Features | Heat pipe technology, Pulse-width modulation (PWM) support, Soldered joints, Dual-Tower design, nickel plating, 5 copper heatpipes |
| Miscellaneous | |
| Mounting Kit | Included |
| MTBF | 150,000 hour(s) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty: - 6 years |
