NZXT F420 RGB Core 420mm Single-Frame Case Fan Unit 3x 140mm PWM ARGB Fluid Dynamic Bearing 98 CFM White

Brand:
NZXT
NZXT F Series F420 RGB Core / Single frame fan unit | RF-U42HF-W1
NZXT F420 RGB Core 420mm Single-Frame Case Fan Unit 3x 140mm PWM ARGB Fluid Dynamic Bearing 98 CFM White
€62.18 inc. VAT
Buy
RF-U42HF-W1
€52.25
€62.18 inc. VAT
Ships from EU stock: 6 item(s)
+ −
Add to wish list Ask a question
Product Code
03:257288
EAN Code
5056547206899
Manufacturer
NZXT
Quick Specs
Format
420 mm single frame · 3× 140 mm
Speed / Airflow
500–2,000 RPM · 98.61 CFM per fan
Lighting
8 ARGB LEDs per fan (24 total)
Connection
Single 8-pin cable + ARGB splitter
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
NZXT · Case Fans

NZXT F420 RGB Core — 420mm Single-Frame RGB Fan Unit (White)

3× 140 mm in one frame98.61 CFM per fan24 ARGB LEDs5-Year Warranty

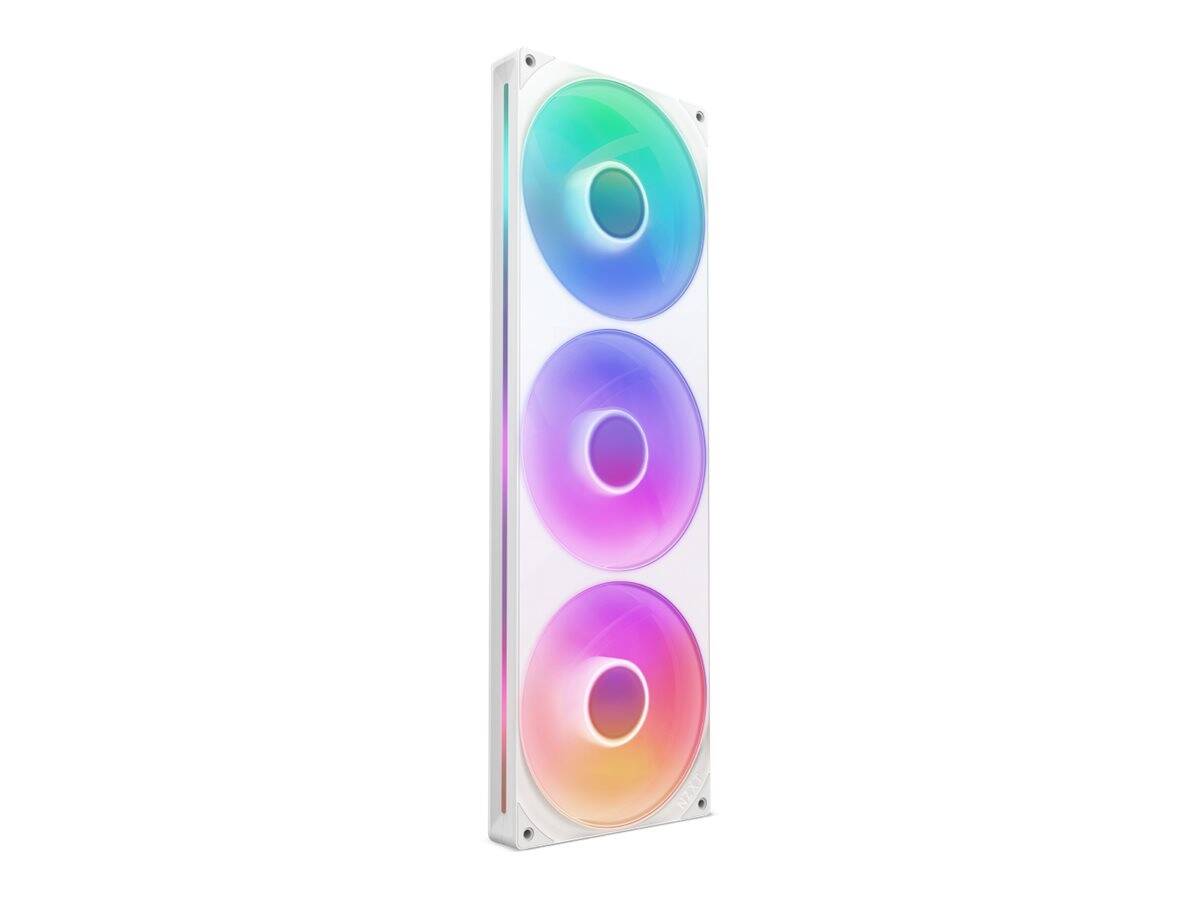

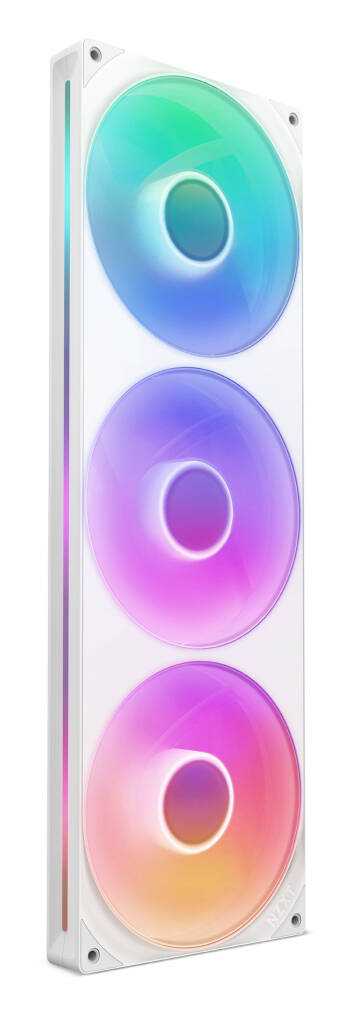

The NZXT F420 RGB Core (part number RF-U42HF-W1) is a white 420 mm single-frame fan unit with three 140 mm PWM fans and addressable RGB lighting, designed for full-tower builders running 420 mm radiators or large front intakes.

Larger 140 mm blades move up to 98.61 CFM per fan at a lower top speed than 120 mm fans, and the single frame means one mounting step and one cable. Typically in stock with fast delivery across Cyprus.

Compatibility Note

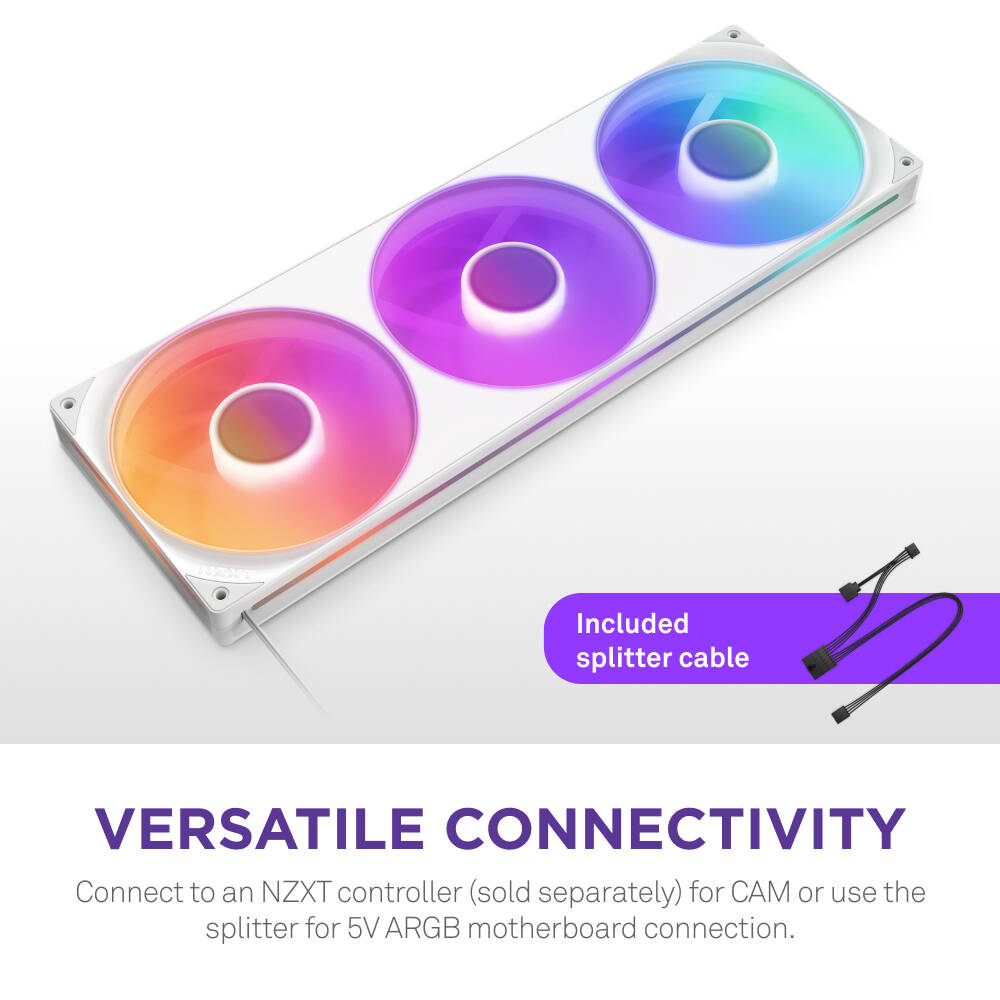

Requires a 420 mm (3× 140 mm) mounting position or a 420 mm radiator — check your case support before ordering. The unit uses a single NZXT 8-pin cable (PWM + RGB): NZXT CAM control and Zero RPM mode need an NZXT controller or NZXT motherboard (sold separately); otherwise connect to a motherboard PWM header and a 5 V 3-pin ARGB header with the included splitter. Not compatible with 12 V 4-pin RGB headers.
Best For
✓ 420 mm AIO radiators
✓ Full-tower front intake
✓ White themed builds
✓ High airflow at lower RPM
✓ NZXT CAM ecosystems
✓ Single-cable cable management

Key Features

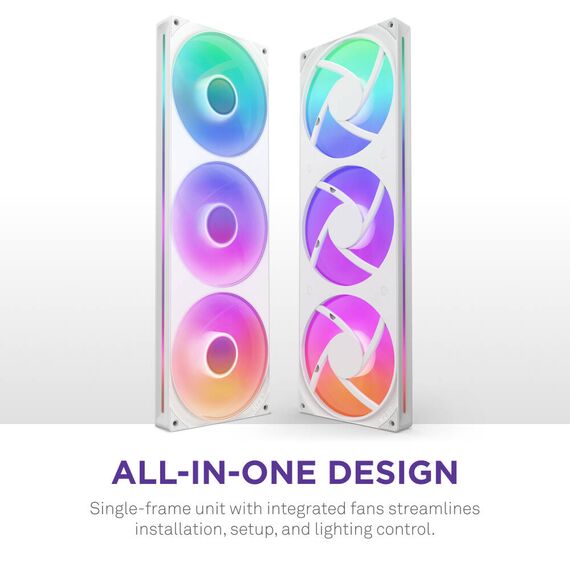

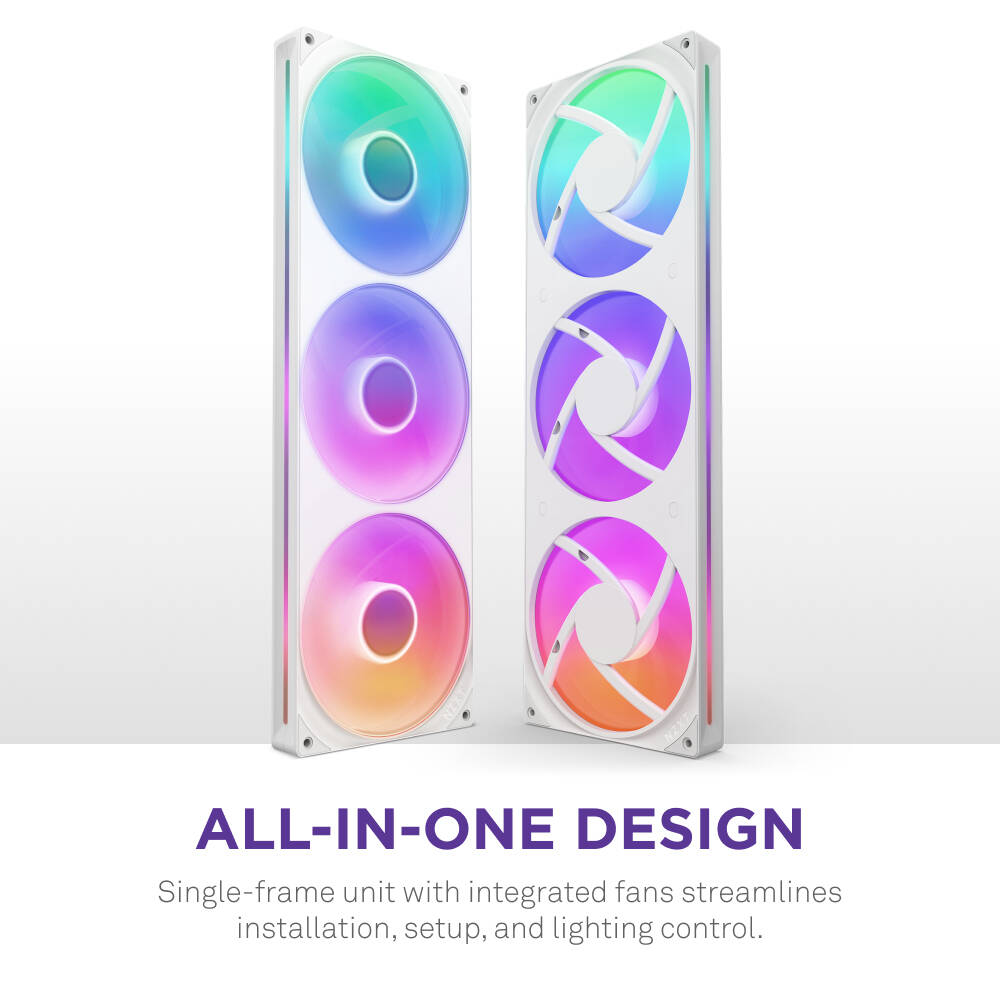

One Frame, Three 140 mm Fans
420 × 140 × 25 mm unit installs like a single part — no aligning three separate fans on a long radiator.

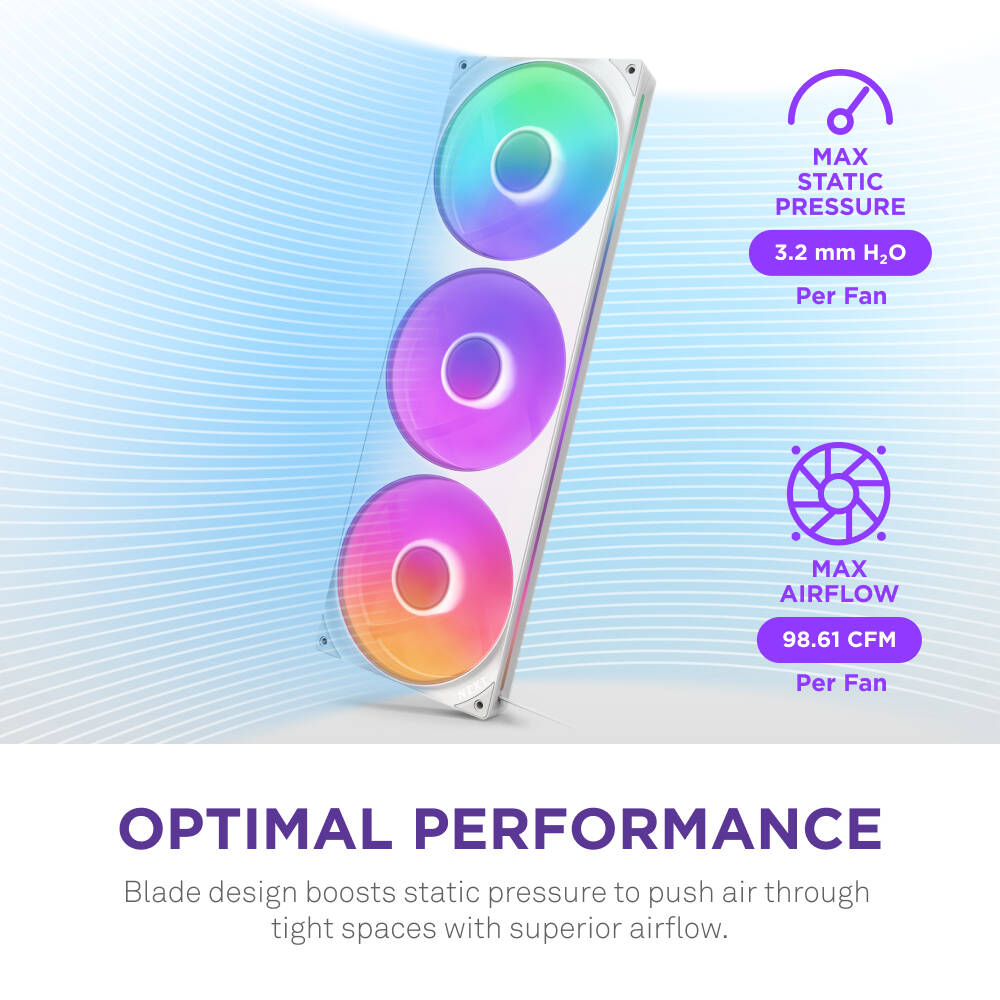

High Airflow
500–2,000 RPM PWM control, 98.61 CFM and 3.2 mmH₂O per fan at a rated 34.5 dBA per fan.

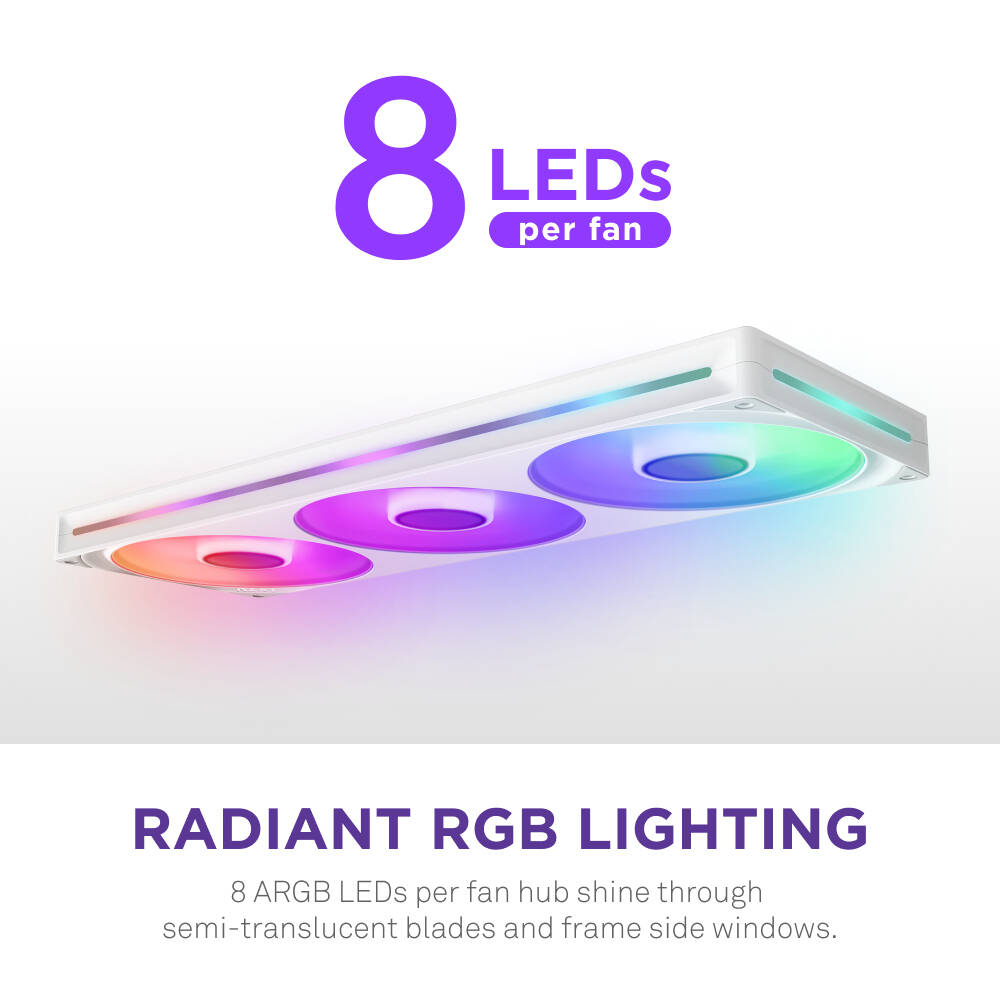

Addressable RGB
8 addressable LEDs per fan hub, diffused through semi-translucent blades; control via NZXT CAM or motherboard ARGB software.

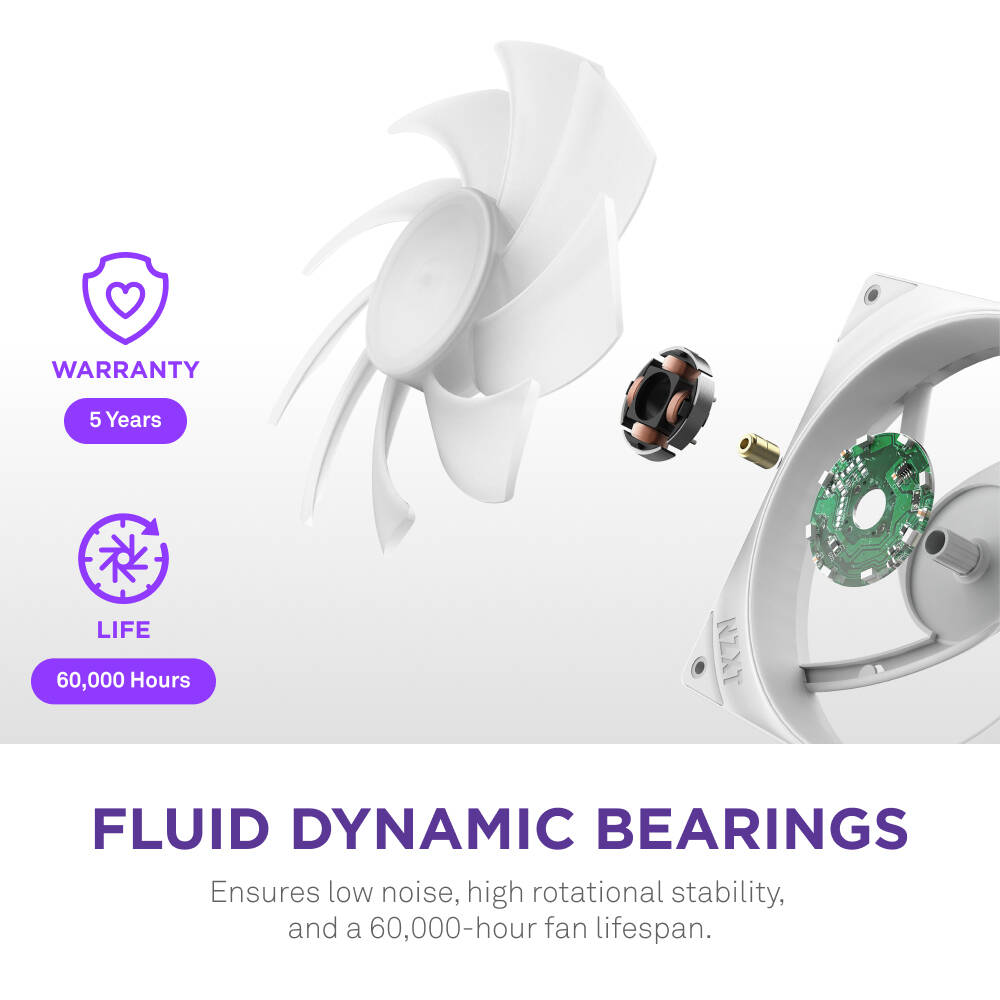

Long-Life Bearings
Fluid dynamic bearings rated for 60,000 hours plus anti-vibration rubber corners; 5-year NZXT warranty.

Technical Specifications

Identification
Part Number RF-U42HF-W1
EAN / GTIN 5056547206899
MPN RF-U42HF-W1
Brand NZXT
Model F420 RGB Core (White)
Package
Contents F420 RGB Core unit, splitter cable, installation accessories
Fan Count 3× 140 mm fans in one frame
Colour White
Performance
Speed 500–2,000 ±200 RPM per fan (PWM)
Airflow 98.61 CFM per fan
Static Pressure 3.2 mmH₂O per fan
Noise Level 34.5 dBA per fan
Bearing Fluid Dynamic Bearing — low noise, 60,000-hour lifespan
Electrical & Connectivity
Rated Voltage 12 V DC (fan) / 5 V DC (RGB)
Rated Current 0.95 A (fan) / 0.81 A (RGB)
Input Power 15.45 W
Connector NZXT 8-pin for PWM & RGB — one cable for the whole unit
Cable Length 600 mm
Lighting & Build
LEDs 8 addressable RGB LEDs per fan
Dimensions 420 × 140 × 25 mm
Weight 632 g
Materials Plastic, rubber, PCB
Warranty 5 years

Frequently Asked Questions

Does the NZXT F420 RGB Core work with any motherboard?
Yes — with the included splitter it connects to a standard 4-pin PWM fan header and a 5 V 3-pin ARGB header. NZXT CAM control and Zero RPM mode require an NZXT controller or NZXT motherboard.
Will the F420 RGB Core fit my case?
Only if the case supports 3× 140 mm fans or a 420 mm radiator in one row. Many mid-towers only fit 360 mm, so confirm the case specification first.
What is the difference between the F420 RGB Core and the F360 RGB Core?
The F420 uses three 140 mm fans (98.61 CFM each, up to 2,000 RPM), while the F360 uses three 120 mm fans (75.12 CFM each, up to 2,400 RPM). Choose by the radiator or mounting size your case supports.
What do I need to know before buying the RF-U42HF-W1?
Confirm 420 mm clearance, and plan an NZXT controller or free PWM + 5 V ARGB headers for connection.
Singular Expert Insight
For big white builds with a 420 mm radiator, the F420 RGB Core gives the most airflow per decibel in the F Series Core line thanks to its 140 mm blades. If your case tops out at 360 mm, the F360 RGB Core is the right choice; browse more options in our case fans category.

Buyer's Guide

Buy it if
Your case or AIO supports 420 mm and you want high airflow with one-cable wiring.
Skip it if
Your case only fits 360 mm or 120 mm fans.
Also consider
NZXT F360 RGB Core for 360 mm slots, or be quiet! Light Wings LX 140mm packs for separate fans.
