Online USV Rack-Kit 19" Sliding Rail Set for UPS and Rack Equipment, Adjustable Depth 480–780 mm, up to 100 kg
Brand:
Online USV Systeme
Online USV Rack-Kit 19" Sliding Rail Set for UPS and Rack Equipment, Adjustable Depth 480–780 mm, up to 100 kg
€96.89 inc. VAT
RACK-KIT
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Online USV RACK-KIT — 19" Sliding Rail Set, 480–780 mm
19" racksDepth 480–780 mmUp to 100 kgUPS rail kit
The Online USV RACK-KIT is a 19-inch sliding rail set for rack mounting, with a depth adjustable from 480 to 780 mm and a load rating of up to 100 kg. It supports heavy equipment such as UPS units and battery packs from underneath, so the load does not hang only from the front rack ears.
Online USV lists it for its ZINTO 800, 1000, 1500, 2000 and 3000, XANTO 6000 and 10000, and 19-inch XANTO 700R, 1000R, 1500R, 2000R and 3000R UPS models. Online USV describes the kit as manufacturer-independent, so it can also carry other 19-inch devices, including UPS units from other brands.
Before you order: Check the depth of your cabinet before ordering: the rails adjust between 480 and 780 mm between front and rear posts. They need a 4-post rack or cabinet. Send us your UPS model and cabinet depth and we will confirm the fit.

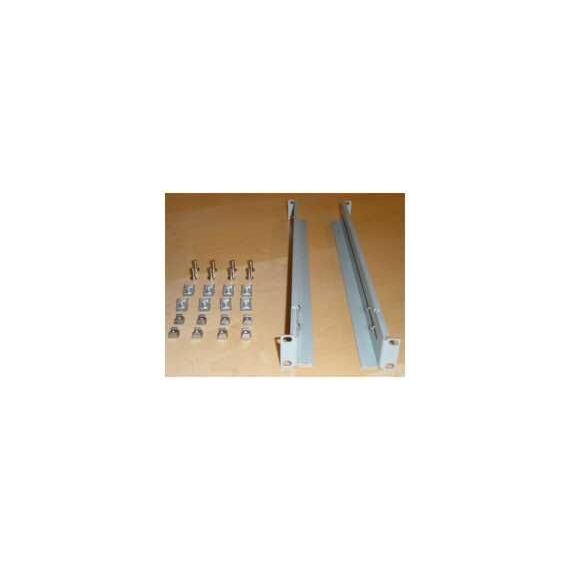

What's in the Box
- 1x pair of 19-inch sliding rails (Rack-Kit)
- Mounting hardware: cage nuts, screws and washers
- Safety information and quick start guide
What It Means in Practice
- Heavy UPS units rest on the rails, which protects the front mounting ears and the rack posts.
- The 480–780 mm adjustment fits most 600, 800 and 1000 mm deep cabinets, as long as the post spacing sits within that range.
- 100 kg covers most tower-to-rack UPS models and many battery extension packs.
- The same kit works for non-UPS 19-inch equipment that needs rear support.
What Will Not Work
- It will not mount in 2-post open racks or wall brackets.
- It will not adjust shorter than 480 mm or longer than 780 mm between posts.
- It will not carry more than 100 kg.
- It does not include the UPS itself or its front rack ears.
Key Features
Adjustable depth
Fits post spacings from 480 to 780 mm.
100 kg load
Suitable for heavy UPS units and battery packs.
Multi-brand
Listed for Online USV ZINTO and XANTO, and usable with other 19-inch devices.
Hardware included
Cage nuts, screws and washers supplied.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Rack UPS units are among the heaviest items in a cabinet, and support rails are what keep them from pulling on the front posts. Measure the post-to-post depth, not just the cabinet size, and see our rack accessories for shelves if you prefer a fixed base.
✓ Buy it if you are rack-mounting a UPS or other heavy 19-inch device up to 100 kg in a 4-post cabinet.
✕ Skip it if your rack has only 2 posts or the post spacing is outside 480–780 mm.
→ Also consider a 4-point fixed shelf rated for 100 kg as an alternative base.
Not sure it fits your setup? Send us the model of your UPS and the depth of your cabinet, and we will check before you order.
Features - Online USV Systeme - RACK-KIT
More Details
Product Code
0320055
EAN Code
4026908001440
Manufacturer
Online USV Systeme
