Good Connections LC/APC to LC/APC OS2 Singlemode Fibre Patch Cable, Simplex, 3 m
OS2 SinglemodeLC/APC – LC/APCSimplex · 2.0 mm3 m

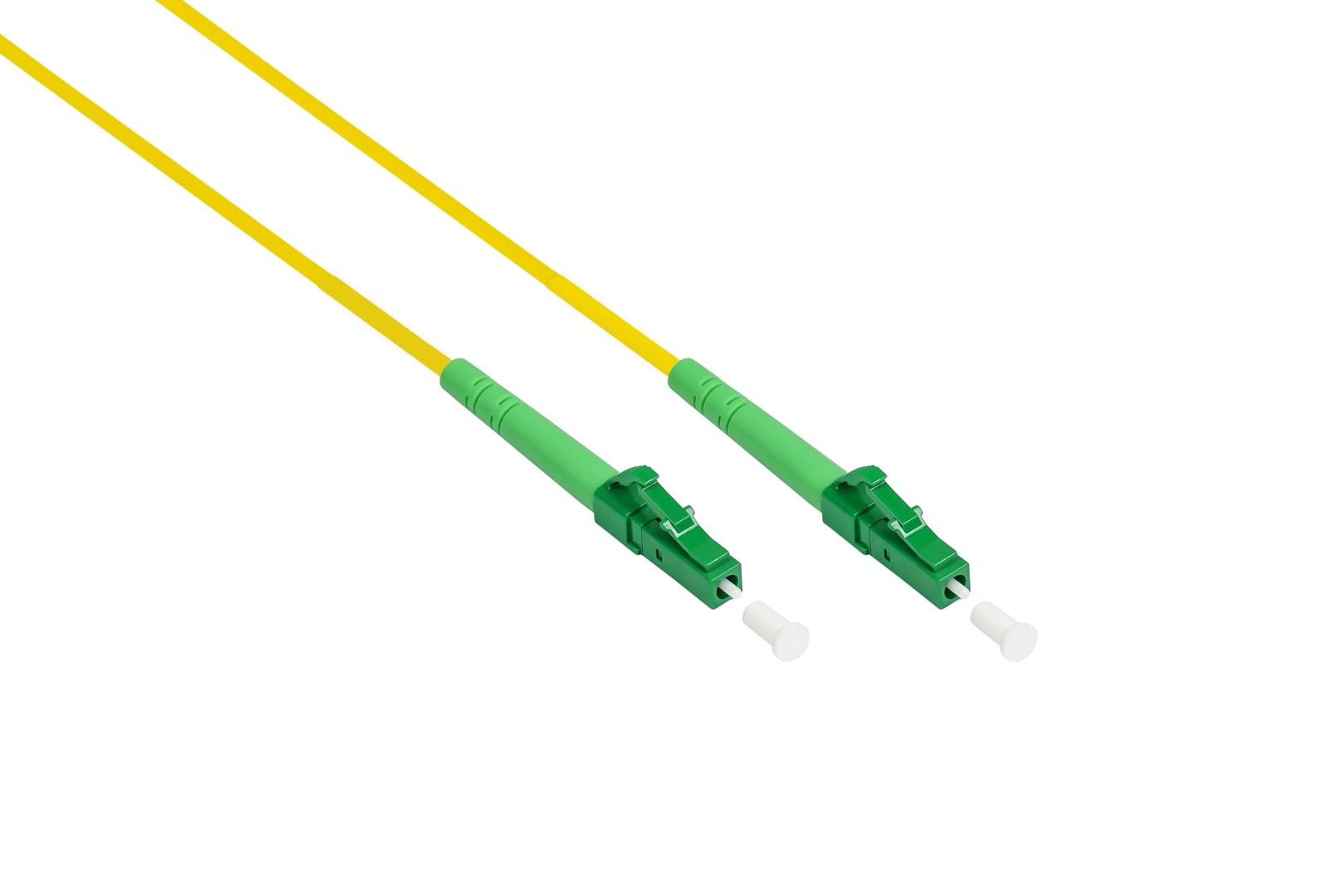

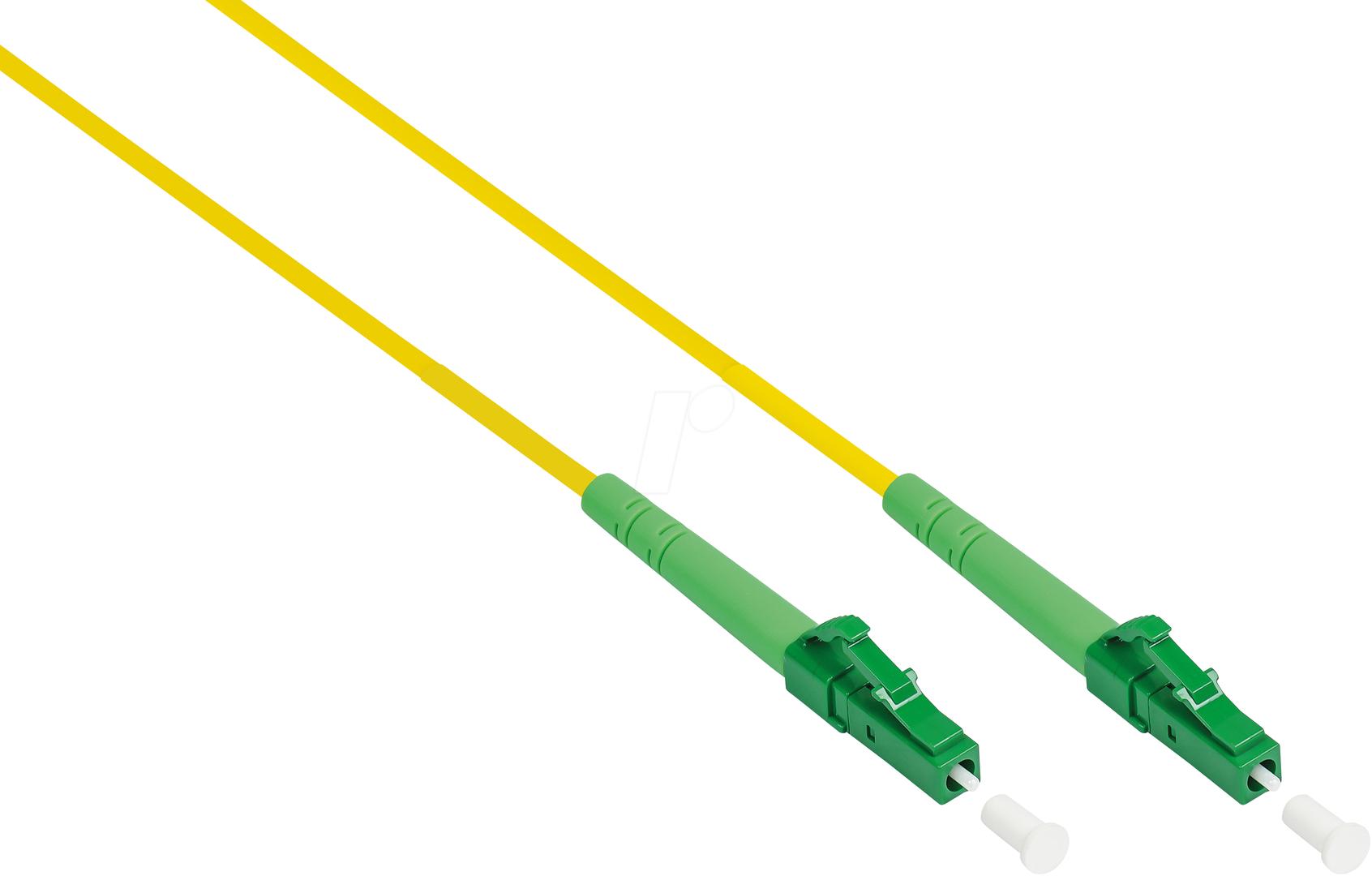

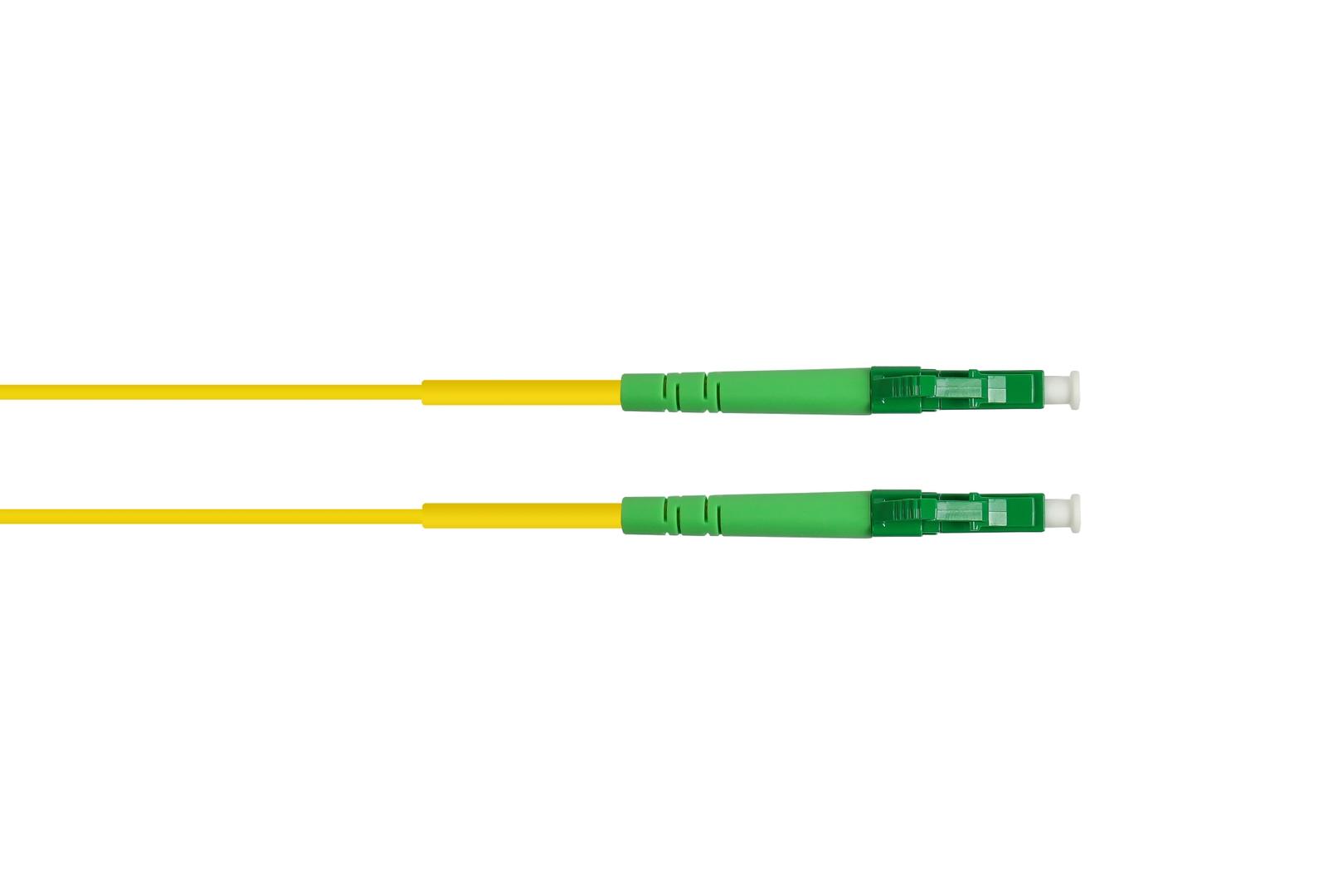

The Good Connections LW-SA903LALA is a 3 m simplex singlemode fibre optic patch cable (OS2, 9/125 µm) with LC/APC on one end and LC/APC on the other, made for APC (angled-polish) connections such as FTTH/GPON fibre outlets, ONTs and CATV/RF-over-fibre equipment.
The fibre is bend-insensitive G.657.A2 (minimum bend radius 7.5 mm) in a 2.0 mm yellow, flame-retardant LSZH jacket with strain-relief boots. Every cable is 100% tested after assembly and comes with dust caps and its own measurement report.
Before you order: Both ends are APC (angled polish, green connectors). APC only mates with APC: do not plug it into a UPC (blue) port or coupler — the link will fail and the end faces can be damaged. Check the port colour on your ONT, outlet or panel first.
What's in the Box
- 1 × Good Connections LC/APC–LC/APC simplex OS2 patch cable, 3 m
- Dust caps on both connectors
- Individual test/measurement report
What It Means in Practice
- Connect a LC/APC fibre outlet (building entry point or wall socket) to an ONT or fibre modem with a LC/APC port.
- Use it in FTTx distribution or in the data centre wherever APC simplex patching is required.
- G.657.A2 fibre tolerates a 7.5 mm bend radius, so tight routes behind furniture or in small boxes are not a problem.
- Keep the dust caps on until the moment you plug in, and never look into a connected fibre end — singlemode and multimode transmitters use invisible infrared light.
What Will Not Work
- UPC (blue) ports and couplers — APC and UPC end faces are not interchangeable.
- Duplex SFP/SFP+ modules that need two fibres — this is simplex (one fibre); you would need two cords or a duplex cable.
- Multimode equipment (OM1–OM4, SX optics) — this is singlemode OS2 only.
- SC/APC ports — both ends are LC; choose an LC/APC–SC/APC cord for SC equipment.
Key Features
LC/APC – LC/APC
Angled-polish simplex connectors for FTTx and PON equipment.
OS2 G.657.A2
Bend-insensitive 9/125 µm fibre, 7.5 mm minimum bend radius.
100% tested
Each cable is measured after assembly and ships with its own report.
2.0 mm LSZH
Flame-retardant halogen-free jacket with strain-relief boots, -40 to +85 °C.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
On fibre broadband the most common problem we see is not the cable but the polish: APC (green) and UPC (blue) look alike and fit the same port. This Good Connections cable is APC at both ends and individually tested, so it is a safe choice for the outlet-to-ONT connection of a fibre line. For business links between switches with SFP/SFP+ ports, use duplex UPC cords instead.
✓ Buy it if you are connecting green APC LC/APC ports — FTTH outlet to ONT, GPON or CATV equipment — over 3 m.
✕ Skip it if your ports are blue (UPC), multimode, or you need a duplex link for standard SFP modules.
→ Also consider the 1 m and 3 m LC/APC–LC/APC versions, or LC/APC–SC/APC if your ONT has an SC port.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - GoodConnections - LW-SA903LALA
Colour
yellow
Length
3m
More Details
Product Code
04:480365
EAN Code
4014619881048
Manufacturer
GoodConnections
