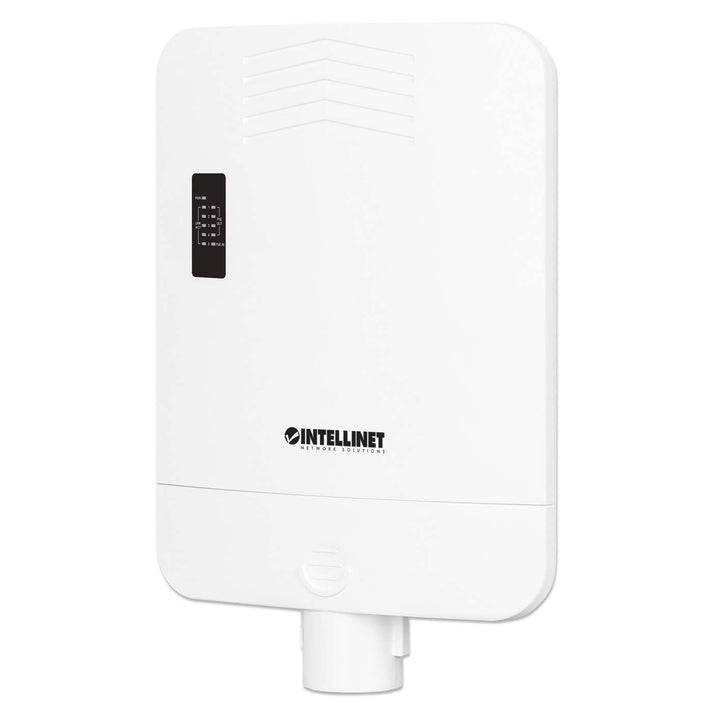

Intellinet 509220 Outdoor 5-Port Gigabit PoE Passthrough Switch
4× PoE+ Output Ports85W PoE PassthroughPoE-Powered (up to 90W in)IP65 Outdoor, -40°C to 80°C
The Intellinet 509220 is an outdoor, weatherproof 5-port Gigabit PoE passthrough switch that extends Power over Ethernet to cameras and access points far from the power source. Powered over Ethernet itself through port 1, it passes power through to four PoE+ output ports (up to 30W each, 85W budget), all in an IP65 dustproof and waterproof enclosure. Supplied under part number 509220, it operates from -40°C to 80°C with no local mains supply. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:
This switch is powered over Ethernet: port 1 is a PoE PD input (up to 90W, 802.3bt/4PPoE) that also serves as the uplink, and the switch passes power through to four PoE+ output ports (802.3af/at, up to 30W each) within an 85W budget. It needs an upstream PoE source capable of supplying enough power — despite some listings, it has no internal mains power supply. It is unmanaged, IP65 outdoor, with no SFP slot.
Best For
✓ Outdoor IP surveillance extending PoE to cameras far from the source
✓ Weatherproof camera clusters in car parks, perimeters and rooftops
✓ PoE-to-PoE extension without a local power supply
✓ Extreme-temperature and wet environments (IP65, -40°C to 80°C)
✓ Adding 4 PoE+ ports at the far end of a single PoE cable
✓ Silent, fanless outdoor deployment
Key Features
Outdoor PoE Passthrough
Powered over Ethernet through port 1, it passes power through to four PoE+ output ports — extending your PoE network without running mains power to the site.
4 PoE+ Ports, 85W Budget
Four 802.3af/at output ports each supply up to 30W, sharing an 85W budget (with up to 90W power input) to run several outdoor cameras or APs.
IP65 Weatherproof
A dustproof and waterproof IP65 enclosure rated from -40°C to 80°C survives rain, dust and extreme temperatures.
Plug-and-Play Unmanaged
No configuration — connect the upstream PoE cable and the cameras, and it works.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The 509220 solves a common outdoor problem: getting several PoE cameras online far from the power source. Powered over a single PoE cable, it passes power through to four weatherproof PoE+ ports — no mains supply needed at the pole or perimeter. IP65 and rated -40°C to 80°C, it is built for the elements. If you need a mains-powered outdoor PoE switch or managed features, choose a different model. Browse the full range in our Switch - Bridges category, and pair it with cameras from our IP Cameras range.
Buyer's Guide
Buy it if
You need to extend PoE to a weatherproof cluster of outdoor cameras or APs, powered over a single PoE cable with no local mains supply.
Skip it if
You need a mains-powered switch, more than 85W of PoE, managed features, or indoor-only use.
Also consider
A mains-powered outdoor or industrial PoE switch if you have local power, or a higher-budget PoE switch for more devices.
Features - Intellinet - 509220
Standard
5-Port
Port Speed
- 1 Gbps
More Details
Product Code
04:485829
EAN Code
0766623509220
Manufacturer
Intellinet
