Palit GeForce RTX 5060 Ti White OC 16GB GDDR7 — all-white Blackwell card for 1440p gaming and creator builds
16GB GDDR7 · 448 GB/sBoost 2602 MHz (OC)DLSS 4 Multi Frame GenerationWhite · 2-slot · 262 mm

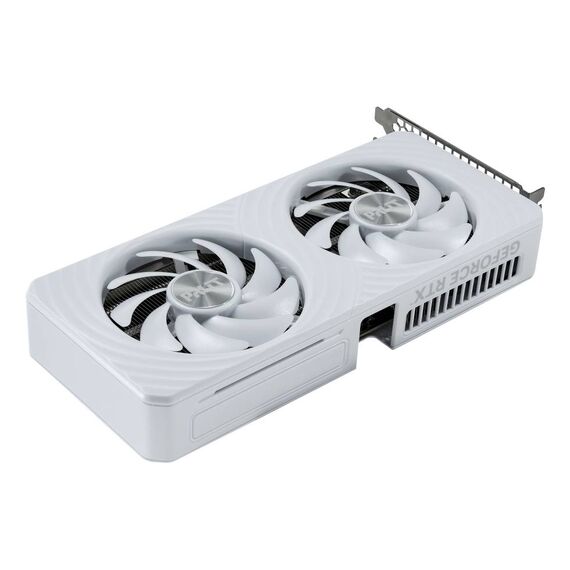

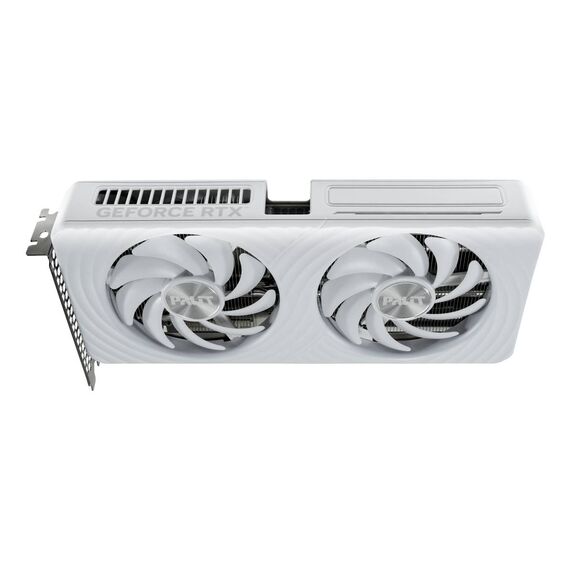

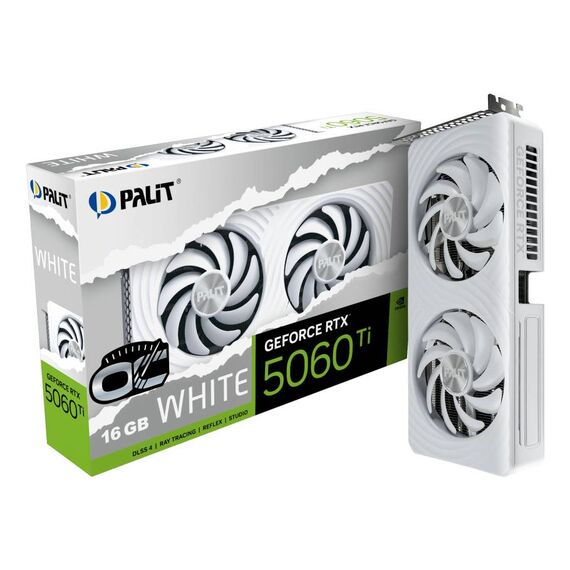

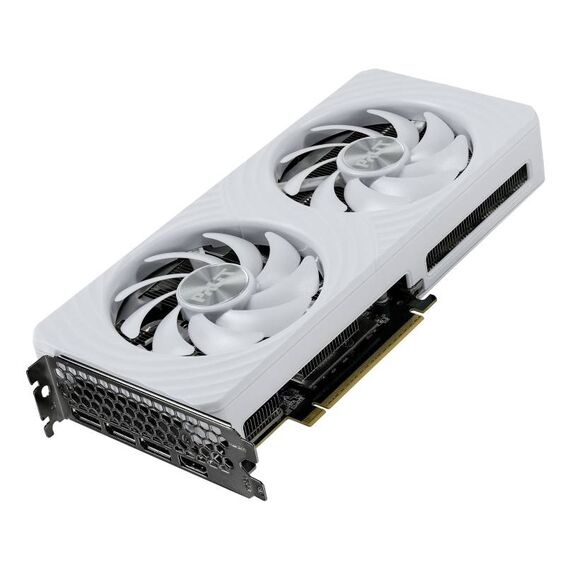

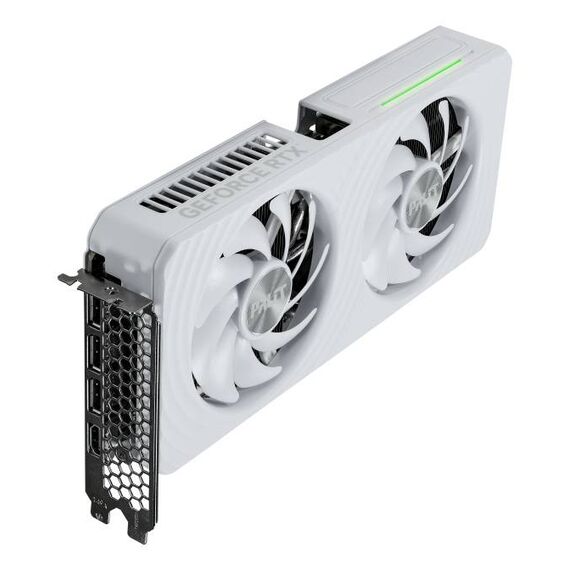

The Palit GeForce RTX 5060 Ti White OC 16GB (NE7506TU19T1-GB2061M) is a factory-overclocked NVIDIA Blackwell graphics card with 16GB of GDDR7 memory and an all-white shroud and backplate, aimed at 1440p gaming, streaming and content creation in white or light-themed PC builds.
It pairs 4,608 CUDA cores and a 2,602 MHz boost clock with DLSS 4 Multi Frame Generation, 5th-generation Tensor cores and a 9th-generation NVENC encoder. The 16GB version matters: modern games at high texture settings and AI tools such as local image generation run out of memory on 8GB cards long before they run out of GPU power.
Before you order: The card is 262.1 mm long, 126.3 mm tall and 40.1 mm thick (2 slots) and needs one 8-pin PCIe power connector and a 600W recommended system power supply. Check case clearance and PSU before ordering — send us your case and PSU model and we will confirm.
What's in the Box
- Palit GeForce RTX 5060 Ti White OC 16GB graphics card
- Palit does not publish a detailed accessory list for this model — any adapters or manuals in the box are not listed officially
- Power: the card uses one standard 8-pin PCIe connector from your power supply (no 12V-2x6 adapter required)
- No display cables are listed as included
What It Means in Practice
- High-refresh 1440p gaming with ray tracing, and 4K with DLSS 4 upscaling and frame generation in supported titles
- 16GB GDDR7 on a 128-bit bus at 28 Gbps (448 GB/s): room for ultra textures, mods and AI workloads that 8GB versions cannot hold
- 180W card power and a single 8-pin connector — easy to power with a decent 600W PSU
- Twin 95 mm fans stop at low load (below about 60°C / 150W), so desktop work and video playback stay silent
What Will Not Work
- It will not fit cases with less than about 265 mm of GPU clearance or only single-slot space
- It is not the 8GB RTX 5060 Ti or the non-Ti RTX 5060 White — check the 16GB and "Ti" markings when comparing prices
- A PSU without a free 8-pin PCIe cable will not power it; Molex or SATA adapters are not a safe substitute
- On older PCIe 3.0 boards the card works but at reduced bus bandwidth; it is designed for PCIe 5.0/4.0 platforms
- It is a GeForce gaming/creator card, not a certified RTX professional card with ECC memory
Key Features
NVIDIA Blackwell + DLSS 4
5th-gen Tensor cores (759 AI TOPS) enable DLSS 4 with Multi Frame Generation for much higher frame rates in supported games.
16GB GDDR7
28 Gbps memory, 448 GB/s bandwidth — the 16GB configuration of the RTX 5060 Ti for longer service life and AI workloads.
White design
White shroud, white backplate and composite heat pipe cooling with two 95 mm fans and 0dB fan stop.
Modern outputs
1x HDMI 2.1b and 3x DisplayPort 2.1b, up to 4 displays, 4K 480Hz or 8K 120Hz with DSC.
Technical Specifications
| Identification |
| Part Number |
NE7506TU19T1-GB2061M |
| Brand |
Palit |
| Model |
GeForce RTX 5060 Ti White OC 16GB |
| GPU |
| Graphics processor |
NVIDIA GeForce RTX 5060 Ti (Blackwell) |
| CUDA cores |
4,608 |
| Boost clock |
2,602 MHz (OC; NVIDIA reference 2.57 GHz) |
| Base clock |
2,407 MHz |
| AI performance |
759 AI TOPS |
| Memory |
| Capacity |
16 GB GDDR7 |
| Memory interface |
128-bit |
| Memory speed |
28 Gbps |
| Bandwidth |
448 GB/s |
| Connectivity |
| Bus interface |
PCI Express 5.0 |
| Display outputs |
1x HDMI 2.1b, 3x DisplayPort 2.1b |
| Max displays |
4 |
| Max resolution |
4K 480Hz or 8K 120Hz with DSC |
| Encoder / decoder |
1x NVENC (9th gen), 1x NVDEC (6th gen) |
| Power & Physical |
| Graphics card power |
180 W |
| Power connector |
1x 8-pin PCIe |
| Recommended system power |
600 W |
| Slot width |
2 slots |
| Dimensions |
262.1 x 126.3 x 40.1 mm |
| Cooling |
2x 95 mm fans, composite heat pipe, 0dB fan stop |
| Colour |
White (shroud and backplate) |
| Software |
| APIs |
DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6 |
| Technologies |
DLSS 4, Multi Frame Generation, Reflex, ray tracing |
| Warranty |
| Warranty |
1-Year Warranty (Singular) |
| Manufacturer Term |
Not published by Palit for the EU — claims handled through Singular |
Frequently Asked Questions
Is 16GB worth it over the 8GB RTX 5060 Ti?
For 1440p with high textures, heavily modded games and AI tools, yes. The GPU is the same; the 8GB version hits memory limits first.
Will my 550W power supply be enough?
Palit recommends 600W total system power. A quality 550W unit may cope with an efficient CPU, but we recommend 600W or more for headroom.
Does it need the new 16-pin connector?
No. It uses a single standard 8-pin PCIe power connector.
Can it run four monitors?
Yes, up to four displays using the HDMI 2.1b and three DisplayPort 2.1b outputs.
Singular Expert Insight · Buyer's Guide
The 16GB RTX 5060 Ti is the most sensible mid-range GeForce for buyers who keep cards for several years: Blackwell efficiency, DLSS 4 and enough memory that texture settings will not need to drop. The White OC version is the pick for white builds where a black card would stand out. Compare other models in our
graphics cards range.
✓ Buy it if you game at 1440p, stream or run AI tools, and want a white card that fits a standard 2-slot space with one 8-pin cable.
✕ Skip it if your case cannot fit a 262 mm card, or you need workstation drivers and ECC memory for certified CAD software.
→ Also consider an RTX 5070 for more 1440p/4K headroom, or a black RTX 5060 Ti 16GB if the colour does not matter.
