Patriot P300 / Solid state drive / 256 GB / internal / M.2 2280 / PCI Express 3.0 x4 (NVMe) | P300P256GM28

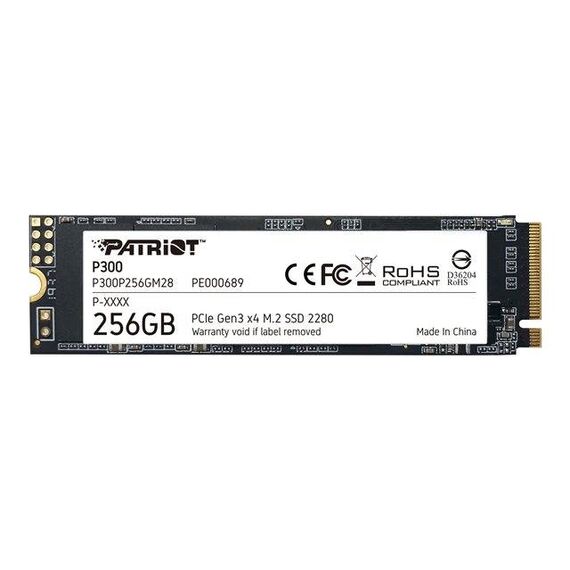

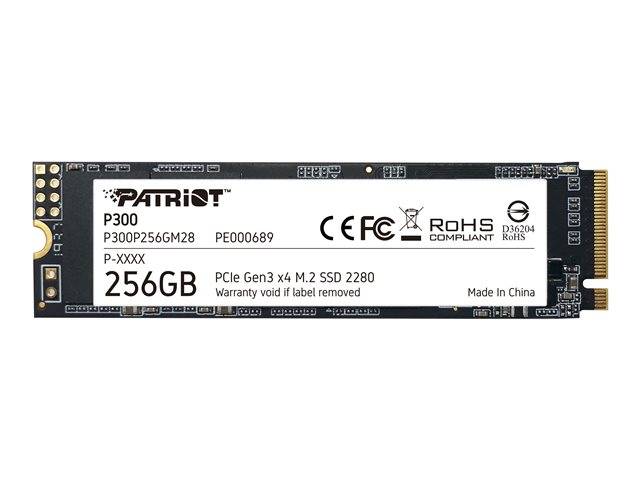

Patriot P300 SSD M.2 2280 256GB P300P256GM28

Description
Features

Patriot P300 / Solid state drive / 256 GB / internal / M.2 2280 / PCI Express 3.0 x4 (NVMe) | P300P256GM28

Description

The P300 is Patriot's next generation of mid-tier PCIe gen 3x4 NVMe SSD to hit the market, offering 25% higher transfer speeds and IOPs than standard PCIe 3x2 solutions. The compact m.2 form factor is designed for easy installation and will fit into any PC or laptop, while its low power consumption helps extend laptop battery life. The P300 is guaranteed to improve start-up, loading, and transfer times over traditional hard disk drives.

Patriot P300 / Solid state drive | P300P256GM28

Special Features

Built with the latest PCIe 3 x 4 controller
2280 m.2 PCIe NVMe Gen3 x 4 SSD
Thermal throttling technology
End-to-end Datapath protection
Operating temperature: 0~70°C

Product Specification

Device Type	Solid state drive - internal
Capacity	256 GB
Form Factor	M.2 2280
Interface	PCI Express 3.0 x4 (NVMe)
Features	Error Correction Code (ECC), NANDXtend, NVM Express (NVMe) 1.3, Host Memory Buffer (HMB), Advanced Wear Leveling, thermal management
Width	22 mm
Depth	80 mm
Height	3.8 mm
Weight	9 g
SSD Endurance	80 TB
Internal Data Rate	1700 MBps (read) / 1100 MBps (write)
Maximum 4KB Random Write	260000 IOPS
Maximum 4KB Random Read	290000 IOPS
Interfaces	1 x PCI Express 3.0 x4 (NVMe)
Compatible Bay	M.2 2280
Power Consumption	2.07 Watt (maximum) ¦ 0.37 Watt (idle)
OS Required	Microsoft Windows 7 / 8 / 8.1 / 10
Compliant Standards	FCC, RoHS
Shipping Width	13.08 cm
Shipping Depth	0.66 cm
Shipping Height	9.96 cm
Shipping Weight	20 g
Service & Support	Limited warranty - 3 years
Min Operating Temperature	0 °C
Max Operating Temperature	70 °C
