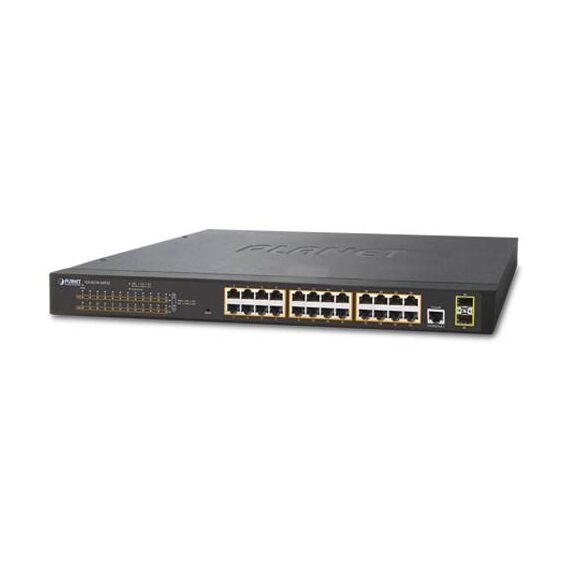

PLANET GS-4210-24P2S 24-Port PoE+ 300W Switch
Brand:
Planet
GS-4210-24P2S
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
24 managed Gigabit PoE+ ports with a shared 300 W budget
24 × Gigabit PoE+300 W shared2 × 100/1000 SFPManaged rack switch
This PLANET GS-4210-24P2S configuration provides 24 Gigabit PoE+ copper ports and two 100/1000BASE-X SFP uplinks, with a shared 300 W PoE budget. VLAN, QoS, multicast controls and access policies support structured office and surveillance networks. The documented configuration matches EAN 4711605280181 and the imported Gigabit-uplink, 8K-MAC product identity.
Best For: Rack installations powering phones, cameras and access points within a planned 300 W total allocation.
Before you order: This listing describes the documented 300 W and 100/1000 SFP configuration, not the newer 370 W model with 2.5G uplinks. Up to 30 W per PoE port does not mean 24 simultaneous 30 W loads. Select supported SFP modules separately and plan fan ventilation.
What's in the Box
- GS-4210-24P2S and quick installation guide.
- RS-232-to-RJ45 console cable and power cord.
- Two rack-mounting brackets with attachment screws, four rubber feet and two SFP dust caps.
- SFP transceivers, fibre and network cables selected separately.
What It Means in Practice
- Connect up to 24 copper devices at 10/100/1000 Mbps and power compatible IEEE 802.3af/at endpoints.
- Keep total PoE requirements within 300 W, with individual compatible ports up to 30 W.
- Use two SFP cages for compatible 100 or 1000 Mbps uplinks.
- Configure VLAN, QoS, LACP, spanning tree and multicast controls for your actual topology.
What Will Not Work
- No confirmed 2.5G or 10G uplinks in this documented configuration.
- 24 loads of 30 W require 720 W and exceed the shared budget.
- The RJ45 serial console is not an extra Ethernet access port.
- Two cooling fans mean this is not a fanless switch; PoE scheduling does not replace UPS power.
Key Features
Managed PoE access
24 Gigabit copper ports with IEEE 802.3af/at PoE+ support.
300 W power planning
A shared budget with per-port PoE controls, scheduling and alive checks.
Fibre uplink choice
Two 100/1000BASE-X SFP cages with separately selected compatible transceivers.
Structured network control
VLANs, LACP, spanning tree, ACLs, QoS and multicast snooping.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The shared 300 W budget and Gigabit SFP uplinks define the installation. Size camera or access-point loads together, then check whether the two uplinks and multicast/VLAN design meet the expected traffic. Keep newer hardware-revision claims separate from this older documented EAN configuration.
Buyer’s Guide
✓ Buy it if You need managed rack-mounted Gigabit PoE+ access within 300 W and suitable Gigabit SFP uplinks.
✕ Skip it if You need guaranteed 370 W, 2.5G/10G uplinks, silent fanless operation or 24 simultaneous 30 W loads.
→ Also consider Combined PoE demand, supported optics, uplink traffic, cooling, rack space and saved configuration.
Features - Planet - GS-4210-24P2S
Colour
black
Interface
- Ethernet
Standard
26-Port
Port Speed
- 1 Gbps
More Details
Product Code
04:247851
EAN Code
4711605280181
Manufacturer
Planet
