PLANET ISW-801T Industrial 8-Port 10/100 Switch
Brand:
Planet
ISW-801T
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Eight Fast Ethernet connections for protected industrial cabinets
8 × 10/100 MbpsUnmanaged, no PoE12–48 V DC / 24 V ACIP30, -40 to 75°C

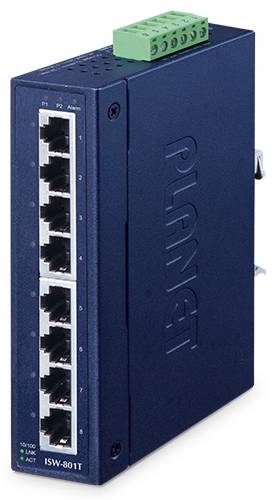

The PLANET ISW-801T provides eight auto-negotiating 10/100 Mbps RJ45 ports in a slim industrial metal case. Unmanaged plug-and-play switching suits control equipment and other Fast Ethernet devices without a configuration interface. DIN-rail or wall mounting, dual power inputs and a wide operating temperature range support suitable protected industrial installations.
Best For: Control cabinets and industrial equipment that need straightforward eight-port Fast Ethernet connectivity.
Before you order: Each network port is limited to 100 Mbps and does not provide PoE. Supply separate suitable industrial power at 12–48 V DC or supported 24 V AC, following the manual. Redundant input terminals do not mean two included supplies or a built-in UPS. IP30 does not protect against water.
What's in the Box
- ISW-801T switch and documentation access sheet.
- DIN-rail bracket and wall-mount hardware with screws, plus eight RJ45 dust caps as listed in the current manual.
- External industrial power supply and Ethernet cables selected separately.

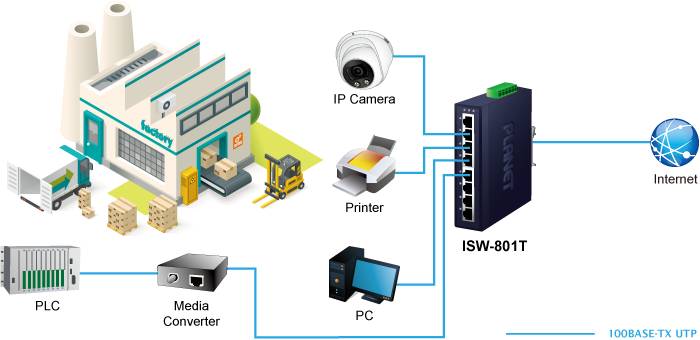

- Devices in the application diagram are illustrative and not included.
What It Means in Practice
- Connect up to eight compatible 10/100BASE-TX devices using suitable twisted-pair cabling.
- Use auto-negotiation and auto-MDI/MDI-X for ordinary endpoint and upstream network connections.
- Arrange appropriate external power, grounding and optional redundant sources before energising the switch.
- Install on DIN rail or a suitable wall plate inside a protected cabinet with suitable clearance.
What Will Not Work
- No Gigabit or multi-gigabit port speed.
- No PoE output for cameras, phones or access points.
- No SFP uplinks, managed VLAN configuration or routing function is established.
- The IP30 enclosure must not be exposed directly to rain or washdown.
Key Features
Eight Fast Ethernet ports
10/100 Mbps RJ45 with automatic negotiation and MDI/MDI-X.
Simple unmanaged operation
Plug-and-play switching without a managed configuration interface.
Flexible industrial power
12–48 V DC redundant inputs or supported 24 V AC supply.
Industrial mounting
IP30 metal housing, DIN rail/wall mounting and -40 to 75°C operation.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Use this model where 100 Mbps per link is sufficient. Check both endpoint bandwidth and the upstream connection before choosing it for aggregated traffic. Plan external industrial power and cabinet protection as part of the installation, rather than treating redundant terminals as included backup equipment.
Buyer’s Guide
✓ Buy it if You need simple eight-port Fast Ethernet inside a protected industrial cabinet.
✕ Skip it if You need Gigabit, PoE, fibre uplinks or managed VLANs.
→ Also consider Actual traffic, appropriate external power supplies, grounding, cabinet environment and the mounting position.
Features - Planet - ISW-801T
Colour
blue
Interface
- Ethernet
Standard
8-Port
Port Speed
- 10/100 Mbps
More Details
Product Code
04:247795
EAN Code
4711213687228
Manufacturer
Planet
