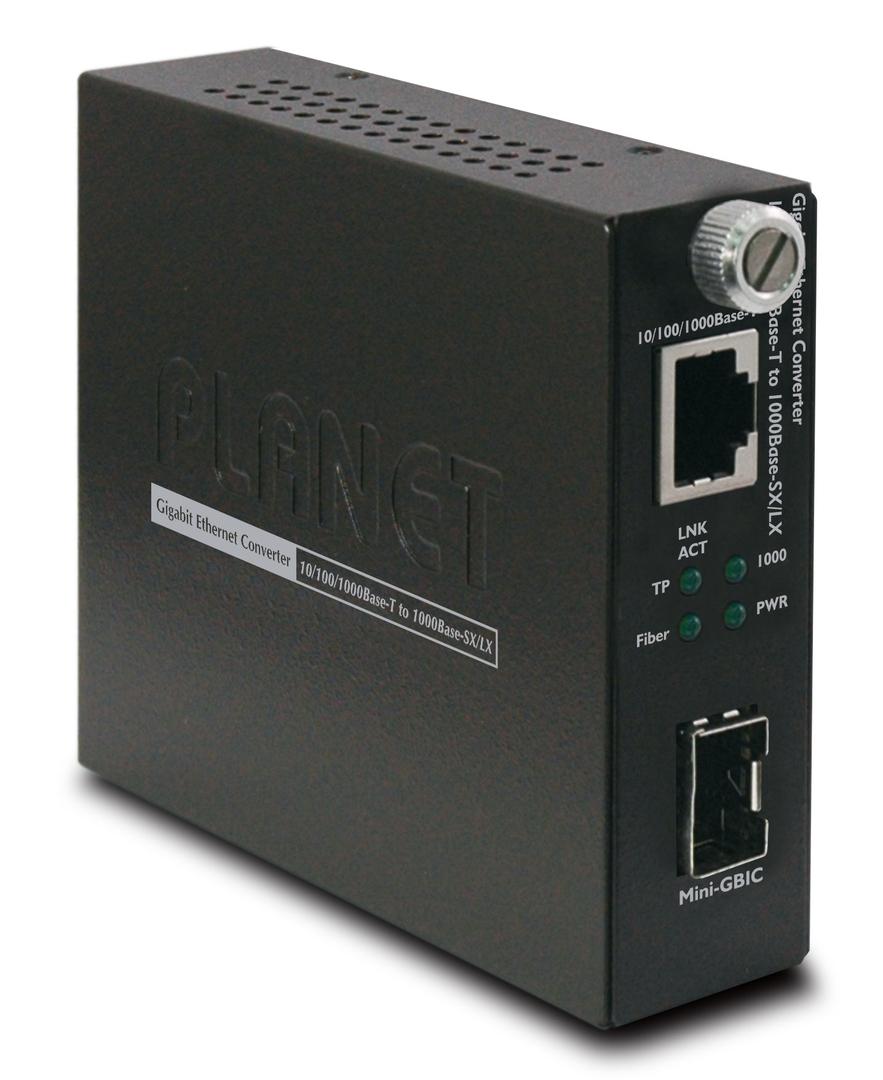

PLANET GST-805A / Fibre media converter / 1GbE / 10Base-T, 100Base-TX, 1000Base-T / RJ-45 / SFP (mini-GBIC) | GST-805A

Product Features

• Distance extension with high performance and steady network communication

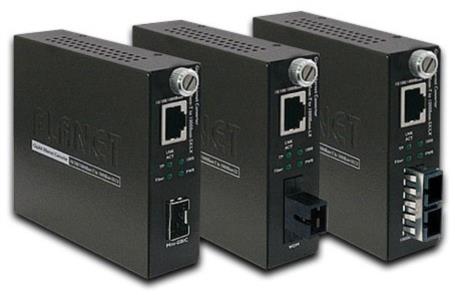

  The PLANET smart gigabit media converter - GST-80x series extends communication distance with highly Gigabit performance via fiber optical cable. The GST-80x series provides media conversion between 10/100/1000Base-T and 1000Base-SX/LX interfaces.
• Enhanced smart management features
  The GST-80x series provides auto MDI/MDI-X on its TP port and the DIP switch to configure the available smart functions including the auto-negotiation/force for fiber interface and link pass through function (LLCF/LLR). The Link Loss Carry Forward (LLCF) function works with Link Loss Return (LLR) to diagnose network connections. Also, the LLR function can immediately alarm network administrator the media link issue and provide efficient solution to monitor the entire network.
• Easy installation
  The smart media converter can be used as a standalone unit when powered by its DC adapter or used as a slide-in module to the PLANET 19-inch web smart/managed 16-slots media converter chassis. When working with the web smart/managed media converter chassis, the GST-80x is able to be managed and its status be monitored through the local RS-232 console and remote web interface.

Special Fetures

• Distance extension with high performance and steady network communication
• Enhanced smart management features
• Easy installation
• Back-pressure and IEEE 802.3x compliant flow control and full wire-speed forwarding rate
• 9 K jumbo frame size supported
• Link Loss Return (LLR) switch on each fiber optic to aid in troubleshooting remote network connections
• Link Loss Carry Forward (LLCF) work with LLR in diagnosing network connections
• Provides DIP switch for fiber (auto-negotiation/manual) and LFP function (disable/enable) setting
• LED indicators for converter status

Product Specification
