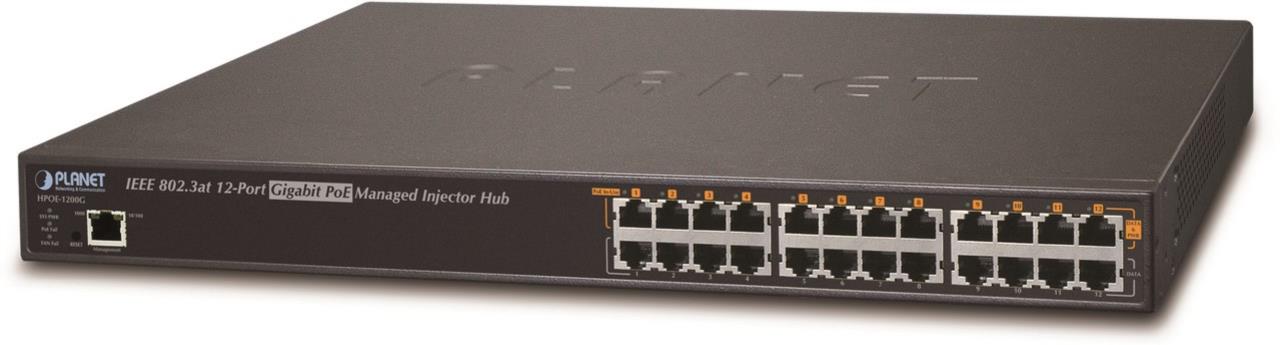

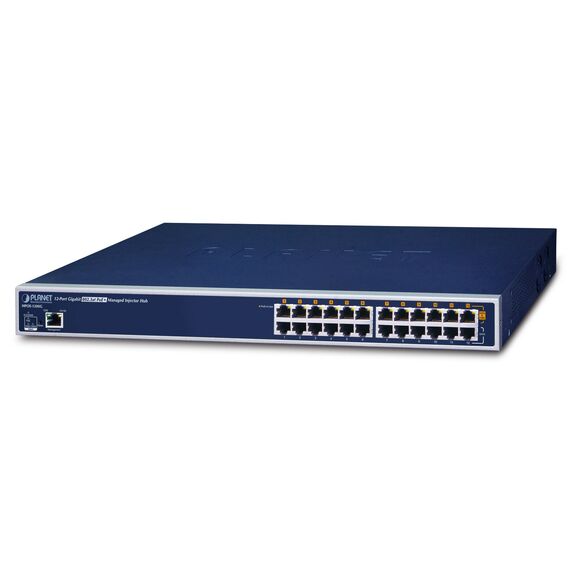

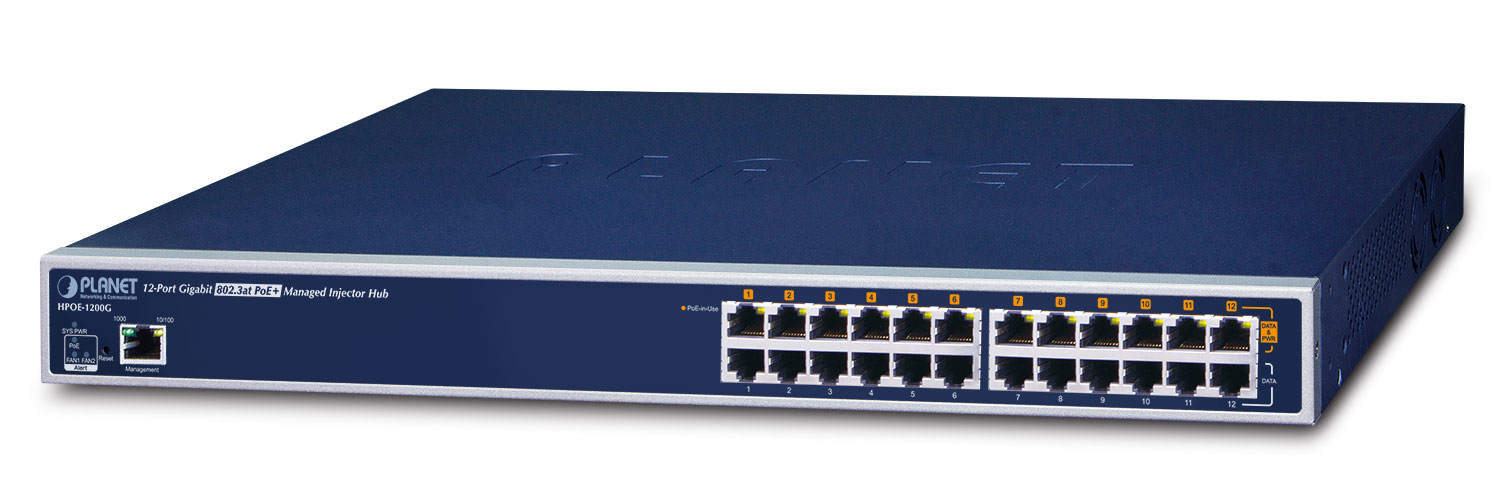

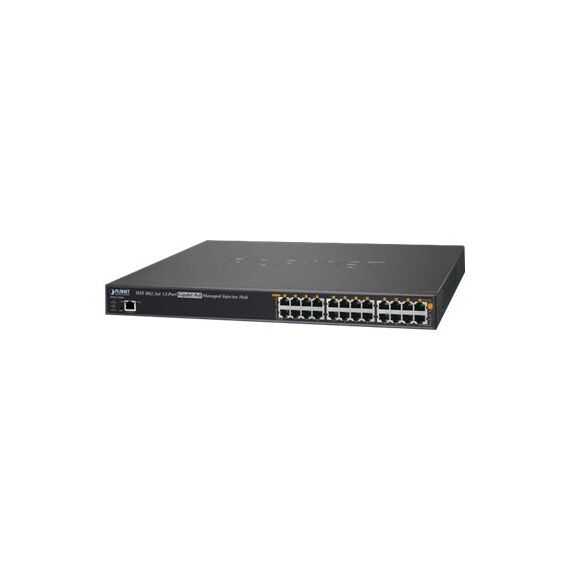

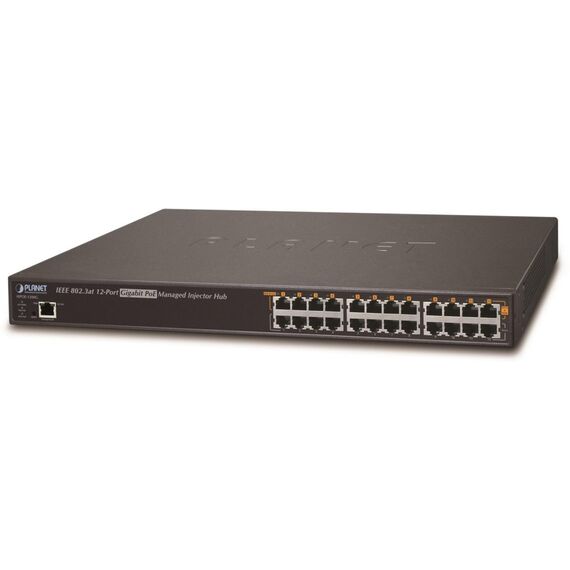

PLANET HPOE-1200G — managed PoE+ for twelve devices from a 1U rack unit
12x PoE+ · 360W802.3af/atWeb / SNMP managed19" 1U rack
The PLANET HPOE-1200G is a 12-port Gigabit PoE+ managed injector hub (mid-span) that adds IEEE 802.3af/at power — up to 30.8 W per port and 360 W in total — to twelve existing network links, in a 19-inch 1U rack chassis. It is built for sites that want to power cameras, access points and phones from an existing non-PoE switch and still monitor and control each PoE port remotely.
Each of the twelve channels has a data-in port from the switch and a data-plus-power port to the device; a separate Gigabit management port gives access to the web interface and SNMP.
Before you order: The 360 W budget is shared across twelve ports — enough for an average of 30 W per port. Check your device list against the total before ordering; 802.3bt devices are not supported.
What's in the Box
- PLANET HPOE-1200G 12-Port Managed PoE+ Injector Hub
- Package contents are not published by PLANET for this model — ask us to confirm rack ears and power cord
What It Means in Practice
- Twelve PoE+ devices can be added to an existing switch without replacing it, from one rack unit.
- PoE scheduling switches cameras or access points off at set times to save power.
- PD alive check can automatically power-cycle a frozen camera or access point.
- Per-port PoE priority keeps critical devices powered if the budget is reached.
What Will Not Work
- 802.3bt devices (60–90 W) will not be fully powered.
- It is not a switch: each device still needs its own switch port.
- No 2.5G/10G pass-through — 10/100/1000 Mbps only.
- The data ports are not managed — management covers the PoE functions.
Key Features
12-port mid-span
Twelve data-in and twelve data-plus-PoE ports.
360 W PoE+
Up to 30.8 W per port, 802.3af/at.
Remote management
Web interface, SNMP v1/v2c/v3, PoE scheduling and PD alive check.
Rack-ready
19-inch 1U chassis with internal 100–240 V power supply and smart fans.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Ideal when a site with a good non-PoE switch adds a batch of PoE+ IP cameras or access points and wants remote power control without replacing the switch. For new installations, compare with a managed PoE+ switch.
✓ Buy it if you need managed PoE+ on up to twelve ports alongside an existing switch.
✕ Skip it if your devices need 802.3bt or you are replacing the switch anyway.
→ Also consider PLANET HPOE-460 4-port PoE+ injector hub for smaller setups.
Send us your device list and switch model and we will check the power budget and rack fit before you order.
Features - Planet - HPOE-1200G
More Details
Product Code
04:247888
EAN Code
4711213688171
Manufacturer
Planet
