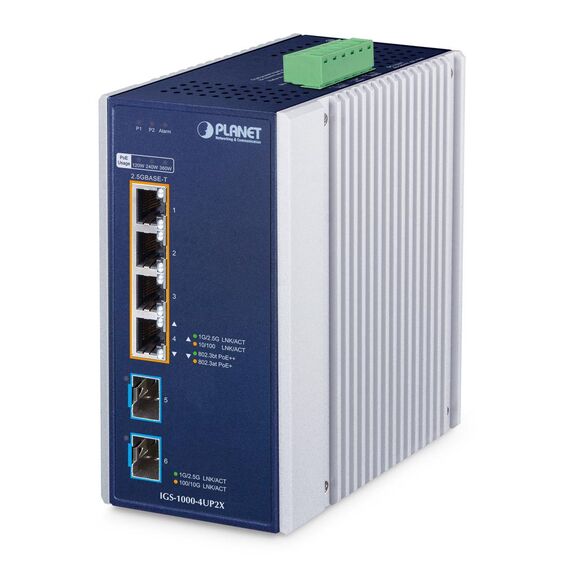

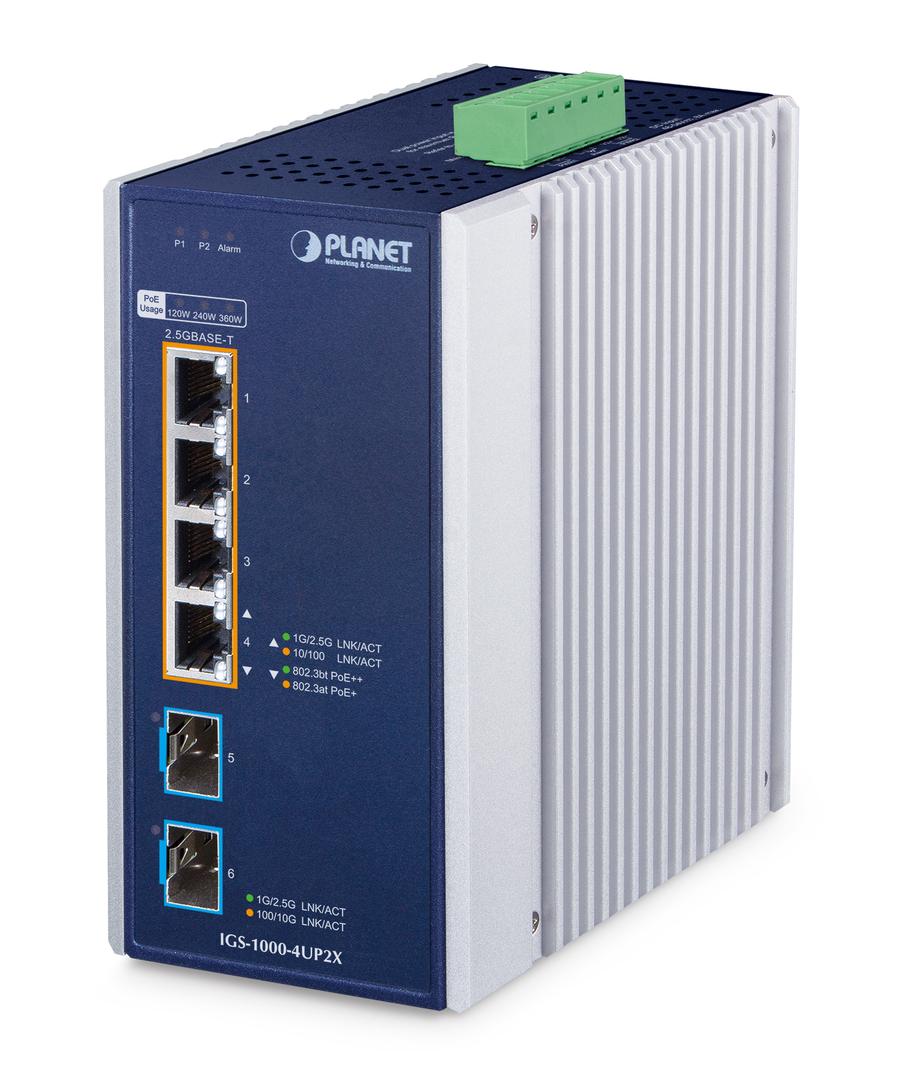

Planet IGS-1000-4UP2X Industrial Unmanaged Switch | 4x 2.5G RJ-45 | 2x 10G SFP+ | PoE++ | 1.02 kg
The Planet IGS-1000-4UP2X is an industrial unmanaged Ethernet switch for networks that need 2.5G access ports and high-speed fibre uplinks. It offers four 10/100/1000/2500BASE-T ports, two auto-detected 1G/2.5G/100/10GBASE-X SFP+ ports, PoE support, and DIN-rail or wall mounting for industrial installations.
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Planet |
| Model | IGS-1000-4UP2X |
| Product Type | Industrial unmanaged switch |
| Ports | 4 x RJ-45 | 2 x SFP+ |
| RJ-45 Port Speed | 10/100/1000/2500BASE-T |
| SFP+ Port Speed | 1G/2.5G/100/10GBASE-X |
| PoE | Yes |
| Switching Capacity | 60 Gbit/s |
| Throughput | 44.462 Mpps |
| MAC Address Table | 4000 entries |
| Store-and-Forward | Yes |
| Jumbo Frames Support | Yes |
| Full Duplex | Yes |
| Half Duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Networking Standards | IEEE 802.1p | IEEE 802.3 | IEEE 802.3ab | IEEE 802.3ae | IEEE 802.3af | IEEE 802.3at | IEEE 802.3az | IEEE 802.3bt | IEEE 802.3bz | IEEE 802.3u | IEEE 802.3x | IEEE 802.3z |
| Power Source | DC |
| Input Current | 8 A |
| Operating Temperature | -40 - 75 °C |
| Operating Relative Humidity | 5 - 90 % |
| Certification | FCC Part 15 Class A | CE |
| Colour | Aluminium | Blue |
| Housing Material | Aluminium |
| IP Rating | IP30 |
| Mounting | DIN rail mounting | Wall mountable |
| LED Indicators | Yes |
| Width | 76.8 mm |
| Depth | 107.3 mm |
| Height | 152 mm |
| Weight | 1.02 kg |
| SKU / EAN | IGS-1000-4UP2X | 4711605288033 |
SINGULAR RECOMMENDS
For who
For installers and industrial network projects that need an unmanaged switch with 2.5G copper ports, 10G fibre uplinks and PoE support.
Real reason to buy it
It combines industrial DIN-rail design, 2.5G access ports and 10G SFP+ uplinks in one unmanaged switch for straightforward deployment.
Know before
This is an unmanaged industrial switch, so it is designed for plug-and-play use rather than advanced configuration. Power is DC, and the enclosure is IP30.
Features - Planet - IGS-1000-4UP2X
Standard
5-Port
Port Speed
- 2.5 Gbps
- 10 Gbps
More Details
Product Code
04:511400
EAN Code
4711605288033
Manufacturer
Planet
