PLANET IGS-4215-4UP4T2S Industrial Managed Switch 4x 802.3bt PoE++ + 4x GbE + 2x SFP 240W DIN-Rail
4× 802.3bt PoE++ (95W/port)240 W PoE BudgetL2/L4 Managed-40~75°C Industrial

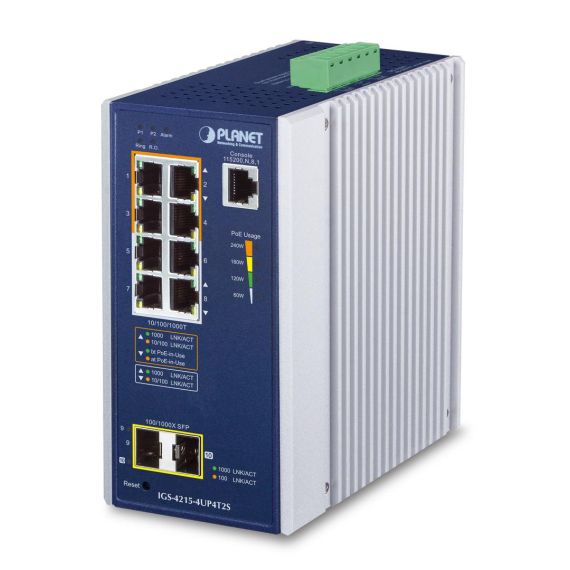

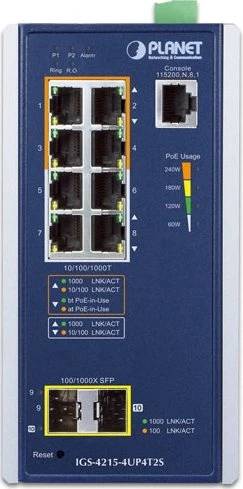

The PLANET IGS-4215-4UP4T2S is an industrial DIN-rail managed switch built for harsh environments, combining four 802.3bt PoE++ Gigabit ports (up to 95 W each), four standard Gigabit ports and two 100/1000X SFP fibre slots. A 240 W PoE budget powers PTZ cameras, heaters and other 60 W-plus devices, while dual 48–54 V DC inputs give power redundancy. Rated -40 to 75 °C with an IP30 aluminium case (part number IGS-4215-4UP4T2S), it delivers Layer 2/Layer 4 management in factories, roadside cabinets and outdoor sites. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:
PoE++ (802.3bt Type-4) delivers up to 95 W per port for high-draw devices such as PTZ cameras or heated enclosures; the total budget is 240 W shared across the four PoE ports. It runs on 48–54 V DC (not an AC adapter) via a dual-input terminal block for redundancy — plan an industrial DC supply. SFP slots take 100/1000X modules (sold separately). This is a hardened DIN-rail unit, not a 19-inch rack switch.
Best For
✓Factory-floor and machine networks
✓Outdoor and roadside camera cabinets
✓PoE++ PTZ cameras and heaters
✓DIN-rail installations
✓Sites needing DC power redundancy
✓Extreme-temperature environments
Key Features
4× 802.3bt PoE++ up to 95 W
Four Gigabit ports deliver 802.3bt Type-4 PoE++ at up to 95 W each from a 240 W budget, powering PTZ cameras, wireless APs, heaters and other high-demand devices over one cable.
Layer 2/Layer 4 Management
Full L2/L4 features — VLANs, IGMP, LACP, QoS, ACLs and IPv6 management — give precise control and security for industrial and surveillance networks.
Dual DC Power Redundancy
Two independent 48–54 V DC inputs on a terminal block keep the switch running if one power source fails, essential for unattended field sites.
-40 to 75 °C IP30 Build
The fanless aluminium IP30 chassis with 6 KV ESD and 4 KV surge protection withstands extreme heat, cold and electrical noise in cabinets and enclosures.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The IGS-4215-4UP4T2S is purpose-built for the field: 95 W PoE++, dual-DC redundancy and a -40~75 °C rating that ordinary office switches can’t match. It’s ideal where you power a few high-draw IP cameras or APs far from the rack. If you need more PoE ports, look at the 8-port IGS-4215-8UP2T2S; for standard indoor deployments, a rack PoE model from our switches and bridges range is more cost-effective.
Buyer's Guide
Buy it if
You need hardened DIN-rail networking with 95 W PoE++, DC power redundancy and -40~75 °C operation for cameras or field devices.
Skip it if
You are deploying indoors in a rack with AC power — an industrial DC switch adds cost and complexity you do not need.
Also consider
The 8-port IGS-4215-8UP2T2S for more PoE++ ports, or the 802.3at IGS-4215-8P2T2S if 30 W per port is sufficient.
Features - Planet - IGS-4215-4UP4T2S
Standard
8-Port
Port Speed
- 1 Gbps
More Details
Product Code
04:511300
EAN Code
4711605286992
Manufacturer
Planet
