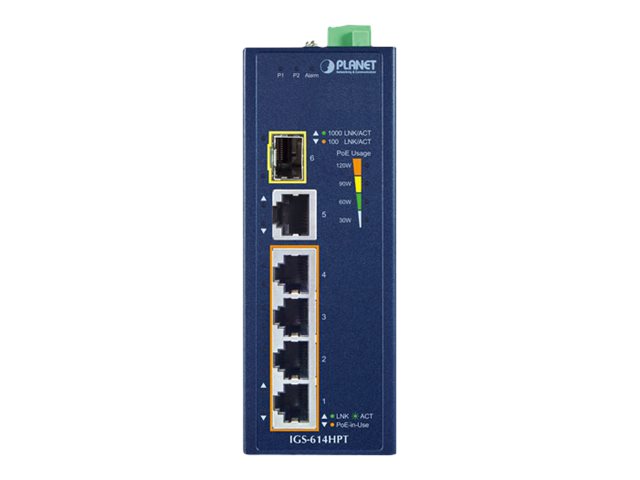

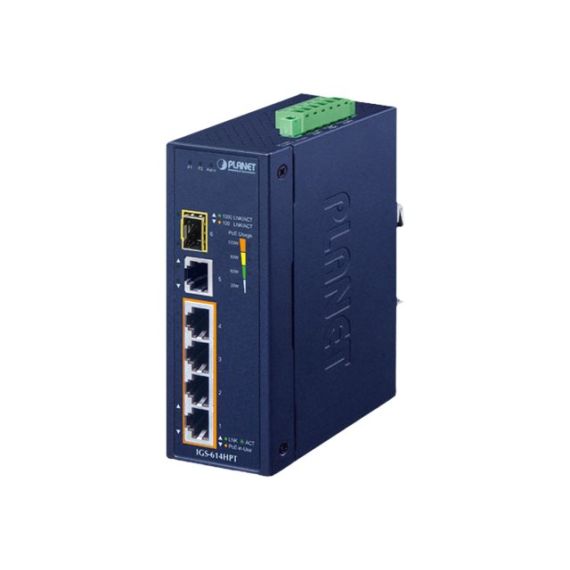

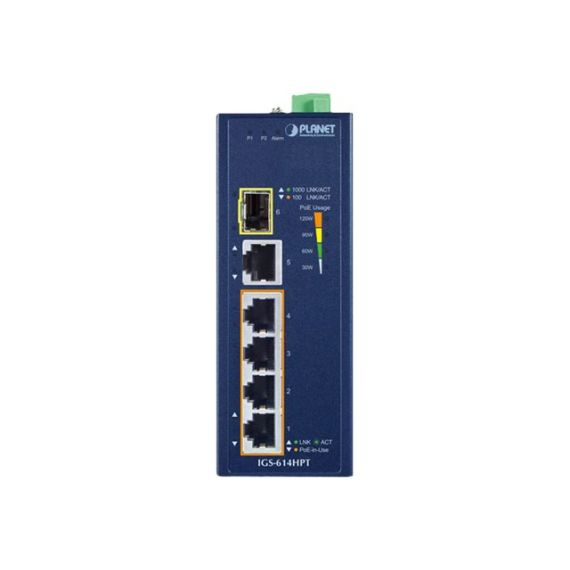

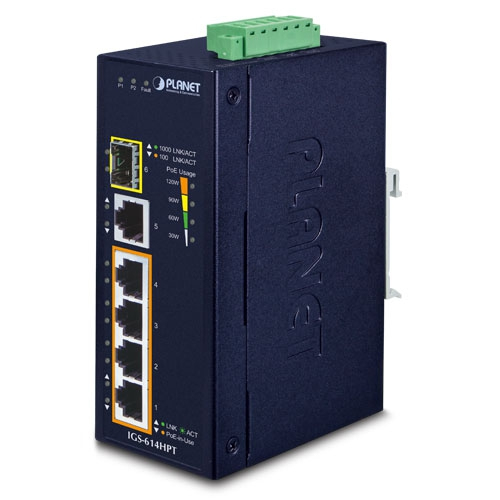

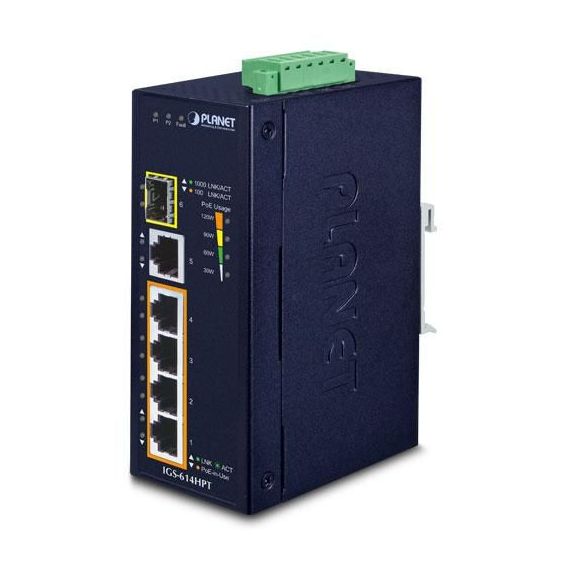

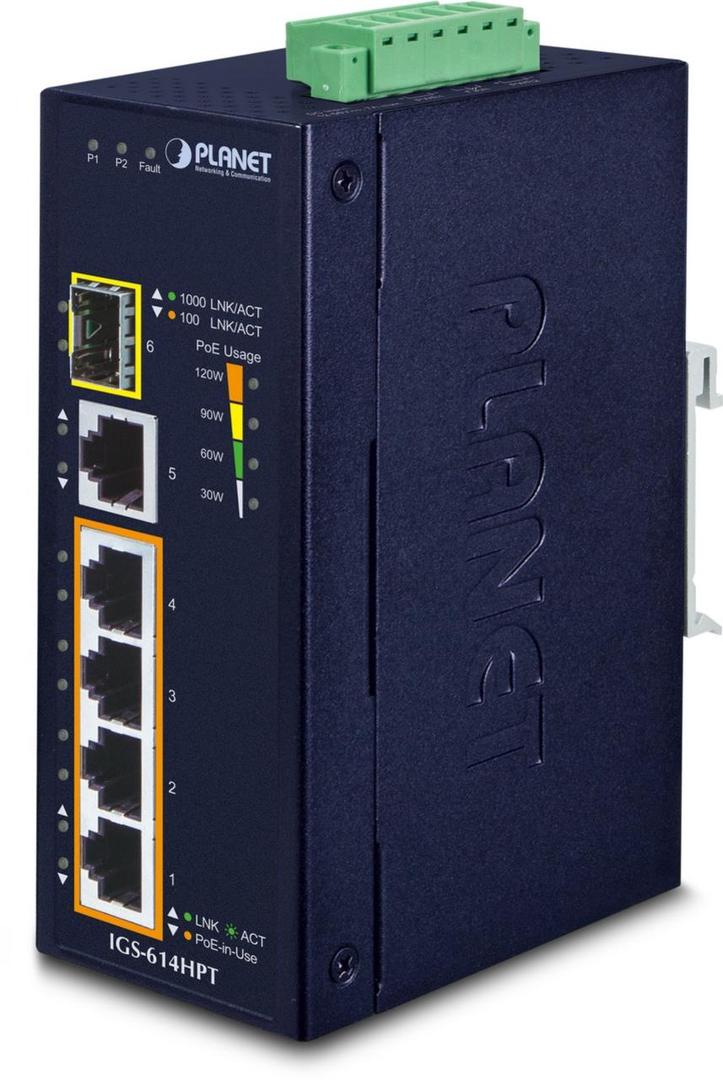

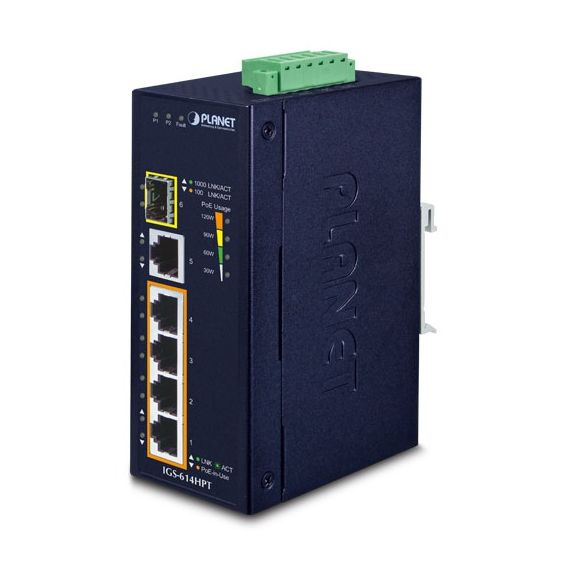

PLANET IGS-614HPT Industrial 6-Port Gigabit PoE+ Switch
4× Gigabit PoE+ (36W)120W PoE Budget1 RJ45 + 1 SFP + Dual DCIP40 Fanless -40~75°C

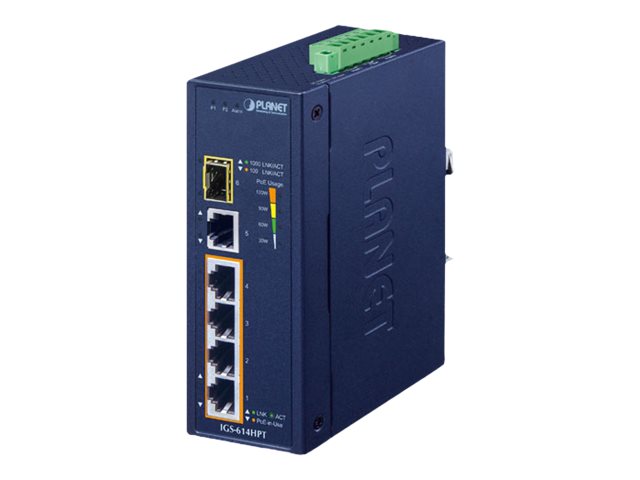

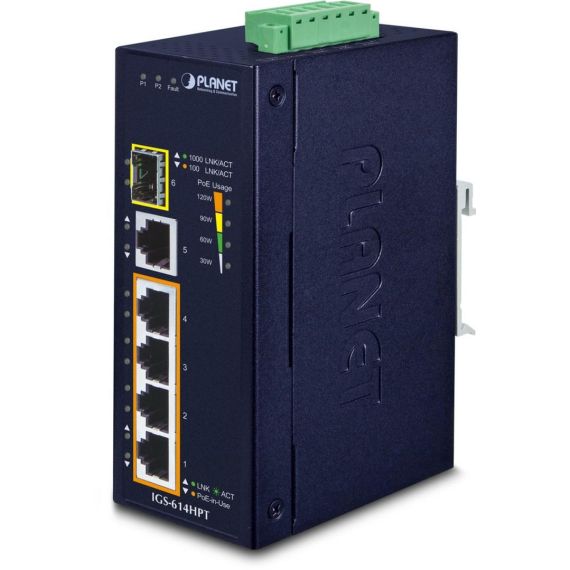

The PLANET IGS-614HPT is an industrial 6-port Gigabit switch with four 802.3at PoE+ ports delivering up to 36W each, plus one Gigabit RJ45 and one SFP uplink, on a 120W budget for cameras and access points in the field. Part number IGS-614HPT runs fanless in an IP40 metal case rated from -40 to +75°C, with dual redundant DC inputs for reliable industrial links. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:
Four ports supply 802.3at PoE+ up to 36W each (at 48-56V DC) from a 120W budget; port 5 is a standard non-PoE Gigabit RJ45 and port 6 is a 100/1000BASE-X SFP uplink. The switch is DC-powered through dual redundant 12-56V inputs with reverse polarity protection — not an AC plug. It is unmanaged, with no VLANs or web interface.
Best For
✓High-power industrial PoE cameras (PTZ, heaters)
✓Outdoor and roadside cabinets
✓Transport, utility and infrastructure sites
✓Locations with temperature extremes (-40 to +75°C)
✓DIN-rail control panels and machine cells
✓Compact field switches needing a fibre uplink
Key Features
4× 802.3at PoE+ up to 36W
Four Gigabit ports each deliver up to 36W of PoE+ from a 120W budget — enough for PTZ cameras and heated enclosures that standard PoE cannot power.
Gigabit RJ45 + SFP Uplink
A fifth Gigabit copper port and a 100/1000BASE-X SFP slot give you flexible uplink options over copper or fibre for longer field runs.
Dual Redundant DC Power

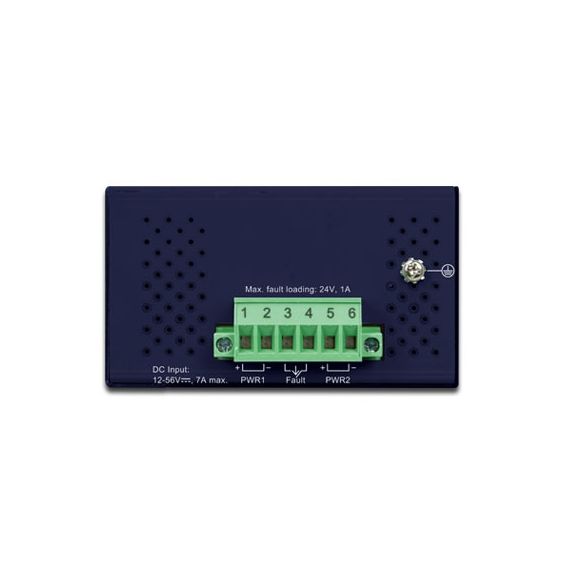

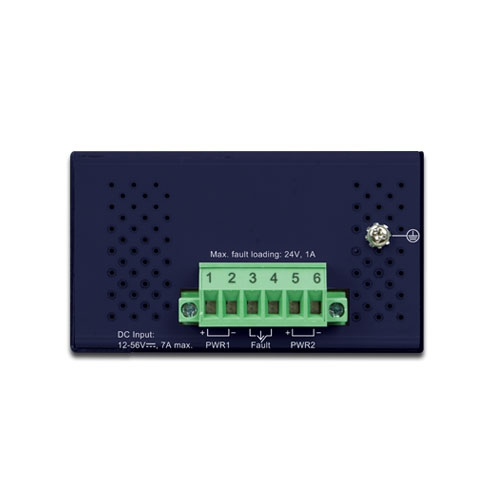

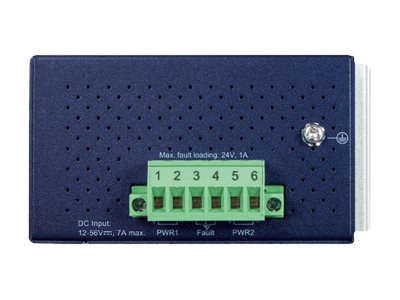

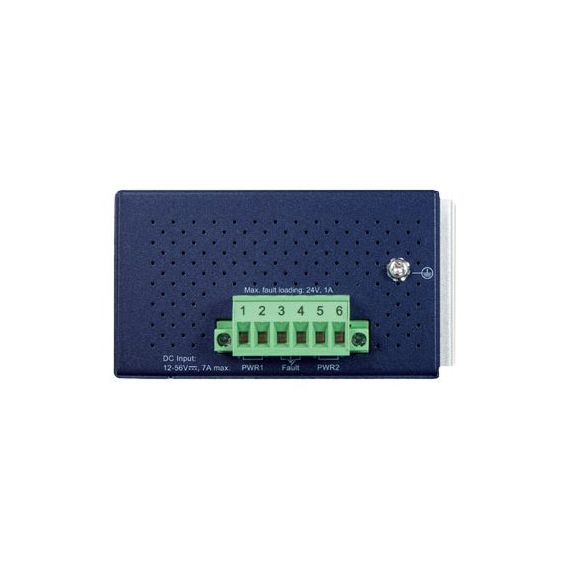

Two DC inputs (12-56V) with reverse polarity protection keep the switch running if one source fails — essential for critical industrial links.
Fanless, Hardened Build
An IP40 metal case rated -40 to +75°C with fanless cooling survives dust, heat and cold in outdoor and industrial environments.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The IGS-614HPT is a compact field switch built for demanding PoE: up to 36W per port powers PTZ cameras and heated housings that ordinary PoE starves, and dual DC power keeps critical links alive. Its SFP uplink adds fibre reach in a tiny footprint. For an indoor office rack, a mains-powered rackmount PoE switch from our network switches range is a better fit. Pair it with rugged cameras from our IP cameras category for a resilient outdoor network.
Buyer's Guide
Buy it if
You need to power up to four high-draw PoE devices (up to 36W each) in a compact, dual-power industrial switch with a fibre uplink.
Skip it if
You need managed features (VLANs), more than four PoE ports, or a simple AC-powered office switch.
Also consider
The PLANET IGS-624HPT for a similar unit with 2 SFP and 2.5G uplinks, or a mains-powered rackmount PoE switch for indoor use.
Features - Planet - IGS-614HPT
Standard
5-Port
Port Speed
- 1 Gbps
More Details
Product Code
04:521971
EAN Code
4711605284431
Manufacturer
Planet
