Planet IGS-514PT Industrial 5-Port Gigabit PoE+ Switch, 4× PoE+ + 1× SFP, IP30, DIN-Rail, Wide Temp
Brand:
Planet
Planet IGS-514PT Industrial 5-Port Gigabit PoE+ Switch, 4× PoE+ + 1× SFP, IP30, DIN-Rail, Wide Temp
€202.32 inc. VAT
IGS-514PT
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

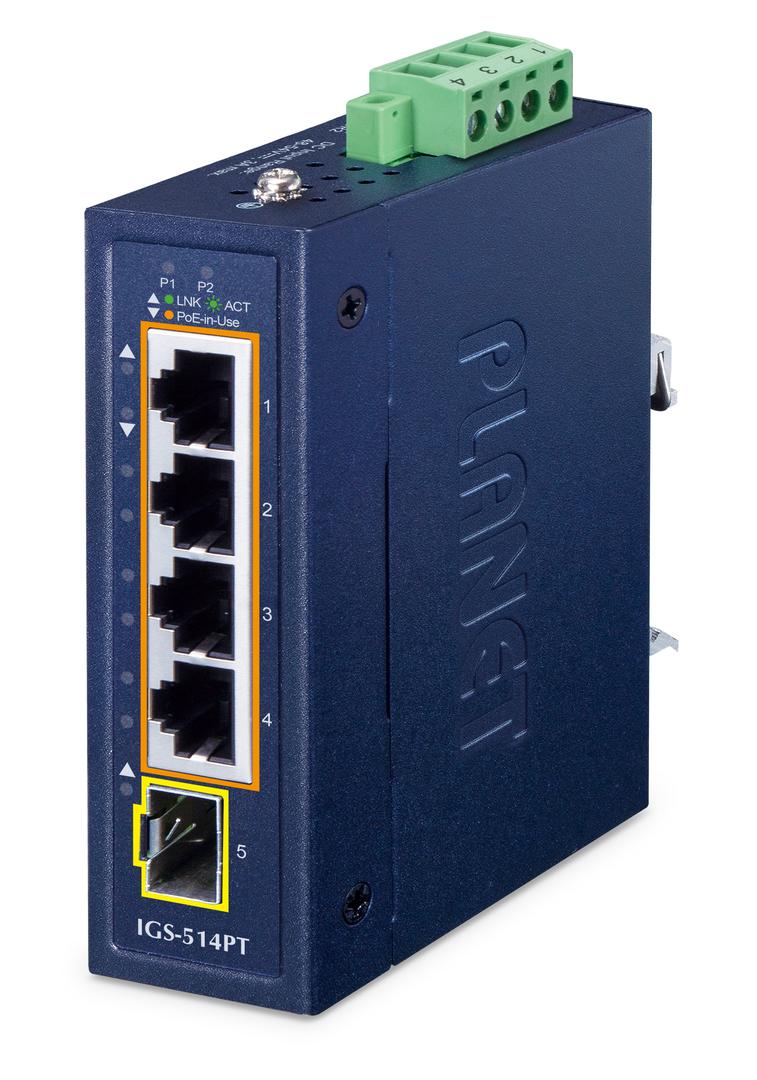

Planet IGS-514PT
4× Gigabit PoE+1× SFP UplinkIP30 · DIN-RailWide Temp · Fanless
The Planet IGS-514PT is a compact industrial PoE+ switch built to power cameras and devices in harsh environments. Four Gigabit PoE+ ports (802.3at) power your endpoints, a Gigabit SFP slot provides a fibre uplink, and the fanless, IP30-rated DIN-rail chassis runs on redundant DC power across a wide temperature range — ideal for cabinets, poles and outdoor enclosures.
Compatibility — check before buying:
Designed for industrial surveillance, transport and automation sites where a standard switch would fail. Power four PoE+ cameras or access points, run the fibre SFP uplink back to your control room over long or electrically noisy distances, and rely on the wide-temperature, fanless build for continuous duty. Redundant DC inputs keep the segment alive if one power feed fails.
Best For
✓Industrial and outdoor IP camera clusters
✓Transport, roadside and factory-floor cabinets
✓Fibre uplinks across long or high-interference runs
✓Powering APs or sensors in harsh edge locations
Key Features
4 Gigabit PoE+ Ports
Four 10/100/1000 PoE+ ports (802.3at) deliver up to 30 W each, powering cameras, access points or sensors at full Gigabit speed over a single cable.
Gigabit SFP Uplink
A 100/1000X SFP slot takes a fibre transceiver for a long-distance, interference-immune uplink to your core switch or control room.
Fanless IP30 Industrial Build
A rugged metal chassis with no moving parts mounts on a DIN rail and carries an IP30 rating, engineered for a wide operating-temperature range.
Redundant DC Power
Dual DC power inputs provide supply redundancy, so a single power failure will not drop the powered devices or the network segment.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The IGS-514PT is a neat, compact answer for a small industrial camera cluster: four PoE+ ports and a fibre SFP uplink in a fanless, IP30, DIN-rail box that tolerates the temperatures a cabinet on a plant floor throws at it. The SFP uplink is the reason to pick this over a plain copper industrial switch — long runs almost always want fibre to dodge interference. Redundant DC keeps it alive if a feed drops. It is unmanaged, so pair it with a managed switch upstream if you need VLANs; for rugged edge PoE with fibre, it fits well.
Buyer's Guide
Buy it if
You must power PoE cameras or APs in a harsh environment,You need a fibre (SFP) uplink for a long or noisy run,Redundant DC power and DIN-rail mounting fit your cabinet,A compact, fanless IP30 switch suits your install
Skip it if
You need managed features — VLANs, QoS, ring redundancy,You need more than four powered ports,A standard indoor PoE switch already meets your environment
Also consider
Pair with a managed industrial switch upstream for VLANs, or choose a higher-port industrial PoE model for larger camera counts.
Features - Planet - IGS-514PT
Standard
5-Port
Port Speed
- 1 Gbps
More Details
Product Code
04:528870
EAN Code
4711605288453
Manufacturer
Planet
