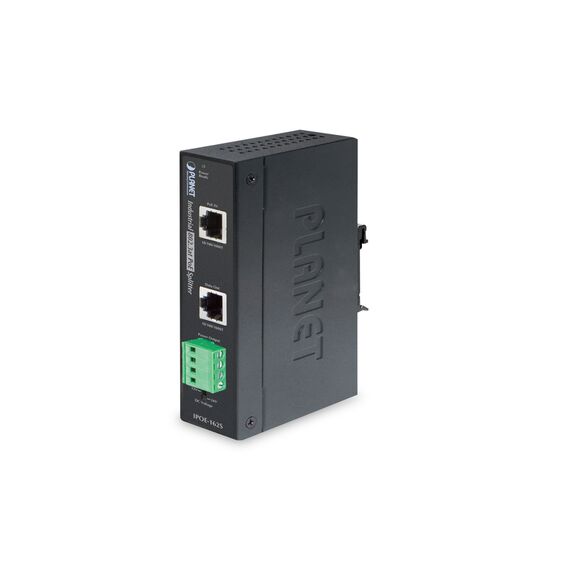

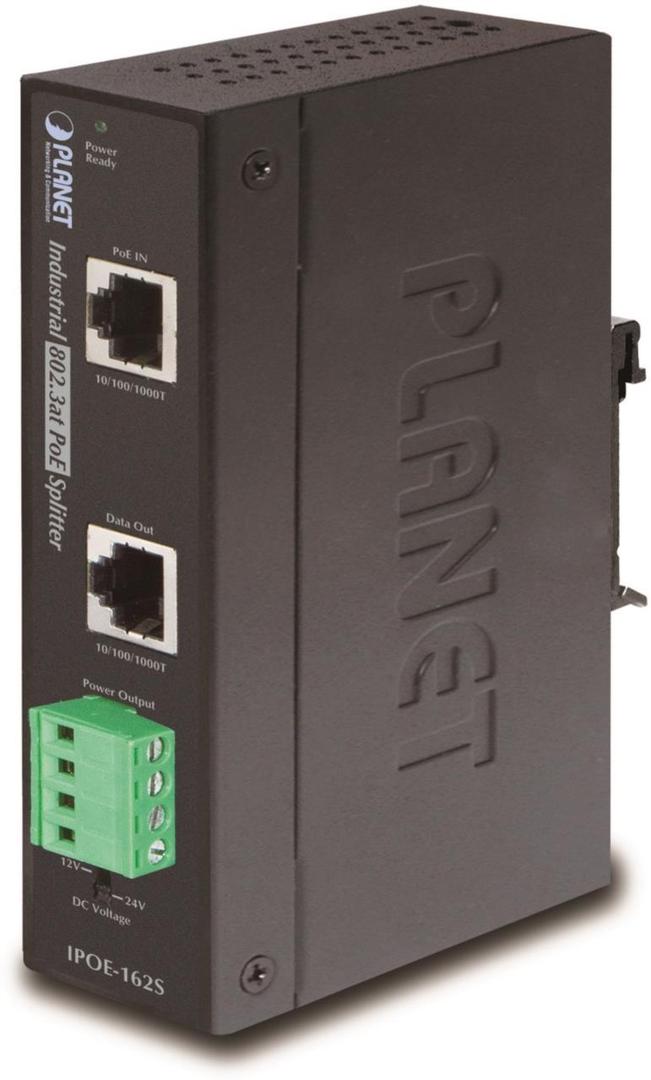

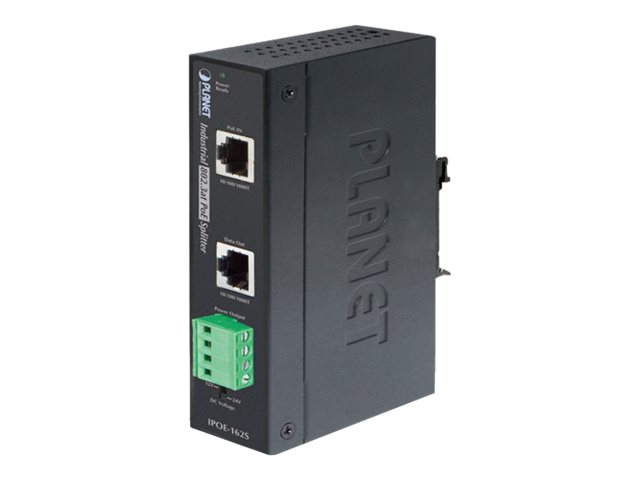

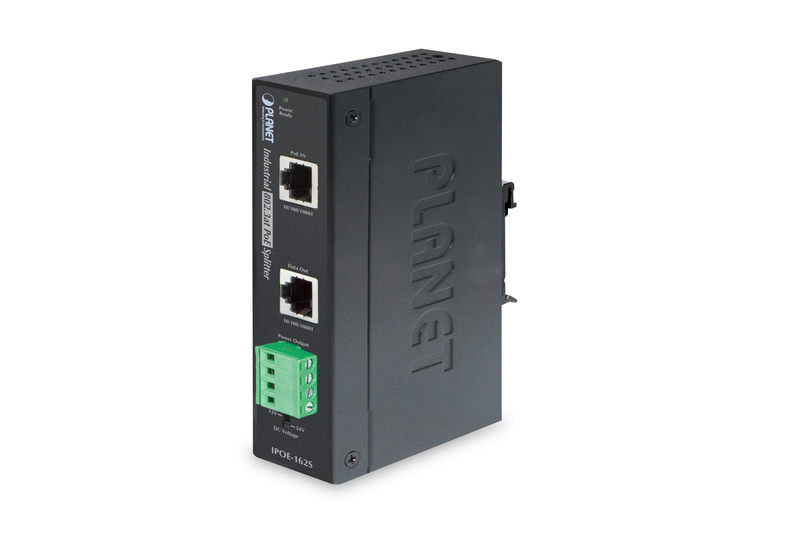

PLANET IPOE-162S - PoE splitter (DIN rail mountable) - 48 - 56 V - 25 Watt - Ethernet 10/100/1000 - output connectors: 1 | IPOE-162S

Product Features

• Outstanding industrial grade data link and power sourcing for non-PoE solution
  Planet IPOE-162S is an industrial high power PoE splitter that can split the 48-56 V DC over the existing Ethernet cable into the selectable 12 V or 24 V DC power output. It supports passive 10/100/1000 Mbps Ethernet connection ability and complies with IEEE 802.3at High Power over Ethernet standard that supports up to 25 W output power to powered device.
• Selectable DC power output voltage
  Via the ultimate12 V / 24 V DIP switch on the front panel, the IPOE-162S can supply either 24 V DC power to industrial equipment or 12 V DC output to the common network devices, such as wireless access point or IP camera. It highly increases the flexibility of the product applications.
• Dual power output capability
  By supporting up to 25 W 802.3at Power over Ethernet cable, the IPOE-162S can satisfy not only single power-hungry equipment but also able to share the 25 W output power to two non-PoE Ethernet devices simultaneously through a 4-pin terminal block. For example, the two power output can be applied as shown below to completely solve the need of electric source.
• Environmentally hardened design
  With compact, slim industrial case protection, the space saving Industrial High Power PoE Splitter IPOE-162S can be placed in almost any difficult environment. It allows either DIN rail or wall mounting for efficient use of cabinet space.
• Plug-and-Play, easy cabling installation
  With IEEE 802.3at Gigabit High Power over Ethernet devices installed, the system administrator only has to use one single RJ-45 Ethernet cable to carry both power and data to each device. Besides, connecting through the Industrial High Power PoE Injector with the IPOE-162S, you can also have benefits including cost saving, easy networking planning and high network reliability.

Special Fetures

• Outstanding industrial grade data link and power sourcing for non-PoE solution
• Selectable DC power output voltage
• Dual power output capability
• Environmentally hardened design
• Plug-and-Play, easy cabling installation

Product Specification
