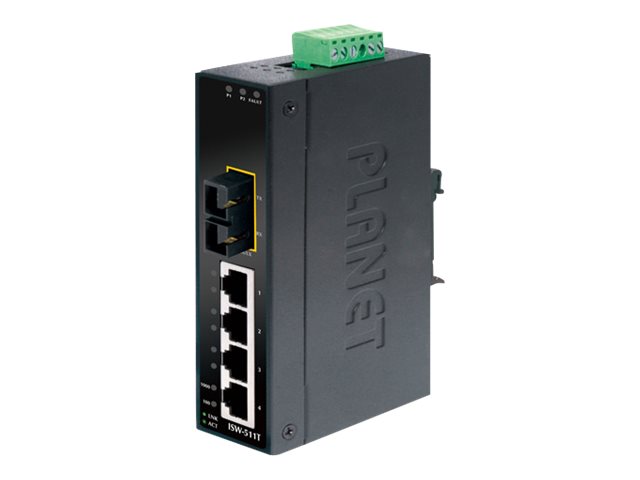

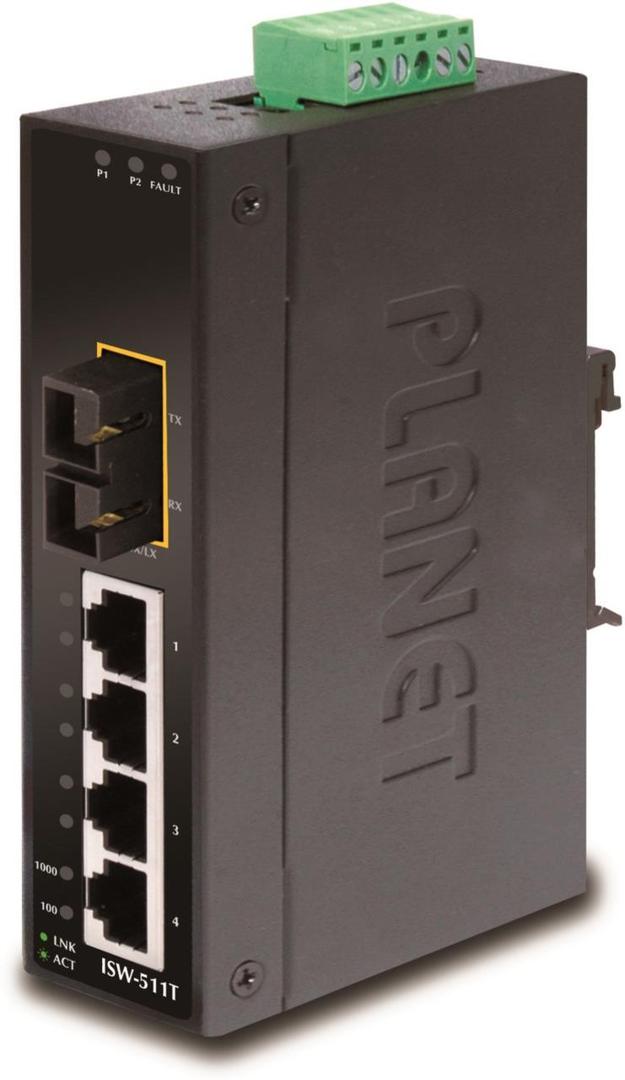

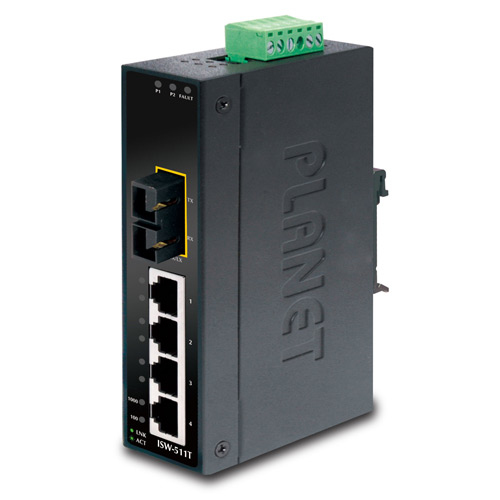

Planet ISW-511T 5-Port Fast Ethernet Industrial Switch
The Planet ISW-511T is a 5-port Fast Ethernet industrial switch with four 10/100Base-TX RJ-45 ports and one 100Base-FX SC multi-mode interface. It is built for industrial network use and is specified for wide operating temperatures and DC-powered installations.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Switch - 5 ports |
| Subtype | Fast Ethernet |
| Interfaces | 4 x 100Base-TX RJ-45 | 1 x 100Base-FX SC multi-mode | 4 x 100Base-TX RJ-45 1 x 100Base-FX SC multi-mode |
| Ports | 4 x 10/100 + 1 x 100Base-FX |
| Max Transfer Distance | 2 km |
| MAC Address Table Size | 2K entries |
| Features | Flow control | store and forward | half duplex mode | full duplex mode | Back Pressure Support |
| Compliant Standards | IEEE 802.3 | IEEE 802.3u | IEEE 802.3x | UL | cUL | IEC 60068-2-27 | IEC 60068-2-32 | IEC 60068-2-6 | FCC Part 15 A |
| Voltage Required | DC 12 - 48 V |
| Power Consumption (Operational) | 13.7 Watt |
| Width | 13.5 cm |
| Depth | 9.7 cm |
| Height | 3.2 cm |
| Weight | 436 g |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 90% |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| SKU / EAN | ISW-511T | 4711213688294 |
SINGULAR RECOMMENDS
For who
Suitable for buyers needing a compact industrial Fast Ethernet switch for wired network segments with RJ-45 ports and a multi-mode SC fibre interface.
Real reason to buy it
It combines five industrial network ports with DC 12-48 V input and a wide operating temperature range for demanding installations.
Know before
This is a Fast Ethernet switch, not a Gigabit model. The fibre interface is 100Base-FX SC multi-mode, and the unit is specified for DC 12-48 V input.
Features - Planet - ISW-511T
Standard
5-Port
Port Speed
- 10/100 Mbps
More Details
Product Code
04:247784
EAN Code
4711213688294
Manufacturer
Planet
