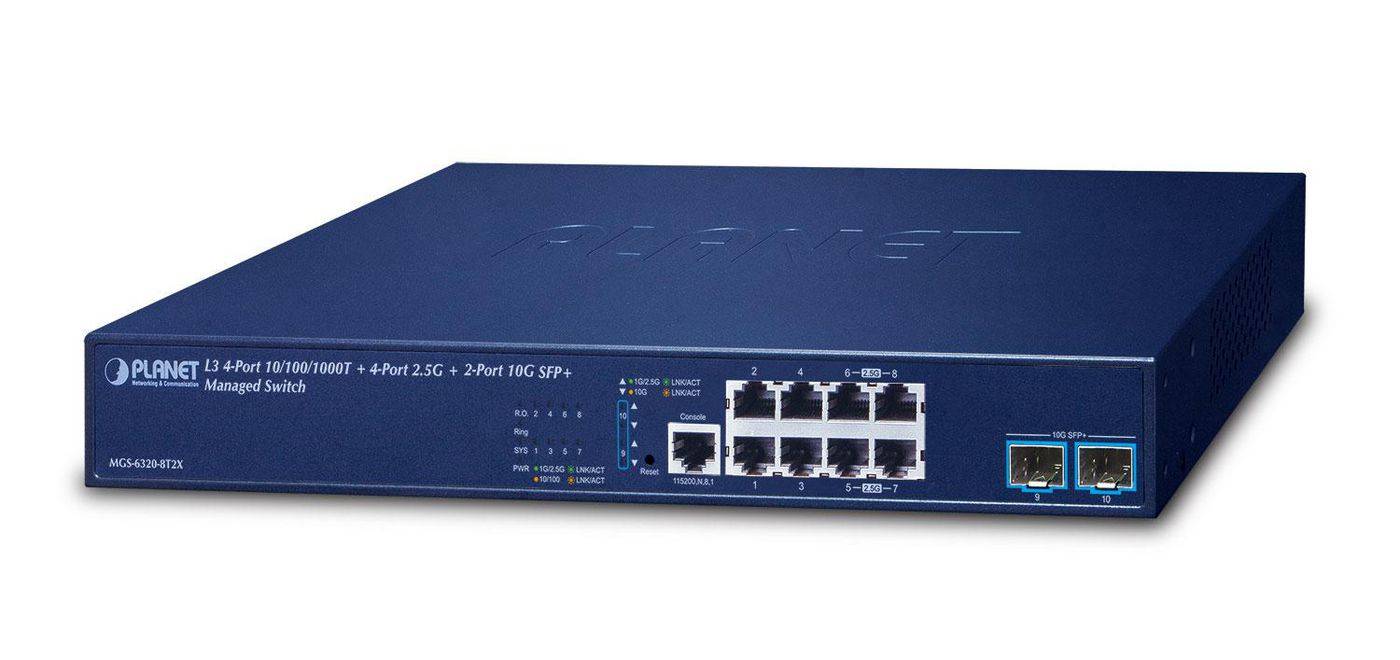

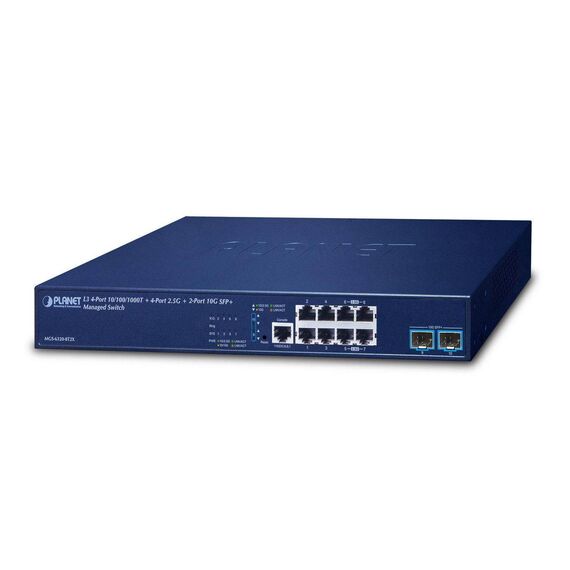

Planet MGS-6320-8T2X Layer 3 Managed Aggregation Switch with 4 GbE, 4 × 2.5GbE and 2 × 10G SFP+ Ports

Brand:
Planet
Planet L3 4Port GE MGS63208T2X Switch 0.1 Gbps MGS63208T2X
Planet MGS-6320-8T2X Layer 3 Managed Aggregation Switch with 4 GbE, 4 × 2.5GbE and 2 × 10G SFP+ Ports
€583.7 inc. VAT
Buy
MGS-6320-8T2X
€490.50 €545.00
€583.70 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
04:416395
EAN Code
4711605286404
Manufacturer
Planet

Quick Specs

Layer
L3 Managed
Copper Ports
4× 10/100/1000T + 4× 2.5GBASE-T
SFP+
2× 1G/10G
Switching
68 Gbps / 50.59 Mpps
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Planet MGS-6320-8T2X — Layer 3 Managed Aggregation Switch

4× GbE + 4× 2.5GbE2× 10G SFP+Full L3 · OSPFERPS <10msFanless

The PLANET MGS-6320-8T2X is a compact Layer 3 managed aggregation switch combining four 10/100/1000T ports, four 2.5GBASE-T ports and two 10G SFP+ uplinks on a 68 Gbps (50.59 Mpps) non-blocking fabric. It delivers full Layer 3 routing — static, RIPv2 and OSPFv2/v3 — plus ERPS ring protection, VLANs, QoS and ACLs in a silent fanless chassis. This is model MGS-6320-8T2X. Typically in stock with fast delivery across Cyprus.

Compatibility — check before buying:
The four RJ45 copper ports auto-negotiate 10/100/1000 Mbps; the four 2.5GBASE-T ports reach 2.5 Gbps over existing Cat 5e/6 for multi-gig access. The two SFP+ slots run 1G or 10G and need transceivers, sold separately. This model has no PoE, so connected devices supply their own power. Full L3 routing lets it serve as a small-network core or aggregation layer.

Best For

✓Small-network L3 core / aggregation
✓Multi-gig 2.5G access uplinks
✓10G fibre backbone links
✓Inter-VLAN routing
✓ERPS ring resilience
✓Fanless quiet deployments

Key Features


Full Layer 3 Routing
Hardware static routing with RIPv2 and OSPFv2/v3 dynamic routing plus inter-VLAN routing — route between subnets at wire speed without a separate router.

4× 2.5GbE + 2× 10G SFP+
Four 2.5GBASE-T ports over Cat 5e/6 plus two 10G SFP+ uplinks on a 68 Gbps / 50.59 Mpps fabric — multi-gig access with 10G aggregation.

ERPS Ring Protection
G.8032 ERPS delivers sub-10ms ring recovery, with STP/RSTP/MSTP, link aggregation and loop protection for a resilient topology.

Fanless & Managed
Silent fanless design with a full web GUI, SNMP, VLANs, QoS, ACLs and IPv6 management in a compact desktop chassis.

Technical Specifications

Identification
Brand Planet
Model MGS-6320-8T2X
Part Number MGS-6320-8T2X
EAN / GTIN 4711605286404
Ports & Performance
RJ45 Copper 4× 10/100/1000T + 4× 2.5GBASE-T
SFP+ Uplinks 2× 1G/10G
Switching Capacity 68 Gbps
Forwarding Rate 50.59 Mpps
MAC Table 8K
Jumbo Frame 10 KB
Layer 3 / Layer 2
L3 Routing Static, RIPv2, OSPFv2/v3
Inter-VLAN Yes
Ring Protection ERPS (G.8032) <10 ms
Spanning Tree STP / RSTP / MSTP
VLAN 802.1Q, up to 4K
Security ACL, IP-MAC-Port binding, 802.1X
Management
Interfaces Web GUI, SNMP v1/2c/3, CLI
IPv6 Yes
QoS 8 queues, CoS/DSCP
Power & Physical
Power Input 100-240V AC internal
PoE None
Cooling Fanless
Dimensions 330 × 150 × 44.5 mm
Weight 1.44 kg
Colour Blue
Warranty
Coverage 1-Year Warranty (Singular)

Frequently Asked Questions

Does this switch do full Layer 3 routing?
Yes. It supports hardware static routing plus RIPv2 and OSPFv2/v3 dynamic routing and inter-VLAN routing, so it can act as a small-network core or aggregation layer.
What are the port speeds?
Four RJ45 ports run 10/100/1000 Mbps, four RJ45 ports run 2.5GBASE-T, and the two SFP+ slots take 1G or 10G fibre modules, sold separately.
Does it supply PoE?
No. The MGS-6320-8T2X has no PoE, so cameras, APs and phones need their own power. Choose a PoE model such as the MGS-6320-8HP2X if you need it.
Is it fanless?
Yes. The switch is completely fanless for silent operation, suitable for offices and other quiet spaces.
Singular Expert Insight
The MGS-6320-8T2X suits small networks that need real Layer 3 — static plus OSPF routing, ERPS ring resilience and multi-gig 2.5G access with 10G uplinks — in a silent fanless box. If you need PoE for cameras or APs, choose a PoE model instead. Browse our network switches range, or the access points you can aggregate.

Buyer’s Guide

Buy it if
You need a compact Layer 3 switch for a small core or aggregation point — routing between VLANs, 2.5G access and 10G SFP+ uplinks, with ERPS resilience and no fan noise.
Skip it if
You need PoE to power cameras or access points, or high port density — choose a PoE or larger stackable model instead.
Also consider
A PoE-capable multi-gig switch if you must power devices, or a higher-density L3 model for larger deployments.

Features - Planet - MGS-6320-8T2X

Colour
blue
Standard
8-Port
Port Speed
  • 1 Gbps,
  • 2.5 Gbps,
  • 10 Gbps
More Details
Product Code
04:416395
EAN Code
4711605286404
Manufacturer
Planet
