PLANET MFB-FX — 100BASE-FX Multimode SFP, 2 km
100BASE-FX1310 nm · multimodeLC duplexUp to 2 km

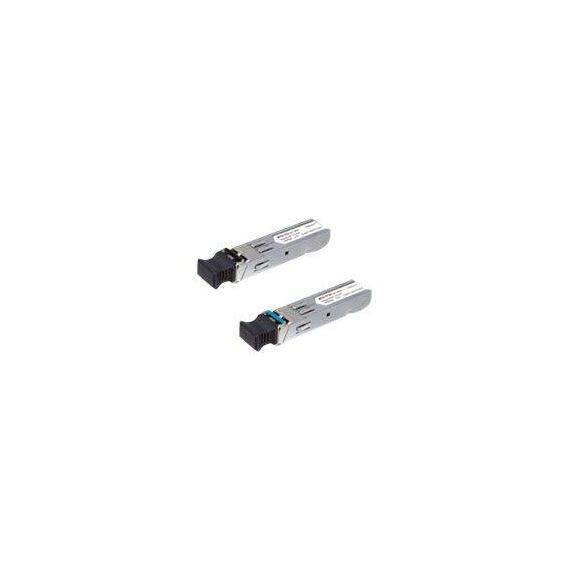

The PLANET MFB-FX is a 100BASE-FX SFP transceiver that carries Fast Ethernet (100 Mbps) over multimode fibre at 1310 nm for distances of up to 2 km, using an LC duplex connector. It is used to extend or maintain 100 Mbps fibre links — for example to legacy equipment, industrial devices, building automation or older fibre media converters — from a switch or converter whose SFP port supports 100BASE-FX.
Multimode 100FX reaches much further than Gigabit SX on the same fibre, which is why it is still common on older campus cabling.
Before you order: The host SFP port must support 100BASE-FX. Most Gigabit SFP ports only accept 1000BASE modules and will not light up a 100 Mbps module — check your switch or media converter datasheet, or send us the model.
What's in the Box
- 1× PLANET MFB-FX SFP module
- Fibre patch cords not included (multimode LC duplex needed)
What It Means in Practice
- Speed is fixed at 100 Mbps — it does not run at Gigabit.
- Use multimode fibre (50/125 or 62.5/125 µm) with LC duplex connectors; one module is needed at each end.
- Operating temperature 0–60 °C; for harsh environments PLANET offers a separate industrial model (MFB-TFX).
- Hot-pluggable SFP (MSA).
What Will Not Work
- Gigabit-only SFP ports (most 1G switch ports do not support 100BASE-FX).
- Single-mode fibre.
- A 1000BASE-SX or other Gigabit module at the far end.
- Links longer than 2 km.
Key Features
Fast Ethernet over fibre
100BASE-FX, 125 Mbps line rate.
2 km on multimode
1310 nm optics for long multimode runs.
Standard SFP
SFP MSA, hot-pluggable, LC duplex.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
100FX modules keep older fibre networks running when you replace a switch, but only if the new switch supports 100 Mbps SFPs — always check that first. Browse our switches with SFP ports.
✓ Buy it if you need to connect 100 Mbps multimode fibre of up to 2 km to an SFP port that supports 100BASE-FX.
✕ Skip it if your switch port is Gigabit-only or your fibre is single-mode.
→ Also consider a Gigabit SX module if both ends can run at 1G, or a single-mode 100FX module for longer runs.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Planet - MFB-FX
More Details
Product Code
04:247928
EAN Code
4711213686832
Manufacturer
Planet
