PLANET MGB-LX — 1G LX Single-Mode SFP, 20 km
1 Gbps1000BASE-LXUp to 20 kmDDM

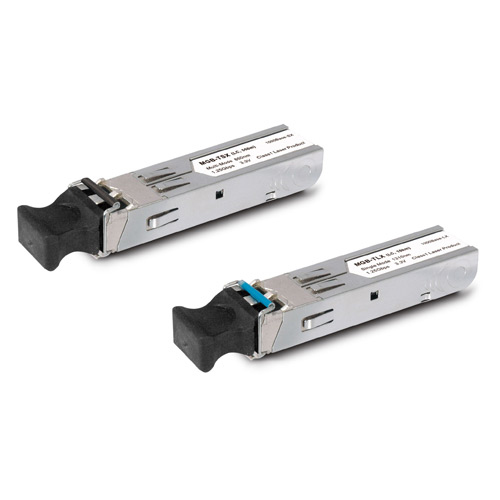

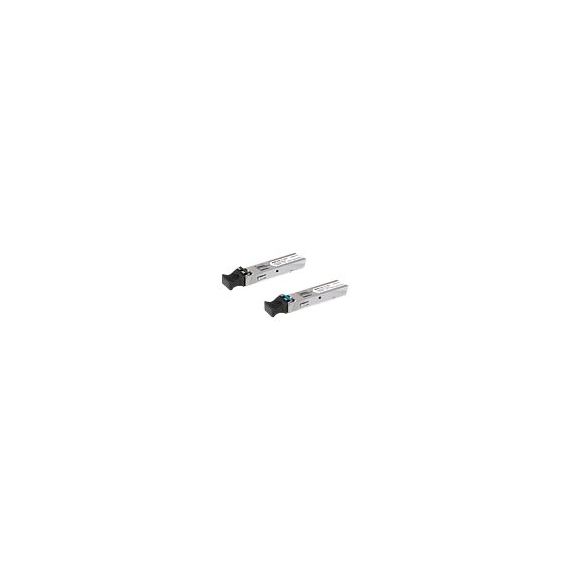

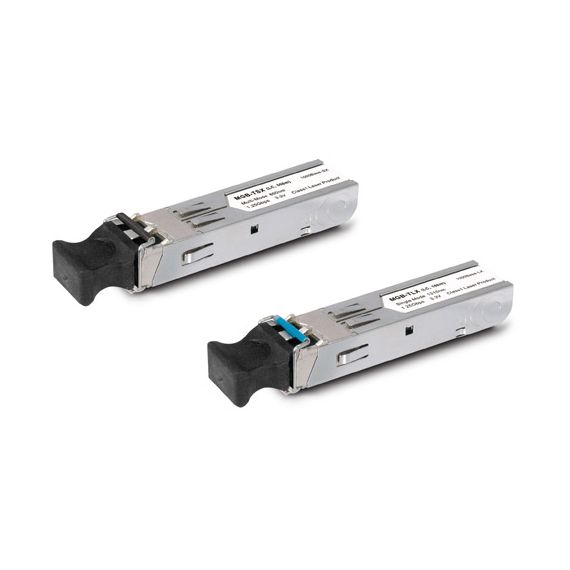

The PLANET MGB-LX is a Gigabit SFP (mini-GBIC) module for single-mode fibre: 1000BASE-LX at 1310 nm over a dual LC/UPC connection, up to 20 km, with digital diagnostics. It is PLANET’s standard long-reach optic for links between buildings on its switches and media converters. In practice, single-mode optics are the choice when a link leaves the building or runs several hundred metres: the OS2 fibre used by carriers and campus backbones carries the signal for kilometres with little loss. Before you order, confirm the fibre is single-mode at both ends and note the length and the number of patch panels on the way.
Compatibility — check before buying:
It needs single-mode fibre on two strands and an LX module at the far end. It is not a BiDi module — PLANET’s single-fibre pairs are MGB-LA/LB. It is rated 0 to 60 °C; the MGB-TLX is the industrial version, and MGB-L40 / L80 / L120 cover longer runs. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your device model and the cable run and we check it before you order.
Best For
✓ PLANET switches and media converters
✓ Gigabit links between buildings
✓ Campus backbones up to 20 km
✓ Single-mode (OS1/OS2) fibre
✓ Links that need DDM readings
✓ Replacing a failed 1G LX module
Key Features
20 km on single-mode
A Gigabit 1310 nm LX optic with diagnostics, rated for 20 km between buildings and sites.
Single-mode fibre, long reach
Built for single-mode (OS1/OS2) fibre, the type used between buildings, floors and sites. It will not run over the orange or aqua multimode fibre found in many racks — the fibre type has to match at both ends.
Monitoring you can read
Digital diagnostics (DDM) let the host report temperature, laser power and received light, so a dirty connector or a failing link shows up before users call.
Hot-swappable
Modules and cables plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch or pull tab to remove it.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We fit the MGB-LX for Gigabit single-mode links between buildings on PLANET equipment. Order one per end and single-mode LC cords. For unheated cabinets ask for the MGB-TLX; for runs past 20 km, the L40/L80 models. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.
Buyer’s Guide
Buy it if
You need a 1G single-mode link up to 20 km over two fibres on a PLANET or MSA-compliant port.
Skip it if
Only one strand is free, the run is longer than 20 km, or the module sits in an unheated cabinet.
Also consider
PLANET MGB-SX for multimode runs.
