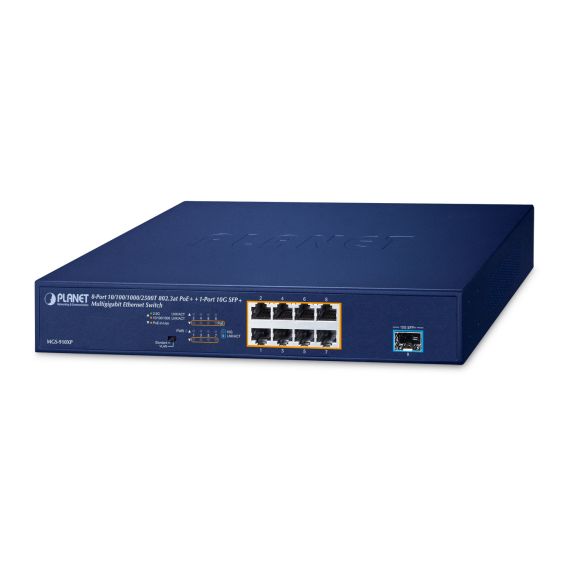

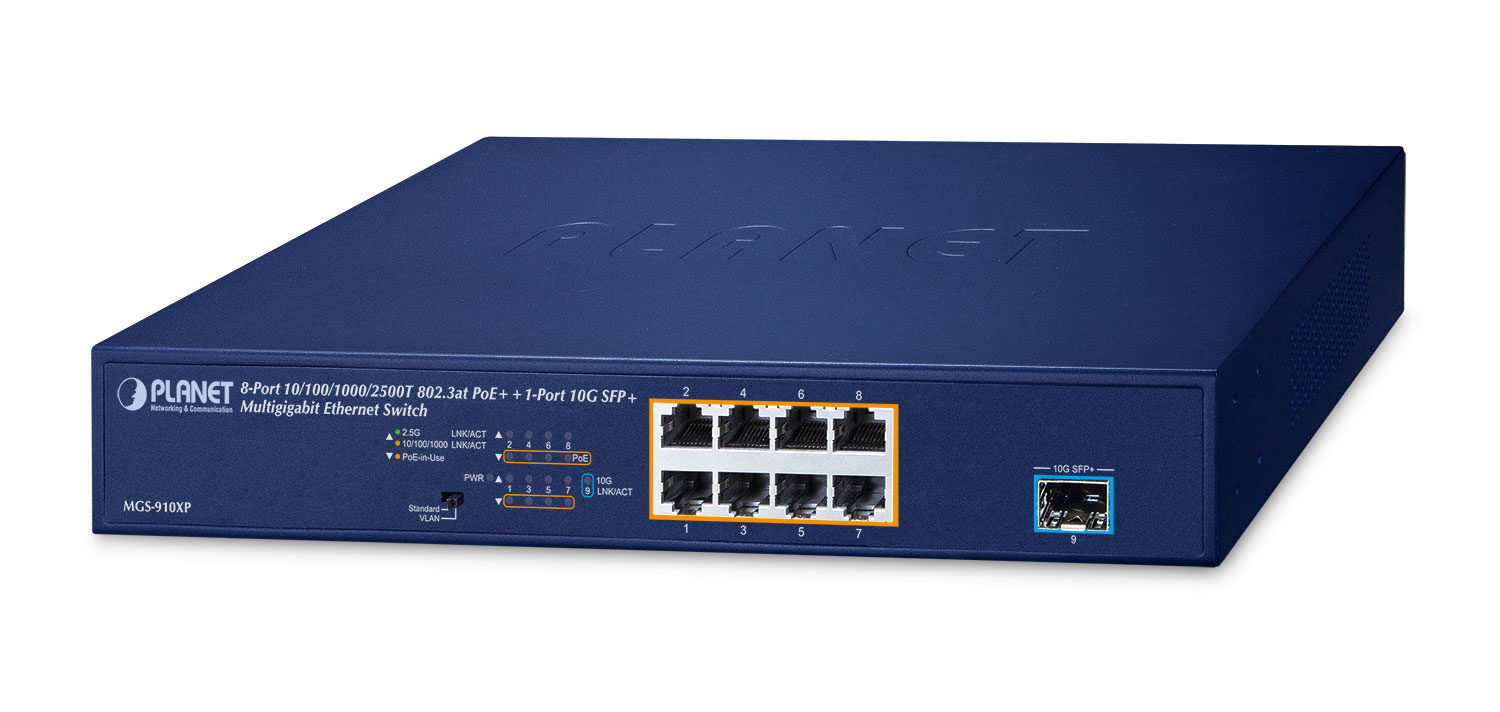

Planet MGS-910XP 8-Port 2.5G PoE+ Switch | 1x 10G SFP+
The Planet MGS-910XP is an unmanaged multigigabit switch for networks that need 2.5G access and PoE support in a simple rack-mountable unit. It offers 8 x 2.5G RJ-45 ports, 1 x 10G SFP+ uplink and 8 PoE+ ports, making it a practical choice for higher-bandwidth network equipment.
Technical Specifications
| Specification | Detail |
|---|---|
| Switch type | Unmanaged |
| RJ-45 ports | 8 x 2.5G Ethernet (100/1000/2500) |
| SFP+ ports | 1 |
| PoE | Yes |
| PoE+ ports | 8 |
| PoE budget | 120 W |
| Switching capacity | 60 Gbit/s |
| Throughput | 44.64 Mpps |
| MAC address table | 4000 entries |
| Full duplex | Yes |
| Half duplex | Yes |
| Store-and-forward | Yes |
| Jumbo frames | 12000 |
| Flow control | Yes |
| MAC auto-learning | Yes |
| MAC auto-aging | Yes |
| VLAN support | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.3 | IEEE 802.3ab | IEEE 802.3ae | IEEE 802.3af | IEEE 802.3at | IEEE 802.3az | IEEE 802.3bz | IEEE 802.3u | IEEE 802.3x |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 3 A |
| Power consumption (typical) | 140 W |
| Rack mounting | Yes |
| LED indicators | Yes |
| Cooling | 1 fan |
| Colour | Blue |
| Certification | FCC Part 15 Class A | CE |
| Dimensions | 280 x 180 x 44 mm |
| Weight | 1.74 kg |
| SKU / EAN | MGS-910XP | 4711605287067 |
SINGULAR RECOMMENDS
For who
For IT teams and small businesses that need a straightforward unmanaged switch with 2.5G access, PoE+ power and a 10G SFP+ uplink.
Real reason to buy it
It combines 8 x 2.5G PoE+ ports, a 10G SFP+ uplink and a 120W PoE budget in a rack-mountable unmanaged design.
Know before
This is an unmanaged switch, so it does not provide advanced management features. It has 8 PoE+ ports and a total PoE budget of 120W.
Features - Planet - MGS-910XP
Standard
8-Port
Port Speed
- 2.5 Gbps,
- 10 Gbps
More Details
Product Code
04:511306
EAN Code
4711605287067
Manufacturer
Planet
