PLANET POE-171S Gigabit Ultra PoE Splitter, 4-Pair 56V Input, Up to 50W, Selectable 12V/19V/24V DC Output, Metal
Brand:
Planet
PLANET POE-171S Gigabit Ultra PoE Splitter, 4-Pair 56V Input, Up to 50W, Selectable 12V/19V/24V DC Output, Metal
€139.86 inc. VAT
POE-171S
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

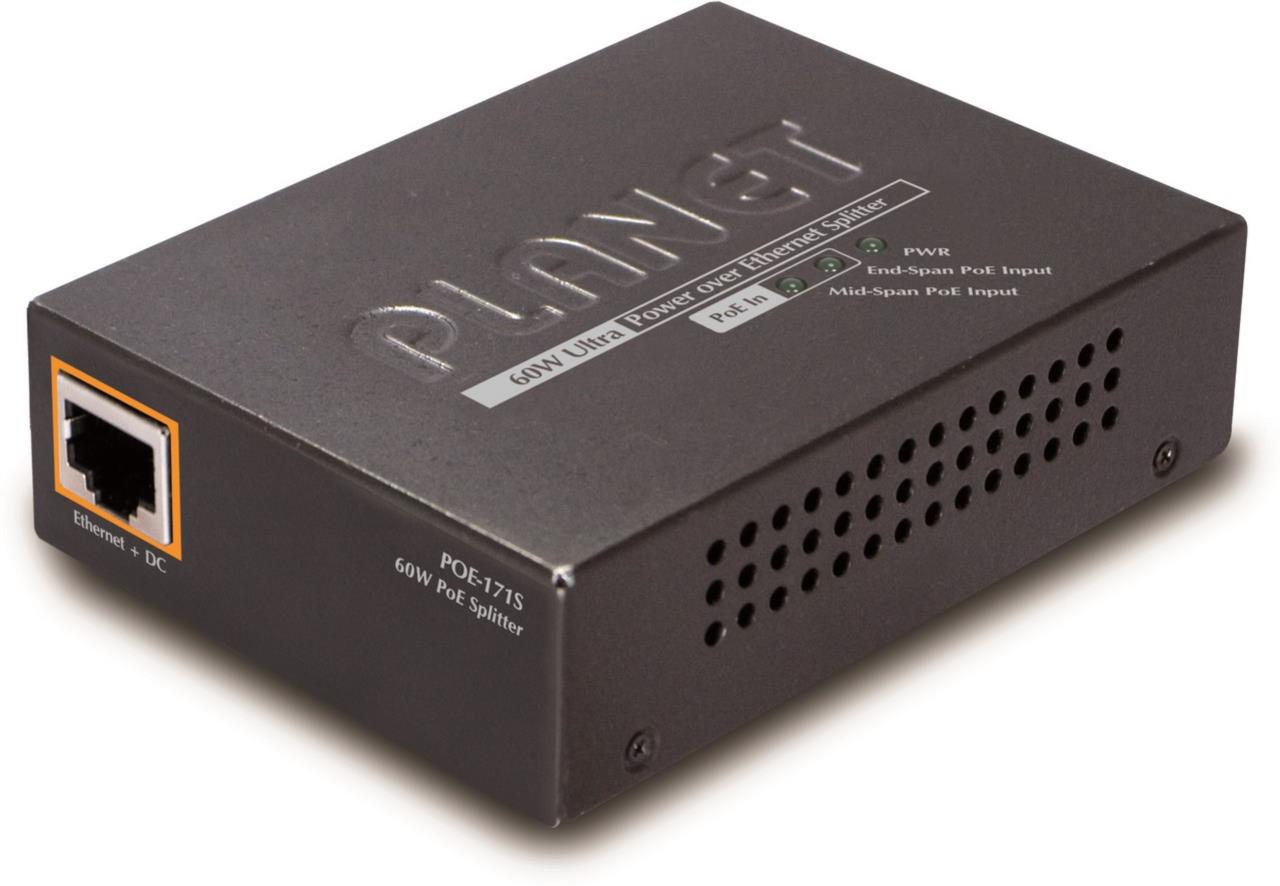

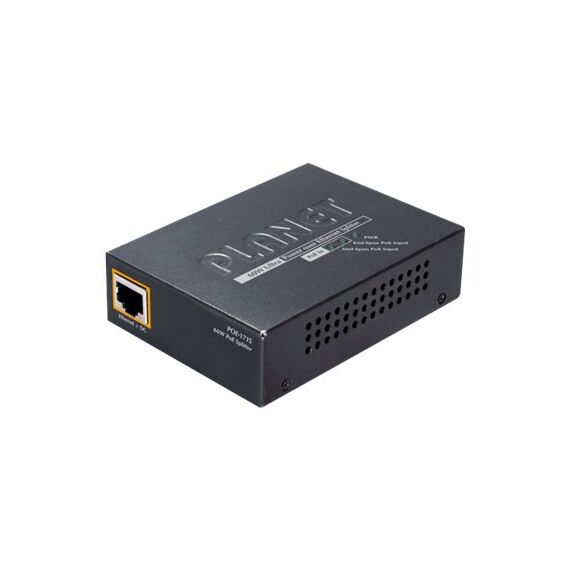

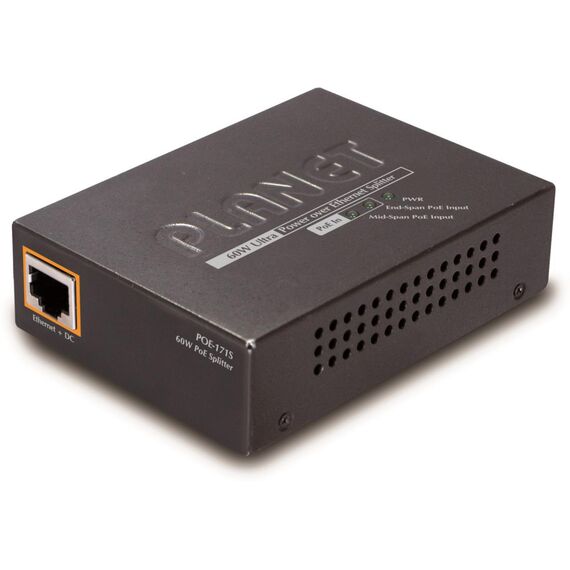

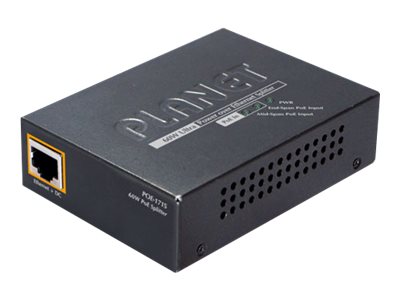

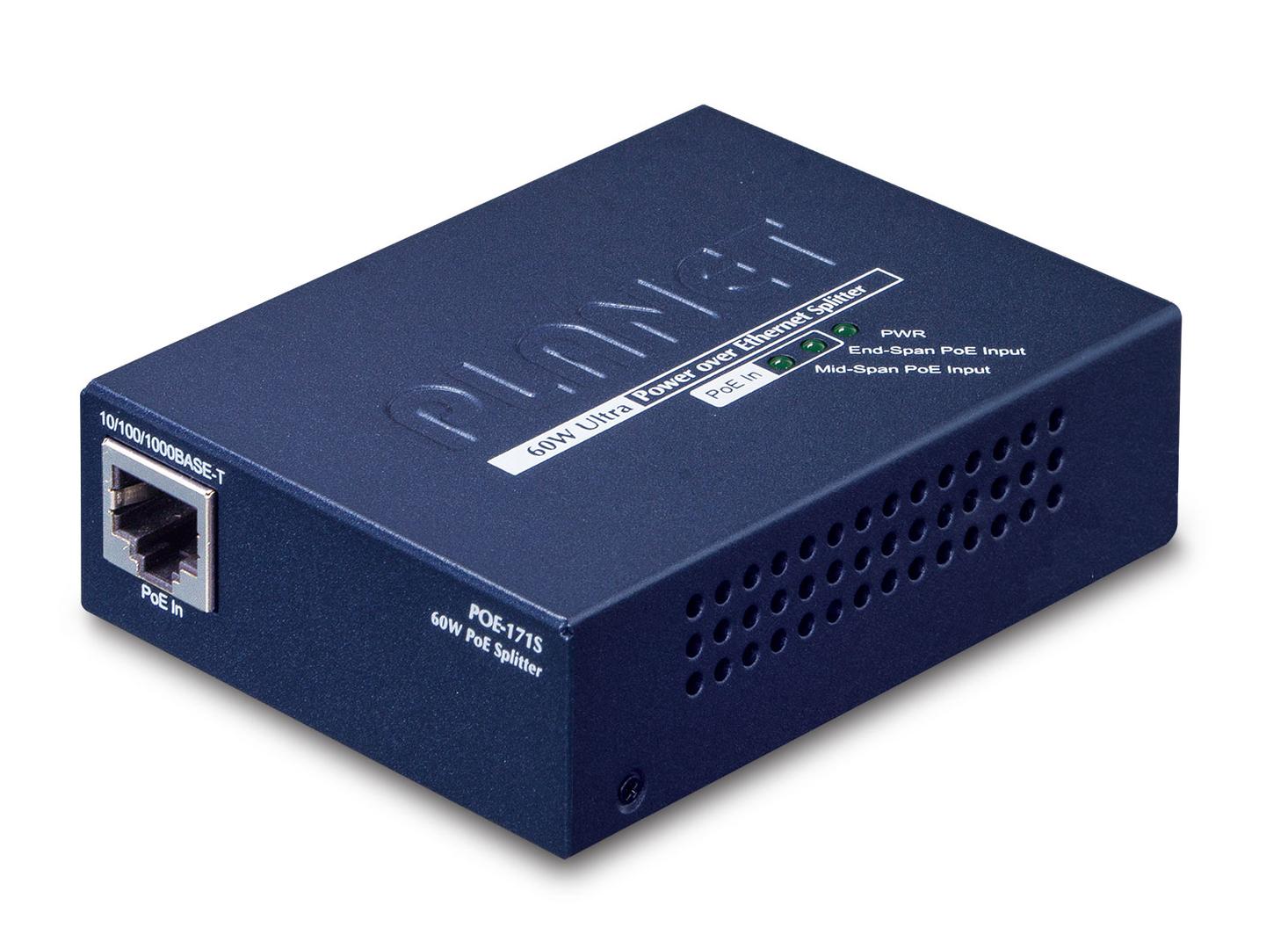

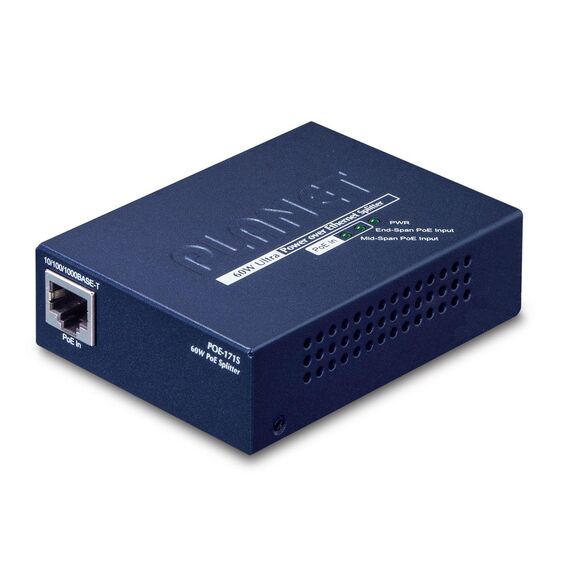

PLANET POE-171S — power a non-PoE device with up to 50 W from one network cable
Ultra PoE in · 50W12V / 19V / 24V DCGigabit dataMetal · wall mount
The PLANET POE-171S is a Gigabit Ultra PoE splitter that takes power and data from one Ethernet cable and splits them into a Gigabit RJ45 data port and a DC output of 12 V, 19 V or 24 V, for up to 50 W. It lets you install a non-PoE device — a PTZ camera, thin client, all-in-one touch PC or small signage display — up to 100 m from the switch without a power socket at the device.
Choose the output voltage with the DIP switch, connect the device with one of the two supplied DC cables and its network port to the data output.
Before you order: The 50 W level needs a 4-pair 56 V Ultra PoE source such as PLANET POE-171 (60 W injector). A standard 802.3at (PoE+) source can only provide its own lower budget, so check your device consumption against the source before ordering.
What's in the Box
- PLANET POE-171S Ultra PoE Splitter
- DC cable 5.5/2.5 mm to 5.5/2.5 mm
- DC cable 5.5/2.5 mm to 5.5/2.1 mm
What It Means in Practice
- A non-PoE device that needs 12 V, 19 V or 24 V can be mounted where there is only a network cable.
- 19 V suits many thin clients and small PCs; 12 V and 24 V cover most cameras and industrial devices — set the switch before connecting.
- The two DC cables cover the common 5.5/2.5 mm and 5.5/2.1 mm plugs.
- Gigabit data passes through unchanged on the second RJ45.
What Will Not Work
- Devices with other DC plugs or voltages (5 V, 9 V, 48 V) are not supported directly.
- It does not create power: with a 30 W PoE+ source you cannot draw 50 W.
- It is not an injector — you still need a PoE switch or injector at the other end.
- Passive PoE sources are not covered by PLANET’s specifications.
Key Features
Ultra PoE input
4-pair 52–56 V DC input, compatible with IEEE 802.3at/af cabling.
Three output voltages
12 V, 19 V or 24 V DC selected by DIP switch.
Up to 50 W
Enough for PTZ cameras, thin clients and small displays.
Metal, wall-mountable
94 x 70.3 x 26.2 mm, 300 g.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A neat way to place a thin client, small display or non-PoE IP camera where only a network cable can reach. The splitter is half of the system — pair it with a 60 W Ultra PoE injector so the power is actually there.
✓ Buy it if you need 12/19/24 V and up to 50 W for a non-PoE device at the end of a network cable.
✕ Skip it if your device needs 5 V, 9 V or 48 V, or you only have a 30 W PoE+ source for a 40–50 W device.
→ Also consider PLANET POE-173 60W Ultra PoE Injector as the source.
Send us the model of the device you want to power and we will check voltage, plug and power before you order.
Features - Planet - POE-171S
More Details
Product Code
04:247901
EAN Code
4711213689598
Manufacturer
Planet
