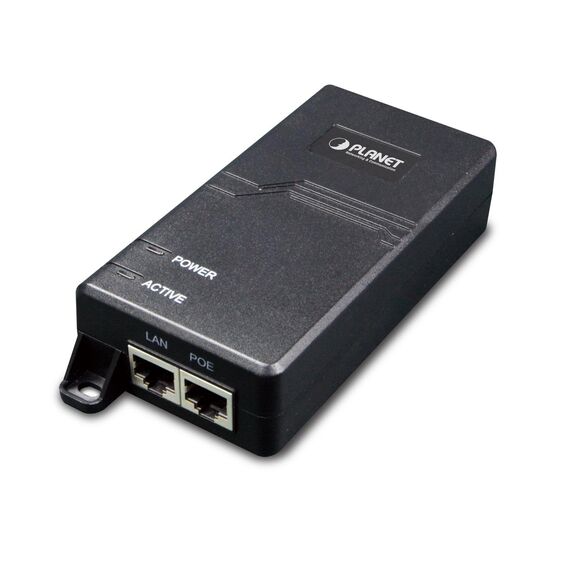

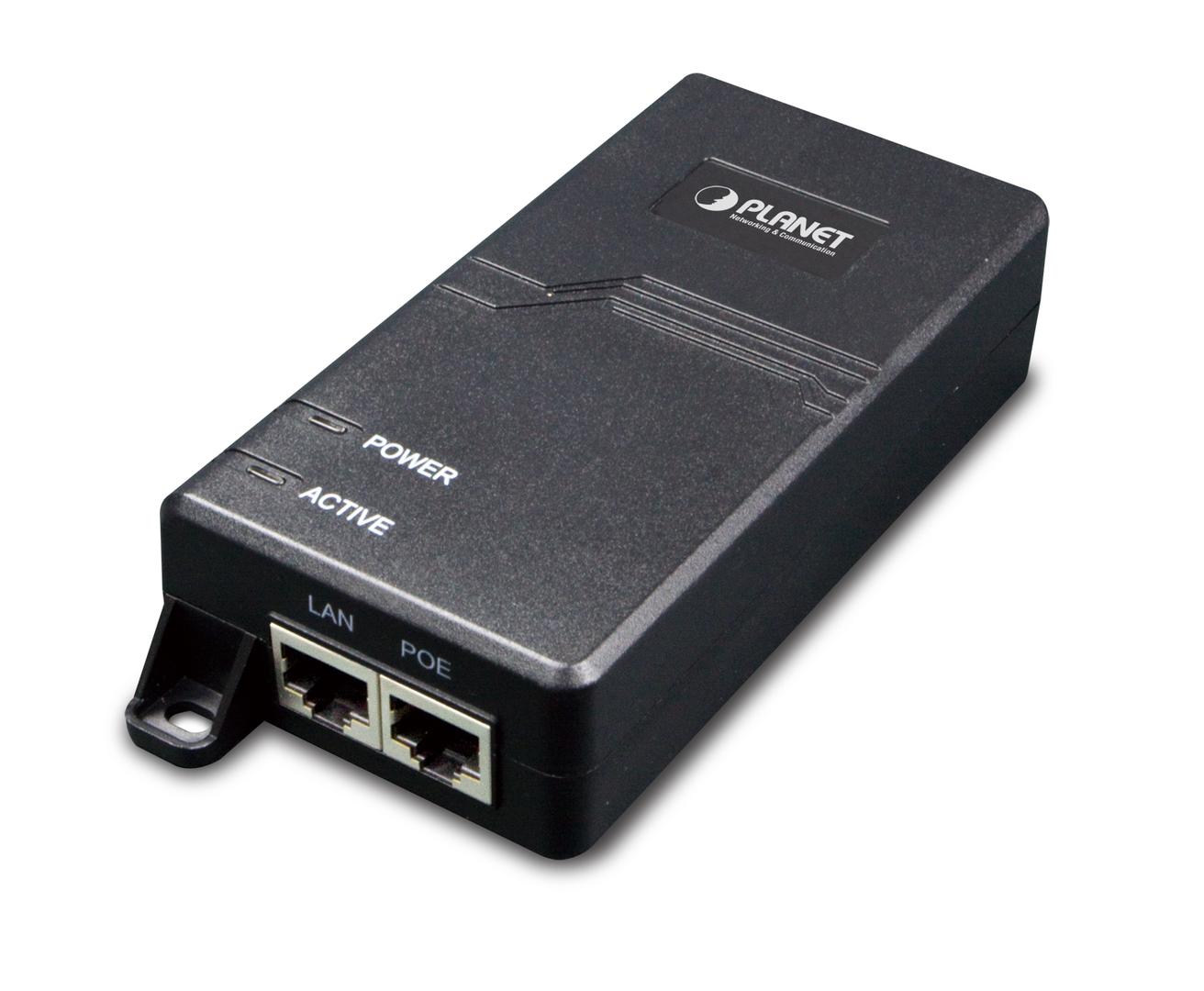

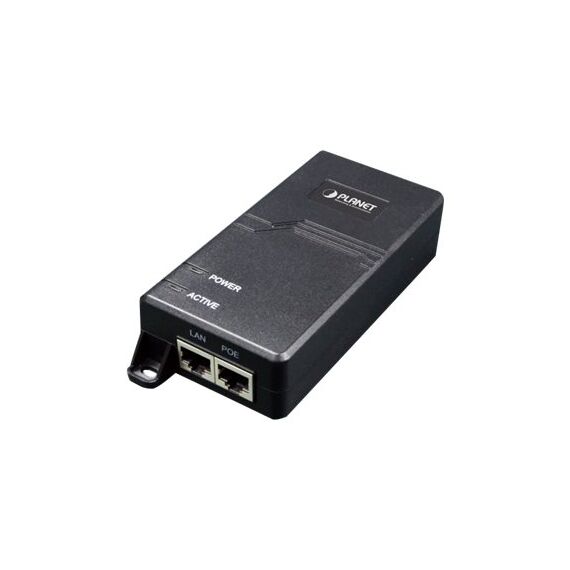

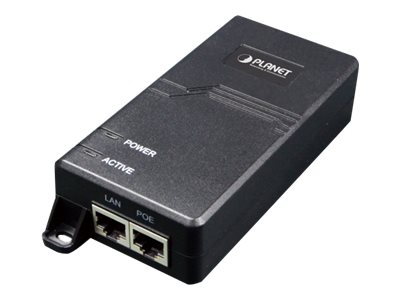

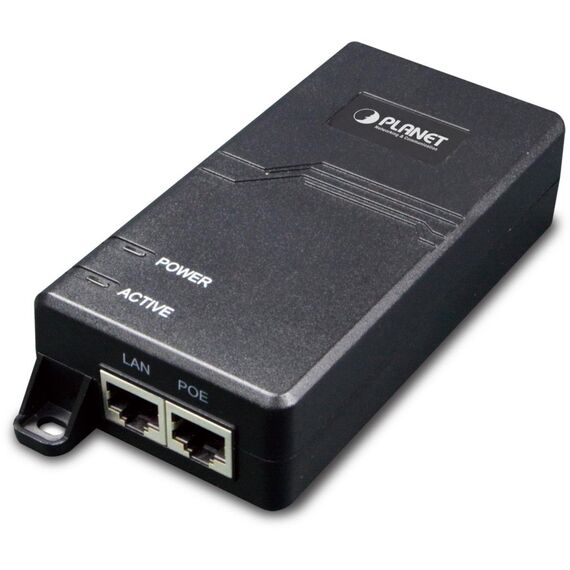

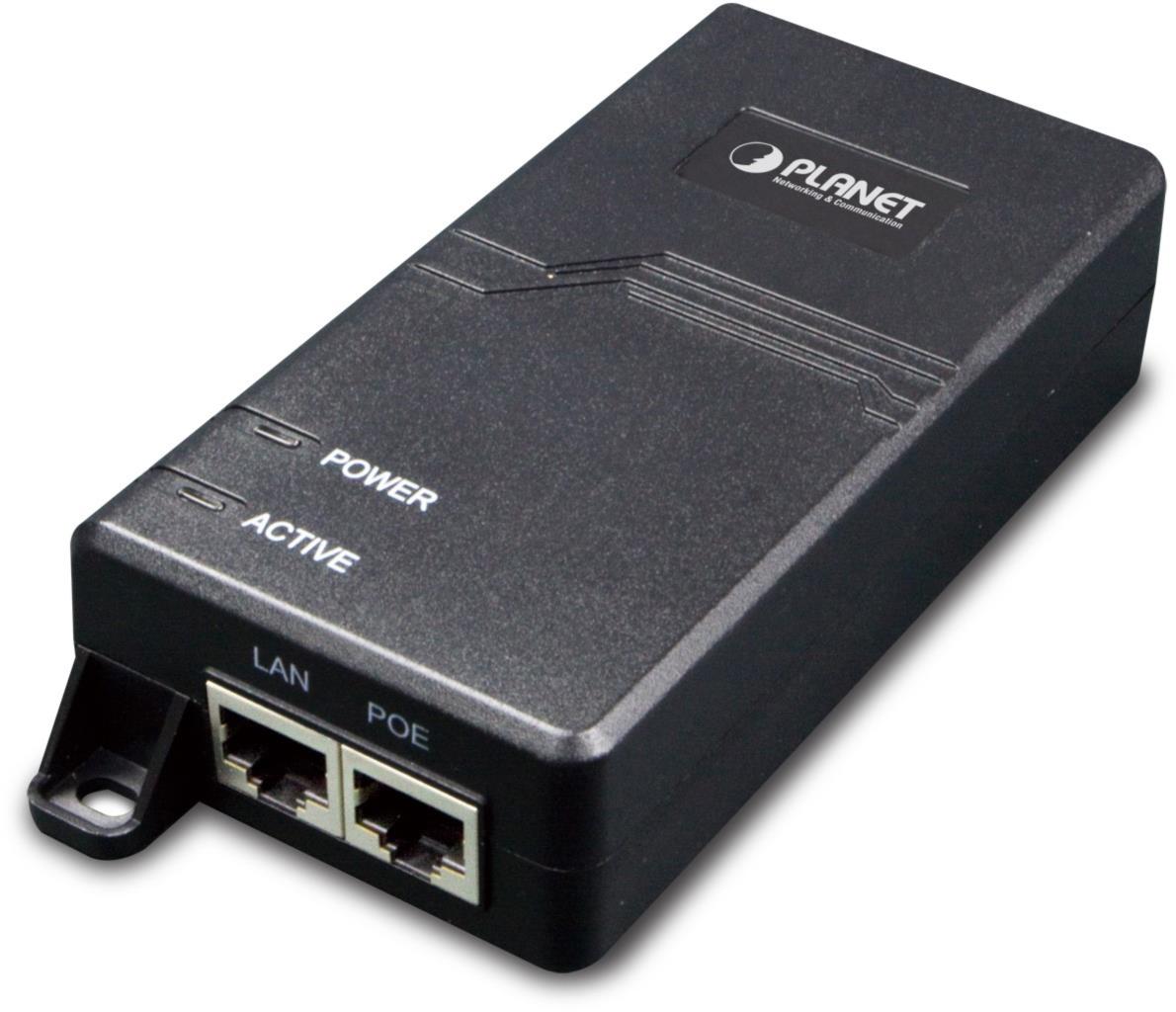

PLANET POE-173 — 60 W Ultra PoE over four pairs for one demanding device
Ultra PoE · 60W4-pair powerGigabitInternal PSU
The PLANET POE-173 is a single-port Gigabit Ultra PoE injector that delivers up to 60 W over all four pairs of an Ethernet cable — 50 W of which is available at the powered device — for PTZ speed domes, thin clients, touch PCs and signage displays. It is the source to choose when one device needs more than a PoE+ (30 W) port can give, especially together with a PLANET Ultra PoE splitter.
Connect the switch to the LAN port, the device to the PoE port and the injector to the mains; the 100–240 V power supply is built in.
Before you order: PLANET specifies Ultra PoE over 4 pairs with backward compatibility for IEEE 802.3af/at devices; 802.3bt is not claimed in the specifications. Devices that require 802.3bt negotiation may be limited to PoE+ power — check with us before ordering for a bt-only device.
What's in the Box
- PLANET POE-173 Ultra PoE Injector
- PLANET does not publish the full package contents for this model — ask us before ordering if you need to confirm the mains cord
What It Means in Practice
- 50 W at the device covers PTZ domes with heaters, thin clients and all-in-one touch PCs that PoE+ cannot run.
- Paired with a PLANET POE-171S splitter, it can power a non-PoE device at 12, 19 or 24 V up to 100 m away.
- 802.3af/at devices still work and take only the power they need.
- Power and PoE LEDs show at a glance whether the device draws power.
What Will Not Work
- It does not deliver 90 W-class 802.3bt power.
- Devices that only accept 802.3bt Class 5–8 negotiation may stay at PoE+ power.
- No 2.5G/10G pass-through — 10/100/1000 Mbps only.
- It powers one device only.
Key Features
60 W Ultra PoE
Up to 60 W over four pairs, 50 W available at the device.
Backward compatible
Works with IEEE 802.3af/at powered devices.
Gigabit data
10/100/1000 Mbps pass-through.
Compact, wall-mountable
115 x 62.5 x 31 mm, 227 g, IEC-320 C6 inlet.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Use the POE-173 when one PTZ IP camera, thin client or signage display needs 40–50 W and accepts 4-pair Ultra PoE, or as the source for a PLANET POE-171S splitter. For bt-only devices, choose an 802.3bt injector.
✓ Buy it if you need up to 50 W at one device over a single Gigabit cable.
✕ Skip it if your device needs 802.3bt Class 7/8 (up to 90 W) or Multi-Gig speed.
→ Also consider PLANET POE-171S Ultra PoE splitter, or TRENDnet TPE-219GI (802.3bt, 90 W, 2.5G).
Send us the model of the device you want to power and we will confirm power and compatibility before you order.
