Planet TSN-5225-4T2S Industrial L2+ Managed TSN Switch | 4x Gigabit RJ-45 | 2x SFP

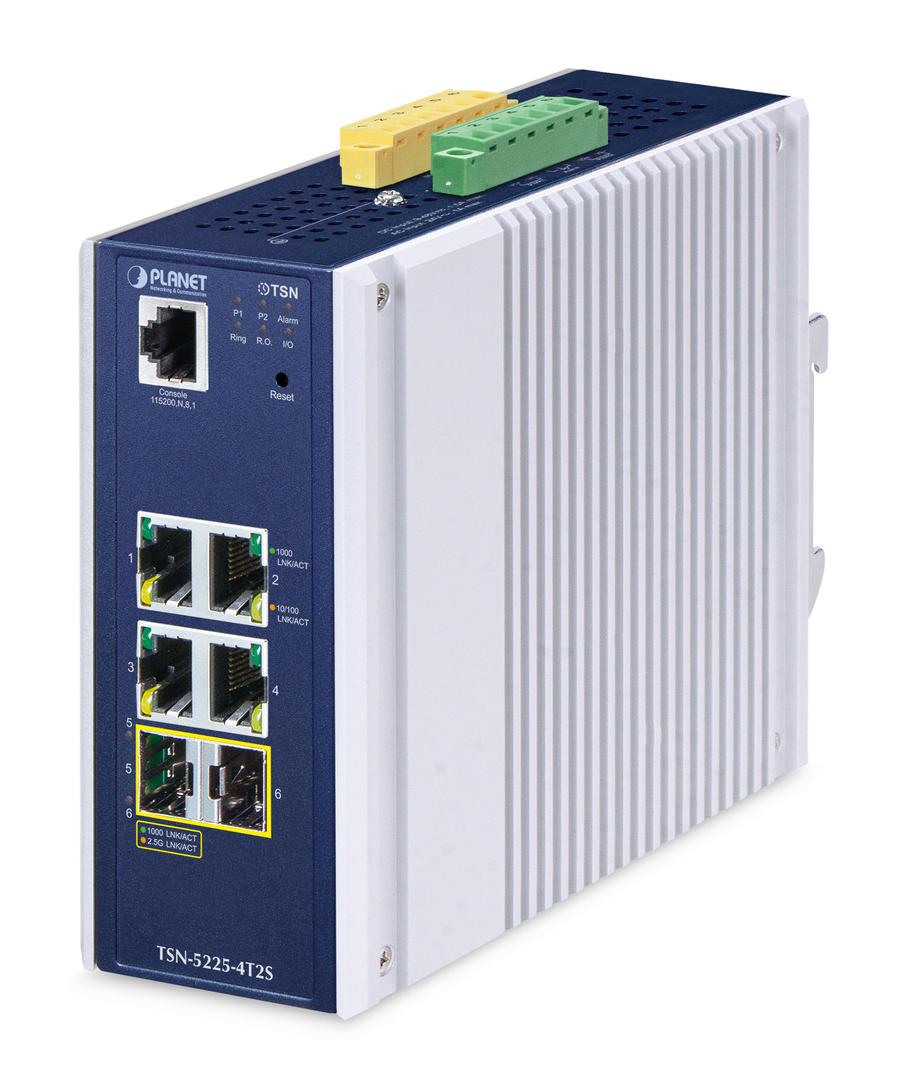

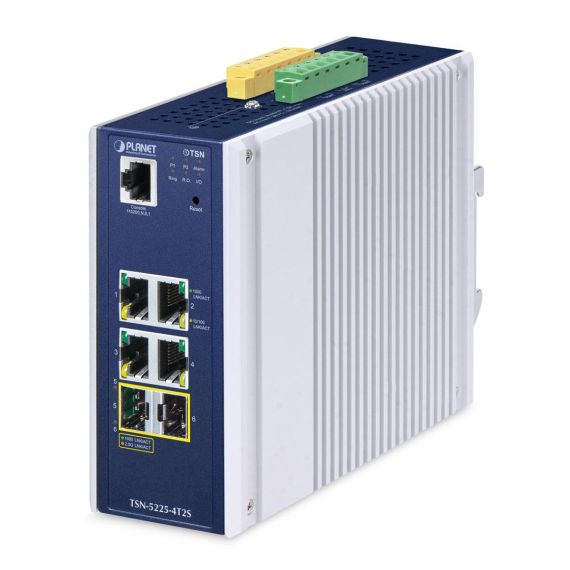

The Planet TSN-5225-4T2S is an industrial-grade Layer 2+ managed TSN Ethernet switch for cabinet and control-environment installations. It combines 4 Gigabit RJ-45 ports with 2 SFP ports in a rugged IP30 aluminium housing, with DIN-rail or wall mounting support.
Technical Specifications
| Specification | Detail |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| RJ-45 ports | 4 x Gigabit Ethernet (10/100/1000) |
| SFP ports | 2 |
| Full duplex | Yes |
| Half duplex | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 18 Gbit/s |
| Throughput | 13.3 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| DHCP features | DHCP Option 82 | DHCP server | DHCP snooping | DHCPv6 relay |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Networking standards | IEEE 802.1D | IEEE 802.1Q | IEEE 802.1Qbv | IEEE 802.1ab | IEEE 802.1ag | IEEE 802.1as | IEEE 802.1p | IEEE 802.1s | IEEE 802.1w | IEEE 802.1x | IEEE 802.3 | IEEE 802.3ab | IEEE 802.3ad | IEEE 802.3ah | IEEE 802.3bz | IEEE 802.3u | IEEE 802.3x | IEEE 802.3z |
| Flow control support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Width | 60 mm |
| Depth | 135 mm |
| Height | 135 mm |
| Weight | 986 g |
| Product colour | Aluminium, Blue |
| Housing material | Aluminium |
| Reset button | Yes |
| LED indicators | Yes |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| AC input voltage | 24 V |
| DC input voltage | 9 - 48 V |
| Input current | 1, 1.5 A |
| Operating temperature (T-T) | -40 - 75 °C |
| SKU / EAN | TSN-5225-4T2S | 4711605287821 |
SINGULAR RECOMMENDS
For who
Suitable for industrial network setups that need a managed L2+ switch with Gigabit copper ports, SFP uplinks and flexible cabinet mounting.
Real reason to buy it
A rugged industrial switch with managed TSN features, dual SFP uplinks and broad Layer 2 control options in a compact IP30 metal enclosure.
Know before
This model is listed with 4 Gigabit RJ-45 ports and 2 SFP ports. It is an industrial unit for DIN-rail or wall mounting, with a -40 to 75 °C operating range.
