PLANET VR-300W5 AC1200 Dual-WAN Gigabit VPN Router
Brand:
Planet
VR-300W5
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Dual-WAN routing and Wi-Fi 5 for a managed office
Wi-Fi 5 / AC12005× Gigabit RJ45Dual WAN / IPsec / OpenVPNFanless / internal AC

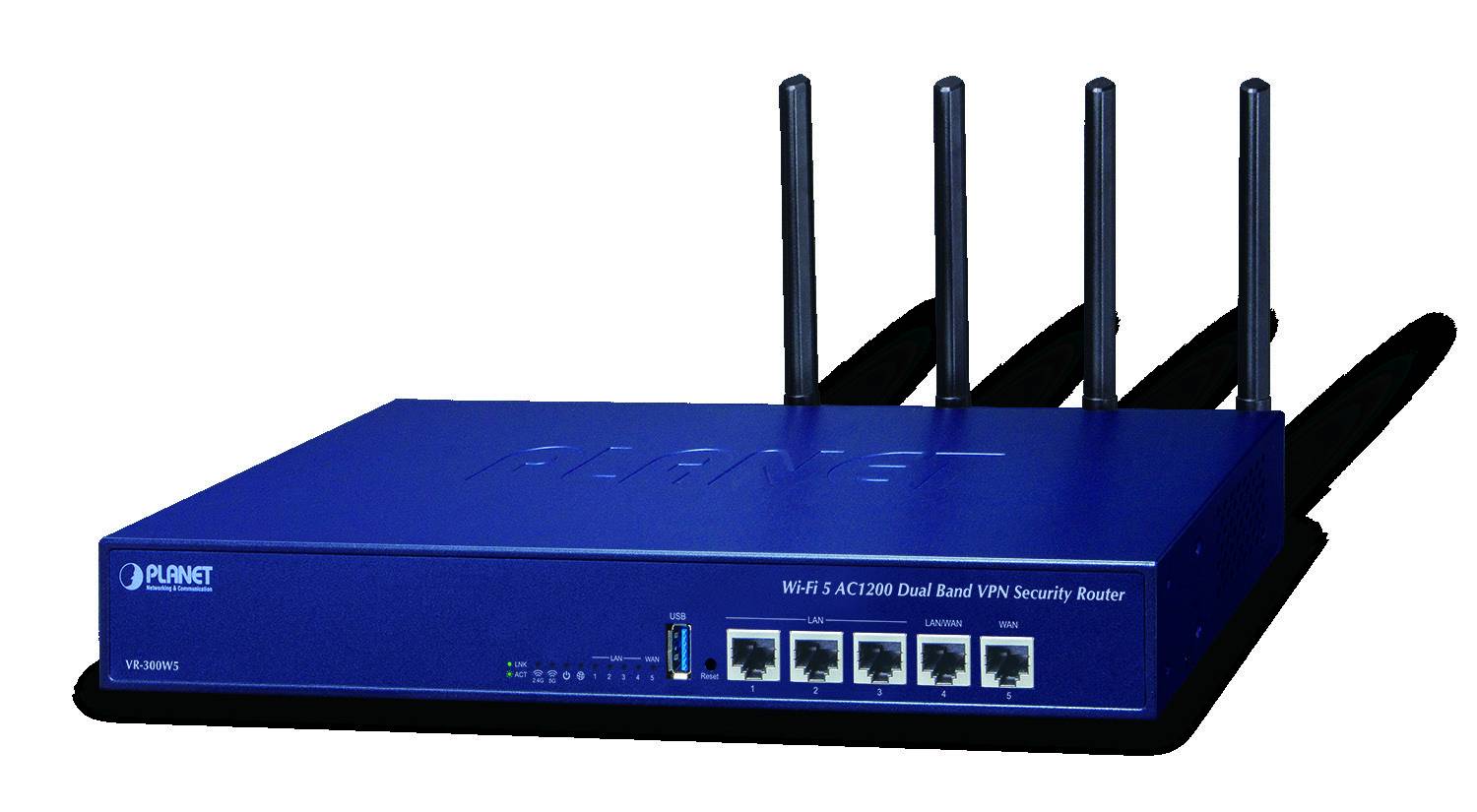

The PLANET VR-300W5 combines concurrent dual-band Wi-Fi 5, five Gigabit Ethernet ports and VPN routing in a blue metal desktop enclosure. A configurable second WAN supports load balancing or failover, while SPI firewall, VLAN, captive portal and supported PLANET AP management provide tools for a configured small-office network. This is the non-PoE model.
Best For: Small offices and managed business networks needing wired Gigabit connections, dual-band wireless and configured remote or site-to-site VPN access.
Before you order: Internet service and suitable modem/ONT are separate. Dual WAN needs two suitable upstream connections; it uses the shared LAN/WAN port. AC1200 combines theoretical wireless rates, not Internet or VPN throughput. Configure compatible VPN peers, secure management and appropriate network policies before use.
What's in the Box
- VR-300W5 router, power cord and wireless antennas.
- Rack-mounting kit, four rubber feet and quick-installation guide access by QR code per manufacturer series guide.
- ISP service, modem/ONT, Ethernet patch cables, VPN peers and additional access points are separate.
What It Means in Practice
- Connect the primary WAN to your upstream modem or ONT and configure ISP requirements.
- Assign port 4 as LAN or a second WAN; enable load balancing or failover as appropriate.
- Configure separate wireless/network policies, supported VLANs and guest access for the intended environment.
- Set compatible IPsec or OpenVPN peers and test actual throughput with your encryption and traffic.
- Use USB 3.0 for documented configuration backup and restore, and retain protected backups.
What Will Not Work
- No PoE output, cellular modem/SIM, SFP or Wi-Fi 6 radio is specified for VR-300W5.
- Manufacturer ceilings are up to 900 Mbps NAT and 60 Mbps VPN, not guaranteed simultaneous results.
- Dual-WAN load balancing does not combine two lines into a guaranteed faster single session.
- AP control requires supported PLANET models and compatible firmware; it is not universal AP management.
- The firewall and VPN need appropriate configuration and maintenance; no device guarantees complete protection.
Key Features
Flexible five-port layout
Three dedicated LAN ports, one selectable LAN/WAN and one WAN, all 10/100/1000BASE-T.
Concurrent wireless bands
Wi-Fi 5 with theoretical 300 Mbps at 2.4 GHz and 867 Mbps at 5 GHz.
VPN with realistic limits
IPsec and SSL/OpenVPN functions; up to 60 tunnels and 60 Mbps VPN per manufacturer.
Business network controls
SPI firewall, VLAN, captive portal, RADIUS and compatible PLANET AP control.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Size a VPN router by encrypted throughput and required features, not just its Wi-Fi class or Ethernet link rate. The VR-300W5 offers useful dual-WAN and access-management tools, but the documented VPN ceiling is much lower than its Gigabit port speed. Test the intended VPN peers, policies and failover behaviour before deployment.
Buyer’s Guide
✓ Buy it if You need a managed Wi-Fi 5 office router with five Gigabit ports, dual-WAN options and moderate VPN requirements.
✕ Skip it if You require PoE output, integrated cellular, Wi-Fi 6 or high-throughput encrypted VPN beyond this model’s rating.
→ Also consider ISP handoff, shared-port allocation, VPN load, compatible APs, firmware and secure configuration.
Features - Planet - VR-300W5
Colour
blue
Interface
- USB3.0,
- Ethernet,
- WIFI
Standard
5-Port
Port Speed
- 1 Gbps
More Details
Product Code
04:593883
EAN Code
4711605286091
Manufacturer
Planet
