equip 650352 — Pop-Out Video Wall Mount, 45 to 70 inch, 70 kg
45–70 in screens70 kg per displayPops out 120–325 mmAnti-theft fitting

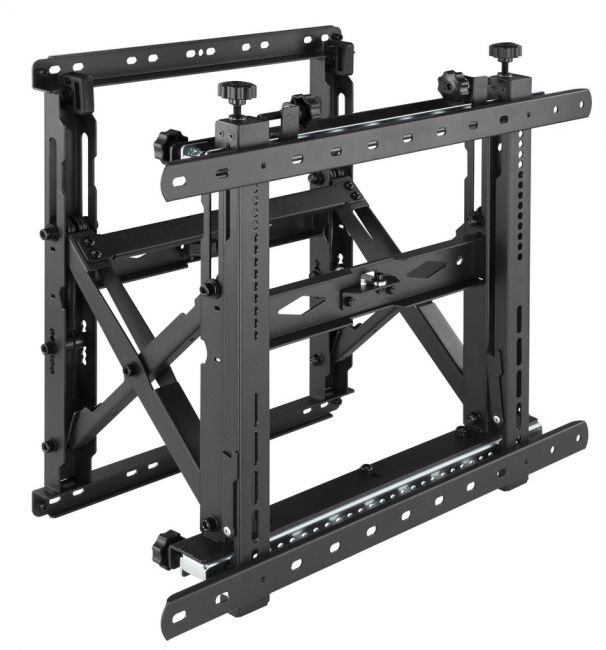

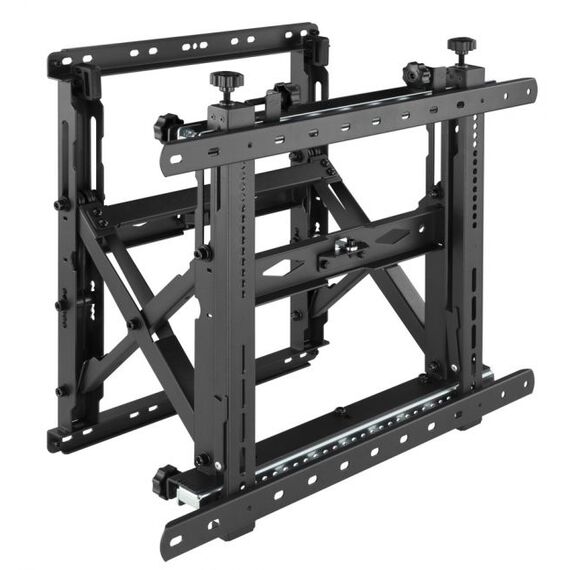

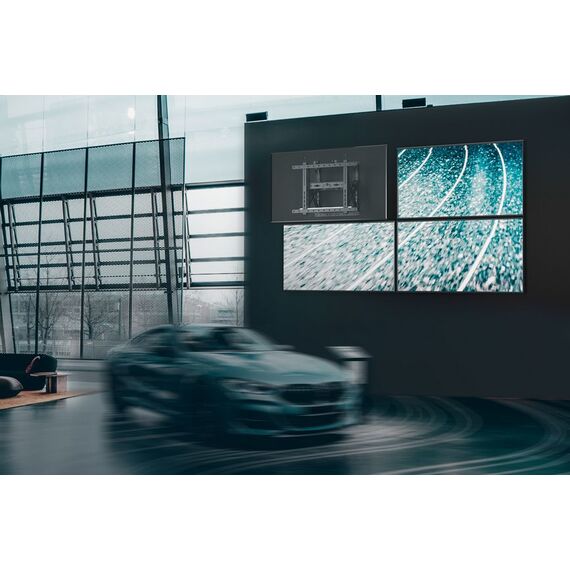

This is a video wall component built around servicing. Press the display and it springs forward on its arms, giving you access to the back of the panel without unbolting anything or removing its neighbours; push it back and it sits flush. Each unit carries one screen of 45 to 70 in weighing up to 70 kg, the modular frame combines into arrays of any size, and micro-adjustment brings adjacent panels into alignment. Construction is stainless steel with a plastic housing.
Compatibility — check before buying:
The 70 kg rating is the headline here — more than double the 30 kg of equip’s smaller pop-out bracket — and it is what makes this the one for heavy commercial panels. Screens must be 45 to 70 in on a VESA pattern up to 600 x 400. Curved screens are not supported. Tilt is only +2° to -3°, which is levelling between panels rather than viewing adjustment — if you need to angle a screen toward a seating position, this is the wrong mount. equip specifies installation on a solid wall. Note one contradiction in equip’s own material: the product description mentions integrated cable management, while the specification table lists cable management: No. Both are equip statements; plan your cable route independently.
Best For

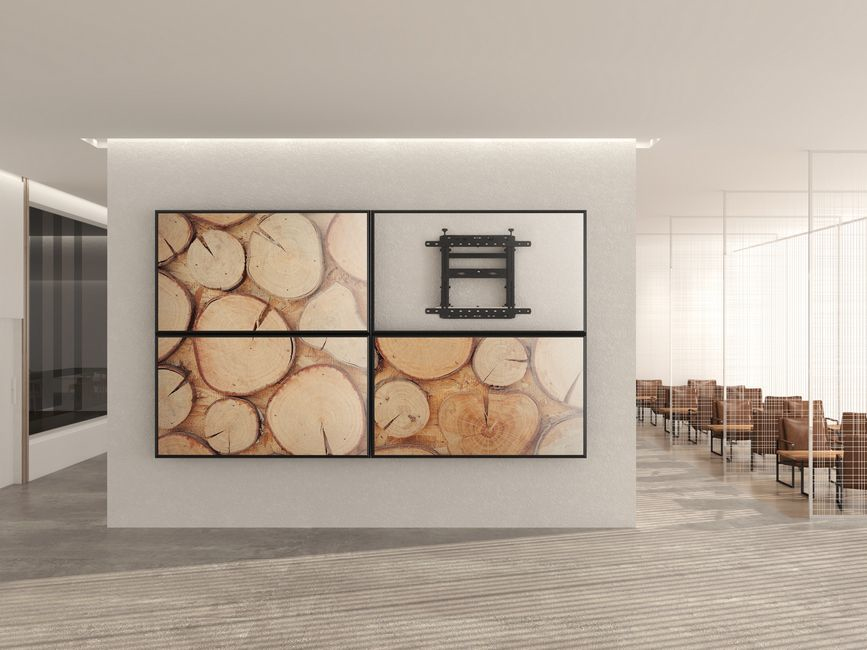

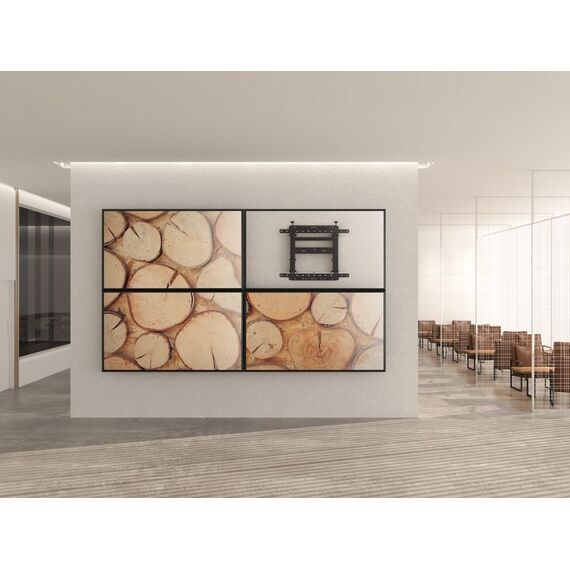

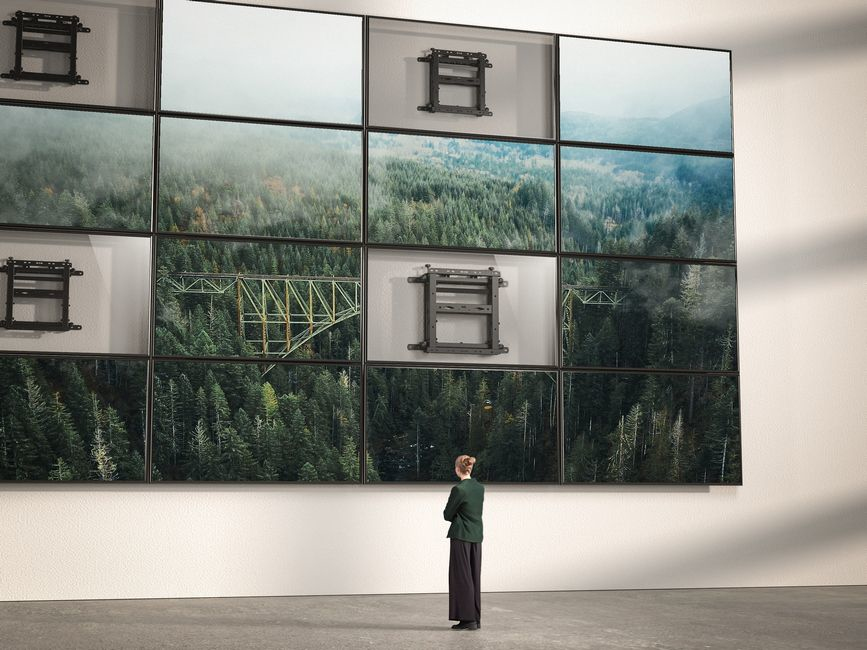

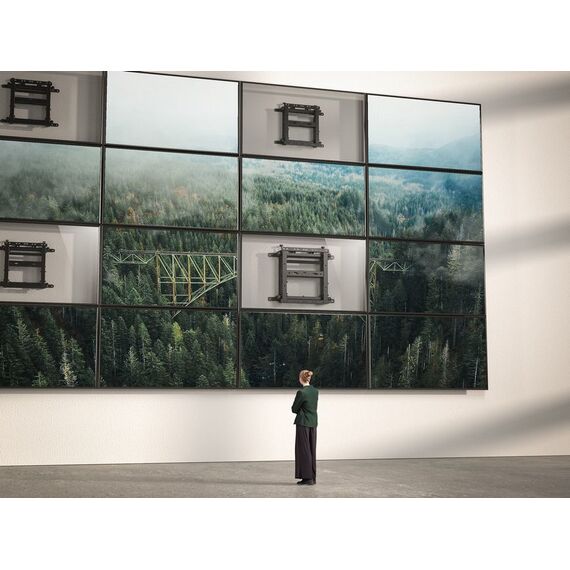

✓ Video walls and multi-screen arrays
✓ Control rooms and monitoring suites

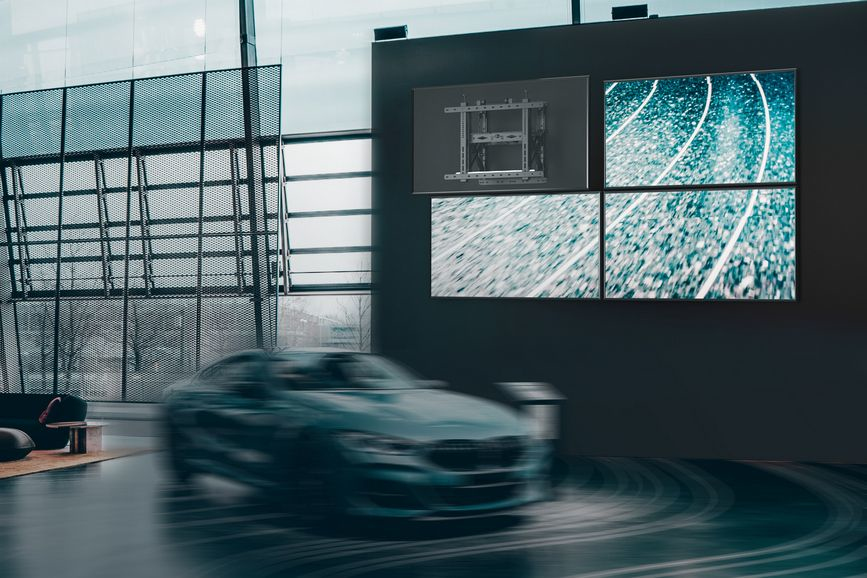

✓ Retail and signage installations
✓ Heavy commercial panels up to 70 kg
✓ Recessed and in-wall single displays
✓ Installations needing rear service access
Key Features
70 kg per display
Twice the capacity of a typical pop-out bracket. Large commercial panels in the 65 and 70 in class regularly exceed 40 kg, and this is the equip mount that carries them without going to a fixed bracket.

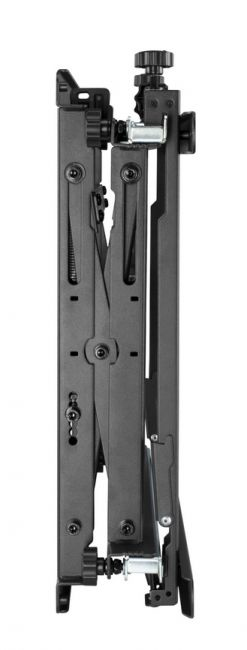

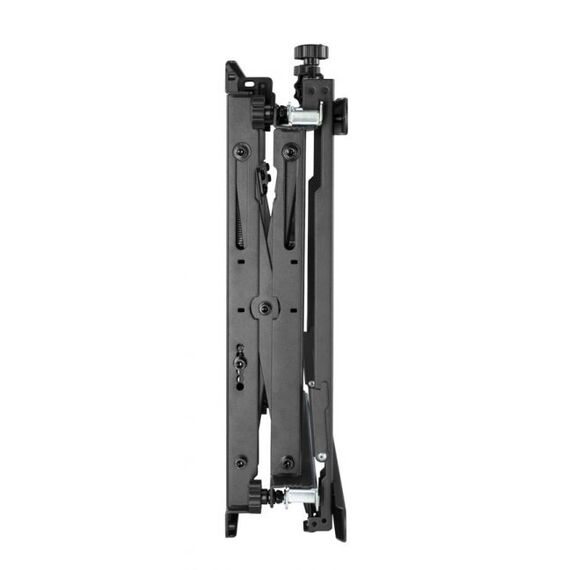

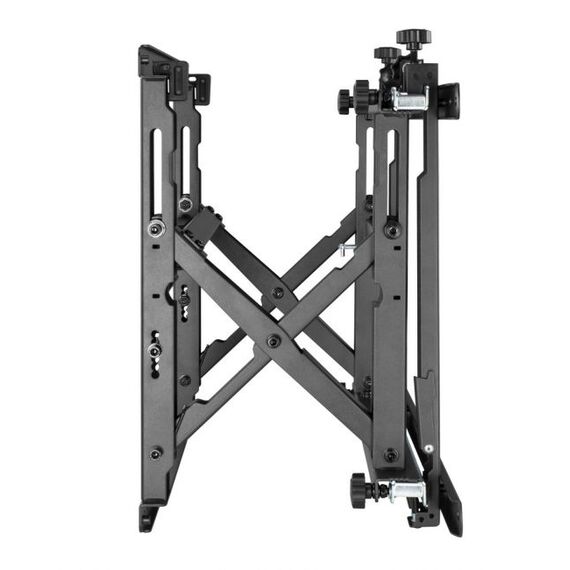

Spring-assisted pop-out

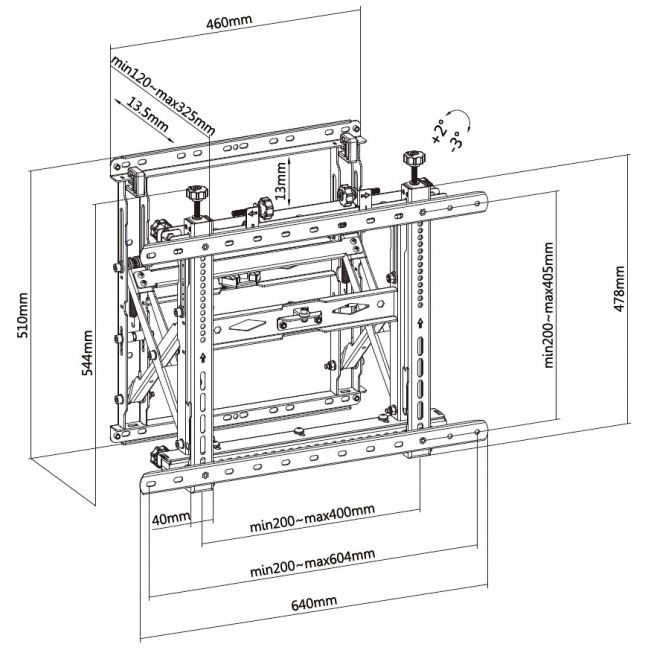

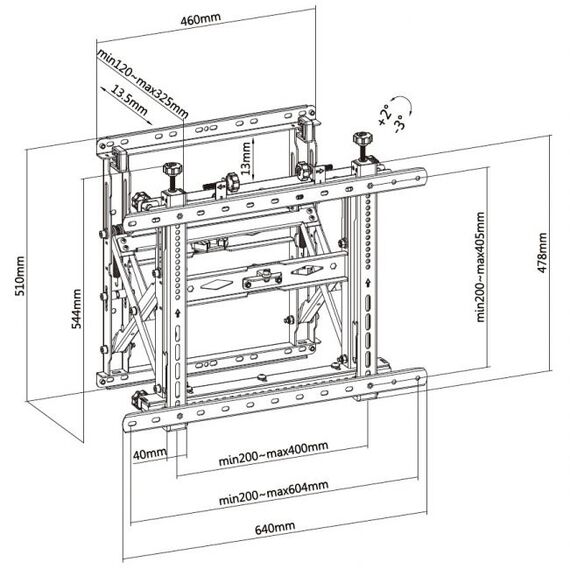

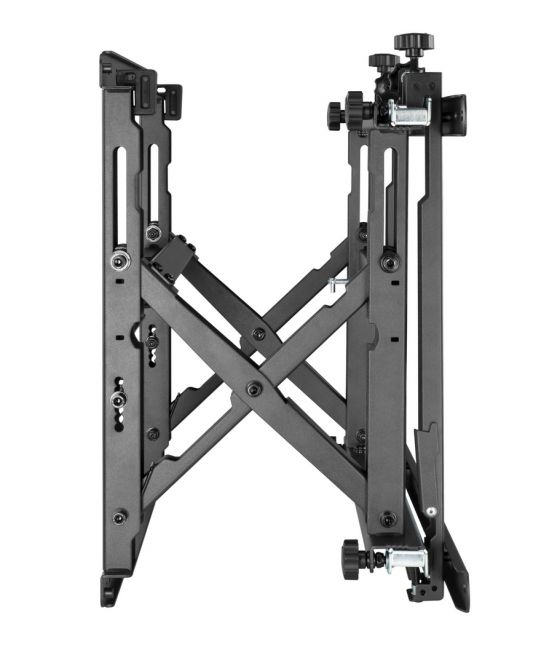

The display travels 120 mm to 325 mm off the wall on its arms. In a tiled array you cannot reach behind a panel without pulling its neighbours, so this mechanism is what makes commissioning and service practical.

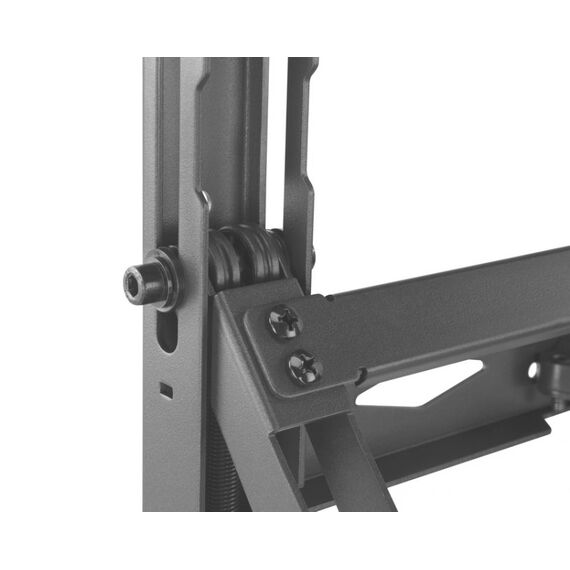

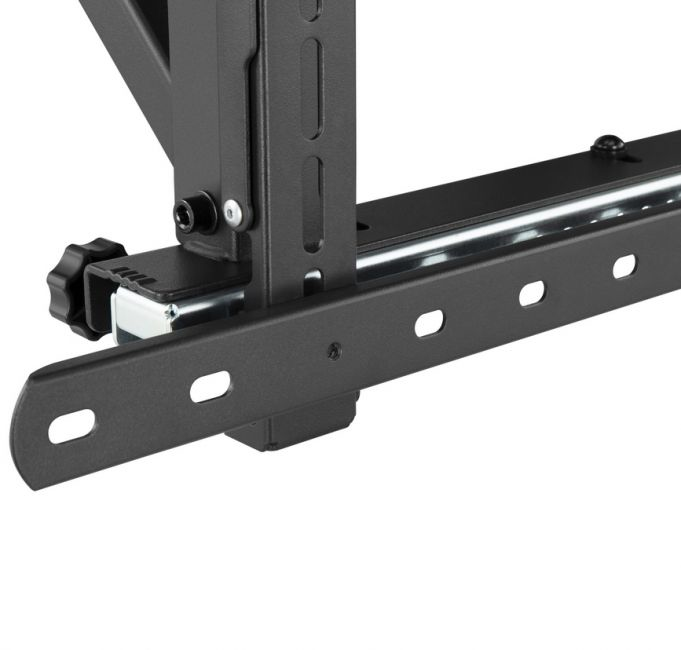

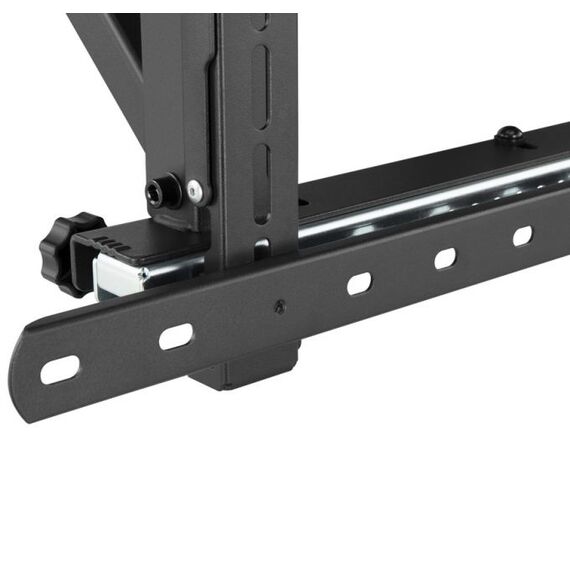

Micro-adjustment for alignment

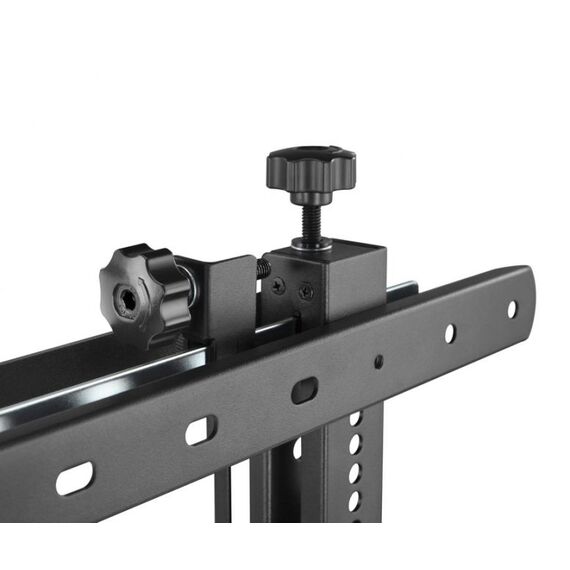

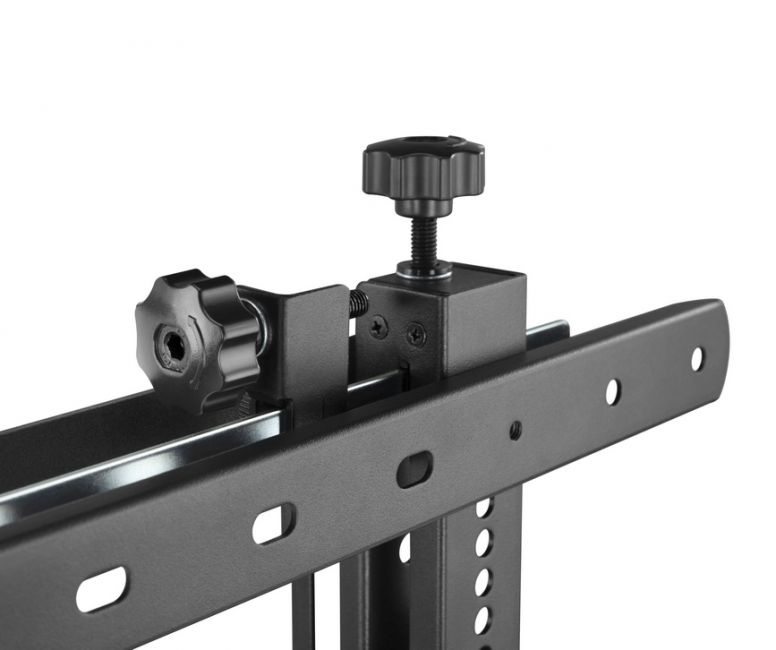

Effortless fine adjustment between adjacent screens is what equip designs this frame around — a seamless wall is achieved by trimming the mounts, not by drilling to the millimetre.
Anti-theft fitting included
Unusually for a video wall bracket, equip lists anti-theft on this model. On a retail or public-facing array that removes the need for separate security hardware.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Between equip’s two pop-out video wall brackets the decision is simply weight: 70 kg here against 30 kg on the 650355, with this one also starting at 45 in rather than 32. Commercial 65 and 70 in panels routinely land between 30 and 50 kg, so the heavier bracket is usually the right specification even when the screen count is small. The anti-theft fitting is a genuine extra on a public-facing array. What equip does not give you is a warranty term or a consistent answer on cable management, so treat the Singular year as the firm cover and plan cabling yourself. Single-screen viewing mounts, ceiling options and trolleys are in our monitor arms and stands range, and display weights and VESA patterns per model are listed under PC monitors.
Buyer’s Guide
Buy it if
You are building a video wall or recessing a large display, screens are 45 to 70 in and up to 70 kg, and you need front pop-out access plus an anti-theft fitting.
Skip it if
Your display is curved, lighter panels would suit the cheaper 650355, or you need real viewing tilt rather than levelling.
Also consider
equip 650355 for lighter screens at 30 kg, a full-motion or tilting wall mount for a single viewing position, or a heavy-duty fixed mount for very large panels.
Features - Equip - 650352
Monitor mount capacity
Single monitor mount
More Details
Product Code
04:408125
EAN Code
4015867228296
Manufacturer
Equip
