Shuttle FSP300 300W Internal XPC cube Power Supply, 80 PLUS Bronze, FSP300-50FFB

Brand:
Shuttle
Shuttle FSP300 300W Internal XPC Power Supply, 80 PLUS Bronze
Shuttle FSP300 300W Internal XPC cube Power Supply, 80 PLUS Bronze, FSP300-50FFB
€97.51 inc. VAT
Buy
FSP300
€81.94 €91.05
€97.51 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
CJ78690
EAN Code
4046047104093
Manufacturer
Shuttle

Quick Specs

Output
300W maximum
Efficiency
80 PLUS Bronze
Graphics power
1 × 6-pin
Compatibility
Selected Shuttle XPC cube models
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

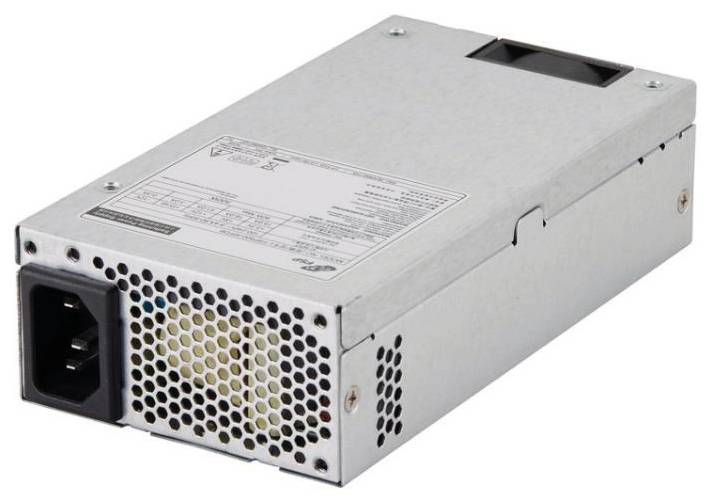

Shuttle FSP300: a 300W replacement for compatible XPC cubes

300W80 PLUS BronzeActive PFC40mm fan

The Shuttle FSP300 is an internal replacement power supply made by FSP Technology as FSP300-50FFB. Its fixed cables are designed for selected Shuttle XPC cube systems. The 300W combined output, 80 PLUS Bronze rating and active PFC provide a defined power platform for a compatible repair.

Compatibility — check before buying:
Check the exact XPC model and serial prefix before ordering. The 20-pin motherboard connector and Shuttle-specific cabling are not a promise of compatibility with every ATX PC. Screws and the AC cable are not included. Replacing a 500W supply with FSP300 reduces available power to 300W.

Key Features


Match the XPC before replacing the PSU
SH610R4, SH510R4 and SH570R6 are supported across all serial numbers. Compatibility of SH310R4V2, SH370R6V2, SH370R6V2 Plus and SH370R8 depends on the serial prefix; the table below identifies supported and excluded revisions.

Defined output and connector limits
The combined output is limited to 300W, with up to 24A on +12V and a 80W combined limit for +3.3V/+5V. Power rails and connector ratings must be considered together with the installed components.

Compact cooling and protection
A 40mm ball-bearing fan cools the unit. Output overvoltage protection, short-circuit protection on every output and resettable shutdown are listed by Shuttle. The 100,000-hour MTBF is specified at 25°C and full load.

Plan the complete replacement
Use the existing compatible mounting screws and a suitable earthed AC lead, or obtain replacements separately. Check the total system power budget, motherboard/CPU plugs and graphics power connectors before installation.

Technical Specifications

Identity and application
Brand / accessory SKU Shuttle XPC Accessory FSP300
EAN / GTIN-13 4046047104093
Original PSU manufacturer / model FSP Technology Inc. / FSP300-50FFB
Product type Internal replacement PSU for specified Shuttle XPC cube PCs
Cabling Fixed cables with lengths designed for Shuttle XPC
AC input and power conversion
AC input voltage 90–264V AC
AC input frequency 47–63Hz
Maximum input current 3A at 230V AC; 6A at 115V AC
Mains inlet IEC 320 C14 male
Power factor correction Active PFC
Efficiency rating 80 PLUS Bronze
DC output ratings
Maximum total combined output 300W; individual rail maxima are not additive
Combined +3.3V / +5V limit 80W maximum
+12V rail maximum 24A
+3.3V rail maximum 12A
+5V rail maximum 14A
+5VSB standby maximum 3A
-12V rail maximum 0.3A
Minimum output load 0.0A on every rail
Power connectors
Motherboard connector 1 × 20-pin ATX
CPU power connectors 1 × 4-pin
PCIe graphics power connectors 1 × 6-pin
PCIe connector power ratings 6-pin: 75W
SATA / peripheral connectors 4 × SATA power; 2 × Molex
Verified Shuttle compatibility
300W XPC models, all serial numbers SH610R4, SH510R4, SH570R6; same-capacity replacement
500W XPC models, all serial numbers SH570R6 Plus, SH570R8, SW580R8; downgrade to 300W: verify total system load
SH310R4V2 serial restrictions SH310V20501…: compatible; SH310V20201…: incompatible
SH370R6V2 serial restrictions SH370V20801…: compatible; SH370V20301…: incompatible
SH370R6V2 Plus serial restrictions SH370V20901…: compatible; SH370V20401…: incompatible
SH370R8 serial restrictions SH370R80701…: compatible; SH370R80201…: incompatible
Other explicitly incompatible revisions SH310R4: SH310R40301…; SH370R6: SH370R60201…; SH370R6 Plus: SH370R60301…
Compatibility scope Model, serial prefix, connector layout and system power budget must match; not universal ATX compatibility
Cooling, protection and reliability
Cooling fan 40mm ball-bearing fan, 12V DC
Protection circuits Output overvoltage; short circuit on all outputs; resettable power shutdown
Continuous operation Manufacturer-listed suitability for 24/7 operation
MTBF 100,000 hours (MIL-HDBK-217), at 25°C ambient and maximum output load; statistical rating, not a warranty term
Physical, environmental and package details
Dimensions 150 × 81.5 × 40.5mm (L × W × H)
Weight 0.7kg net; 0.9kg gross
Operating environment 0–50°C; up to 85% RH, non-condensing
Storage environment -20–80°C; up to 90% RH, non-condensing
EMI / RFI compliance CE, UKCA, FCC Class B, CCC
Safety approvals CB EN62368-1 & EN60950-1, TÜV, cUL, CCC
Package contents Power supply; screws and AC mains cable excluded

What's in the Box

Shuttle FSP300 power supply with fixed cables

What Will Not Work

Not compatible with every Shuttle XPC or general-purpose ATX PC.
Excluded serial-number revisions in the table must not use this replacement.
Screws and AC mains cable must be sourced separately.

Frequently Asked Questions

Will it fit every Shuttle cube?
No. Check the exact model and serial prefix against the compatibility rows. Unlisted models require separate verification.
What comes in the package?
The PSU and its attached cables. Mounting screws and the AC mains lead are excluded.
What changes when choosing 300W versus 500W?
FSP300 provides 300W, Bronze efficiency and one 6-pin graphics plug. FSP500 provides 500W, Gold efficiency and 6-pin plus 6+2-pin graphics plugs. Use only a verified compatible model and adequate system power budget.
Singular Expert Insight
Start with the chassis label and serial prefix, then check the connectors and installed CPU/GPU power requirements. A higher wattage alone cannot establish compatibility. Ask Singular to check your configuration

Buyer’s Guide

Buy it if

You need this exact replacement for a listed compatible Shuttle cube.

Skip it if

Your chassis revision is excluded or you need a universal 24-pin ATX PSU.

Also consider

The other verified FSP model only if its connectors, compatibility and power capacity suit your system.
