Thermaltake TR2 S 750W ATX PC Power Supply 80 PLUS 230V EU 12+4-pin PCIe 120mm Fan Black

Brand:
Thermaltake

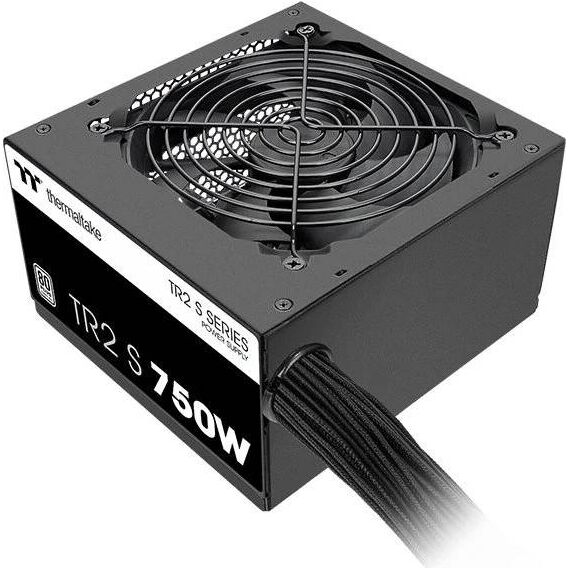

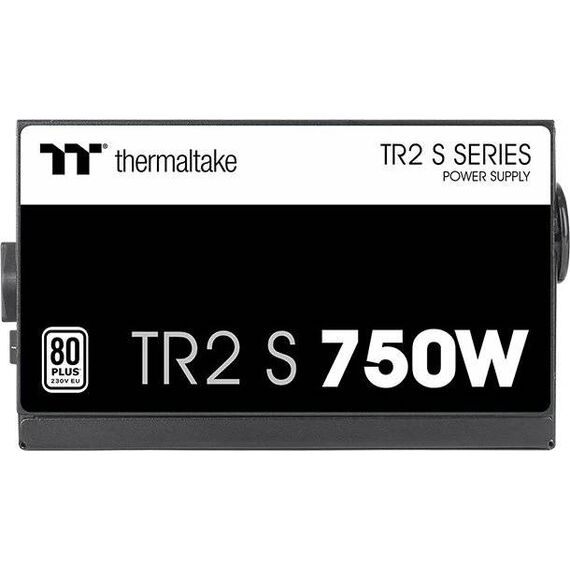

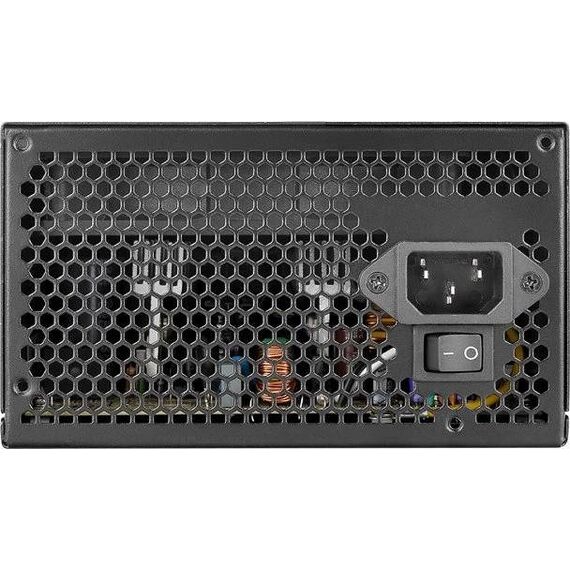

Thermaltake TR2 S 750W ATX Power Supply Black
Thermaltake TR2 S 750W ATX PC Power Supply 80 PLUS 230V EU 12+4-pin PCIe 120mm Fan Black
€83.59 inc. VAT
Buy
PS-TRS-0750NNSAWE-H
€70.24 €78.05
€83.59 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
04:581364
EAN Code
4711658549389
Manufacturer
Thermaltake

Quick Specs

Type
ATX PSU, 750W, 80 PLUS 230V EU
Connectors
24-pin · 2× EPS 4+4 · 2× PCIe 6+2 · 12+4-pin
Key spec
+12V 58A (696W)
Compatibility
ATX cases · 200–240V AC input
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Thermaltake TR2 S 750W — entry-level ATX power supply with 12+4-pin PCIe

750W ATX80 PLUS 230V EU12+4-pin PCIe120mm fan

The Thermaltake TR2 S 750W (model TRS-750AH2NXW-M) is an entry-level ATX power supply with 80 PLUS 230V EU Internal certification, intended for office, home and light gaming PCs that need a reliable 750W-class unit at a budget price.

It provides a 12+4-pin PCIe connector for newer graphics cards alongside two PCIe 6+2 plugs, uses a 120mm hydraulic-bearing fan with temperature-controlled speed, and has OVP, UVP, OPP and SCP protection. The +12V rail is rated at 58A (696W) within the 750W total.

Before you order: Input is 200–240V AC only, and Thermaltake rates the unit at an ambient of 0–25°C. In a hot room or a poorly ventilated case, leave generous headroom below 750W.

What's in the Box

  • TR2 S 750W power supply
  • AC power cord (box contents not itemised by Thermaltake)

What It Means in Practice

  • Good fit for an office or family PC upgrade where efficiency class matters less than price.
  • The 12+4-pin cable lets you install a mid-range modern graphics card without an adapter.
  • Two EPS 4+4 connectors cover motherboards with dual CPU power sockets.
  • Black low-profile cables keep the inside of the case tidy-looking.

What Will Not Work

  • It will not run on 110–120V mains.
  • The +12V rail is rated at 696W, not the full 750W — do not pair it with a 400W+ graphics card and a high-end CPU.
  • Modularity is not published — assume fixed cables.
  • It is the standard -H variant, not the TR2 S DC-to-DC version, which is a different model.

Technical Specifications

Identification
Part Number PS-TRS-0750NNSAWE-H
EAN / GTIN 4711658549389
Model TRS-750AH2NXW-M
Brand Thermaltake
Electrical
Total power 750W
+12V 58A (696W)
+3.3V / +5V 24A / 18A (120W combined)
−12V / +5VSB 0.5A / 2.5A
AC input 200–240V AC, 10A max, 50–60Hz
PFC Active
Efficiency 80 PLUS 230V EU Internal
Hold-up time >16ms at 50% load
Protections OVP, UVP, OPP, SCP
MTBF 100,000 hours
Connectors
ATX 20+4-pin 1 (550mm)
EPS 4+4-pin 2 (600+150mm)
PCIe 6+2-pin 2 (450+150mm)
PCIe 12+4-pin 1 (600mm)
SATA 4
Molex 4-pin 2
Physical
Form factor ATX
Fan 120mm hydraulic bearing, temperature controlled
Dimensions 150 × 86 × 140 mm
Operating temperature 0–25°C (as rated by Thermaltake)
Colour Black
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Not published by Thermaltake for this model — claims handled through Singular

Frequently Asked Questions

Can it power an RTX 4060 or 4070?
Yes, cards in that class are well within its +12V capacity; the 12+4-pin or a PCIe 6+2 plug connects them directly.
Is it ATX 3.0 or 3.1?
Thermaltake lists it simply as ATX and does not publish an ATX 3.x rating, so treat it as a standard ATX unit.
Singular Expert Insight · Buyer's Guide
The TR2 S is a budget workhorse, not an enthusiast unit: fine for office PCs and modest gaming builds, but the 696W +12V figure and 25°C rating mean you should not push it to its label. For high-end GPUs see our PC power supplies with Gold certification.
✓ Buy it if you need an affordable 750W-class ATX unit for an office or light-gaming PC.
✕ Skip it if you are running a high-end graphics card, need modular cables or want ATX 3.1 certification.
→ Also consider the Thermaltake Smart BX3 Pro SE 750W for ATX 3.1 and a native 12V-2x6 cable.
Tell us your PC components and we will confirm whether the TR2 S 750W is enough before you order.
