ProLabs J9281B-C HP J9281B-Compatible Passive Twinax DAC, SFP+ to SFP+, 10GbE, 1 m

Brand:
ProLabs
ProLabs J9281B-C Black SFP+ to SFP+ Passive Twinax DAC Cable, 1 m
ProLabs J9281B-C HP J9281B-Compatible Passive Twinax DAC, SFP+ to SFP+, 10GbE, 1 m
€69.32 inc. VAT
Buy
J9281B-C
€58.25
€69.32 inc. VAT
Ships from EU stock: 4 item(s)
+ −
Add to wish list Ask a question
Product Code
04:442511
EAN Code
4260380720646
Manufacturer
ProLabs

Quick Specs

Length
1 m
Ends
SFP+ to SFP+
Link
10GbE, passive Twinax
Compatibility
HP J9281B reference
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

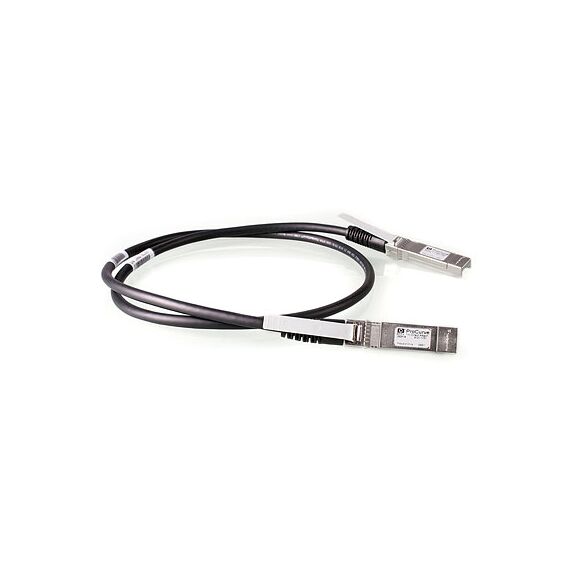

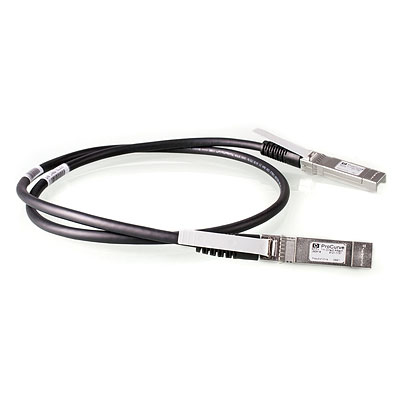

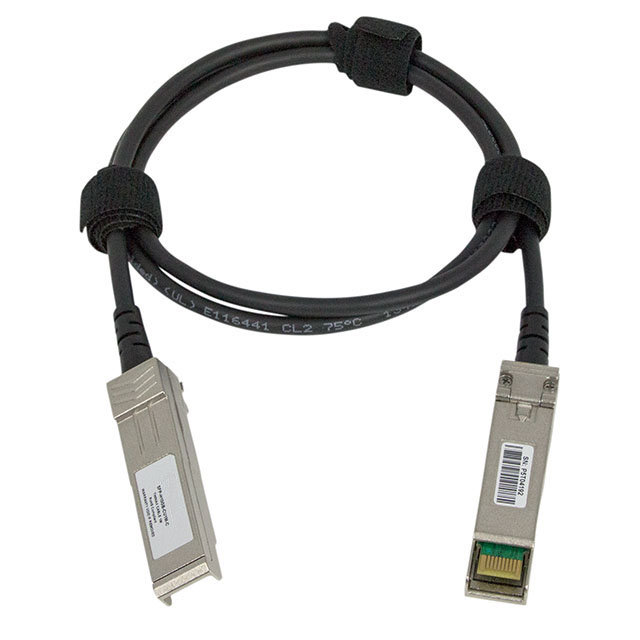

ProLabs J9281B-C — 1 m Passive SFP+ DAC

1 m10GbEPassive TwinaxHP-compatible

ProLabs J9281B-C connects two compatible SFP+ ports across 1 m using passive copper Twinax. It provides a 10GbE link with HP J9281B-compatible coding, according to ProLabs. The ends are part of the cable, so this connection does not require separate fibre and optical transceivers.

Compatibility — check before buying:
Check both SFP+ ports, host models, firmware and acceptance of HP J9281B coding. This ProLabs compatible cable does not establish support on every HP/HPE device or a second vendor’s port.

Key Features


Short 10GbE connection
A 1 m length for nearby equipment with compatible SFP+ ports.

Passive copper link
The Twinax assembly does not amplify the signal; choose according to host support and distance.

Coding and identification
ProLabs declares programming, unique serialization and traffic/application testing of the cable.

Technical Specifications

Identity and link
Brand / model ProLabs J9281B-C
EAN / GTIN 4260380720646
Compatibility reference HP J9281B-compatible coding, ProLabs declaration; verify both host models and firmware
Length / reach 1 m
Connectors SFP+ male to SFP+ male; 20-pin SFP+ footprint
Medium / design Passive copper Twinax DAC; no signal amplification
Ethernet application 10GBase-CU / 10 Gigabit Ethernet
Manufacturer component rate 1–10.5 Gbps; up to 10.5 Gbps per lane reference
Additional published applications InfiniBand 1X SDR / DDR / QDR; proprietary interconnects, subject to host support
Standards / integration SFF-8472 Rev.11.1; SFP MSA SFF-8431 Rev.4.1; hot-pluggable
Signal limitations Passive assembly does not support LOS or Tx_Disable; no optical diagnostics guarantee
Serial interface SDA / SCL two-wire serial identification interface
Cable and electrical references
Cable construction 30 AWG; 4.5 mm diameter, exact published table
EMI design 360° cable-braid crimp and enhanced EMI skirt
Within-pair delay skew 10 ps/m, manufacturer reference
Cable delay 4.3 ns/m, manufacturer reference
Cable impedance min / typ / max 90 / 100 / 110 Ω
Supply voltage min / typ / max 3.13 / 3.30 / 3.47 V, host interface reference
Published supply current 30 mA, recommended-condition table
Bit error rate reference 10⁻¹², under manufacturer recommended conditions
Environment and terms
Operating case temperature 0–70 °C
Storage temperature −40 to +85 °C
Colour Black cable
Compliance RoHS compliant, lead-free, manufacturer declaration
Product verification Programmed, uniquely serialized and traffic/application tested by ProLabs
Manufacturer term ProLabs limited lifetime warranty, subject to manufacturer terms

What's in the Box

1 ProLabs J9281B-C passive DAC cable, 1 m, with integrated SFP+ ends

What Will Not Work

Not an RJ45 cable or an LC fibre-optic cable.
Does not convert a port standard or establish coding acceptance on every host.
The passive assembly does not support LOS or Tx_Disable and does not establish optical diagnostics.

Frequently Asked Questions

Does it connect to a regular RJ45 Ethernet port?
No. Both ends are SFP+ and require compatible SFP+ ports.
Is it enough for only one switch to be HP?
Both hosts must be checked. Ports need to support the cable, rate and coding, especially when connecting equipment from different vendors.
Does it provide the same diagnostics as an optical module?
The sheet describes a serial identification interface, but the passive assembly does not support LOS and Tx_Disable. Do not assume all optical transceiver functions are available.
Singular Expert Insight
Measure the route between ports and allow room for routing without sharp bends. Before ordering, confirm exact models and firmware at both ends rather than relying on the SFP+ shape alone. Check both hosts and DAC coding with us

Buyer’s Guide

Buy it if

You need a 1 m 10GbE link with accepted HP J9281B-compatible coding at both ends.

Skip it if

You need RJ45, a longer route or a different host coding.

Also consider

A DAC of the required length, or compatible optics and fibre for the actual distance.
