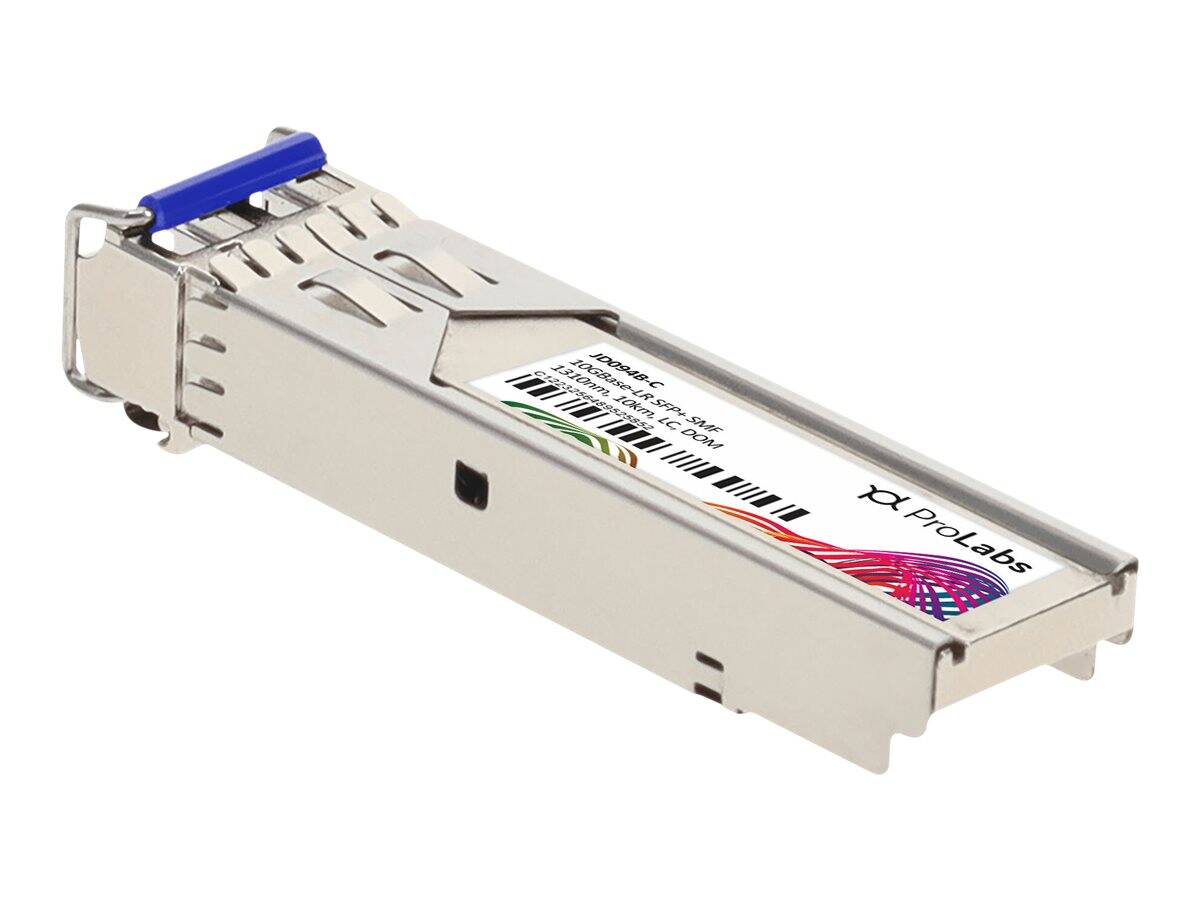

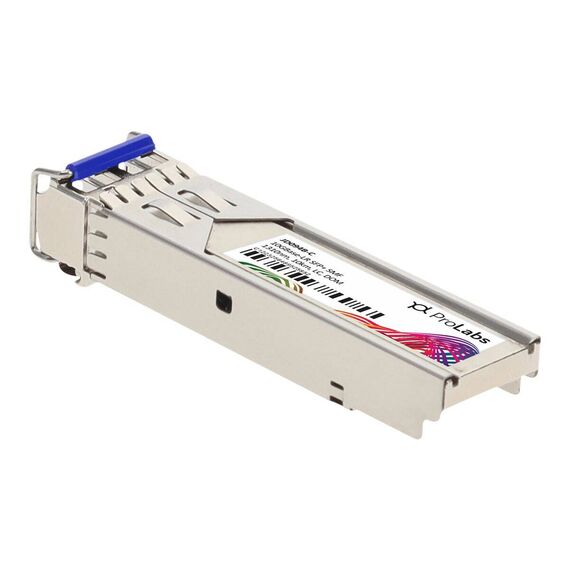

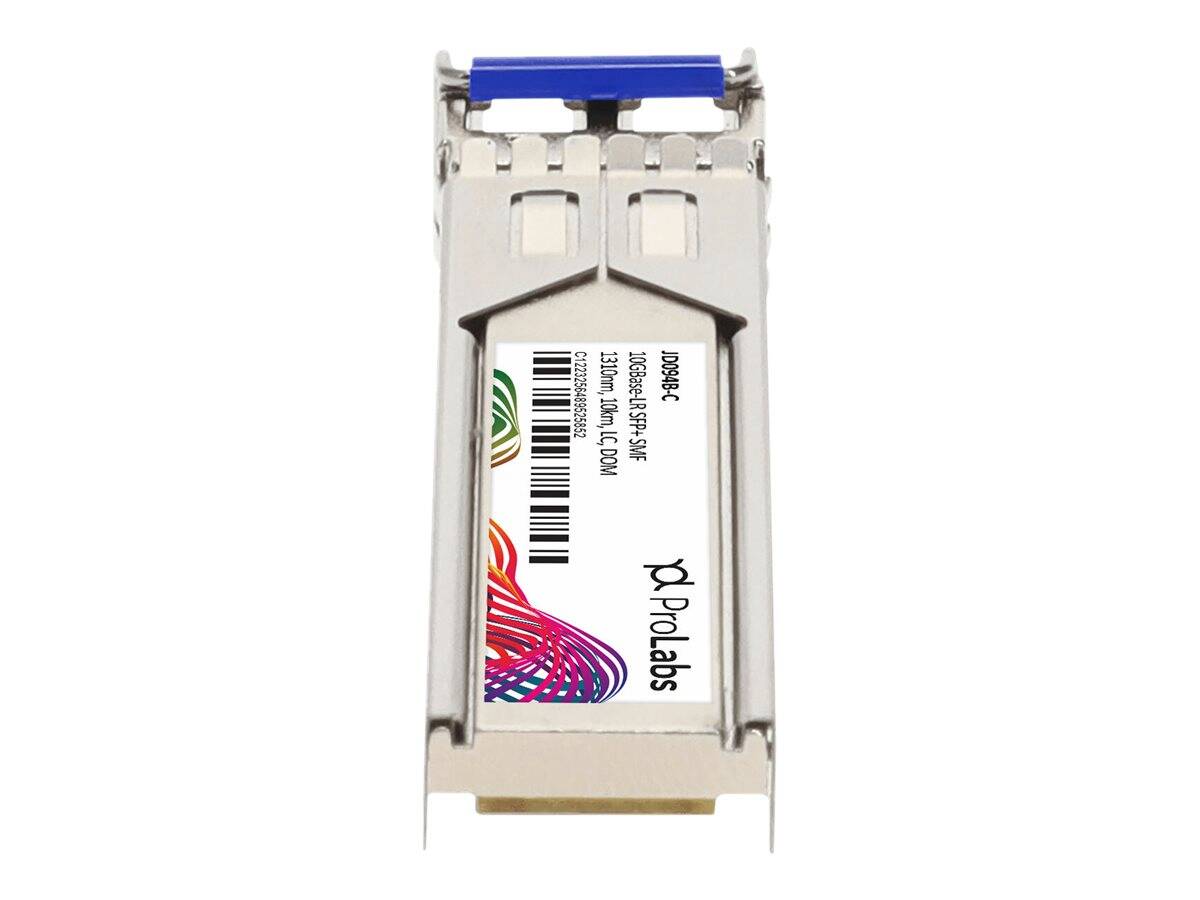

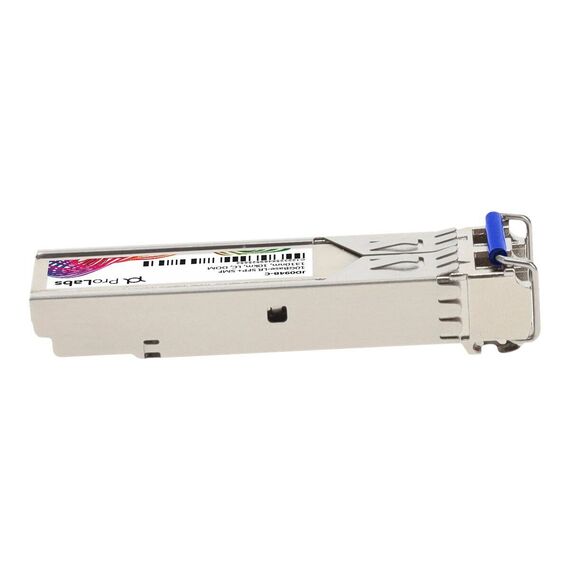

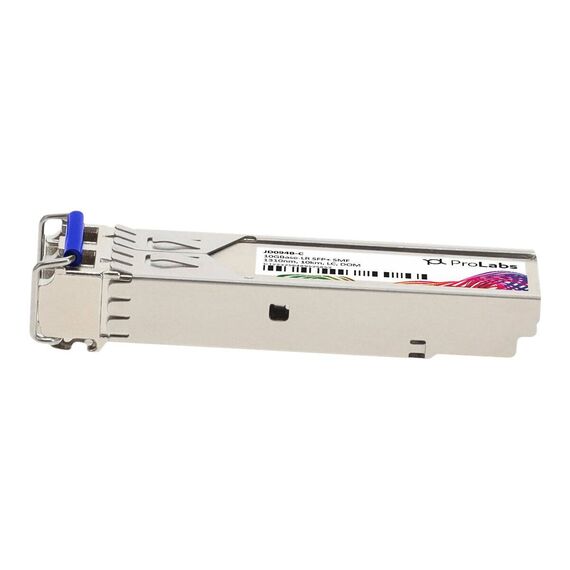

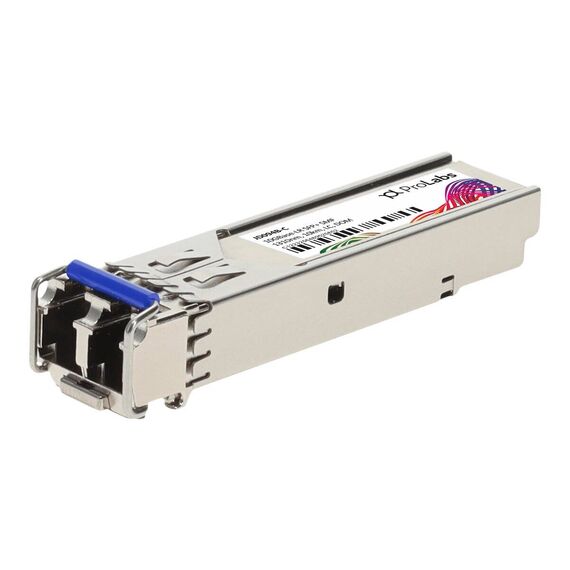

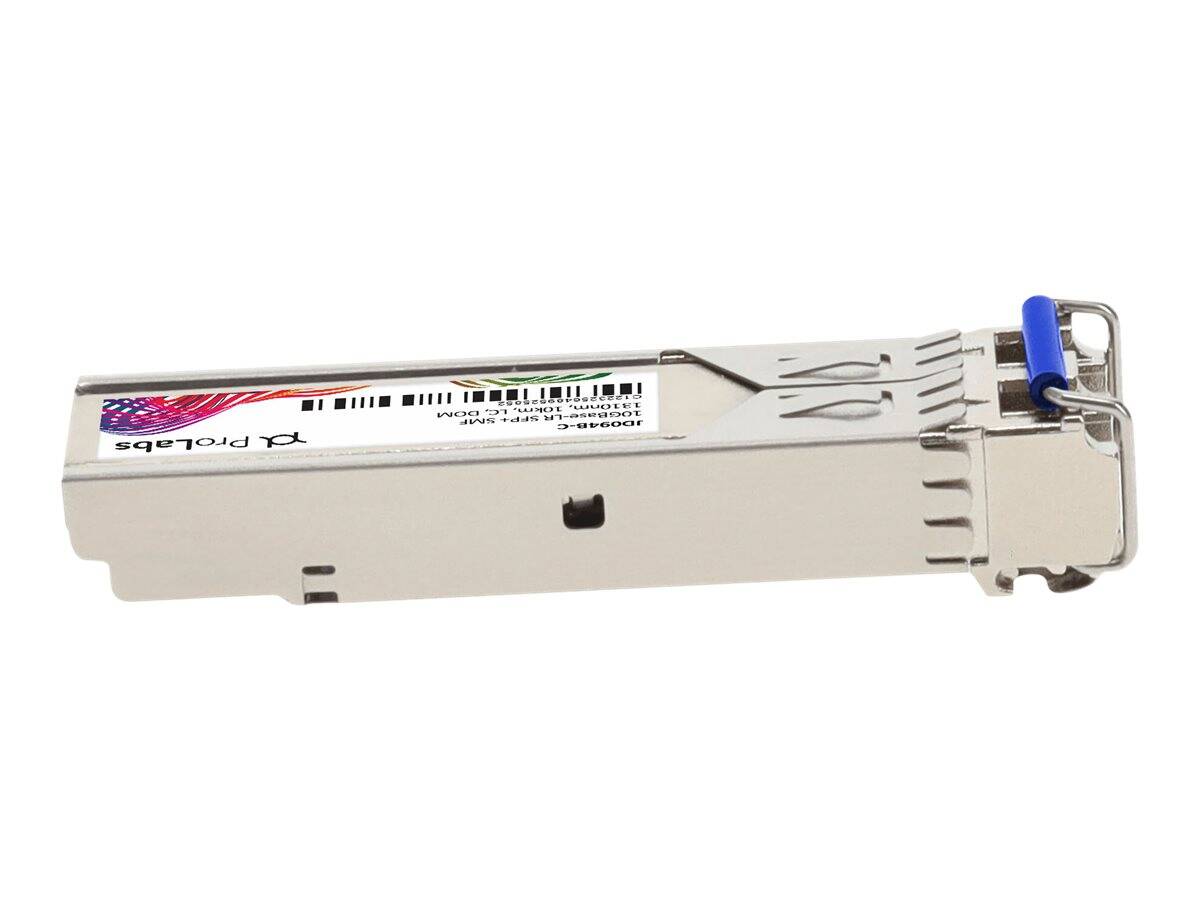

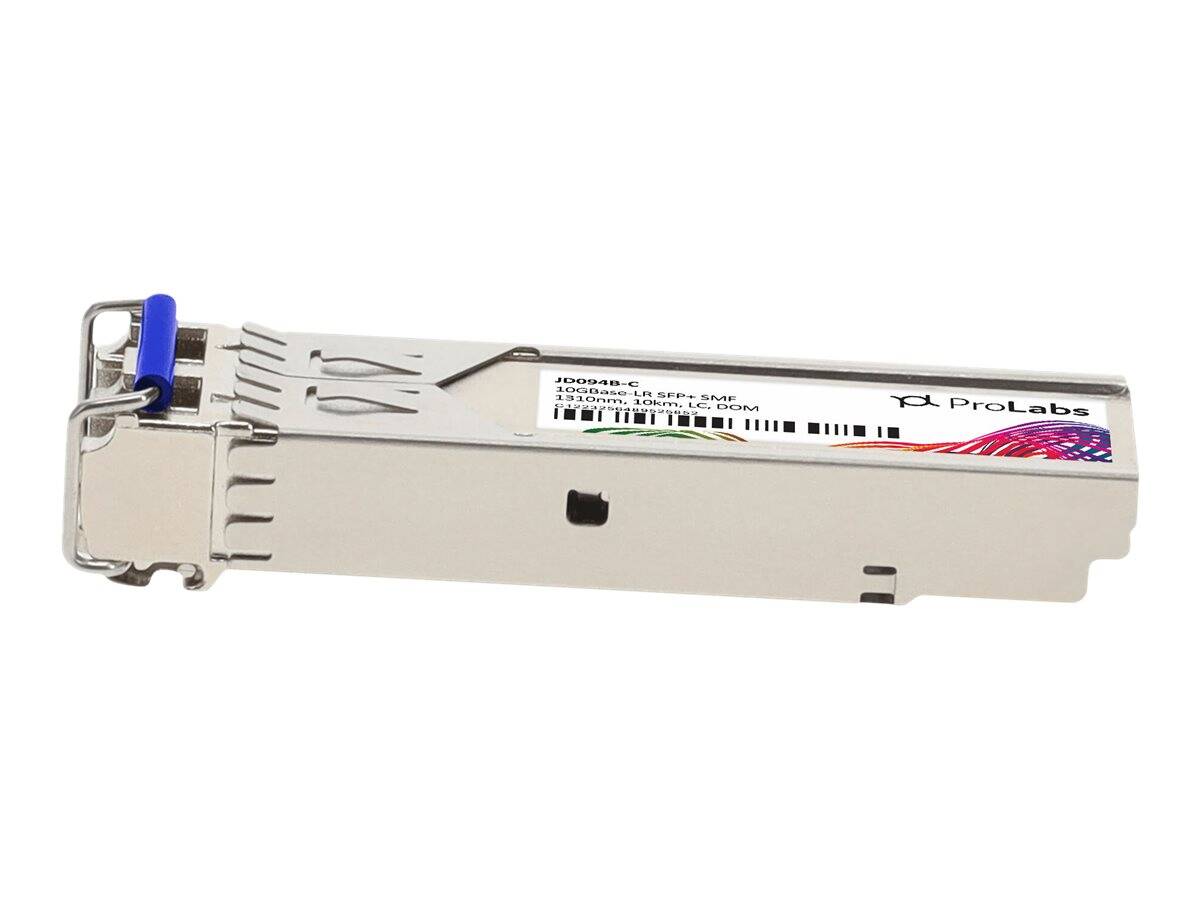

ProLabs JD094B-C HPE X130 JD094B Compatible SFP+ Transceiver 10GBASE-LR 1310 nm LC Single-Mode up to 10 km DOM
Brand:
ProLabs
ProLabs JD094B-C HPE X130 JD094B Compatible SFP+ Transceiver 10GBASE-LR 1310 nm LC Single-Mode up to 10 km DOM
€44.74 inc. VAT
JD094B-C
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
ProLabs JD094B-C — HPE JD094B-Compatible 10G LR SFP+
10 Gbps10GBASE-LRHPE JD094B codedUp to 10 km

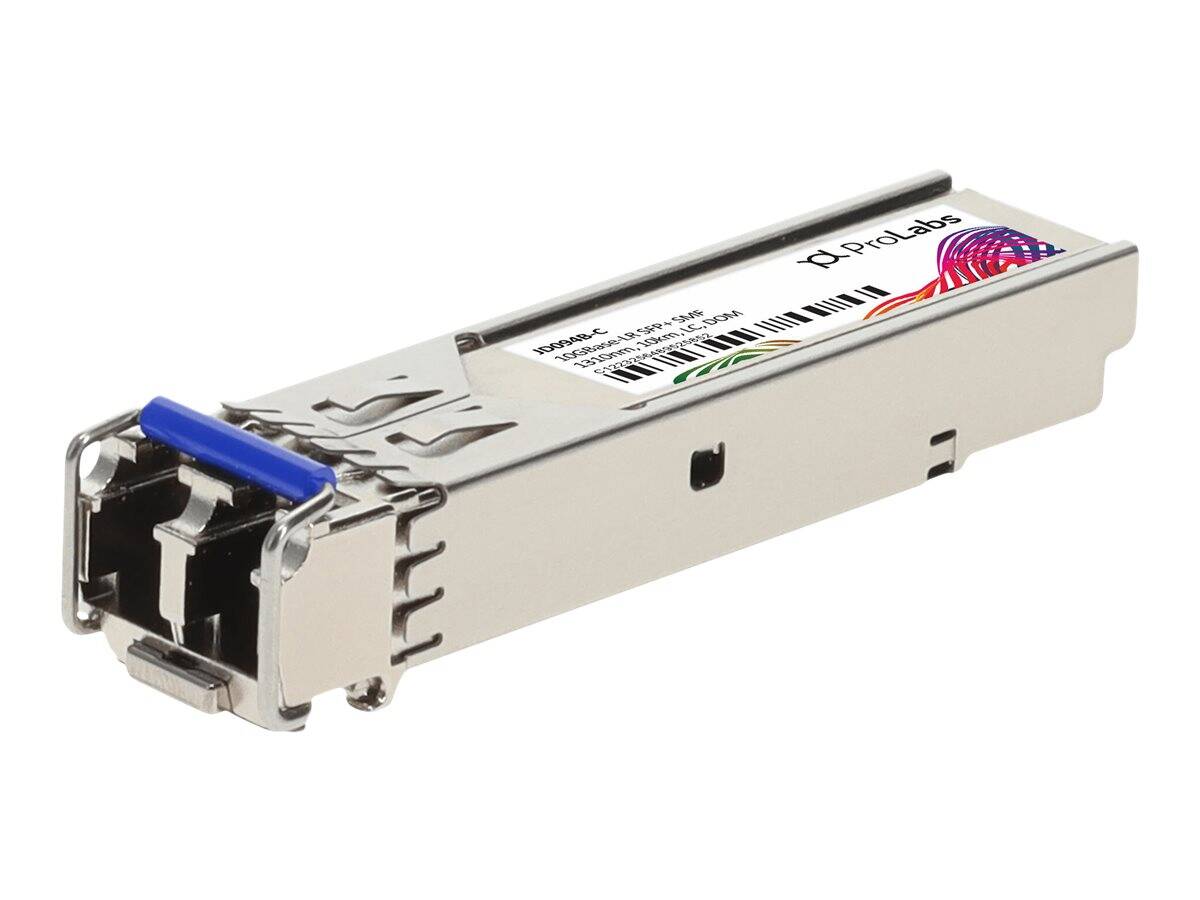

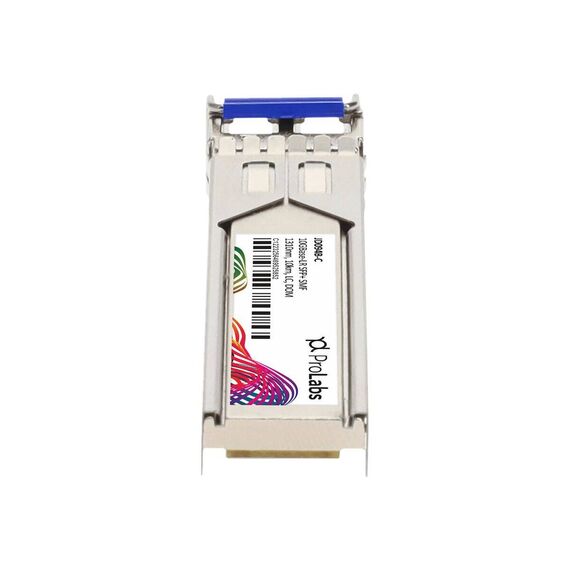

The ProLabs JD094B-C is a 10 Gbit SFP+ transceiver for single-mode fibre, reaching up to 10 km at 1310 nm over an LC duplex connection, with digital optical monitoring. ProLabs codes it as the HPE X130 JD094B, the long-reach 10G optic for HPE switches running Comware software, and it is a lower-cost way to add 10G links between buildings on those switches. In practice, single-mode optics are the choice when a link leaves the building or runs several hundred metres: the OS2 fibre used by carriers and campus backbones carries the signal for kilometres with little loss. Before you order, confirm the fibre is single-mode at both ends and note the length and the number of patch panels on the way.
Compatibility — check before buying:
The JD094B coding is for HPE Comware switches (FlexNetwork, FlexFabric). It is not the part for Aruba ProVision or CX switches, which expect J9151D/E, nor for Instant On. It needs single-mode fibre; for multimode runs the Comware SR part is JD092B. ProLabs also sells BiDi versions (JD094B-BXU-C / -BXD-C) — this -C is the standard two-fibre LR. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your device model and the cable run and we check it before you order.
Best For
✓ 10G uplinks on HPE Comware switches
✓ Links between buildings up to 10 km
✓ FlexNetwork and FlexFabric SFP+ ports
✓ Replacing HPE JD094B optics
✓ Single-mode campus backbones
✓ Lower-cost 10G spares
Key Features
Coded for HPE Comware
ProLabs programs it as the HPE X130 JD094B, so Comware-based HPE switches identify it as the expected part.
Single-mode fibre, long reach
Built for single-mode (OS1/OS2) fibre, the type used between buildings, floors and sites. It will not run over the orange or aqua multimode fibre found in many racks — the fibre type has to match at both ends.
Monitoring you can read
Digital diagnostics (SFF-8472) let the host report temperature, laser power and received light, so a dirty connector or a failing link shows up before users call.
Hot-swappable
Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We offer the JD094B-C for HPE Comware networks that need 10G single-mode links at a lower cost, with a limited lifetime warranty from ProLabs. Confirm the switch runs Comware first — the same optics with Aruba coding are a different part. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.
Buyer’s Guide
Buy it if
You need a 10G single-mode link up to 10 km on an HPE Comware switch.
Skip it if
Your switch is Aruba ProVision, CX or Instant On, or your fibre is multimode.
Also consider
HPE X130 JD092B for multimode Comware links.
Features - ProLabs - JD094B-C
More Details
Product Code
04:246468
EAN Code
4270000439773
Manufacturer
ProLabs
