QNAP QDA-UMP4 — Put an M.2 NVMe SSD into a U.2 Bay
M.2 2280 NVMeU.2 SFF-8639PCIe 4.0 x4Aluminium + thermal pads

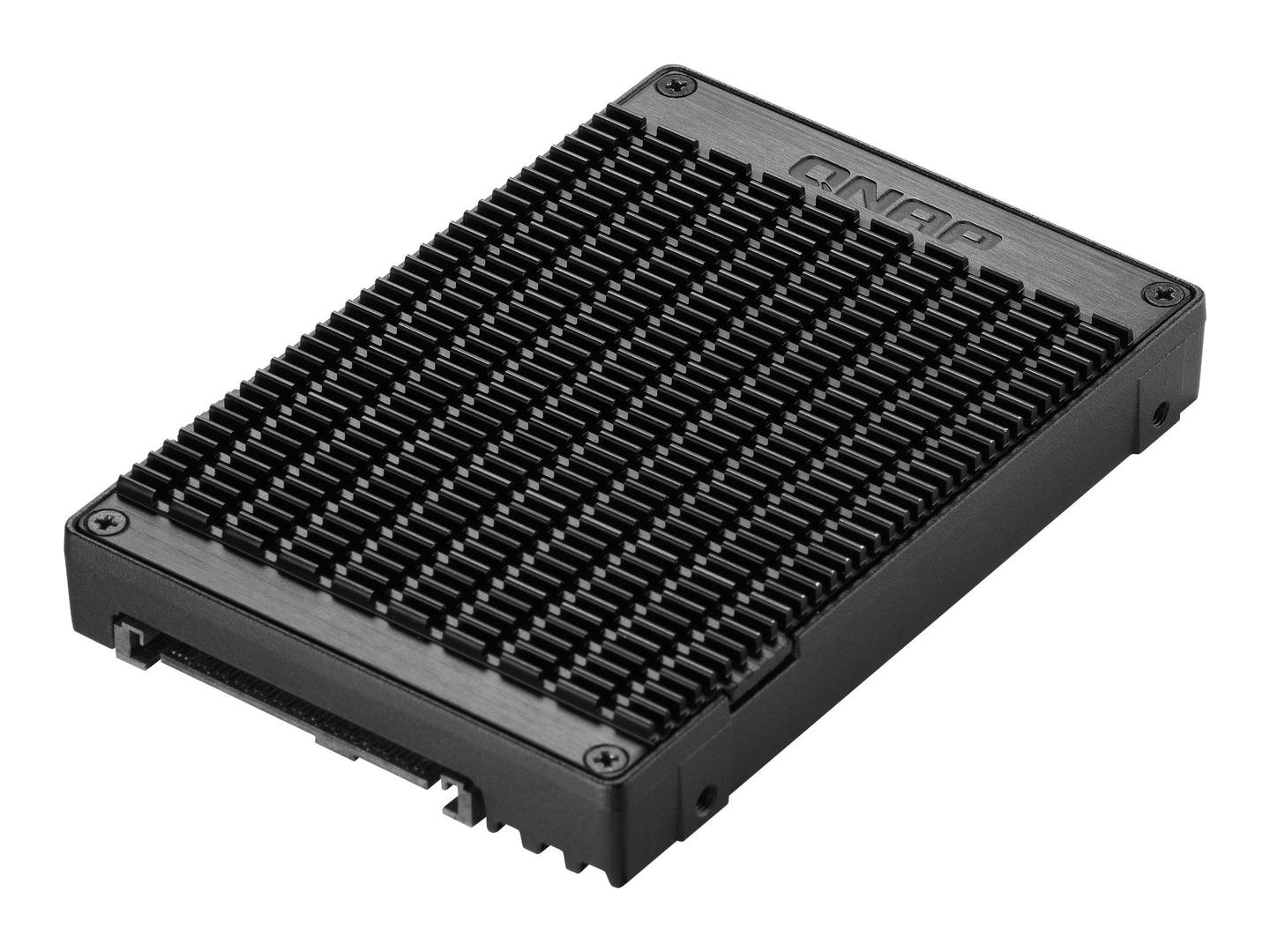

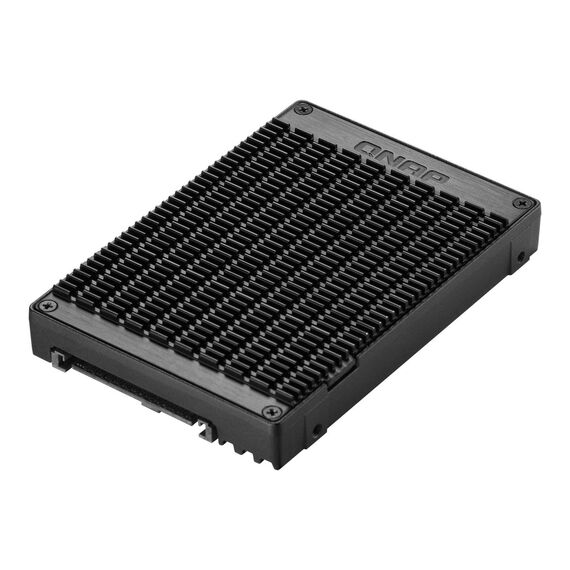

The QNAP QDA-UMP4 is a 2.5-inch U.2 form-factor adapter that lets you install one M.2 2280 PCIe NVMe SSD in a U.2 (SFF-8639) drive bay of a QNAP NAS or a PC. It is a cost-effective way to use consumer or prosumer M.2 SSDs in U.2 hot-swap bays, for example as SSD cache or a fast storage pool.
The adapter keeps the full PCIe 4.0 x4 link (backward compatible with PCIe 3.0), has an aluminium-alloy frame with thermal pads for heat dissipation, and needs no driver. It measures 100.4 × 69.85 × 15 mm and weighs 104.5 g.
Before you order: Your bay or backplane must be U.2 NVMe (SFF-8639). It will not work in SATA- or SAS-only bays. For a PC, QNAP advises confirming with the PC maker that U.2 NVMe is supported. QNAP also sells a newer QDA-UMP4A — a different part.
What's in the Box
- 1 × QNAP QDA-UMP4 adapter
- 2 × pan-head screws
- 3 × M.2 thermal pads
- 1 × Quick Installation Guide
- M.2 SSD not included
What It Means in Practice
- Reuse a fast M.2 NVMe SSD in a U.2 bay instead of buying a more expensive native U.2 drive.
- QNAP measured 5,381.8 MB/s read and 2,423.8 MB/s write in its lab (TDS-h2489FU with an IronWolf 525 SSD); results vary with the SSD and system.
- Works without drivers under QTS 4.4.1 or later, QuTS hero h4.5.1 or later, Windows 7/8.1/10/Server 2012 R2 and Ubuntu, per QNAP.
- When replacing a drive used in Qtier, disable Qtier first, as QNAP advises.
What Will Not Work
- M.2 SATA SSDs are not supported — NVMe (M-key) only.
- Only M.2 2280 length is supported; 2242, 2260 and 22110 are not listed.
- It will not work in a SATA- or SAS-only bay or backplane.
- A PCIe 4.0 SSD will run at PCIe 3.0 speed in a PCIe 3.0 bay.
Key Features
PCIe 4.0 x4 pass-through
Full Gen4 x4 link from the M.2 SSD to the U.2 connector, backward compatible with Gen3.
Passive cooling
Aluminium-alloy frame with thermal pads to spread SSD heat.
Driver-free
Supported on QTS/QuTS hero, Windows and Ubuntu without drivers.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The QDA-UMP4 is the smart way to fill U.2 bays with affordable M.2 NVMe SSDs, especially for NAS caching. Pick a good M.2 2280 NVMe from our internal SSDs, and send us your NAS model so we can confirm U.2 bay support.
✓ Buy it if you have U.2 NVMe bays (QNAP NAS or PC) and want to use M.2 2280 NVMe SSDs in them.
✕ Skip it if your bays are SATA/SAS only, or your SSD is M.2 SATA or not 2280.
→ Also consider a native U.2 enterprise SSD if you need power-loss protection and enterprise endurance.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
