Rackmount.IT RM-FB-T3 19-inch Rack Mount Kit for AVM FRITZ!Box 7590, 6890 LTE and 6660 Cable V1/V2, 1.3U, Signal White
Brand:
Rackmount
Rackmount.IT RM-FB-T3 19-inch Rack Mount Kit for AVM FRITZ!Box 7590, 6890 LTE and 6660 Cable V1/V2, 1.3U, Signal White
€196.59 inc. VAT
RM-FB-T3
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

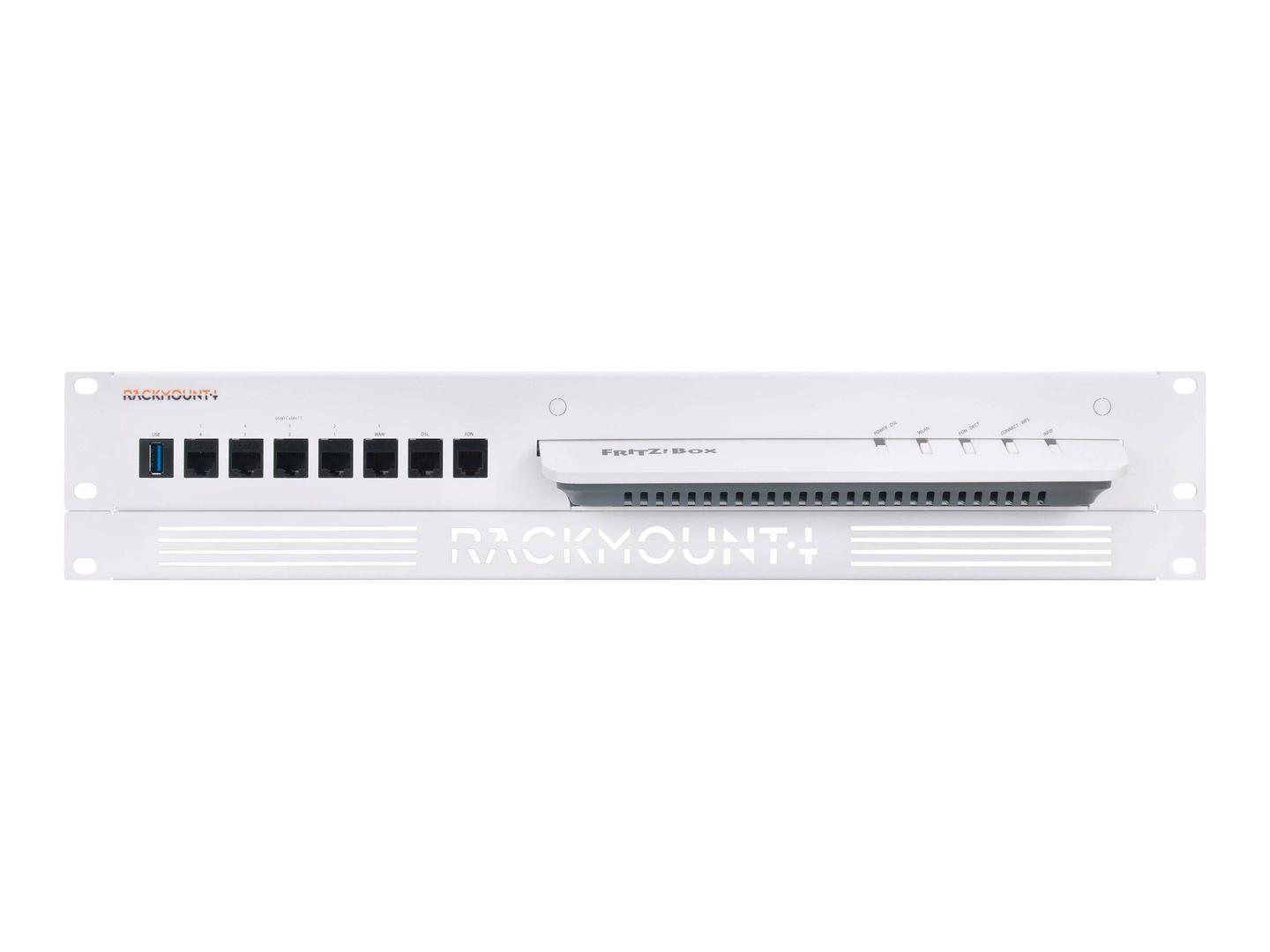

Rackmount.IT RM-FB-T3: 19-inch rack kit for AVM FRITZ!Box 7590, 6890 LTE and 6660 Cable (V1/V2)
1.3U · 19-inchSignal WhiteFront-facing portsPower supply fixed in rack
The Rackmount.IT RM-FB-T3 is a custom 19-inch rack mount kit for FRITZ!Box 7590, 6890 LTE, 6660 Cable V1/V2 (serial numbers starting L or M) that places the router in 1.3U of rack space with its connections brought to the front, for IT teams and installers who want a desktop router to sit properly in a network cabinet.
Desktop routers are built to stand on a shelf, with ports at the back and a loose external power adapter. In a cabinet that usually means a device lying on a shelf and cables you cannot reach. This kit replaces that: the router slides into a tray made for its exact shape, retainers hold it in place, the included cables link its ports to keystones on the front plate, and the power supply is fixed to the rack. Rackmount.IT quotes an assembly time of under three minutes.
Before you order: This kit fits only the models Rackmount.IT lists: FRITZ!Box 7590, 6890 LTE, 6660 Cable V1/V2 (serial numbers starting L or M). It is not a universal shelf, so check the exact model name on the label of your device. Do not order this kit for a FRITZ!Box 7590 AX or a 6660 Cable V3 (serial starting N) — those use RM-FB-T7.
What's in the Box
- 1 x Rackmount.IT RM-FB-T3 rack kit, 1.3U, Signal White
- Retainers that hold the router in the tray
- Keystones on the front plate plus the cables that connect them to the device ports
- Fixing for the external power supply inside the rack
- Not included: the router itself, its power adapter and rack screws or cage nuts (use the set that came with your cabinet)
What It Means in Practice
- Patch cables plug into the front keystones, so you never reach behind the router to add or move a connection.
- The power adapter is fixed in the rack, so a pulled cable or a cleaning session cannot switch the router off by accident.
- It uses 1.3U (58 mm high) at standard 19-inch width and is only 216 mm deep, so it suits shallow wall cabinets as well as full-depth racks.
- Replacing the router later is quick: release the retainers, unplug the short cables and slide it out.
- The 1.3U height leaves a small gap to the next device; a 1U blanking or brush plate can close it for a neat front.
What Will Not Work
- Models that are not on the list, even from the same product family: the tray is shaped for specific housings. The 7590 AX and the 6660 Cable V3 have a different housing and need RM-FB-T7.
- Mixed or unlisted desktop equipment: for that use a standard fixed or cantilever 19-inch shelf.
- It adds no ports, PoE, cooling or power; the router's own connections are only extended to the front.
- External antennas for the 6890 LTE: the punch-outs are there, but the SMA extension cable is not supplied.
Key Features
Custom-fit tray
Shaped for the listed router housings, so the device sits firmly without shelves, straps or cable ties.
Front-facing connections
The included cables run from the device ports to keystones on the front plate, so all patching is done from the front of the rack.
Power supply fixed in the rack
The external adapter is secured inside the kit, which prevents accidental power loss when cables are moved.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The RM-FB-T3 covers the larger FRITZ!Box 7590 and the 6890 LTE, plus the early 6660 Cable units. The serial-number split on the 6660 is the one thing to check before ordering; everything else is a simple slide-in install. Browse more mounting parts in our rack accessories range.
✓ Buy it if you run a FRITZ!Box 7590, 6890 LTE or a 6660 Cable with an L or M serial and want it in a 19-inch cabinet.
✕ Skip it if you have the 7590 AX or a 6660 Cable V3 (N serial) — choose RM-FB-T7 instead.
→ Also consider RM-FB-T2 for the smaller 7530/7630 and 6850 models, or RM-FB-T5 for the 6590, 6591 and 6690 Cable.
Not sure which kit matches your device? Send us the exact model from its label and we will confirm the right Rackmount.IT kit before you order.
Features - Rackmount - RM-FB-T3
Colour
white
More Details
Product Code
04:357775
EAN Code
8720297440007
Manufacturer
Rackmount
