Rackmount.IT FortiRack 1U 19-inch Rack Mount Kit for FortiGate 60E, 60F, 61F, 70F and 70G Series, Signal White (RAL 9003)
Brand:
Rackmount
Rackmount.IT FortiRack 1U 19-inch Rack Mount Kit for FortiGate 60E, 60F, 61F, 70F and 70G Series, Signal White (RAL 9003)
€224.7 inc. VAT
RM-FR-T10
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Rackmount.IT FortiRack RM-FR-T10 - 1U Rack Kit for FortiGate 60E/60F/70F/70G
FortiGate 60E-70G1U 19-inch12 front RJ45 portsPSU holder

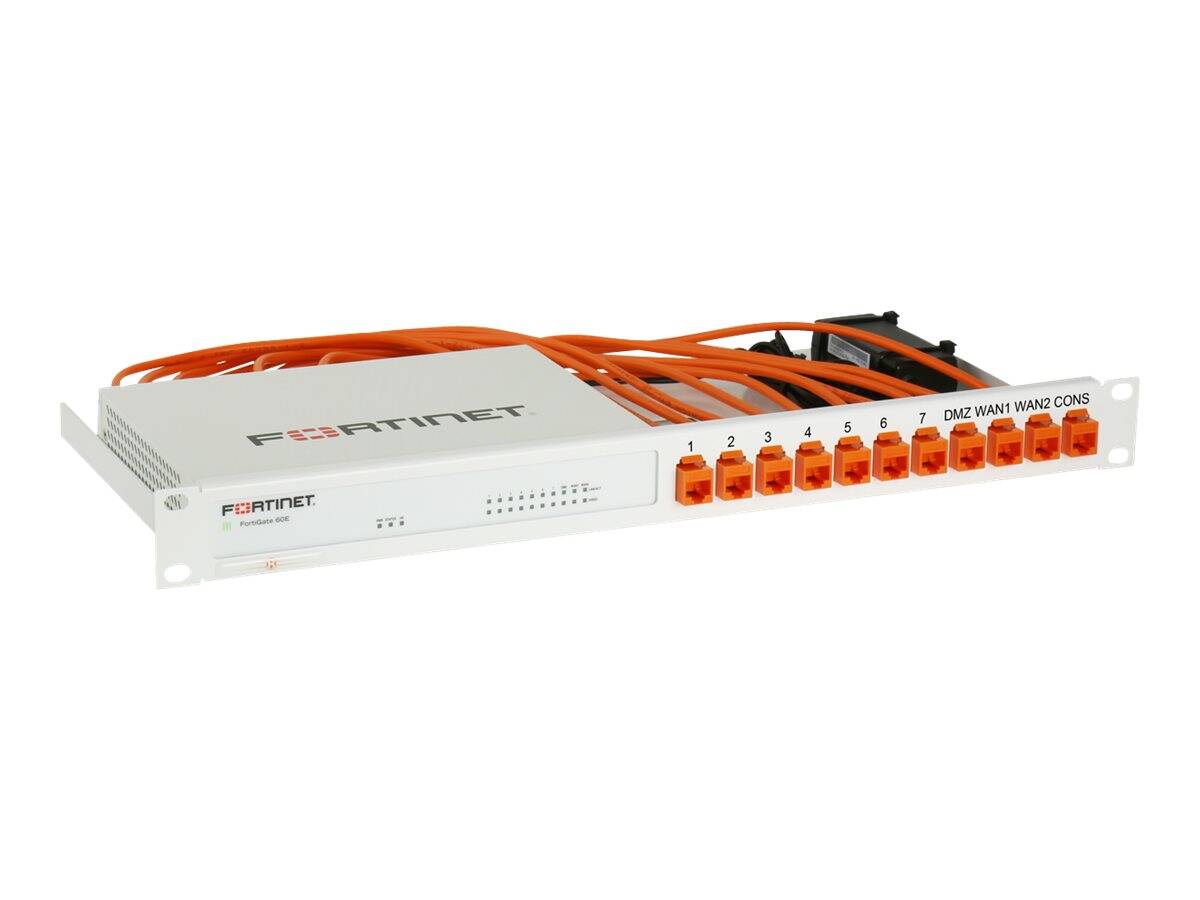

The Rackmount.IT RM-FR-T10 is a 19-inch rack mount kit that lets you install a desktop Fortinet FortiGate 60E, 60F, 61E, 61F, 70F, 71F, 70G or 71G in a standard rack, with all network ports brought to RJ45 couplers on the front panel and the external power brick fixed to the tray. It is built for IT teams and MSPs who want the firewall to sit neatly in the comms cabinet instead of on a shelf or on top of other equipment.
Rackmount.IT designs each kit around one specific appliance family, so the tray, cut-outs and cable routing match the exact chassis. The kit is 1U high, 44 x 482 x 217 mm, finished in Signal White (RAL 9003), and Rackmount.IT quotes an assembly time of under three minutes. The Fortinet appliance itself is not included.
Before you order: This kit is made for the desktop FortiGate 60E, 60F, 61E, 61F, 70F, 71F, 70G and 71G families (plus the matching FortiWiFi models). The FortiGate 80F, 40F/50G, 90G and the Rugged 60F each use a different Rackmount.IT kit - check the model on your appliance label first.
What's in the Box
- 1 x FortiRack 1U tray with RJ45 couplers on the front panel
- 12 x network cables, 0.5 m (appliance ports to front couplers)
- 2 x M3 x 6 mm bolts to fix the FortiGate to the tray
- 5 x zip ties for the power supply and cable bundle
- Not included: the Fortinet appliance, its power supply, and rack screws or cage nuts for fixing the kit to your rack (use the ones supplied with your cabinet)
What It Means in Practice
- All FortiGate network ports appear on the front of the rack, so patching is done from the front like on a switch - you do not need to reach behind the firewall.
- The power brick is tied down on the tray, so nothing hangs loose behind the rack and the appliance cannot be pulled off by its cables.
- The whole firewall occupies exactly 1U, which keeps it next to your patch panel and switch in small comms cabinets.
- Fitting takes two bolts and a few short cable connections - nothing has to be removed from the FortiGate.
What Will Not Work
- FortiGate 80F/81F, 40F, 50G, 90G/91G or FortiGate Rugged 60F - these need RM-FR-T15, RM-FR-T21, RM-FR-T20 or RM-FR-T16 respectively.
- FortiWiFi models physically fit, but the kit has no antenna provision - you may need SMA extension cables (not included) to route the antennas.
- It does not add ports or bypass functions - the front couplers only mirror the ports your FortiGate already has.
- It is not a shelf for other brands; the cut-outs are shaped for these Fortinet chassis only.
Key Features
Front-facing ports
Twelve short cables bring the FortiGate LAN, WAN and management ports to RJ45 couplers on the front panel.
Secured power supply
The external power brick is fixed to the tray with zip ties, so the whole firewall moves as one unit.
Exact-fit tray
Fixing points match the FortiGate 60E-70G chassis, so the appliance is held firmly with two bolts from below.
1U footprint
Keeps a desktop firewall inside a single rack unit next to your switch and patch panel.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The RM-FR-T10 is the kit to pick when a desktop FortiGate of the 60E-70G generation has to live in a proper rack. Bringing every port to the front is what makes the difference in daily work: patching and troubleshooting happen from the front, just like on the switch next to it. Browse our firewalls if you are still choosing the appliance itself.
✓ Buy it if you run a FortiGate 60E, 60F, 61F, 70F or 70G and want it in a 19-inch rack with front-facing ports.
✕ Skip it if your appliance is an 80F, 40F/50G, 90G or a Rugged 60F - each has its own Rackmount.IT kit.
→ Also consider Rackmount.IT RM-FR-T15 for FortiGate 80F/81F, or RM-FR-T21 for the 50G and 40F series.
Not sure which kit fits? Send us the exact model on the label of your Fortinet appliance and we will confirm the right Rackmount.IT kit before you order.
Features - Rackmount - RM-FR-T10
Colour
white
More Details
Product Code
04:253185
EAN Code
0852754006308
Manufacturer
Rackmount
