Rackmount.IT 1.3U 19-inch Rack Mount Kit for Sophos XGS 108 and XGS 108W, Front Ports, Signal White
Brand:
Rackmount
Rackmount.IT 1.3U 19-inch Rack Mount Kit for Sophos XGS 108 and XGS 108W, Front Ports, Signal White
€221.94 inc. VAT
RM-SR-T15
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

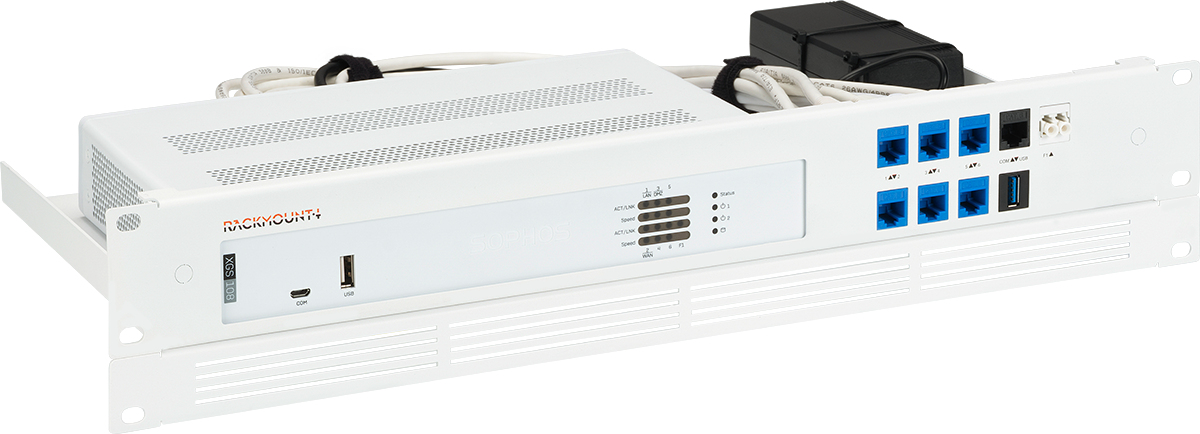

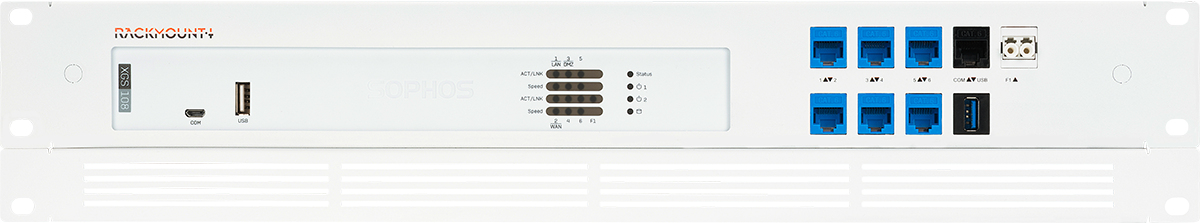

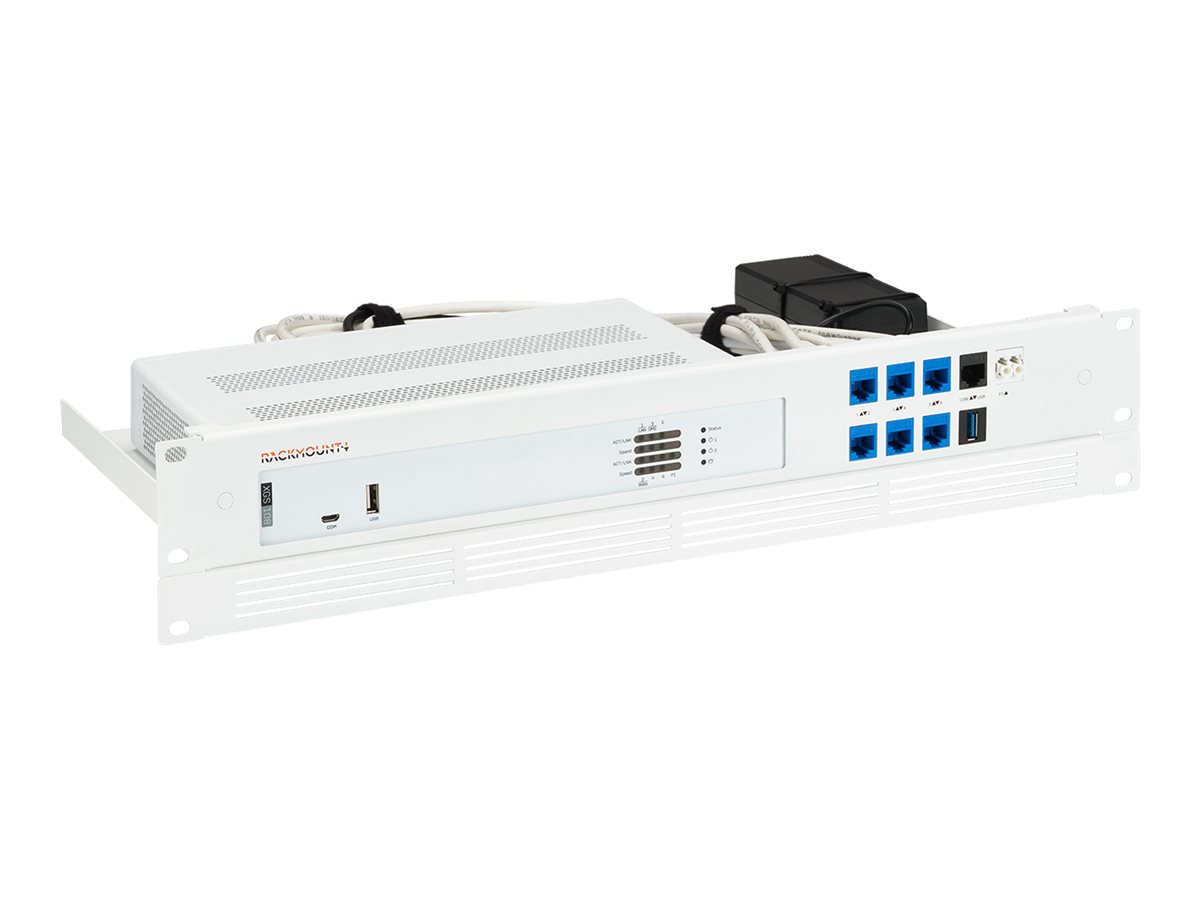

Rackmount.IT RM-SR-T15 - 1.3U Rack Kit for Sophos XGS 108 / 108W
Sophos XGS 108 / 108W1.3U 19-inch7 Cat6 + 1 USBAntenna punch-outs
The Rackmount.IT RM-SR-T15 is a 19-inch rack mount kit that lets you install a desktop Sophos Sophos XGS 108 or XGS 108W in a standard rack, with its connections brought to the front and the power supply secured on the tray. It is built for IT teams and MSPs who want the firewall to sit neatly in the comms cabinet instead of on a shelf or on top of other equipment.
Rackmount.IT designs each kit around one specific appliance family, so the tray, cut-outs and cable routing match the exact chassis. The kit is 1.3U high, 58.7 x 483 x 217 mm, finished in Signal White, and Rackmount.IT quotes an assembly time of under three minutes. The Sophos appliance itself is not included.
Before you order: This kit is 1.3U high (58.7 mm), taller than a standard 1U. It covers part of the next rack unit, so plan the space above it before ordering.
What's in the Box
- 1 x Rackmount.IT 1.3U rack mount tray
- 7 x Cat6 network cables
- 1 x USB cable
- 4 x bolts
- 2 x Velcro straps
- 3 x zip ties
- Not included: the Sophos appliance, its power supply, and rack screws or cage nuts for fixing the kit to your rack (use the ones supplied with your cabinet)
What It Means in Practice

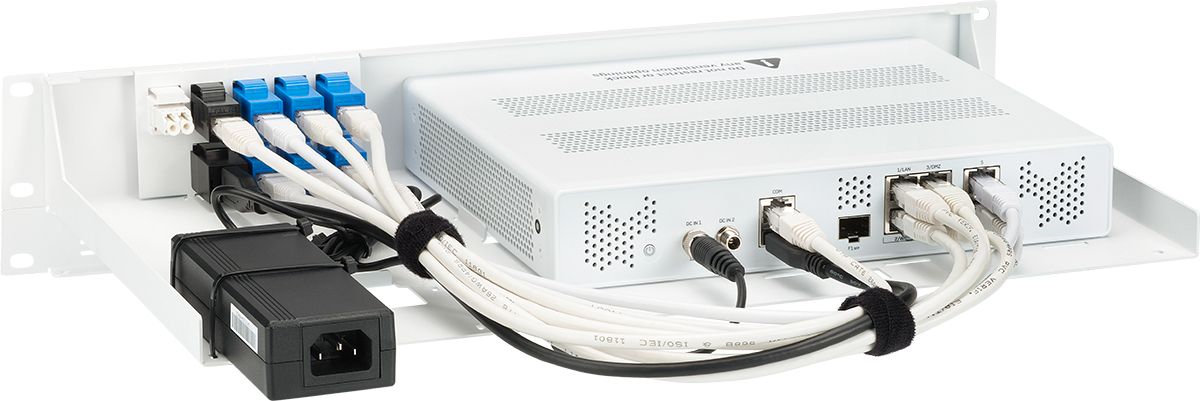

- The XGS 108 network and USB ports are brought to the front, so patching happens from the front of the rack.
- The power supply is secured on the tray, so nothing hangs loose at the back.
- Custom ventilation cut-outs keep airflow around the appliance.
- On the 108W, the antennas can be moved to the front through punch-out holes using an SMA cable you add.
What Will Not Work
- Other Sophos XGS models (XGS 87, 116, 126, 136 and larger) - they need a different kit.
- SMA antenna extension cables for the 108W are not included.
- It does not fit in exactly 1U of space - it is 1.3U high.
- Rack screws and cage nuts for the cabinet are not supplied.
Key Features
Front-facing connections
Seven Cat6 cables and one USB cable bring the ports to the front.
Ventilation cut-outs
Openings designed around the XGS 108 airflow.
Antenna punch-outs
For moving the 108W antennas to the front.
Secured power supply
The PSU is fixed with Velcro straps and zip ties.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The RM-SR-T15 turns a Sophos XGS 108 into a clean rack installation with ports on the front. The one thing to plan for is height: at 1.3U it uses part of a second rack unit, so a blanking panel above it gives the neatest finish. See our rack accessories for panels and shelves.
✓ Buy it if you run a Sophos XGS 108 or 108W and want it in a 19-inch rack with front access.
✕ Skip it if you have another XGS model or your rack has only exactly 1U free.
→ Also consider A 1U blanking panel to close the gap above the kit.
Not sure which kit fits? Send us the exact model on the label of your Sophos appliance and we will confirm the right Rackmount.IT kit before you order.
Features - Rackmount - RM-SR-T15
Colour
white
More Details
Product Code
04:521644
EAN Code
8720297442452
Manufacturer
Rackmount
