Rackmount.IT RM-FR-T10I — 1U Rack Kit for FortiGate 60E / 60F / 70F / 70G (Shielded)
FortiRack 1U11 × RJ-45 + USB frontShielded cablingSignal White RAL 9003

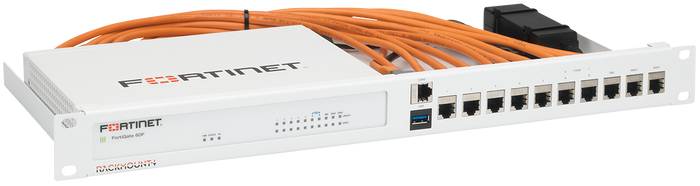

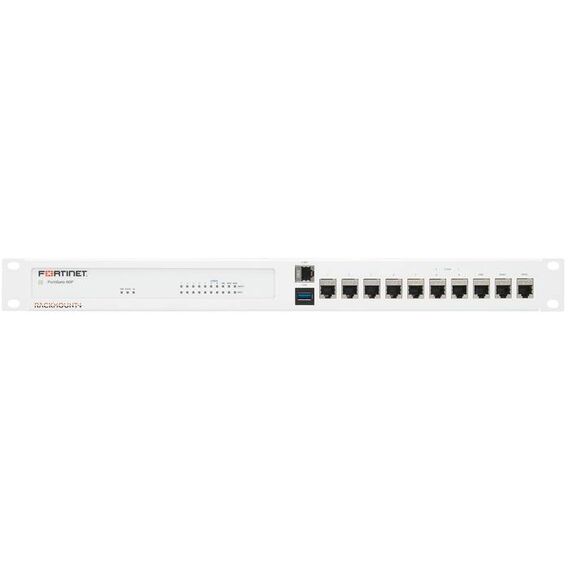

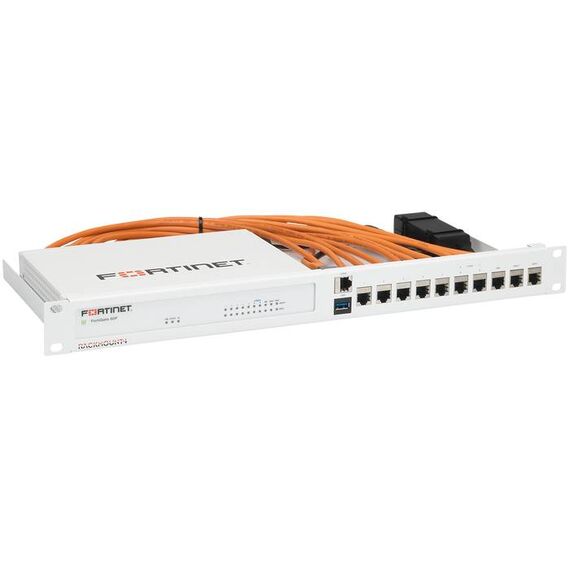

The Rackmount.IT RM-FR-T10I is a 1U, 19 inch FortiRack kit that mounts a desktop Fortinet FortiGate from the 60E, 60F, 70F or 70G series in a standard rack and brings its ports to the front on shielded RJ-45 keystones plus a USB-A port. It is the tidy way to put a branch or SMB firewall into the same cabinet as the switch and patch panel.

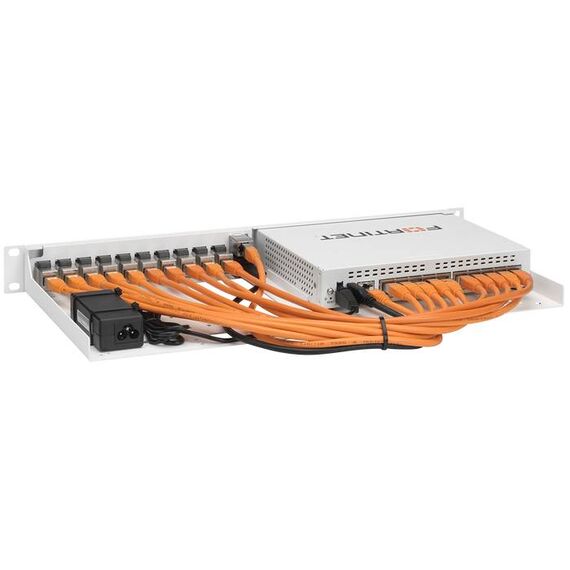

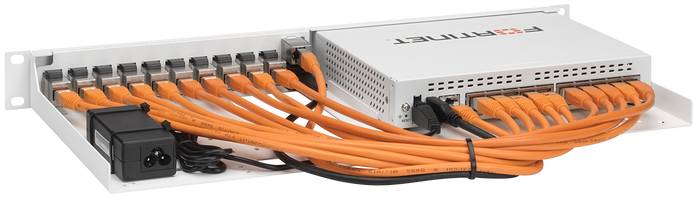

The appliance is fixed with two bolts from underneath and its external power supply is strapped into the kit with cable ties. Custom cut-outs keep the ventilation path open, and the firewall LEDs remain visible through the faceplate. Rackmount.IT specifies a kit weight of 1.9 kg and a depth of about 217 mm.
Before you order: Listed models: FortiGate FG-60E, 60E-DSL, 60E-POE, 61E, 60F, 61F, 70F, 71F, 70G, 70G-POE, 71G, 71G-POE; FortiWiFi FWF-60E, 60E-DSL, 60F, 61F, 70G, 70G-POE, 71G; FortiDeceptor FDC-100G. FortiWiFi units fit but have no antenna provision. The FortiGate 80F/81F family needs the 2U RM-FR-T18 instead.
What's in the Box
- RM-FR-T10I 1U mounting tray with faceplate, Signal White RAL 9003
- Front keystones: 11 × shielded RJ-45 and 1 × USB-A
- Shielded internal patch cables from the appliance to the front
- Fixing bolts for the appliance and cable ties for the power supply
- Not included: the Fortinet appliance
What It Means in Practice
- Only 1U of rack space for the firewall — the most compact way to rack a 60F or 70G.
- All LAN/WAN ports, console position and USB are patched at the front of the rack.
- Shielded cables and couplers keep an STP installation properly shielded end to end.
- Power supply is secured inside the kit instead of lying loose in the cabinet.
What Will Not Work
- Not for FortiGate 80F/81F, 100F or larger models.
- FortiWiFi antennas cannot be routed to the front with this kit.
- No redundant PSU holder: the kit holds one external power supply.
- The Fortinet appliance is not included.
Key Features
1U form factor
44 × 483 × 217 mm, suitable for shallow wall cabinets as well as full racks.
Shielded connections
Shielded cables and couplers for all RJ-45 pass-throughs.
Ventilation cut-outs
Custom openings aligned with the appliance airflow.
3-minute installation
No modification of the FortiGate; bolts go into existing threads underneath.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
For the popular FortiGate 60F and 70G, this is the most compact way into a rack: 1U, front patching and a secured power brick. Choose the T10I when the rest of your cabling is shielded. For the rest of the cabinet — patch panels, shelves, blanking plates — see our rack accessories.
✓ Buy it if you run a FortiGate 60E/60F/70F/70G-series appliance and want it in 1U with front ports.
✕ Skip it if you have an 80F/81F or larger FortiGate, or need FortiWiFi antennas at the front.
→ Also consider Rackmount.IT RM-FR-T18 for FortiGate 80F-POE / FortiWiFi 80F-2R.
Send us the model on your FortiGate label and we will confirm the correct Rackmount.IT kit.
