Rackmount.IT 1U 19-inch Rack Mount Kit for WatchGuard Firebox T20, T25, T40 and T45 incl. PoE, WatchGuard Red

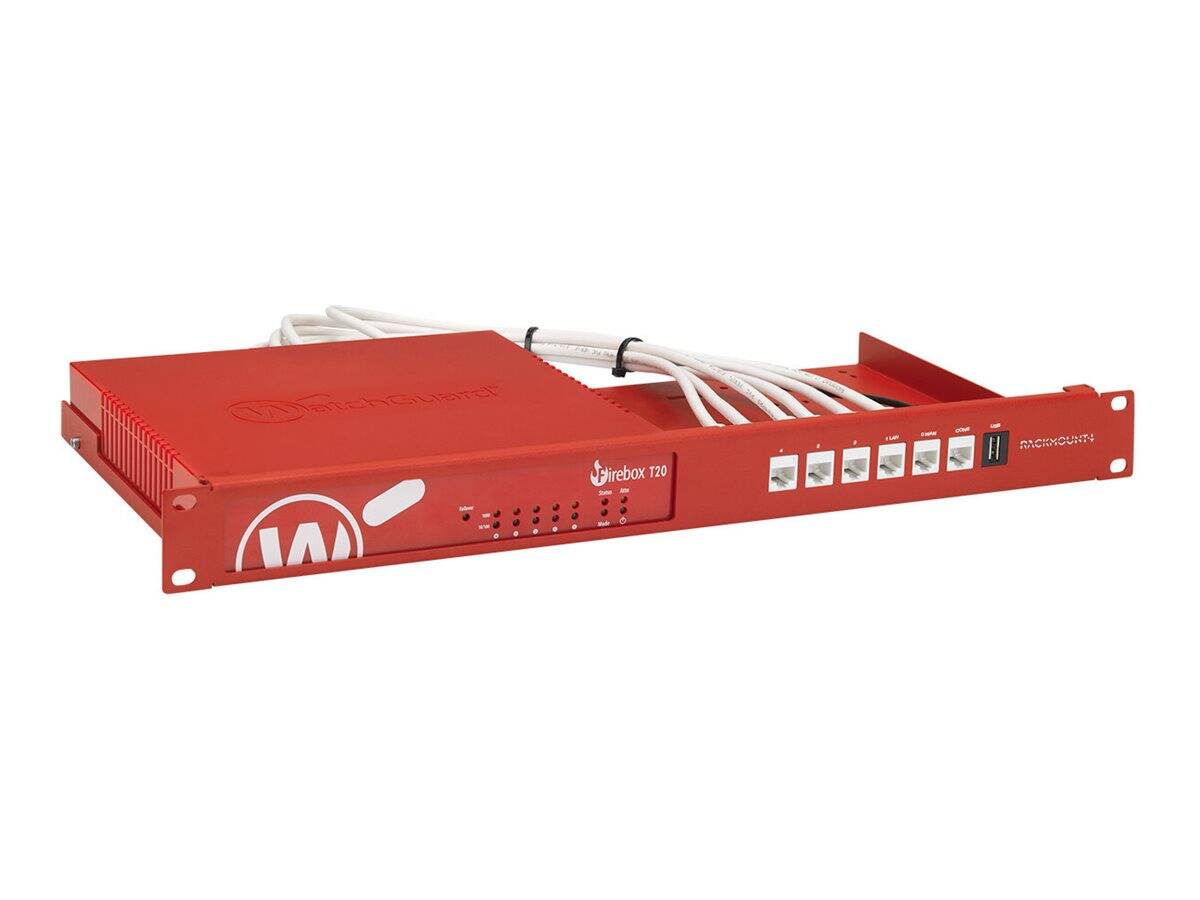

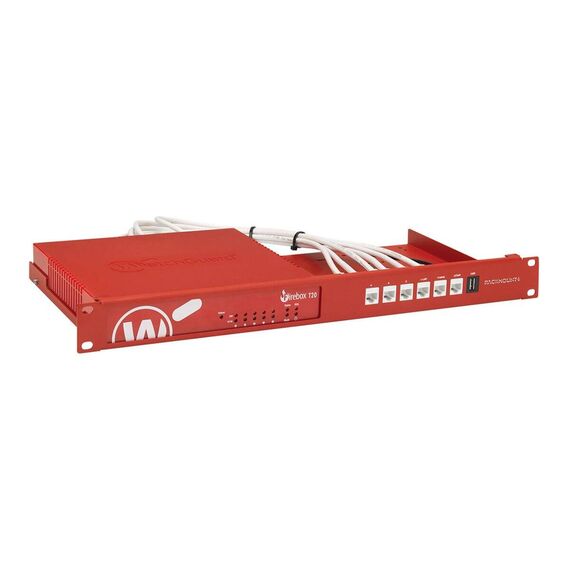

The Rackmount.IT RM-WG-T6 is a 19-inch rack mount kit that lets you install a desktop WatchGuard WatchGuard Firebox T20, T25, T40 or T45 in a standard rack, with its network ports brought to RJ45 couplers on the front panel. It is built for IT teams and MSPs who want the firewall to sit neatly in the comms cabinet instead of on a shelf or on top of other equipment.

Rackmount.IT designs each kit around one specific appliance family, so the tray, cut-outs and cable routing match the exact chassis. The kit is 1U high, 44 x 482 x 217 mm, finished in WatchGuard Red, and Rackmount.IT quotes an assembly time of under three minutes. The WatchGuard appliance itself is not included.

• 1 x Rackmount.IT 1U rack (WG-Rack) with RJ45 couplers
• 7 x network cables, 0.5 m
• 2 x M3 x 8 mm bolts
• 1 x Torx key
• 5 x zip ties
• Not included: the WatchGuard appliance, its power supply, and rack screws or cage nuts for fixing the kit to your rack (use the ones supplied with your cabinet)

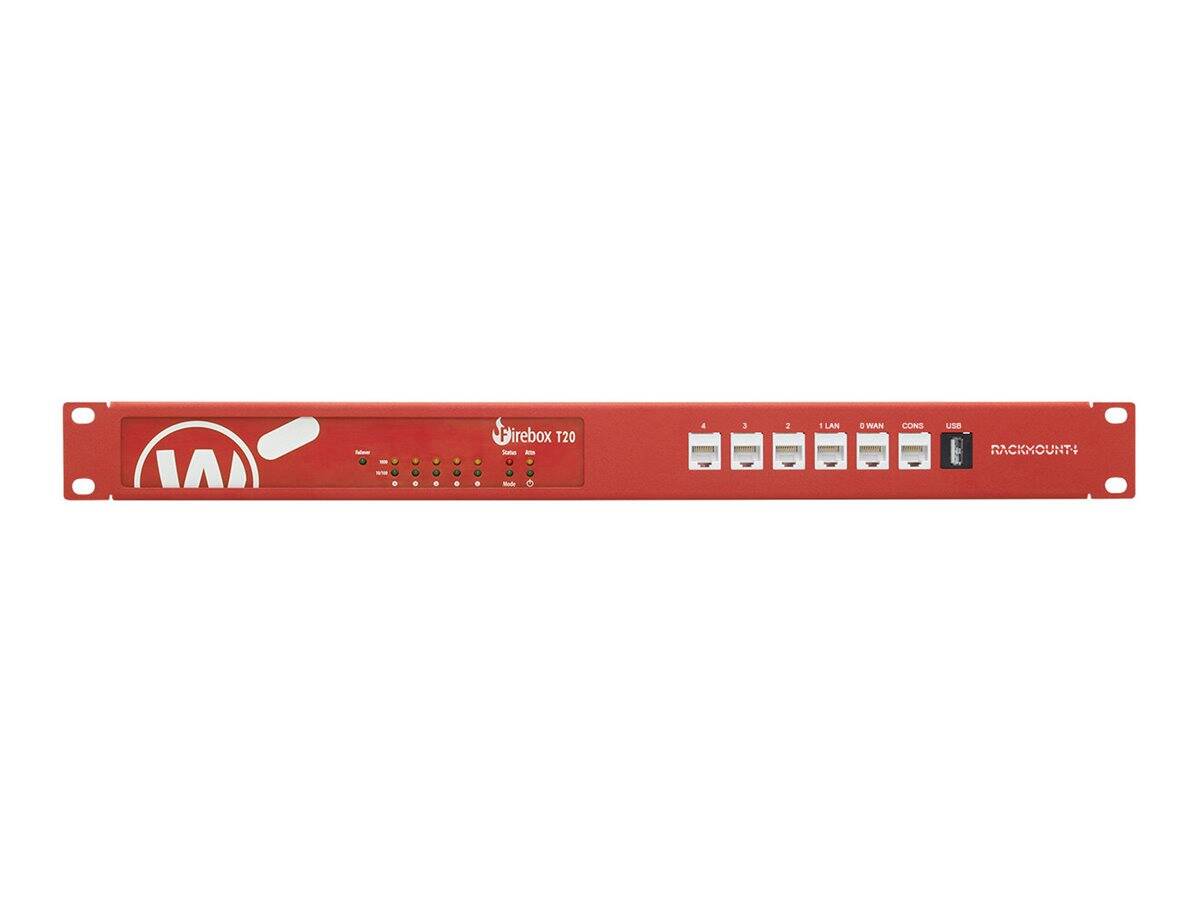

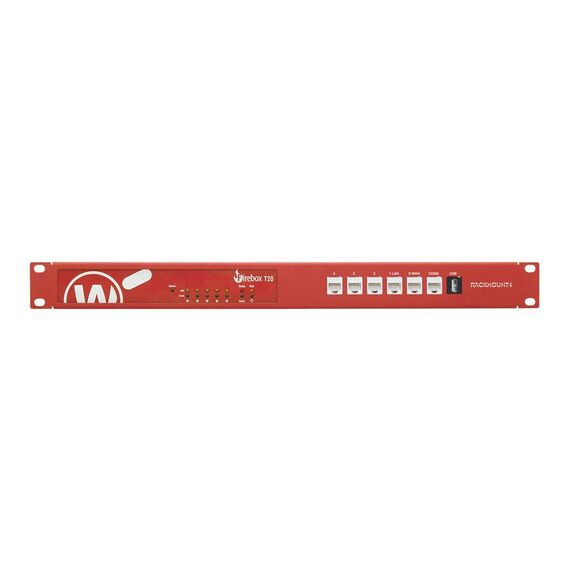

• The Firebox network ports appear on RJ45 couplers on the front panel, so patching is done from the front.

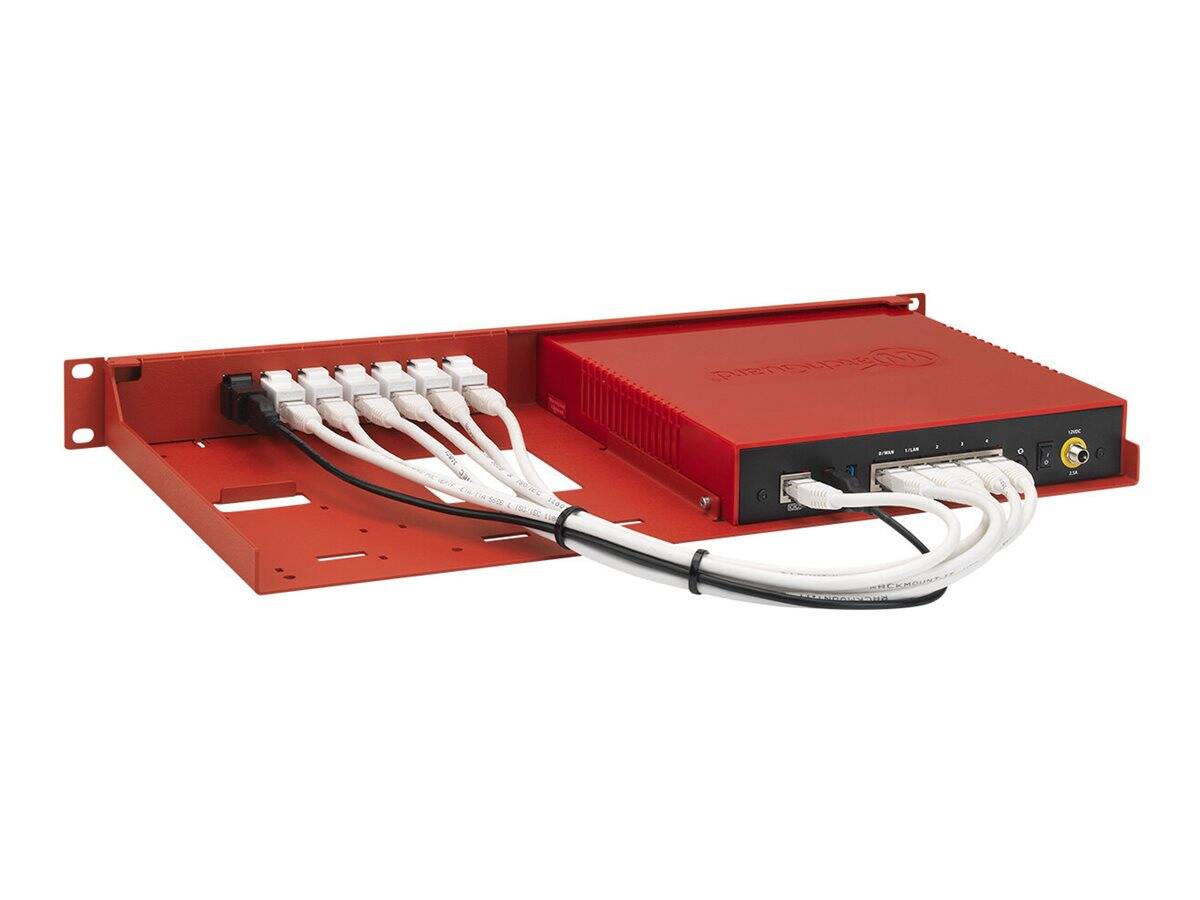

• The appliance is fixed with two bolts using the supplied Torx key.
• On a T40 the power supply can also be secured on the rack.
• The red front matches the WatchGuard colour scheme in the cabinet.

• Firebox T80/T85 or T10/T15 - these use other Rackmount.IT kits.
• The power supply holder is only for the Firebox T40.
• Shielded couplers are not included - choose RM-WG-T6i for industrial use.
• Rack screws and cage nuts for the cabinet are not supplied.
