REINER SCT timeCard External RFID Reader V3 2716050-103 for Access Control RS-422 13.56 MHz MIFARE DESFire EV1 EV2 Anthracite

Brand:
REINER SCT
REINER SCT timeCard External RFID Reader V3
REINER SCT timeCard External RFID Reader V3 2716050-103 for Access Control RS-422 13.56 MHz MIFARE DESFire EV1 EV2 Anthracite
€587.9 inc. VAT
Buy
2716050-103
€494.03
€587.90 inc. VAT
Ships from EU stock: 7 item(s)
+ −
Add to wish list Ask a question
Product Code
04:336881
EAN Code
4011170084376
Manufacturer
REINER SCT

Quick Specs

Cards
MIFARE DESFire EV1/EV2, 13.56 MHz
Interface
RS-422, max. 50 m cable
Works with
timeCard Terminal 3, timeCard accessbox
Size
approx. 91 × 91 × 22 mm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

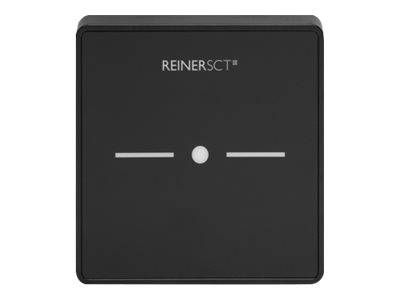

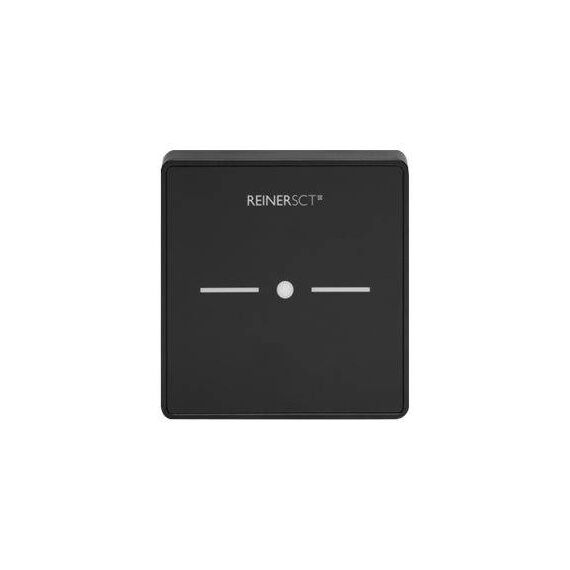

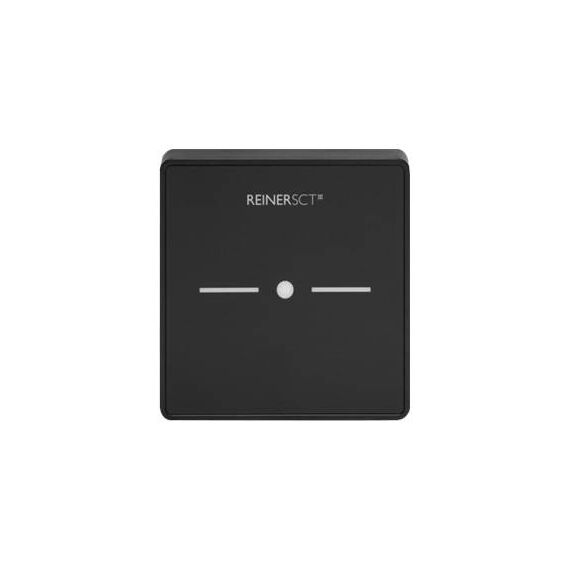

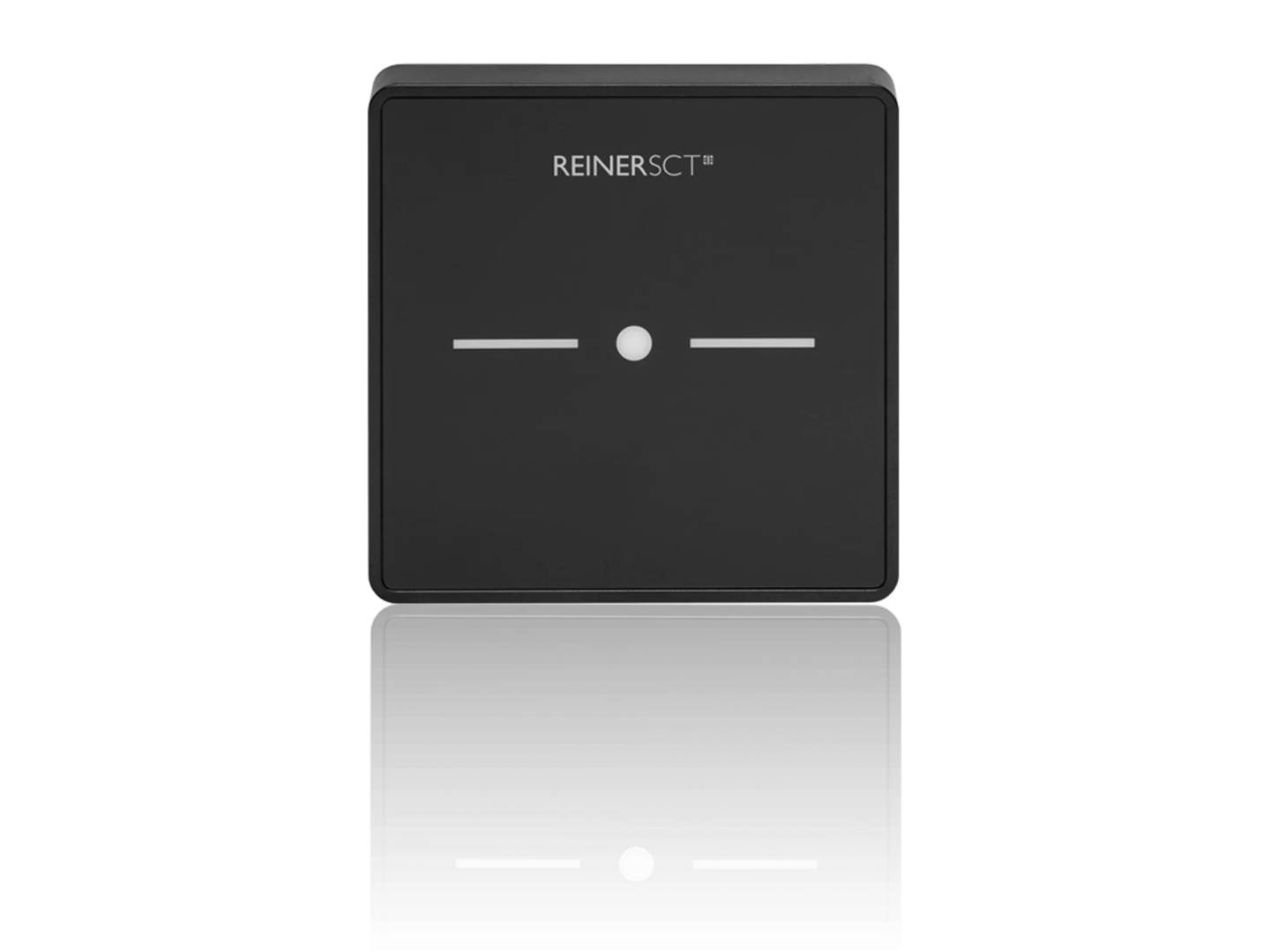

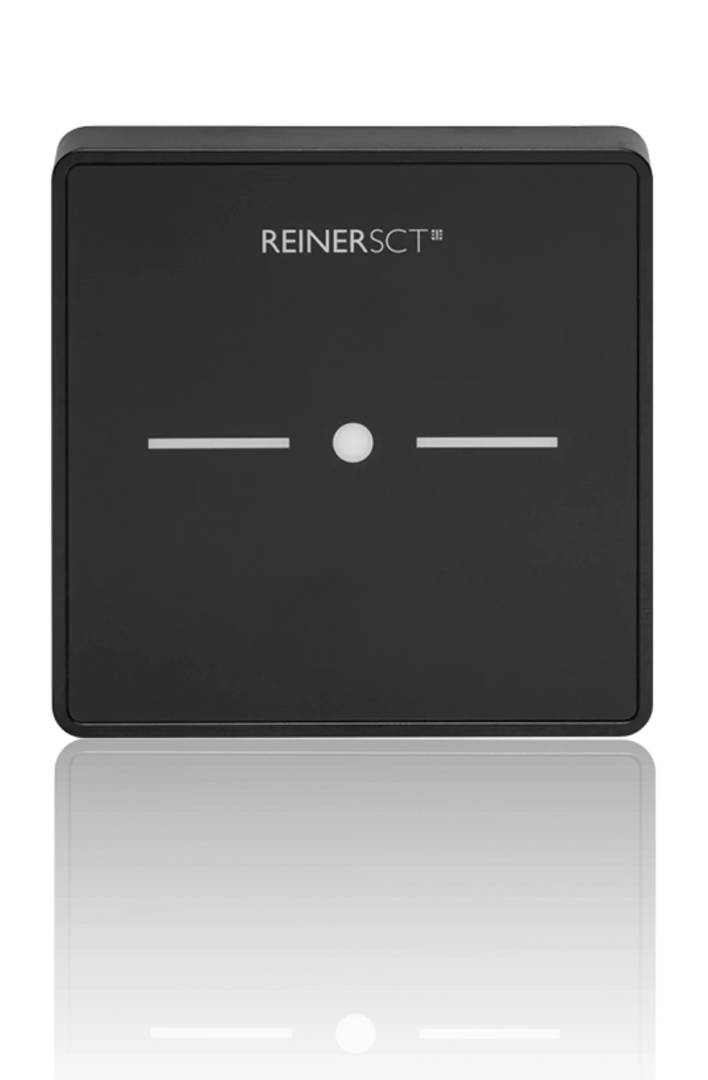

REINER SCT timeCard External RFID Reader V3

Access control13.56 MHzRS-422Anthracite

The REINER SCT timeCard external RFID reader V3 (article 2716050-103) is the door reader of the timeCard access control system. It is mounted next to a door and reads timeCard ID cards and transponders using MIFARE DESFire EV1 and EV2 at 13.56 MHz; a four-colour LED backlight and a piezo buzzer confirm each read. It is not a standalone device: it works as a slave on an RS-422 line and takes both its power and its data from a timeCard Terminal 3 or a timeCard accessbox, up to 50 m away. The anthracite housing is about 91 × 91 × 22 mm and 100 g, in two parts with a snap-in terminal strip. In practice it is the reader you place at each controlled door.

Compatibility — check before buying:
It needs a timeCard controller. REINER SCT lists the timeCard Terminal 3 and the timeCard accessbox (and the discontinued Multiterminal RFID DES) as the devices that power and control it — on its own, or on another brand’s system, it does nothing. It reads only timeCard DESFire cards and transponders. Protection rating: the datasheet states IP54 while the product page states IP66, so outdoors plan a sheltered position. Not sure? Tell us your model and we check it for you.

Best For

✓ timeCard access control doors
✓ timeCard Terminal 3 installations
✓ timeCard accessbox doors
✓ Offices and workshops
✓ Sheltered entrances
✓ Adding doors to an existing system

Key Features


DESFire EV1/EV2
Reads timeCard cards and transponders.

Powered by the line
Power and data over RS-422, no local PSU.

LED and buzzer
Four-colour backlight and piezo signal.

Flush or cavity box
Wall mounting, indoors or protected outdoors.

Technical Specifications

Identification
Brand REINER SCT
Product timeCard external RFID reader V3 for access control
Part Number 2716050-103
EAN / GTIN 4011170084376
Product Type External RFID reader (RS-422 slave)
Frequency 13.56 MHz, MIFARE DESFire EV1/EV2
Reader
Type External RFID reader, slave device
Frequency 13.56 MHz
Media MIFARE DESFire EV1 and EV2 (timeCard card or transponder)
Signals 4-colour LED backlight, piezo buzzer
Reading distance Not published
Connection
Interface RS-422, timeCard protocol
Power From the connected timeCard device
Cable Max. 50 m at 0.6 mm / 0.28 mm²
Physical & Environment
Dimensions approx. 91 × 91 × 22 mm
Weight approx. 100 g (200 g packed)
Colour Anthracite
Protection IP54 (datasheet) / IP66 (product page)
Operating temperature −10 to 50 °C
Humidity Max. 90%, non-condensing
Mounting Wall, on flush or cavity boxes
Compatibility
Controllers timeCard Terminal 3, timeCard accessbox
Discontinued timeCard Multiterminal RFID (DES), EOL since 06/2020
In the Box
Included RFID reader, quick guide, 2 mm hex key
Not Included timeCard Terminal 3 or accessbox; cards or transponders; cabling
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term REINER SCT publishes a 2-year manufacturer warranty for this product. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Does it work on its own?
No. It needs a timeCard Terminal 3 or a timeCard accessbox.
Which cards does it read?
timeCard MIFARE DESFire EV1 and EV2 cards and transponders.
How far can it be from the controller?
Up to 50 m of cable.
Can I mount it outdoors?
In a protected position; the datasheet states IP54.
Singular Expert Insight
Each door in a timeCard system is one reader plus one accessbox, or one reader on a Terminal 3. Plan the RS-422 cable with the door electrics. For the network side, see our network switches.

Buyer’s Guide

Buy it if

You add a door to a REINER SCT timeCard access control system.

Skip it if

Your access control system is from another brand.

Also consider

REINER SCT timeCard accessbox (2716050-002).
