Rittal 19-inch Socket Strip — 5 × Schuko with Surge Protection and Filter
5 × SchukoOvervoltage + EMC filter19" · 1UCable without plug

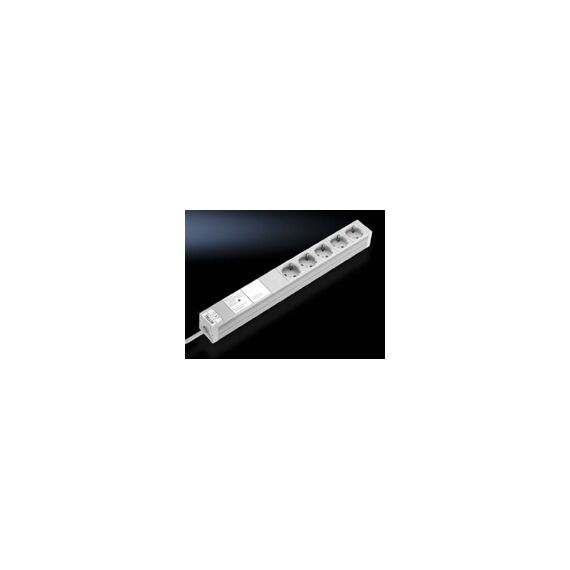

The Rittal DK 7240.230 is a 19-inch socket strip in an anodised aluminium duct with five earthed Schuko sockets, overvoltage protection and an EMC interference filter, for racks and enclosures where equipment uses standard European plugs.
It mounts on 482.6 mm (19-inch) profile rails or a 19-inch mounting frame with the two supplied brackets and takes one rack unit of height. The important detail: the 2 m H05VV-F 3G1.5 cable leaves the factory without a plug, so it is meant to be connected by an electrician to a fixed supply or fitted with a suitable plug.
Before you order: The supply cable has no plug. Budget for an electrician to wire it or fit a plug before use. Sockets are Schuko (type F) — UK and IEC C13/C19 plugs do not fit without adapters.
What's in the Box
- 1 × Rittal socket strip DK 7240.230
- 2 × mounting brackets and assembly parts
- 2 m connection cable H05VV-F 3G1.5 (without plug)
What It Means in Practice
- Five Schuko outlets in one 19-inch unit for monitors, small switches, chargers or other devices with European plugs.
- Overvoltage protection to DIN EN 61643-11 plus an EMC filter on the strip itself.
- 16 A rated current across the strip at 250 V AC, 50 Hz.
- Solid aluminium duct for permanent installation in racks or machine enclosures.
What Will Not Work
- Cannot be plugged in out of the box — the cable has no plug.
- No IEC C13/C19 outlets for server power supplies.
- No on/off switch, indicator or metering is published.
- Not a UPS: it does not keep equipment running during a power cut.
Key Features
Overvoltage protection
Surge protection according to DIN EN 61643-11 (VDE 0675-6-11).
EMC filter
Interference suppression filter built into the strip.
19-inch mounting
482.6 mm duct with brackets for profile rails or 19-inch frames.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A good choice for racks that mix IT gear with devices on European plugs, especially where surge protection is wanted at the rack. Remember the plug-less cable when planning the install date. For other rack power and mounting parts see rack accessories.
✓ Buy it if you need Schuko outlets with surge protection in a 19-inch rack and have an electrician to connect it.
✕ Skip it if you want plug-and-play, or your equipment uses C13/C19 cords (choose an IEC rack PDU).
→ Also consider an IEC C13 rack PDU for server power supplies.
Not sure how to feed it? Tell us your supply point and we will suggest the right plug or alternative.
Features - Rittal - 7240230
Colour
grey
More Details
Product Code
04:202058
EAN Code
4028177221185
Manufacturer
Rittal
