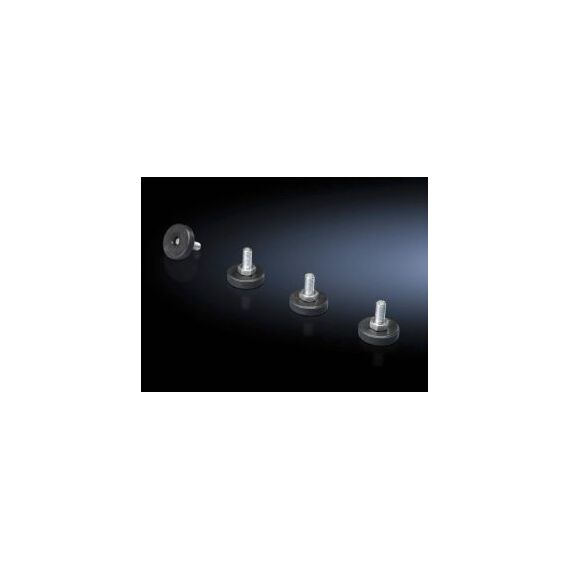

Rittal DK 7507.740 Levelling Feet for FlatBox Enclosures, M10 × 20 mm, Levelling Range 10–20 mm, Black, Pack of 4

The Rittal DK 7507.740 is a pack of four levelling feet for the Rittal FlatBox enclosure, with an M10 × 20 mm thread and a levelling range of 10–20 mm. They screw into the enclosure base and let a FlatBox stand level and steady on an uneven floor or shelf.

Each foot has a black (RAL 9005) plastic pad and is rated by Rittal for a maximum static load of 5,500 N (about 560 kg) per foot, so load capacity is not a concern for a FlatBox. The feet are adjusted with a 17 mm spanner (width across flats 17).

Rittal lists these feet for the FlatBox specifically. Other Rittal systems such as TS 8 or VX25 floor-standing enclosures use different levelling feet, so check your enclosure type before ordering.

• 4 × Rittal levelling feet, M10 × 20 mm, black plastic foot
• Packaging unit: 1 pack of 4

• Screw one foot into each corner of the FlatBox base and adjust each until the enclosure no longer rocks.
• Use a spirit level on the top of the enclosure so doors and panels close without binding.
• Adjust with a 17 mm open-ended spanner; the levelling range is 10–20 mm.
• Do the final levelling with the equipment installed, as the load can settle the feet slightly.

• They do not fit Rittal TS 8, VX25 or other non-FlatBox enclosures.
• They are not castors — the enclosure cannot be rolled on them.
• They do not compensate for height differences larger than the 10–20 mm levelling range.
• They are not anti-vibration mounts.
