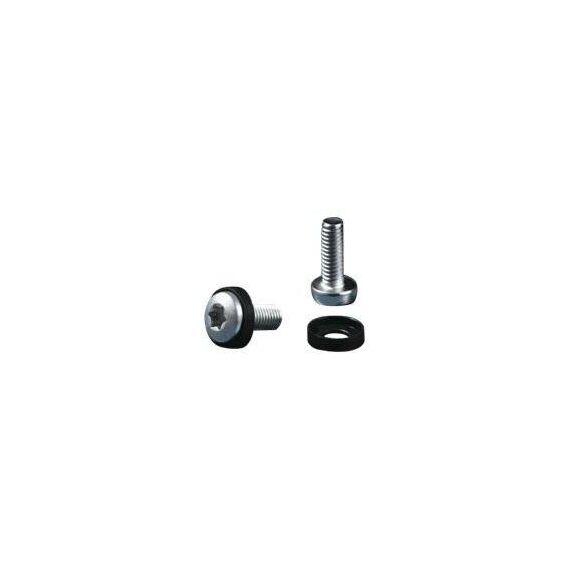

Rittal DK 7094.130 — M5 x 16 mm assembly screws for 19-inch installations
M5 x 16 mmMulti-tooth 2550 pcsPlastic washers
The Rittal DK 7094.130 is a pack of 50 M5 x 16 mm assembly screws with multi-tooth 25 drive and plastic washers, for fixing electronic equipment, 482.6 mm (19-inch) installed components and blanking plates in Rittal racks.
Rittal specifies a maximum tightening torque of 3 Nm, which protects threads and painted surfaces during installation.
Before you order: These are M5 screws. They need M5 threads or M5 cage nuts in the rail — check your rack before ordering, because M6 hardware is not interchangeable. Cage nuts are not included.
What's in the Box
- 50 x M5 x 16 mm assembly screws (multi-tooth 25)
- Plastic washers
What It Means in Practice
- Enough screws for around a dozen devices at four screws each.
- Plastic washers protect device ears and rail finish.
- Multi-tooth drive gives good bit engagement for repeated fitting and removal.
- Tighten to max. 3 Nm as specified by Rittal.
What Will Not Work
- Cage nuts are not included — use the cage nuts or threaded rails of your rack.
- Not for M6 cage nuts or M6-threaded rails — for M6 use Rittal DK 7094.140.
- Not suitable for round-hole or 10-32 (US) threaded rails.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Mixing M5 and M6 hardware is the most common cause of stripped rack threads. Order by the thread already used in your cabinet. Browse our rack accessories for cage nuts, panels and shelves.
✓ Buy it if your rack uses M5 threads or M5 cage nuts and you need Rittal assembly screws.
✕ Skip it if your rack is M6 or US 10-32, or you need cage nuts as well.
→ Also consider Complete M6 sets with cage nuts, such as equip 922492 or Good Connections GC-N0050.
Not sure which thread your rack uses? Send us the rack model and we will check before you order.
Features - Rittal - 7094130
More Details
Product Code
04:217115
EAN Code
4028177663046
Manufacturer
Rittal
