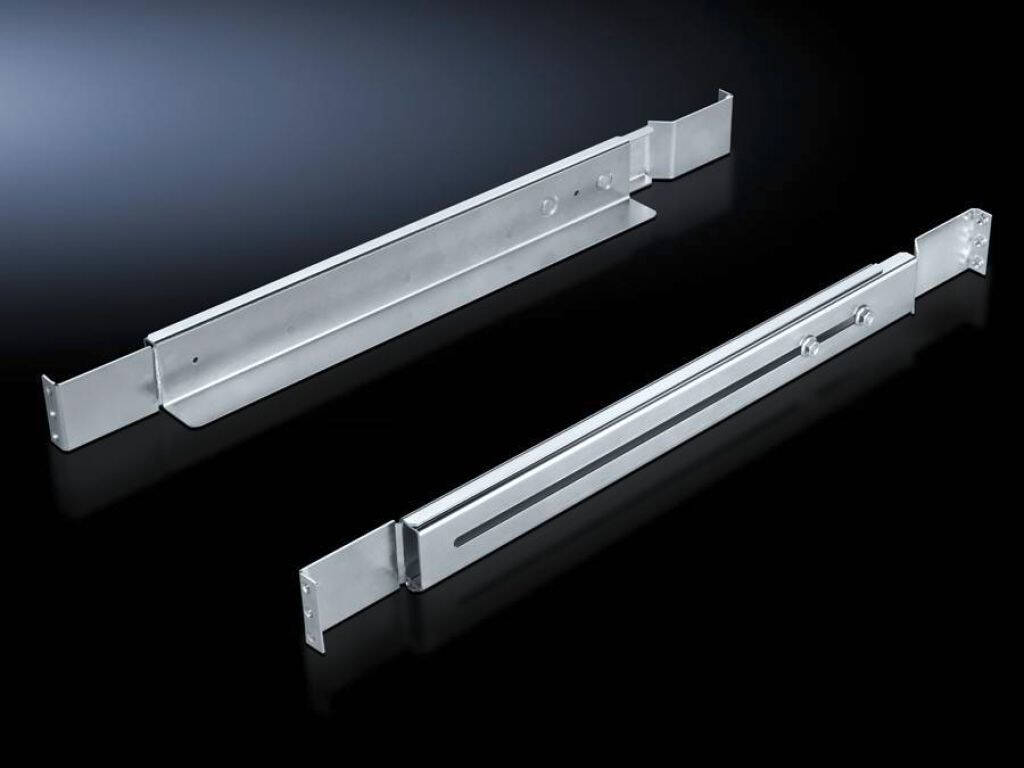

Rittal DK 7063.752 — 1U Depth-Variable Slide Rails, 20 kg, Pack of 2
1U · 19"Levels 550–750 mm apart20 kg static loadPack of 2
The Rittal DK 7063.752 is a pair of 1U depth-variable support rails for server and network enclosures with two 482.6 mm (19") mounting levels, spanning 550 to 750 mm and carrying 20 kg static load — for supporting 1U rackmount equipment at both the front and the rear without losing an extra rack unit.
Each rail has a 30 mm support surface and is made of zinc-plated, passivated sheet steel. Rittal lists them for VX IT and TE enclosures.
Before you order: The rails need front and rear 19" mounting levels 550–750 mm apart. Deeper enclosures with levels further apart need a different Rittal rail variant.
What's in the Box
- 2 × slide rails
- Assembly parts
What It Means in Practice
- The rear of a 1U device is supported, so it does not hang only from its front ears.
- No additional rack unit is lost under the equipment.
- Depth-variable design adapts to the actual spacing of your mounting levels.
- Useful for switches, firewalls and appliances that shipped without rear brackets.
What Will Not Work
- They are not telescopic server slides — the equipment does not extend out of the rack.
- They do not fit 2-post racks.
- They are not rated above 20 kg static load.
- They do not span levels closer than 550 mm or further than 750 mm apart.
Key Features
No U lost
Support rails sit alongside the equipment without using extra height.
Depth-variable
Adjusts for mounting levels 550–750 mm apart.
20 kg static load
Supports typical 1U network and server appliances.
Zinc-plated steel
Sheet steel, zinc-plated and passivated for corrosion resistance.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Rear support rails are a cheap way to take strain off the front ears of 1U devices and keep them level. Check that your mounting levels are 550–750 mm apart. More options are in our rack accessories.
✓ Buy it if you need rear support for 1U equipment up to 20 kg in a Rittal VX IT or TE enclosure.
✕ Skip it if you need pull-out slides or your levels are outside 550–750 mm.
→ Also consider Rittal DK 5501.665 0.5U component shelf for non-rackmount equipment up to 50 kg.
Not sure they fit? Send us your enclosure model and depth and we will check before you order.
Features - Rittal - 7063752
More Details
Product Code
04:211244
EAN Code
4028177625457
Manufacturer
Rittal
